- Ingersoll Rand
- 47572170001 23424922
- Coolant Filter
- USA
- 232.2 × 114.3 × 96.5 mm
- 2.3 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

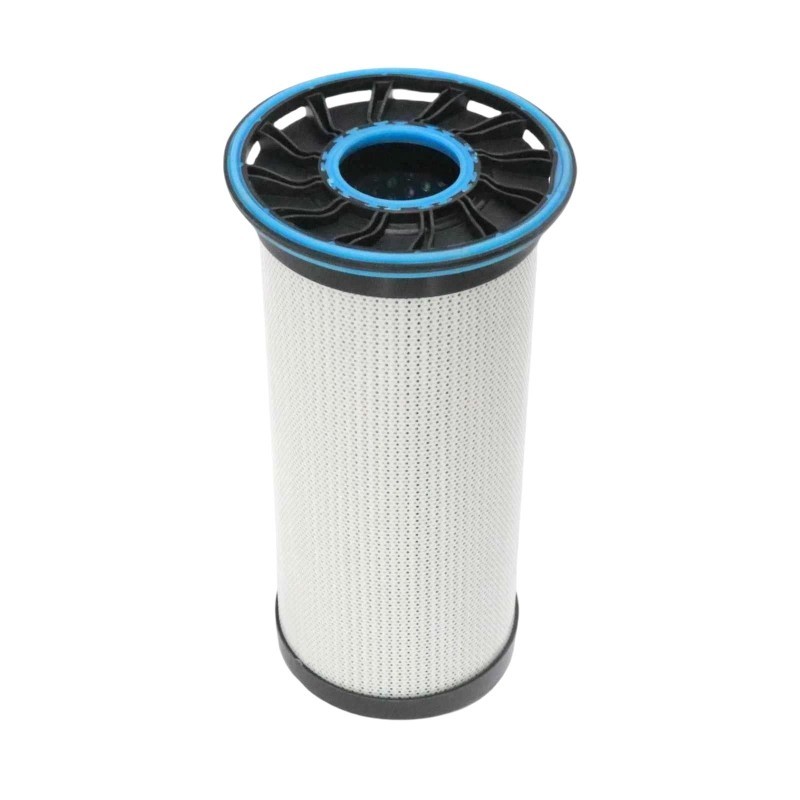

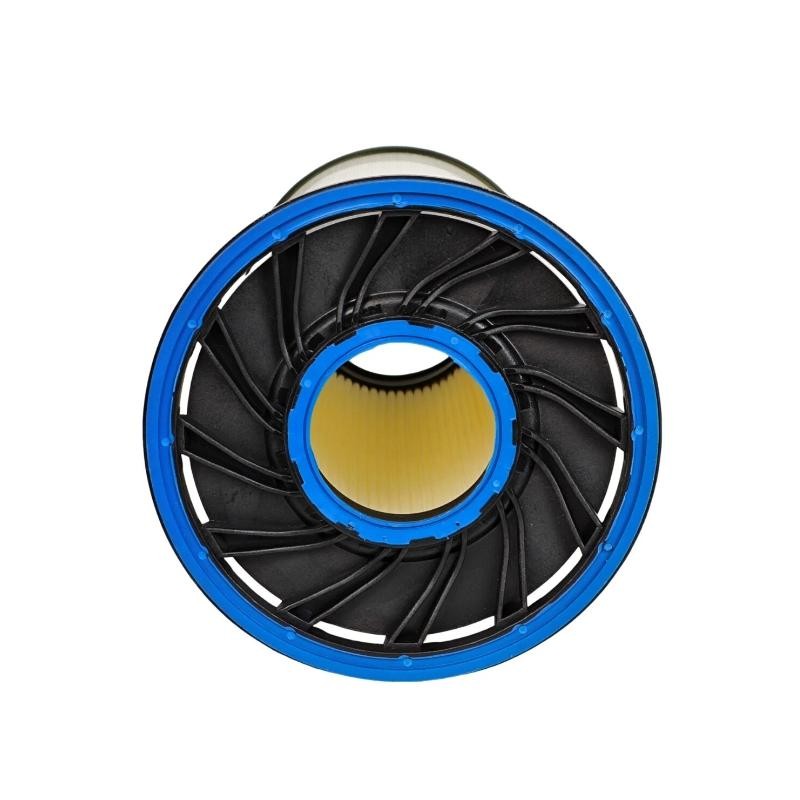

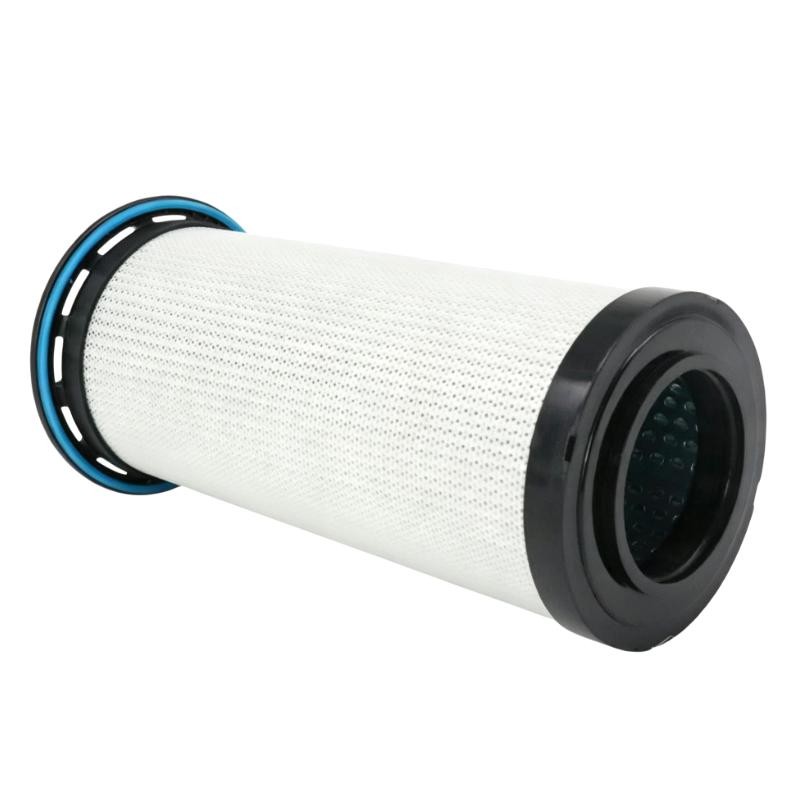

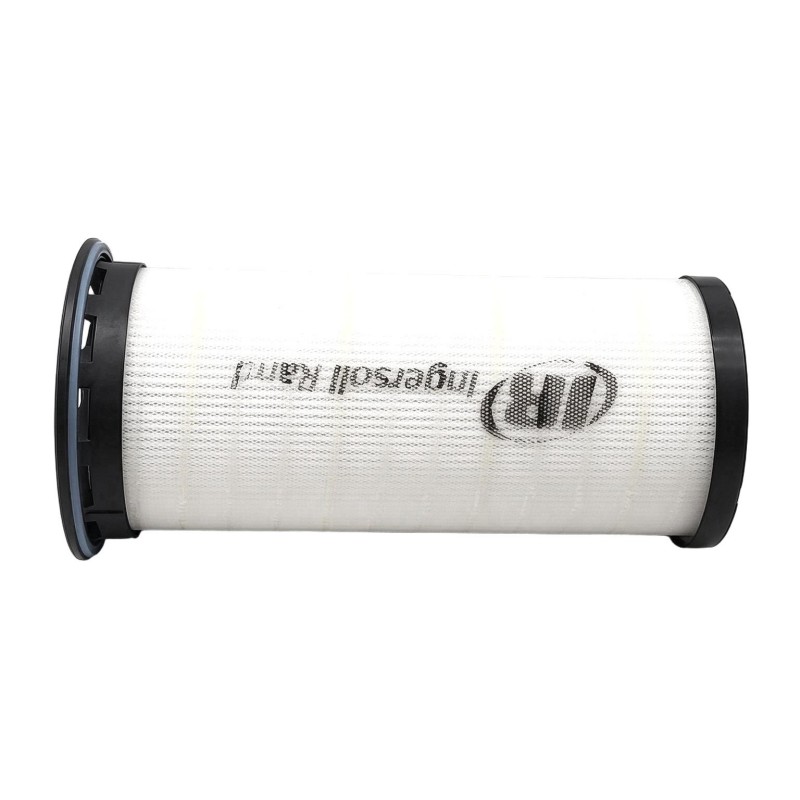

The Ingersoll Rand 47572170001 23424922 Coolant Filter is a replacement filter for compatible Ingersoll Rand compressed-air equipment. Part number 23424922 is listed as a coolant filter element with a coreless spin-on configuration. It is associated with the compressor fluid-filtration system, where the circulating lubricant requires filtration to limit the movement of particulate contaminants.
During compressor operation, lubricant circulates through the system and may collect particles generated by wear or introduced during servicing. The filter media captures contaminants as fluid passes through the element, helping maintain fluid cleanliness and protect downstream components from unnecessary particle exposure.
When ordering a replacement, maintenance teams should confirm the complete part reference and compressor model. Filter dimensions alone do not establish compatibility because the mounting interface, sealing arrangement and filtration characteristics must also match the installed system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model / Part Number | 47572170001 |
| Alternate Part Number | 23424922 |
| Product Type | Coolant Filter |
| Component Description | Coolant Filter Element |
| Filter Configuration | Coreless Spin-On |
| Application | Compatible Ingersoll Rand compressed-air equipment |
| Primary Function | Filtration of circulating compressor fluid |
| Dimensions | 232.2 × 114.3 × 96.5 mm |
| Weight | 2.3 kg |
Product Features
- Fluid filtration: Captures particulate contaminants carried by the circulating compressor fluid.
- Spin-on configuration: Supports replacement through the corresponding filter mounting interface.
- Defined part identification: The 47572170001 and 23424922 references help identify the required service component.
- Maintenance integration: Can be included in planned compressor servicing according to the applicable maintenance schedule.
- Application-specific fit: Correct part-number verification helps prevent installation of an unsuitable filter.
Working Principle
The coolant filter works by directing circulating fluid through a filter element. As the fluid passes through the filter media, particles are retained while the filtered fluid continues through the circuit.
Contaminant accumulation can gradually increase the resistance to fluid flow. If the filter becomes excessively restricted, fluid circulation may be affected, depending on the compressor’s system design and operating conditions. Timely inspection and replacement help maintain the intended filtration function.
The spin-on arrangement relies on the correct mounting interface and sealing surface. During installation, the filter must seat properly to prevent leakage or fluid bypass. A replacement with the wrong connection or sealing arrangement may not provide the expected filtration performance even if its external dimensions appear similar.
Role in a Compressor Fluid Filtration System
The coolant filter is a service component in the compressor’s fluid circuit. It works with the circulation passages and other fluid-system components to help control particulate contamination. Its exact position in the circuit depends on the compressor model and system configuration.
| System Component | Function | Relationship to the Coolant Filter |
|---|---|---|
| Coolant Filter Element | Captures particulate contaminants from circulating fluid | Performs the filtration function |
| Lubricant Reservoir or Sump | Holds the compressor fluid | Supplies fluid to the circulation circuit |
| Fluid Circulation Passages | Carry fluid through the equipment | Route fluid through the specified filtration path |
| Oil Cooler | Transfers heat from circulating lubricant | Helps manage fluid temperature |
| Thermostatic Valve | Regulates fluid routing according to temperature | Controls flow through the relevant circuit |
| Compressor Lubrication Circuit | Delivers fluid to designated components | Depends on suitable fluid condition and circulation |
| Filter Sealing Interface | Forms the seal between filter and mounting point | Helps prevent leakage and unfiltered bypass |
Industrial Applications
| Application | Equipment Context | Role of the Coolant Filter |
|---|---|---|
| Industrial Air Compressors | Compatible Ingersoll Rand compressor systems | Filters circulating fluid as specified by the equipment configuration |
| Manufacturing Facilities | Compressor installations supporting production processes | Supports fluid cleanliness during routine operation |
| Compressed-Air Utility Rooms | Industrial compressor stations | Forms part of scheduled filtration maintenance |
| Preventive Maintenance Programs | Planned filter replacement and fluid-system inspection | Provides an identifiable replacement component |
| Compressor Service and Overhaul | Maintenance involving the fluid circuit | Allows replacement of the filter when required by the service procedure |
Installation and Maintenance
- Verify the part reference: Confirm that 47572170001 or 23424922 matches the required filter for the specific compressor.
- Check the equipment documentation: Review the applicable parts list and maintenance procedure before starting work.
- Isolate the compressor: Stop the equipment and follow the required electrical and mechanical isolation procedure.
- Relieve system pressure: Allow the equipment to depressurize and cool according to the service instructions.
- Prepare a clean work area: Keep dirt and loose material away from the filter mounting point and open fluid connections.
- Inspect the existing filter: Look for leakage, external damage or other signs of abnormal operating conditions.
- Remove the old element carefully: Follow the specified removal procedure and collect any fluid released during removal.
- Clean the mounting surface: Remove residual contamination without allowing debris to enter the fluid circuit.
- Check the seal and interface: Inspect the sealing surface and confirm that the replacement filter has the correct connection and seal arrangement.
- Install the replacement filter: Follow the equipment-specific installation procedure and tightening requirements.
- Check the system after restart: Inspect for leakage and review relevant operating indications once the equipment is returned to service.
- Record the maintenance: Document the installed part number, replacement date and any abnormal conditions found during servicing.
Related Components
| Component | Function | Relationship to the Coolant Filter |
|---|---|---|
| Compressor Lubricant | Lubricates and helps cool designated compressor components | Circulates through the fluid system and filtration path |
| Oil Cooler | Transfers heat from the circulating fluid | Helps manage lubricant operating temperature |
| Thermostatic Valve | Regulates fluid routing based on temperature | Controls flow through the applicable circuit |
| Lubricant Reservoir or Sump | Stores the compressor fluid | Supplies fluid to the circulation system |
| Fluid Lines and Passages | Carry fluid between system components | Connect the filter to the relevant fluid circuit |
| Filter Mounting Interface | Supports the filter connection and sealing surface | Ensures correct installation and fluid containment |
Recommended Related Models
| Model / Part Reference | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Ingersoll Rand 47572170001 | Coolant Filter | Primary requested part reference | Verify against the equipment parts list |
| Ingersoll Rand 23424922 | Coolant Filter Element | Associated reference for the filter element | Confirm the full part number and compressor application |
| Ingersoll Rand R90 Series | Rotary Screw Air Compressor | Example of a compressor family appearing in third-party cross-reference listings for 23424922 | Check the specific model and serial number before ordering |
| Ingersoll Rand R110 Series | Rotary Screw Air Compressor | Example of a compressor family appearing in third-party cross-reference listings for 23424922 | Verify the installed equipment configuration and required filter |
Key Advantages
- Supports filtration of circulating fluid in compatible compressor systems.
- Helps limit the movement of particulate contaminants through the fluid circuit.
- Provides identifiable part references for maintenance and procurement.
- Supports planned filter replacement and maintenance recordkeeping.
- Helps maintain the intended filtration arrangement when the correct element is installed.
Technical FAQs
What type of filter is Ingersoll Rand 23424922?
It is listed as a coolant filter element with a coreless spin-on configuration for compatible compressed-air equipment. The exact installation requirements should be checked against the compressor’s parts documentation.
Does the coolant filter remove water from the compressor fluid?
Its primary role is particulate filtration. The part description alone does not establish that it is a dedicated water-separation element, so it should not be treated as a substitute for a specified moisture separator.
Can a filter with similar dimensions replace 23424922?
Not necessarily. The mounting thread or connection, sealing arrangement, flow characteristics and filtration specification must also be suitable for the equipment. Confirm compatibility using the compressor’s part reference and configuration.
What should be checked if fluid leakage occurs after filter replacement?
Check whether the filter is correctly seated, whether the sealing surface is clean and undamaged, and whether the seal and mounting interface are correct. Follow the equipment’s shutdown and depressurization procedure before inspecting or refitting the filter.
