1. Product Overview

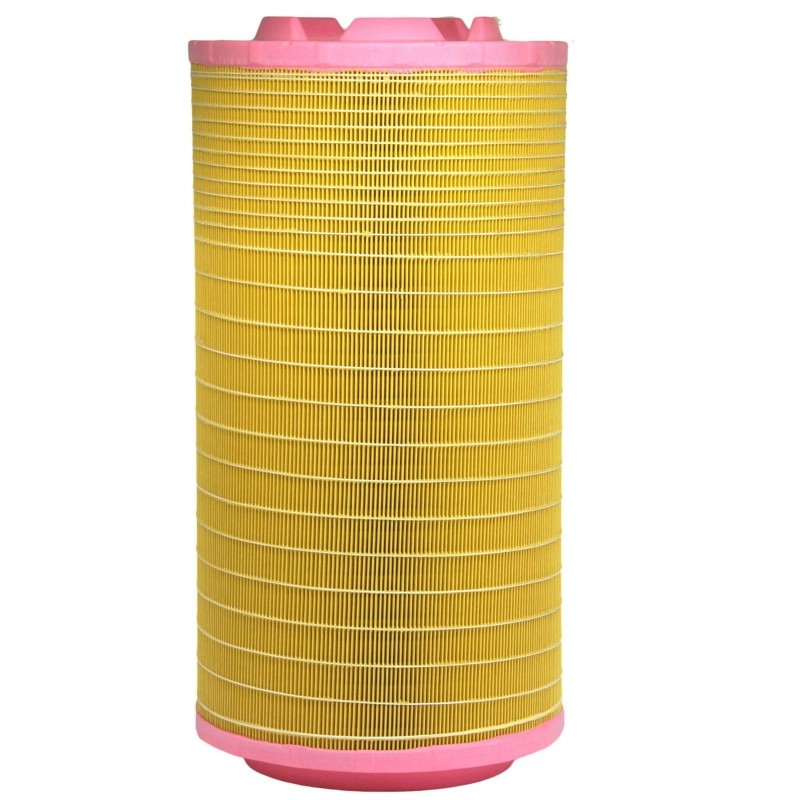

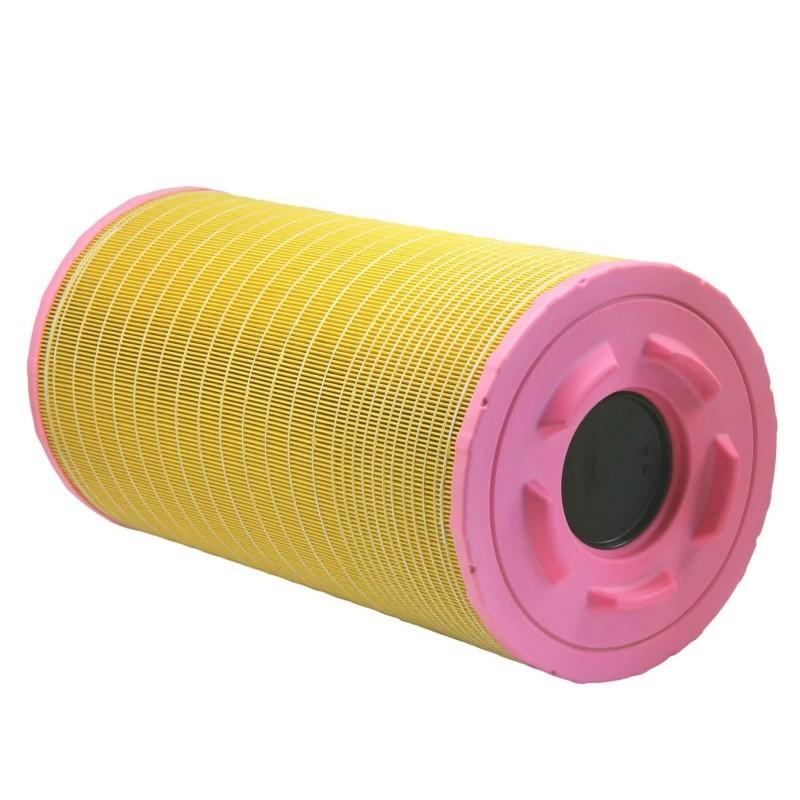

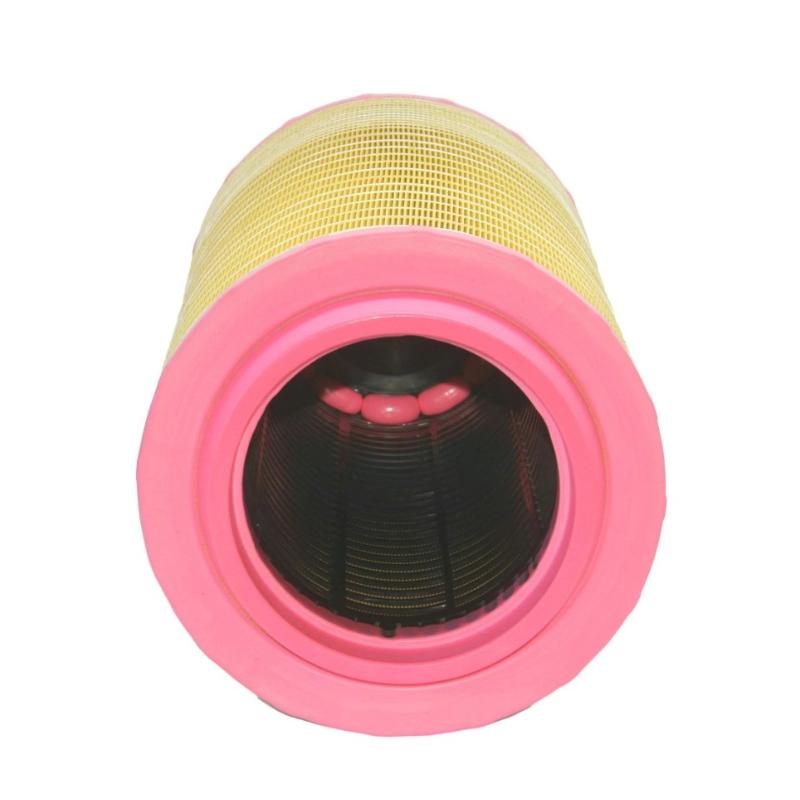

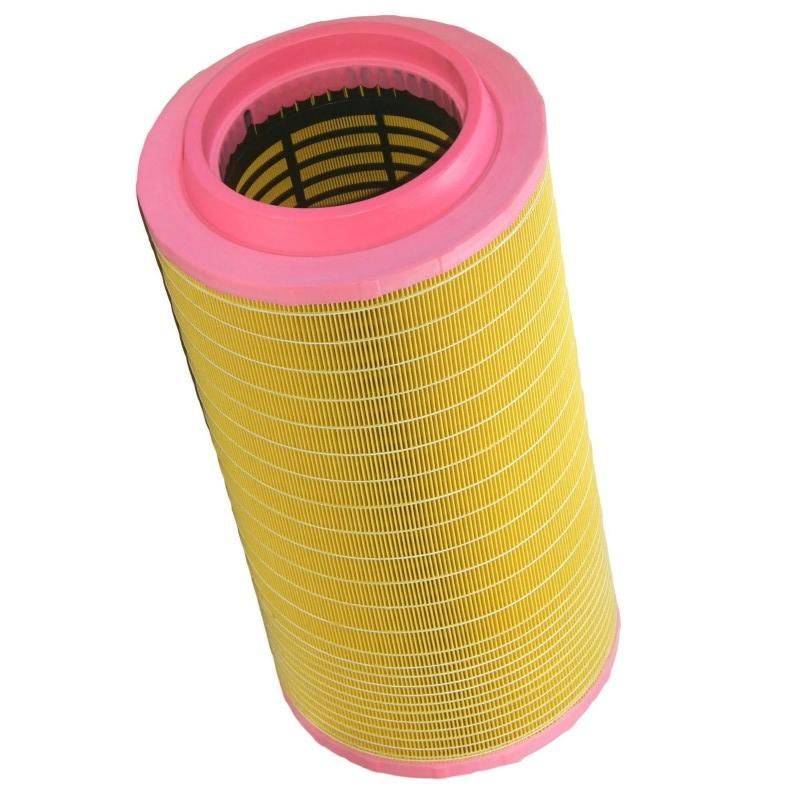

The Ingersoll Rand 23429822 Air Filter is an industrial compressor filtration component designed to help remove airborne particles before they enter compatible compressor equipment. Effective air filtration is important for protecting internal components from dust, dirt, and other contaminants that may contribute to wear, reduced performance, or increased maintenance requirements.

Identified by part number 23429822 and associated product reference 47556186001, this air filter is intended for applications where the specified filtration component is required. By helping control the amount of airborne contamination entering the compressor, the filter supports equipment reliability and helps maintain the intended operating conditions of the air intake system.

The supplied outer diameter is 267 mm, and the listed weight is 3.6 kg. These specifications are useful for product identification, warehouse inventory, replacement planning, and preliminary dimensional checks.

Before purchasing or installing the filter, verify the complete part number against the compressor model and existing filter assembly. The filtration efficiency, filter media, pressure-drop characteristics, and replacement interval should be confirmed from the applicable equipment documentation.

2. Technical Specifications

The outer diameter and weight listed above are the supplied product specifications. Other technical characteristics should be confirmed before the filter is selected for a particular installation.

3. Function and Working Principle

An air filter helps protect compressor equipment by capturing airborne contaminants as intake air passes through the filter media. Dust and other particles can enter an industrial environment through normal operations, vehicle movement, material handling, and ventilation systems. Without suitable filtration, these contaminants may accumulate within the compressor or contribute to wear and fouling.

The Ingersoll Rand 23429822 air filter is intended to perform this filtration function in a compatible intake assembly. The precise filtration mechanism and performance depend on the design of the filter media and the requirements of the equipment for which it is specified.

3.1 Airborne Contaminant Capture

The filter media retains particles carried by incoming air. This helps reduce the amount of dust and other contaminants entering the compressor.

3.2 Protection of Internal Components

Contamination can contribute to wear, deposits, or fouling in compressor components. Appropriate intake filtration helps reduce exposure to airborne particles and supports the maintenance of internal equipment.

3.3 Airflow Management

A filter must provide the required filtration performance while maintaining airflow within the compressor’s specified operating limits. As particles accumulate, resistance to airflow may increase, making periodic inspection and replacement important.

3.4 Support for Compressor Reliability

Maintaining a clean intake filter helps support normal compressor operation. However, overall performance also depends on the condition of the intake system, cooling equipment, lubrication system, and other components.

4. Role in Industrial Compressor Systems

Air filtration is an important part of industrial compressor maintenance. The intake filter helps control contamination entering the machine and contributes to the reliability of the wider compressed-air system.

Contamination Control

Industrial environments may contain dust, fibers, and other airborne particles. The correct filter helps reduce the amount of contamination drawn into the compressor.

Protection Against Premature Wear

Airborne contaminants can affect internal surfaces and may contribute to equipment deterioration. Suitable filtration supports the compressor’s designed operating conditions and maintenance strategy.

Support for Operational Efficiency

An excessively restricted filter can increase intake resistance and affect compressor performance. Replacing the element according to the recommended schedule helps maintain the intended airflow conditions.

Reduced Maintenance Risks

Correct filter selection and timely replacement can reduce the likelihood of contamination-related problems. Filter inspection also provides an opportunity to identify unusual dust accumulation or environmental conditions that may require attention.

Support for Equipment Availability

Industrial compressors often provide essential plant utilities. Maintaining the intake filtration system helps reduce avoidable interruptions associated with neglected or incorrectly installed filters.

5. Industrial Applications

The Ingersoll Rand 23429822 air filter may be suitable for industrial environments where the corresponding compressor model specifies this component.

5.1 Manufacturing Facilities

Manufacturing plants use compressed air for pneumatic tools, automated machinery, production equipment, and material handling. Proper intake filtration helps protect compatible compressors operating in these environments.

5.2 Automotive and Machinery Production

Automotive assembly lines and machinery plants often rely on compressed air for actuators, assembly tools, and production support systems. Maintaining the air intake filter helps control airborne contamination entering the compressor.

5.3 Packaging Operations

Packaging machinery may use compressed air for product handling, pneumatic controls, and automated equipment. Compressor filtration maintenance helps support reliable utility-air production.

5.4 Industrial Workshops

Workshops and maintenance facilities may experience elevated levels of dust and airborne debris from machining, grinding, handling, and vehicle movement. Appropriate filtration is important for equipment operating in these conditions.

5.5 Processing and Utility Facilities

Industrial processing plants may depend on compressors for general utility services and equipment operation. The required filtration arrangement depends on the compressor design and the facility’s air-quality requirements.

These are general application environments for industrial compressor air filtration. They do not establish compatibility between the 23429822 filter and every compressor used in these industries.

6. Installation and System Integration

The filter should be installed by qualified personnel in accordance with the service procedure for the specific compressor. The following steps provide general guidance and should not replace the manufacturer’s installation instructions.

Step 1: Verify the Part Number

Confirm that the replacement is identified as 23429822 and check the associated reference 47556186001 against the equipment parts list. Verify that the filter is intended for the installed compressor and intake housing.

Step 2: Shut Down the Compressor

Stop the compressor and isolate relevant energy sources according to the site’s safety procedures. Allow the equipment to reach a safe condition before opening the intake filter housing.

Step 3: Locate the Air Intake Assembly

Identify the correct filter housing using the compressor documentation. Check the existing filter’s identification and installation arrangement before removing it.

Step 4: Remove the Existing Filter

Open the housing according to the approved procedure. Remove the used filter carefully to prevent accumulated dust from entering the intake passage or other clean areas.

Step 5: Inspect the Housing

Check the housing for dust accumulation, damaged sealing surfaces, loose fittings, or signs of deformation. Clean the housing using an approved method that prevents contaminants from entering the compressor intake.

Step 6: Inspect the Replacement Filter

Check the new filter for visible damage, contamination, or deformation. Confirm the part number and outer diameter, and verify that the filter matches the required assembly.

Step 7: Install the Filter

Fit the filter in the specified orientation and ensure that the sealing arrangement is correctly positioned. Do not force the element into the housing or modify the filter to achieve a fit.

Step 8: Reassemble the Housing

Secure the housing and associated connections according to the applicable procedure. Check that the cover and seals are correctly seated and that the intake assembly is properly closed.

Step 9: Restore Operation

Restore the compressor to service according to the approved startup procedure. Check for abnormal intake noise, warning indications, or other symptoms that may suggest an installation problem.

Step 10: Record the Maintenance

Record the part number, replacement date, operating hours where applicable, and any unusual contamination found during inspection. These records can support future maintenance planning.

7. Troubleshooting Common Problems

Air intake problems may result from a loaded filter, incorrect installation, damaged seals, unsuitable replacement parts, or issues elsewhere in the intake system.

7.1 Inspect the Filter Condition

Check for excessive dust loading, visible damage, deformation, or other signs that the filter may no longer be suitable for service. Follow the equipment’s specified inspection and replacement criteria.

7.2 Check the Intake Path

Inspect accessible intake passages and housing connections for obstructions. Ensure that external covers, ducts, and related components are correctly installed.

7.3 Verify Sealing

Incorrect seating can allow unfiltered air to bypass the filter media. Check the sealing surfaces and filter position according to the approved procedure.

7.4 Review Environmental Conditions

High levels of airborne dust can shorten filter service life. If the filter repeatedly becomes restricted, evaluate the installation environment and whether the prescribed maintenance interval remains appropriate.

7.5 Investigate Persistent Performance Problems

If performance does not improve after replacing the filter, do not assume the filter is the only cause. Review compressor diagnostics and inspect other relevant systems according to the service documentation.

8. Preventive Maintenance and Reliability

A structured maintenance program helps preserve the performance of the air intake filtration system.

• Follow the prescribed service interval: Replace the filter according to the compressor manufacturer’s recommendations and operating conditions.
• Inspect the housing: Check for dust accumulation, damage, and poor sealing during scheduled maintenance.
• Maintain clean installation practices: Prevent debris from entering the intake passage while servicing the filter.
• Monitor restriction indicators: Review relevant alarms or measurements where the compressor provides them.
• Assess the operating environment: Consider dust levels and other airborne contaminants when planning maintenance.
• Use the correct replacement: Confirm the part number and required filtration characteristics before installation.
• Store spare filters correctly: Keep new elements protected from moisture, dust, crushing, and other damage.
• Document filter changes: Record replacement dates and observations about filter condition.
• Investigate abnormal loading: Repeated premature restriction may indicate environmental or equipment-related problems.

The correct replacement interval depends on the compressor model, intake conditions, operating hours, and applicable maintenance recommendations.

9. Compatible System Components

The following component categories may be relevant when replacing the 23429822 air filter. This list identifies items to check and does not confirm compatibility with specific part numbers.

Compatibility must be established using the complete equipment model and applicable parts documentation. A similar outer diameter or product description alone does not establish interchangeability.

10. Replacement and Alternative Selection

When selecting a replacement air filter, prioritize the correct equipment application and verified filtration characteristics.

A substitute should be used only when its dimensions, filtration performance, airflow characteristics, sealing arrangement, and operating suitability are confirmed for the intended compressor. Physical fit alone is not sufficient evidence of equivalence.

11. Key Benefits of Correct Air Filter Selection

Selecting the correct air filter supports compressor maintenance and helps preserve the intended intake conditions.

Airborne contamination control: The filter helps capture dust and other particles before they enter the compressor.

Support for internal component protection: Appropriate intake filtration helps reduce exposure to airborne contaminants that may contribute to wear or deposits.

Airflow maintenance: Replacing a restricted filter according to the service schedule helps maintain the intended intake conditions.

Efficient spare-parts management: The part number, outer diameter, and weight support identification, storage, and procurement planning.

Reduced installation risk: Verifying compatibility before installation helps prevent problems caused by unsuitable filter elements.

Improved maintenance planning: Documented inspections and replacements make it easier to monitor filter loading and identify recurring contamination issues.

Actual benefits depend on correct selection, proper installation, the operating environment, and the condition of the overall compressor system.

12. Technical FAQs

Q1: What is the Ingersoll Rand 23429822?

The 23429822 is identified as an Ingersoll Rand air filter intended for compatible industrial compressor equipment. Its exact application should be verified against the equipment parts list.

Q2: What is the associated product reference?

The supplied associated reference is 47556186001. Confirm the relationship between both numbers before ordering or replacing the filter.

Q3: What is the outer diameter of the 23429822 air filter?

The supplied outer diameter is 267 mm.

Q4: How much does the filter weigh?

The supplied product weight is 3.6 kg.

Q5: Why is an air filter important in a compressor?

It helps capture airborne contaminants before they enter the compressor. Appropriate filtration supports internal component protection and helps reduce contamination-related maintenance risks.

Q6: How often should the air filter be replaced?

The replacement interval depends on the compressor model, operating hours, environmental conditions, and manufacturer recommendations. Follow the applicable service schedule rather than relying on a universal interval.

Q7: Can this filter fit every Ingersoll Rand compressor?

No. Compatibility depends on the specific compressor and filter housing. Confirm the complete part number and required filtration characteristics before installation.

Q8: What should be checked before installing a replacement?

Verify the part number, outer diameter, housing compatibility, filter condition, and sealing arrangement. Follow the approved installation procedure to prevent contamination from entering the intake system.

Q9: What causes an air filter to become restricted quickly?

High airborne dust levels, unsuitable filter selection, an inadequate maintenance interval, or abnormal operating conditions may contribute. Investigate the cause instead of repeatedly replacing the element without assessment.

Q10: Can a filter with the same diameter be used as an alternative?

Not necessarily. Filtration performance, airflow characteristics, sealing arrangement, and equipment compatibility must also be confirmed.

13. Conclusion

The Ingersoll Rand 23429822 Air Filter, associated with reference 47556186001, is an industrial compressor filtration component intended to help control airborne contamination in compatible equipment. Its supplied outer diameter of 267 mm and weight of 3.6 kg provide useful information for product identification, spare-parts inventory, and maintenance planning.

For reliable operation, confirm the filter’s compatibility with the specific compressor, maintain clean installation practices, and follow the recommended replacement schedule. Regular inspection of the intake housing, monitoring of restriction indications, and investigation of unusually rapid filter loading can help support compressor reliability and reduce avoidable downtime.
