Product Overview

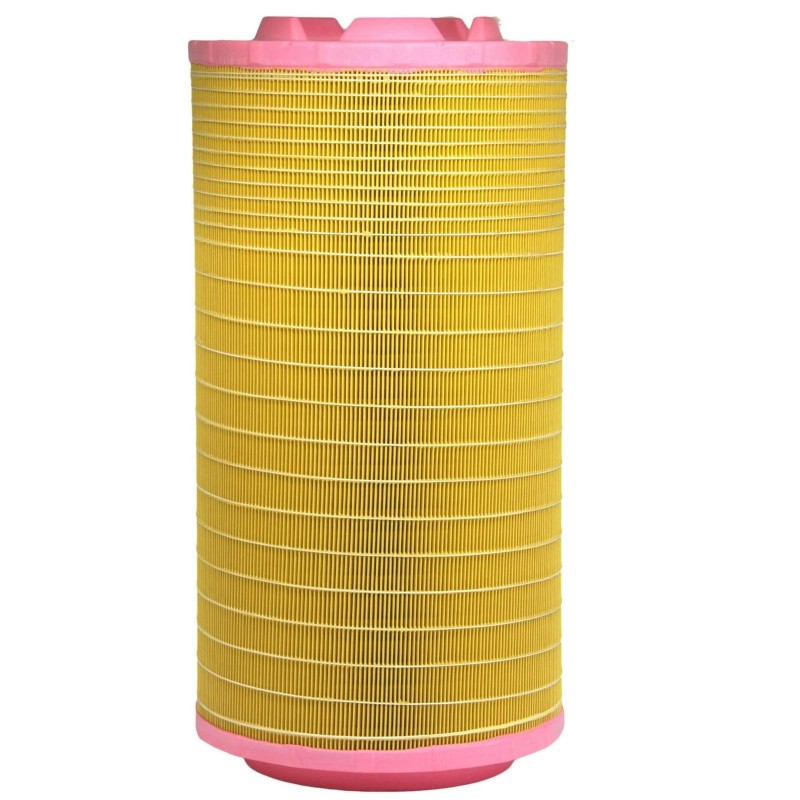

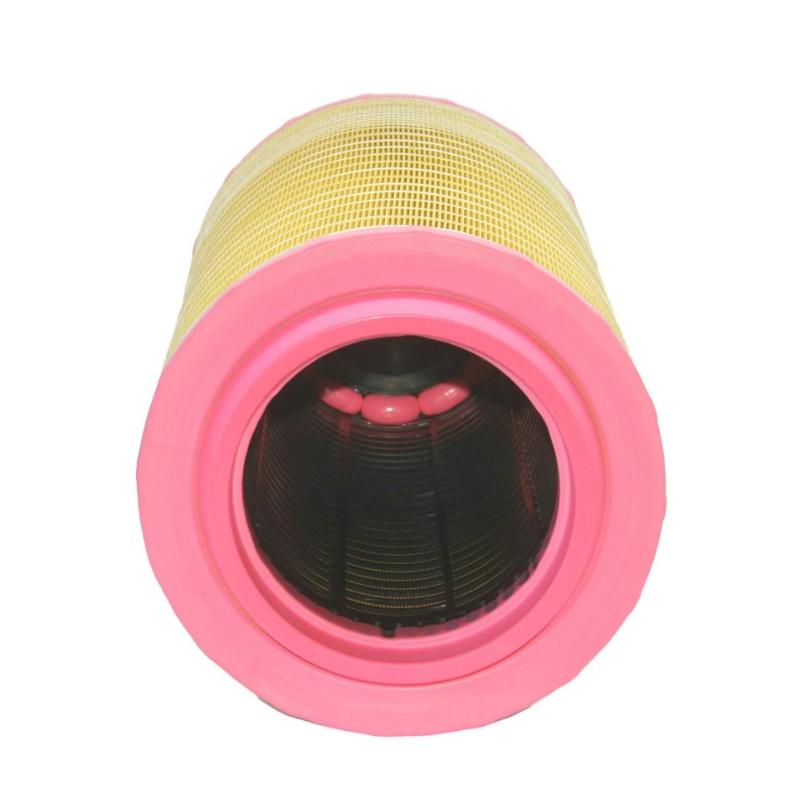

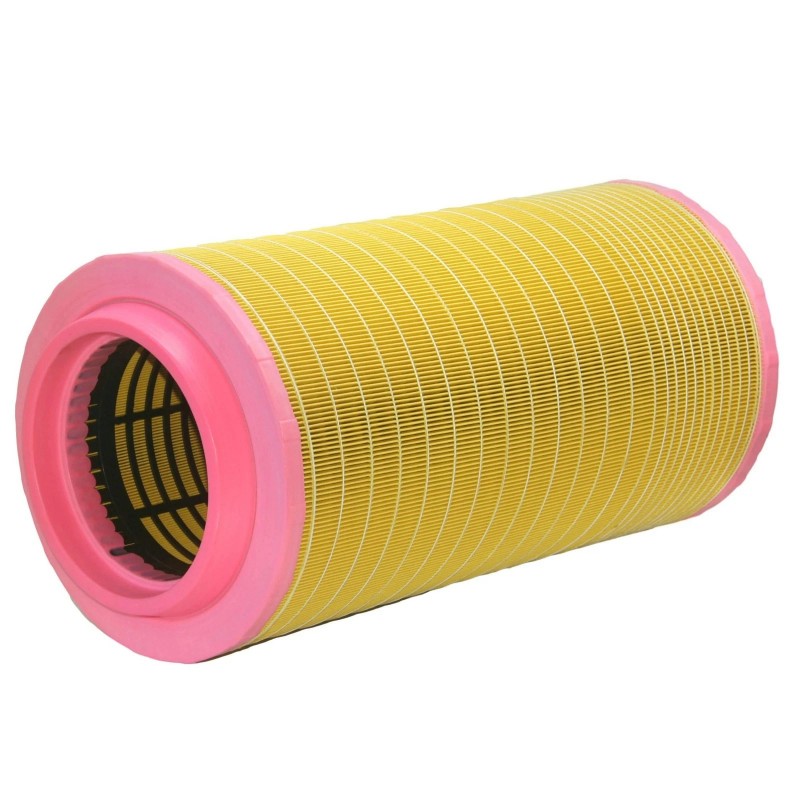

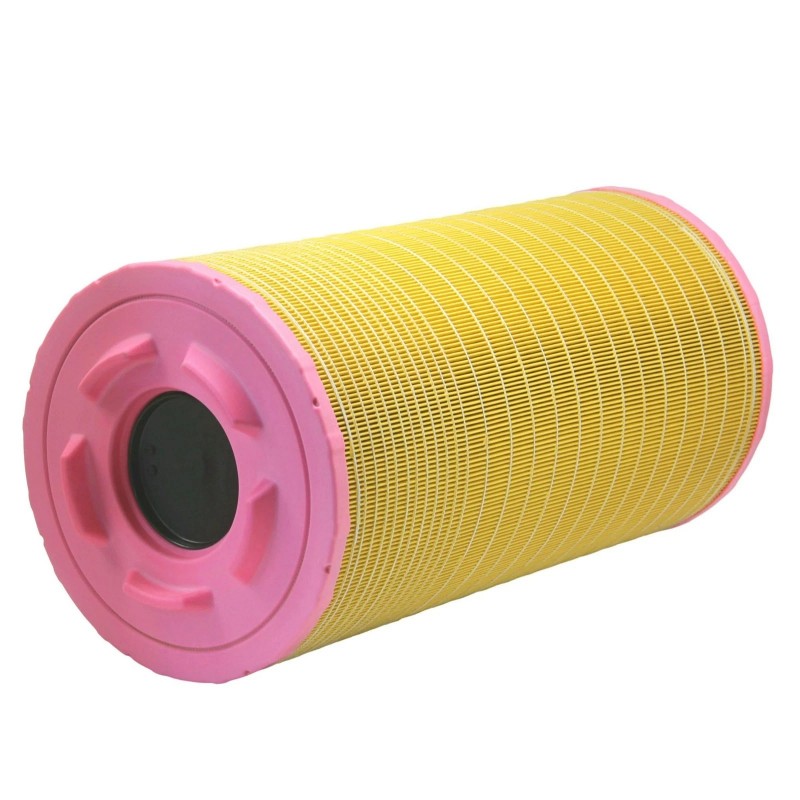

The Ingersoll Rand 47555204001 23429822 Air Filter is an intake filtration component for compatible rotary screw air compressors. It removes airborne dust, dirt, and other particulate contaminants before they enter the compressor’s air end. Maintaining clean intake air helps protect internal compression components, preserve airflow, and reduce the risk of premature wear caused by abrasive particles.
In a rotary screw compressor, incoming air passes through the intake filter before reaching the compression chamber. The filter media captures contaminants while allowing air to flow toward the screw elements. As the compressor operates, the element gradually accumulates dust, and its resistance to airflow can increase. Regular inspection and replacement help maintain the intended intake conditions.
The 23429822 reference is associated with selected Ingersoll Rand R90 and R110 compressor configurations, including certain versions identified by model and serial number. The 47555204001 reference should be checked alongside the compressor identification and installed filter assembly to confirm that the replacement matches the equipment.
An intake filter affects more than the cleanliness of incoming air. A restricted element can reduce the available intake flow and increase the pressure difference across the filter. Depending on the compressor’s control arrangement and operating conditions, this may affect air delivery and operating efficiency. A damaged or incorrectly seated element can allow contaminants to bypass the filter and reach the air end.
For example, a compressor operating in a metalworking plant may draw air containing fine dust from machining and material-handling activities. The intake filter helps prevent these particles from entering the screw compression stage, where contamination can contribute to wear and interfere with normal equipment operation.
When replacing the 23429822 element, technicians should inspect the filter housing, sealing surfaces, and intake ducting as well as the filter itself. A correctly matched replacement cannot compensate for a damaged seal, a distorted housing, or an intake connection that allows unfiltered air to enter the compressor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model Reference | 47555204001 |
| Part Number | 23429822 |
| Product Type | Air Filter |
| Product Category | Rotary Screw Air Compressor Spare Part |
| Filter Application | Compressor intake air filtration |
| Primary Function | Removes airborne particulate contaminants from incoming air |
| Filtration Stage | Upstream of the screw air end |
| Filter Construction | Cylindrical intake filter element |
| Associated Compressor Range | Selected R90 and R110 configurations, subject to model and serial-number verification |
| Installation Location | Compressor air intake housing |
| Maintenance Purpose | Replacement of a contaminated or restricted intake filter element |
| Outer Diameter | 267 mm |
| Weight | 3.6 kg |
Product Features
- Intake air filtration: Captures airborne dust and particulate contaminants before they enter the compressor air end.
- Air-end protection: Helps reduce contamination-related wear on internal compression components.
- Controlled airflow: Allows intake air to pass through the filter media while retaining captured particles.
- Maintenance replacement: Supports routine filter renewal when contamination or airflow restriction reaches the applicable service limit.
- Housing compatibility: Requires a suitable fit within the designated intake filter assembly.
- Sealing interface: Helps maintain filtration performance when correctly installed with the appropriate seals.
- Compressor-specific identification: Uses part number 23429822 to distinguish the element from other Ingersoll Rand intake filters.
- Intake system cleanliness: Helps reduce the amount of dust entering the compressor and associated internal circuits.
- Condition-based servicing: Can be inspected alongside intake restriction readings and the compressor’s maintenance schedule.
- System-level protection: Supports compressor operation when combined with proper housing maintenance and correctly sealed intake connections.
Working Principle
The 23429822 air filter operates by passing incoming air through a porous filtration medium that retains particulate contaminants. The filter is installed upstream of the screw air end, where it forms the first filtration barrier against dust and other airborne debris entering the compression process.
Ambient Air → Intake Filter Element → Inlet Valve → Screw Air End → Oil Separation Circuit → Compressed Air System
As air passes through the filter media, particles are captured within or on the surface of the material. Cleaned air continues toward the compressor inlet, while accumulated contaminants remain in the element until it is cleaned or replaced according to the applicable maintenance procedure.
The filter’s resistance to airflow changes as dust accumulates. A clean element generally presents less resistance than a heavily loaded one. When restriction becomes excessive, the compressor may experience reduced intake capacity or increased operating losses, depending on the equipment’s control system and operating conditions.
The filtration process also depends on the integrity of the complete intake assembly. If the element is incorrectly seated, the housing seal is damaged, or an intake connection leaks downstream of the filter, unfiltered air may enter the air end. This bypass contamination can undermine the protection provided by the filter media itself.
The 23429822 element should therefore be selected and installed according to the compressor’s specified configuration. Filter dimensions alone are not sufficient to establish compatibility because sealing geometry, media characteristics, airflow requirements, and housing design also affect suitability.
During maintenance, the technician should examine the removed element for uneven dust loading, damage, deformation, or signs of moisture contamination. The housing and intake ducting should also be inspected before a new element is fitted. After installation, the filter must seat correctly and the intake assembly must be closed securely to prevent bypass leakage.
Role in an Ingersoll Rand Compressor Intake System
The 23429822 air filter is positioned at the beginning of the compressor’s airflow path. Its function is to reduce particulate contamination before air reaches the inlet valve and screw compression elements.
Ambient Air → 23429822 Air Filter → Compressor Inlet → Rotary Screw Air End → Oil Separator → Minimum Pressure Valve → Aftercooler
| System Component | Function |
|---|---|
| Ingersoll Rand 23429822 | Filters airborne particles from incoming compressor air |
| Intake Filter Housing | Supports the filter and directs air through the filtration element |
| Intake Seal | Helps prevent unfiltered air from bypassing the filter |
| Inlet Valve | Regulates the entry of air into the compressor |
| Rotary Screw Air End | Compresses incoming air and produces an air-oil mixture |
| Compressor Lubricating Oil | Lubricates moving components, helps seal compression chambers, and removes heat |
| Oil Separator Element | Removes entrained oil from the compressed air stream |
| Minimum Pressure Valve | Regulates discharge flow according to internal pressure conditions |
| Aftercooler | Reduces compressed air temperature before downstream distribution |
| Intake Restriction Indicator | Helps identify increasing resistance where fitted |
| Compressor Controller | Coordinates compressor operation and monitors available operating signals |
| Downstream Air Network | Distributes compressed air to production equipment |
Industrial Applications
| Application | Typical Use |
|---|---|
| Automotive Manufacturing | Filtering intake air for compressors supplying pneumatic production equipment |
| Metalworking Facilities | Reducing dust entry into compressors operating near machining and material-handling areas |
| General Manufacturing | Protecting screw air ends in central compressed air installations |
| Packaging Lines | Maintaining intake filtration for compressors supplying automated machinery |
| Plastics Processing | Supporting compressor maintenance in production environments with airborne particulates |
| Textile Manufacturing | Filtering intake air in compressed air systems serving production equipment |
| Industrial Assembly | Maintaining clean compressor intake conditions during routine servicing |
| Warehousing and Logistics | Supporting compressed air equipment used for maintenance and material handling |
| Industrial Utility Rooms | Replacing contaminated intake elements during preventive maintenance |
| Continuous-Operation Plants | Monitoring intake restriction and maintaining filtration during extended operating cycles |
Installation and Maintenance
- Verify the part reference: Confirm 47555204001 and 23429822 against the compressor model, serial number, and installed intake filter assembly.
- Review filter condition: Check available restriction indications, operating history, and visible contamination before deciding whether the element requires replacement.
- Isolate the compressor: Stop the equipment and follow the applicable site safety procedure before opening the intake housing.
- Document the original arrangement: Record the element orientation, sealing arrangement, and housing configuration before removing the existing filter.
- Remove the used element carefully: Avoid dislodging accumulated dust into the clean side of the housing or the downstream intake duct.
- Inspect the filter housing: Check for dust accumulation, damaged surfaces, corrosion, and other conditions that could interfere with proper installation.
- Examine the sealing surfaces: Confirm that the seals and mating surfaces are intact and free from contamination that could permit unfiltered air to bypass the element.
- Check the replacement element: Confirm the part number and inspect the media and sealing areas for transport damage or deformation before fitting.
- Install the element correctly: Seat the filter according to the applicable service instructions and ensure that the sealing interface is positioned as intended.
- Secure the intake assembly: Refit the housing cover and associated connections, ensuring that the assembly is closed correctly and that no intake gaps remain.
- Check operation after servicing: Where the compressor procedure permits, inspect the intake assembly for abnormal noise, leakage, or restriction indications after restarting the equipment.
- Record maintenance findings: Document the replacement part, operating hours, observed contamination, restriction readings where available, and any housing or sealing defects identified.
Related Components
| Component | Function |
|---|---|
| Ingersoll Rand 23429822 | Intake air filter element for compatible compressor configurations |
| Intake Filter Housing | Holds the filter and directs incoming air through the element |
| Intake Seal | Prevents unfiltered air from bypassing the filter |
| Inlet Valve Assembly | Controls air entry into the screw air end |
| Rotary Screw Air End | Compresses the filtered intake air |
| Oil Separator Element | Removes oil from the compressed air stream |
| Minimum Pressure Valve | Regulates discharge flow and helps maintain internal pressure |
| Compressor Oil Filter | Removes contaminants from circulating lubricant |
| Intake Restriction Indicator | Provides an indication of filter loading where fitted |
| Compressor Controller | Coordinates operating modes and monitors available system signals |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 23429822 | Air Filter | Replacement intake filter for compatible compressor configurations |
| Ingersoll Rand 23429822 Replacement Elements | Cylindrical Intake Air Filter | Filter replacement where the specified part reference matches |
| Ingersoll Rand R90 Series | Rotary Screw Air Compressor | Intake filter maintenance on compatible model and serial-number ranges |
| Ingersoll Rand R110 Series | Rotary Screw Air Compressor | Intake filter replacement where the installed configuration specifies 23429822 |
| Ingersoll Rand 23429822 Cross-Reference Elements | Replacement Air Filter | Alternative elements requiring dimensional and application verification |
| Ingersoll Rand Oil Separator Element | Compressor Air/Oil Separation Component | Removing entrained oil after compression |
| Ingersoll Rand Oil Filter Element | Compressor Oil Filtration Component | Filtering circulating compressor lubricant |
| Ingersoll Rand Minimum Pressure Valve | Compressor Pressure-Control Component | Regulating discharge flow from the separator vessel |
Key Advantages
- Helps prevent airborne particulate contaminants from entering the compressor air end.
- Supports the protection of internal screw elements against contamination-related wear.
- Helps maintain intake airflow when the filter is serviced within the applicable limits.
- Supports compressor maintenance through a clearly identified replacement part.
- Helps reduce the risk of unfiltered air bypass when correctly seated in the intake housing.
- Supports consistent filtration as part of a broader compressor maintenance program.
Technical FAQs
Which compressor configurations use the 23429822 air filter?
The part is associated with selected Ingersoll Rand R90 and R110 configurations, including specific model and serial-number ranges. Confirm the compressor identification and installed filter assembly before selecting the replacement.
How does intake filter restriction affect a rotary screw compressor?
As dust accumulates, airflow resistance can increase. Excessive restriction may reduce available intake flow or increase operating losses, depending on the compressor’s control arrangement. Filter condition should be evaluated using the applicable service limits and restriction indications where fitted.
Can a new air filter solve excessive dust contamination inside the compressor?
Not necessarily. Contamination may result from an incorrectly seated filter, damaged housing seals, leaking intake connections, or maintenance practices that allow dust to enter the clean side. Inspect the complete intake assembly rather than replacing the element alone.
What should be checked when replacing the 23429822 filter?
Confirm the part reference, inspect the housing and sealing surfaces, check the replacement media for damage, and ensure that the element seats correctly. After installation, verify that the intake assembly is secured and that any available restriction indication responds as expected.
