Product Overview

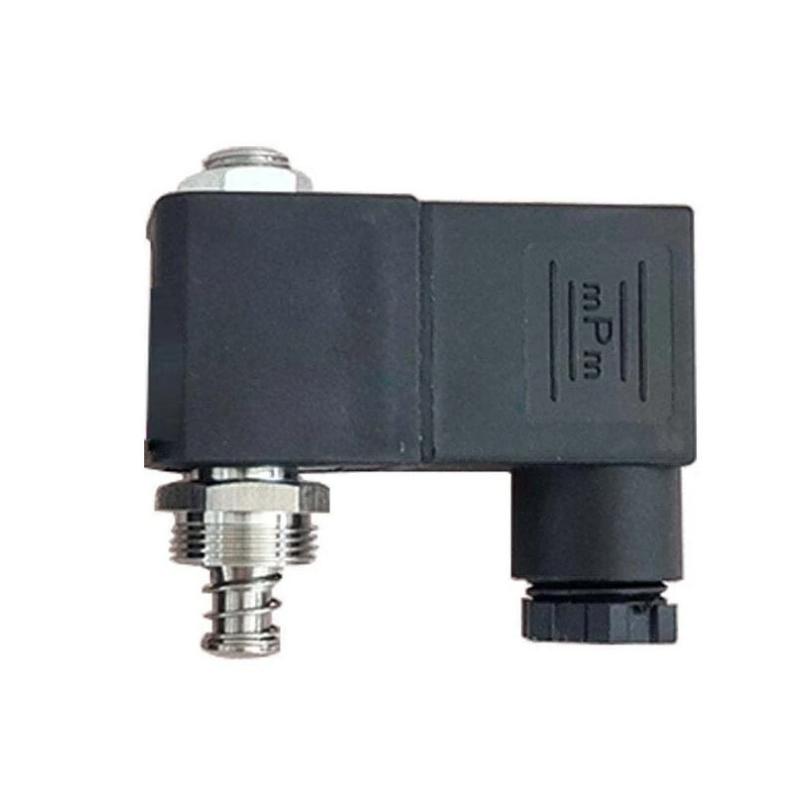

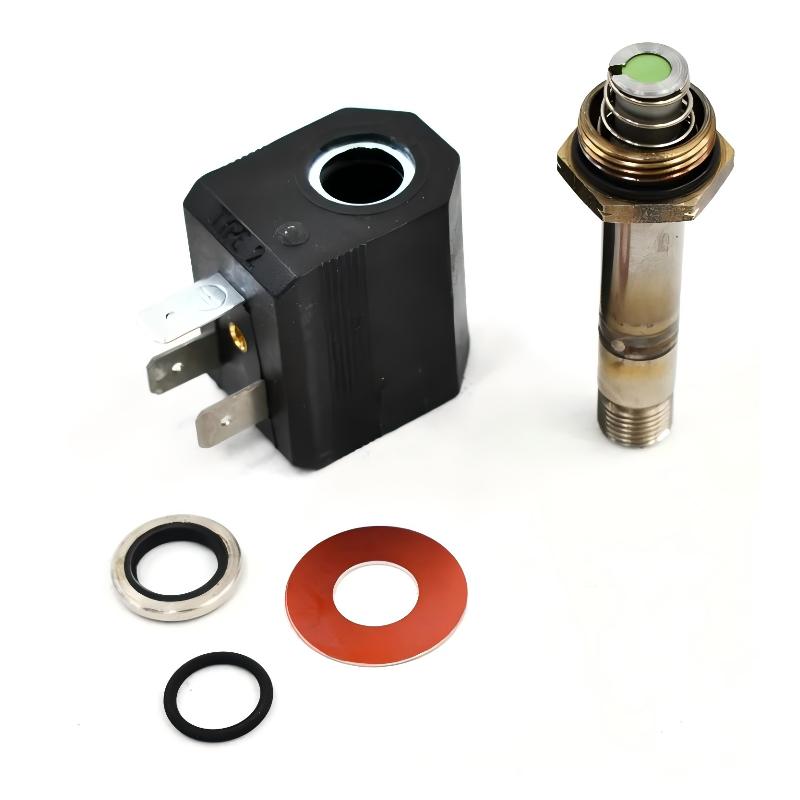

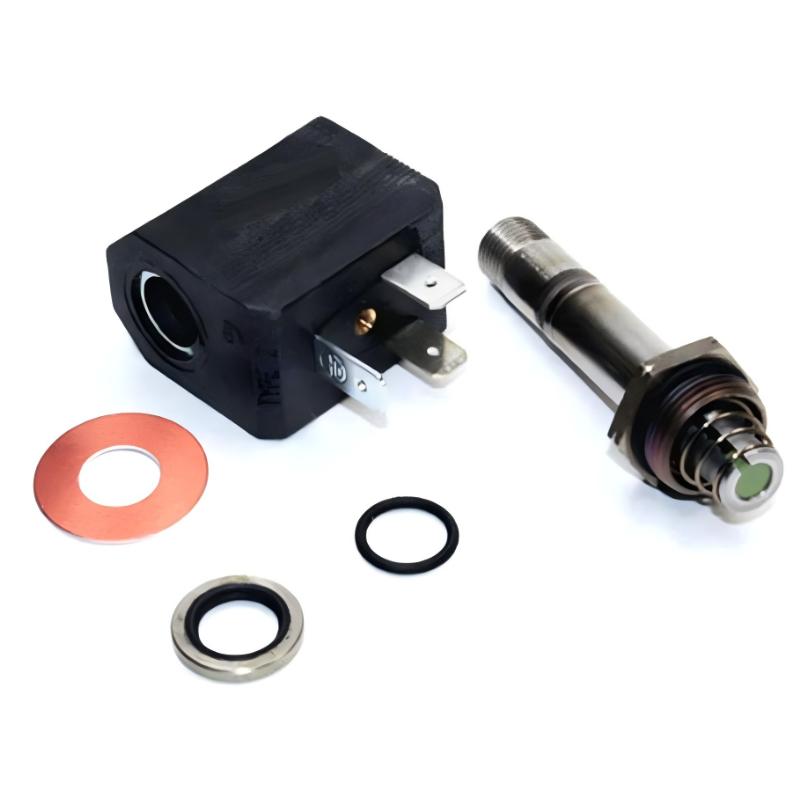

The Ingersoll Rand 47553881001 23467244 Solenoid Service Kit is a maintenance kit for servicing compatible solenoid valve assemblies used in Ingersoll Rand compressor equipment.
Solenoid valves are commonly used where an electrical control command needs to operate a pneumatic function. Within a compressor, this can involve unloading, control-air switching, venting, or other sequence-related operations.
The 23467244 identifies the Solenoid Service Kit, while 47553881001 is the associated service reference for this configuration.
The kit suits maintenance situations where the solenoid assembly can be serviced at component level. It can be used during planned compressor maintenance, corrective repairs, and troubleshooting involving inconsistent valve actuation or abnormal pneumatic response.
A serviced solenoid assembly restores the mechanical and sealing condition required for the associated control circuit to operate as intended.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Service Part Reference | 47553881001 |
| Part Number | 23467244 |
| Product Type | Solenoid Service Kit |
| Component Function | Solenoid Valve Maintenance |
| Application | Compressor Maintenance / Service |
| Dimensions | 180 × 120 × 80 mm |
| Weight | 0.680 kg |
Product Features
- Ingersoll Rand Solenoid Service Kit
- Part number 23467244
- Service reference 47553881001
- Intended for compatible compressor solenoid assemblies
- Supports solenoid valve maintenance
- Suitable for component-level servicing
- Used in pneumatic control applications
- Applicable to scheduled compressor maintenance
- Useful for corrective repair work
- Suitable for compressor spare-parts inventory
Working Principle
The solenoid assembly responds to an electrical command and changes the state of the associated valve.
The operating sequence can be represented as:
Control Signal → Solenoid Coil → Magnetic Actuation → Valve Movement → Pneumatic Function
When energized, the solenoid coil generates a magnetic field that moves the internal actuator. The valve then changes the applicable flow path.
In compressor applications, the resulting pneumatic action may control unloading, pressure release, control-air routing, or another machine function.
The service kit supports the mechanical condition of the solenoid assembly. Internal wear, contamination, damaged sealing elements, or restricted movement can otherwise prevent the valve from responding correctly.
Role in Compressor Control Architecture
The solenoid assembly forms part of the interface between the compressor’s electrical control logic and its pneumatic equipment.
| System Element | Function |
|---|---|
| Ingersoll Rand 23467244 | Solenoid Service Kit |
| Solenoid Valve | Controls pneumatic flow |
| Solenoid Coil | Converts electrical command into actuation |
| Valve Actuator | Moves the valve mechanism |
| Control-Air Circuit | Carries pneumatic control signals |
| Compressor Controller | Generates operating commands |
| Blowdown / Unloading Circuit | Performs pressure-control functions where applicable |
| Compressor Assembly | Main equipment being serviced |
Typical Solenoid Service Conditions
| Condition | Possible Effect |
|---|---|
| Solenoid fails to actuate | Pneumatic function remains unchanged |
| Slow valve response | Delayed compressor sequence |
| Valve remains energized | Continuous pneumatic actuation |
| Internal contamination | Restricted movement |
| Seal deterioration | Pneumatic leakage |
| Intermittent actuation | Unstable control response |
| Incorrect valve position | Abnormal compressor operation |
The electrical control circuit and pneumatic circuit should be considered together when diagnosing solenoid-related problems.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Compressors | Solenoid valve maintenance |
| Manufacturing Facilities | Pneumatic compressor control |
| Oil and Gas | Compressor service |
| Petrochemical Plants | Control-air system maintenance |
| Process Industries | Pneumatic sequencing |
| Industrial Utilities | Compressor repair |
| Production Systems | Corrective maintenance |
| Compressor Workshops | Solenoid assembly servicing |
Installation and Maintenance
- Confirm the 47553881001 / 23467244 part identification.
- Shut down the compressor before service.
- Isolate electrical power.
- Release pressure from the applicable pneumatic circuit.
- Disconnect the solenoid assembly.
- Inspect the coil and valve body.
- Check the actuator and internal moving parts.
- Inspect sealing components.
- Remove contamination from service surfaces.
- Replace applicable service components.
- Reassemble the solenoid assembly.
- Restore electrical and pneumatic connections.
- Check the control signal.
- Verify valve actuation.
- Run the applicable compressor operating sequence.
- Check for pneumatic leakage.
- Confirm normal compressor response.
- Record the completed service work.
A solenoid that continues to malfunction after service can require inspection of the electrical command, coil, pneumatic supply, actuator, and downstream valve function.
Compatible System Components
| Component | Function |
|---|---|
| Ingersoll Rand 47553881001 | Associated service-part reference |
| Ingersoll Rand 23467244 | Solenoid Service Kit |
| Solenoid Valve Assembly | Pneumatic control |
| Solenoid Coil | Electromagnetic actuation |
| Valve Actuator | Mechanical valve movement |
| Control-Air Tubing | Pneumatic signal transmission |
| Compressor Controller | Operating sequence control |
| Blowdown Valve | Pressure release where applicable |
| Unloading Components | Compressor load control |
| Compressor Assembly | Main serviced equipment |
Recommended Related Models
| Model / Part Number | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 47553881001 / 23467244 | Solenoid Service Kit | Compressor solenoid maintenance |
| Ingersoll Rand 47553880001 / 23467244 | Solenoid Service Kit | Compressor solenoid maintenance |
| Ingersoll Rand 47553880001 / 24752271 | Blowdown Valve Kit | Compressor pressure release |
| Ingersoll Rand 47553880001 / 23467251 | Cylinder Service Kit | Compressor cylinder maintenance |
| Ingersoll Rand Compressor Solenoid Valves | Solenoid Components | Pneumatic control |
| Ingersoll Rand Compressor Valve Components | Valve Components | Compressor service |
| Ingersoll Rand Compressor Service Kits | Maintenance Kits | Scheduled overhaul |
Key Advantages
- Ingersoll Rand Solenoid Service Kit.
- Part number 23467244.
- Service reference 47553881001.
- Suitable for compatible compressor solenoid assemblies.
- Supports component-level valve maintenance.
- Applicable to pneumatic control circuits.
- Useful for scheduled and corrective service.
- Suitable for compressor maintenance inventory.
Technical FAQs
What is the difference between service reference 47553881001 and part number 23467244?
47553881001 is the service reference associated with this item, while 23467244 identifies the Solenoid Service Kit. Both numbers identify the same service item in the supplied product information.
Which compressor functions can use a solenoid-controlled pneumatic circuit?
Depending on the compressor configuration, solenoid-controlled circuits can be associated with unloading, blowdown, venting, control-air routing, or other operating sequences.
What are common signs of internal solenoid valve contamination?
A contaminated valve can show delayed actuation, intermittent response, incomplete movement, or failure to change state. Restricted movement may become more noticeable as the compressor cycles repeatedly.
What should be checked after servicing the solenoid assembly?
Verify the electrical command, valve actuation, pneumatic response, and the related compressor sequence. The serviced valve should change state correctly and the associated equipment function should return to its expected operating condition.
