Product Overview

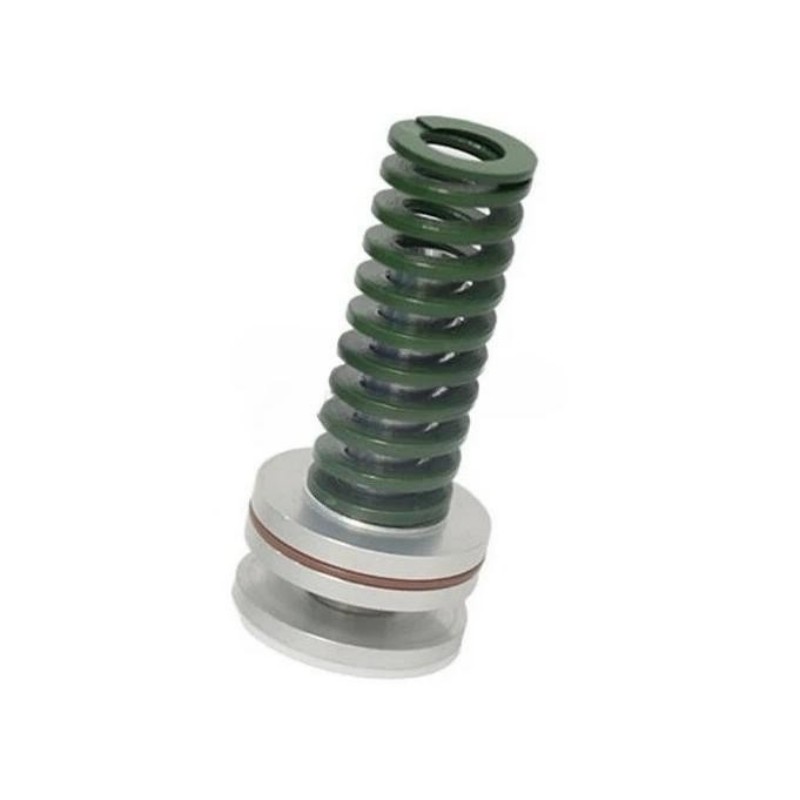

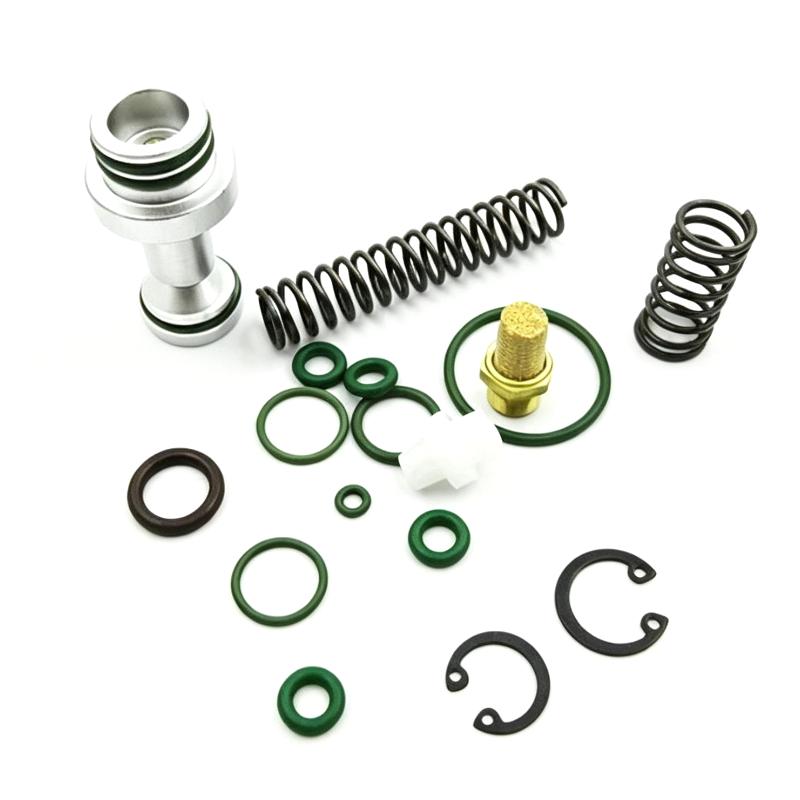

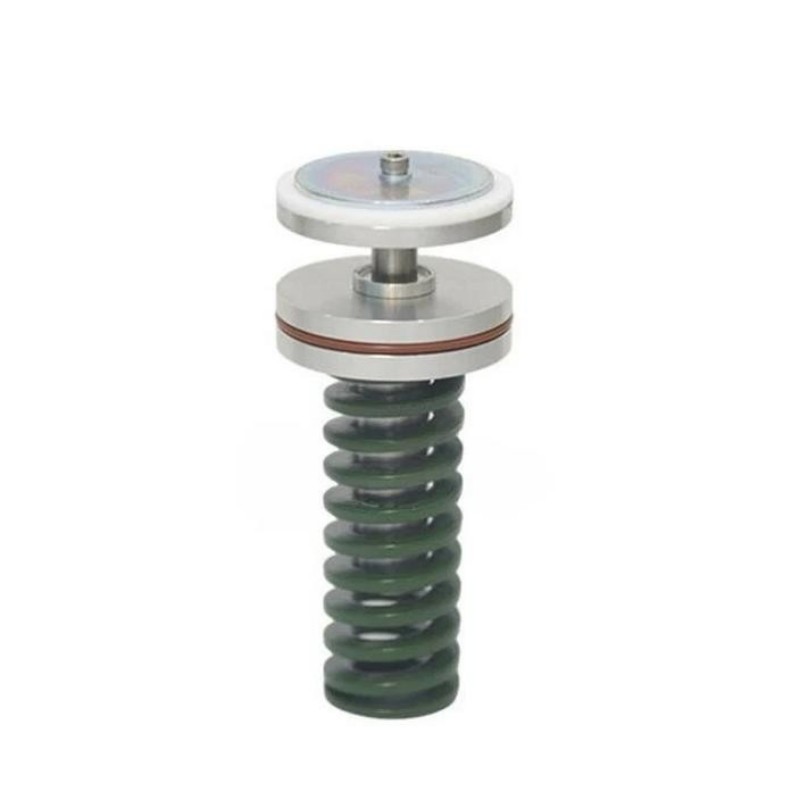

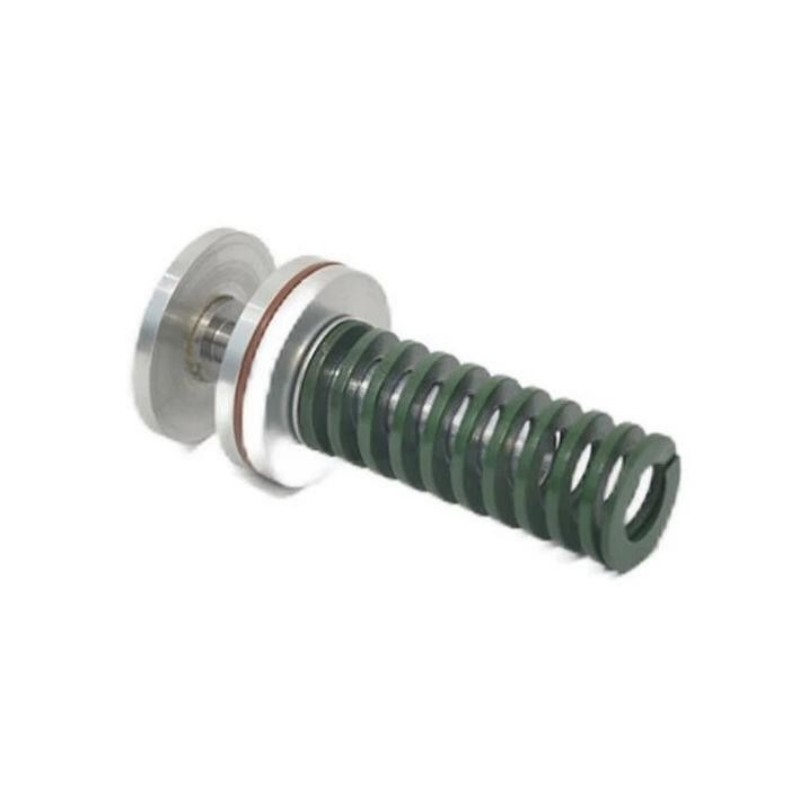

The Ingersoll Rand 47545141001 99289894 Minimum Pressure Check Valve Repair Kit is a maintenance kit associated with the minimum pressure and check-valve assembly in an industrial compressor system. This valve assembly has two important functions in applicable oil-injected compressors: maintaining the required internal pressure during operation and limiting reverse flow through the compressed-air circuit.
The minimum pressure function helps establish suitable pressure conditions inside the compressor, supporting air/oil separation and lubricant circulation where these processes depend on internal operating pressure. The check-valve function helps prevent compressed air from flowing backward when downstream pressure changes or the compressor stops. If the valve assembly develops leakage, sticking, or sealing problems, the compressor may experience abnormal pressure behavior, delayed pressure buildup, or reverse flow.
A repair kit allows maintenance personnel to service the valve assembly by replacing the applicable wear or sealing components rather than automatically replacing the complete valve. The exact contents of part 99289894 should be confirmed against the required parts configuration; the kit designation alone does not establish which individual seals, springs, valve elements, or other components are included.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Ingersoll Rand |
| Part Number | 47545141001 |
| Additional Part Number | 99289894 |
| Product Type | Minimum Pressure Check Valve Repair Kit |
| Product Category | Compressor Valve Maintenance Kit |
| Primary Function | Servicing the minimum pressure and check-valve assembly |
| Intended Equipment | Compatible industrial compressor systems |
| Associated System | Compressed-air and lubrication pressure-control circuit |
| Minimum Pressure Function | Helps maintain the required internal pressure in applicable compressor designs |
| Check Valve Function | Helps restrict reverse airflow |
| Maintenance Purpose | Restoration of applicable valve sealing and operating functions |
| Service Application | Valve inspection, repair, and component replacement |
| Installation Location | Minimum pressure check-valve assembly, subject to equipment configuration |
| Replacement Consideration | Correct part identification, kit contents, and valve compatibility |
Product Features
- Valve Assembly Servicing: Provides a designated repair-kit option for maintenance work on the minimum pressure check-valve assembly.
- Pressure Management Support: Helps restore the valve’s intended pressure-control function when the relevant repair components address the identified fault.
- Reverse-Flow Control: Supports the check-valve function that limits reverse airflow through the compressor circuit.
- Sealing Component Renewal: Allows applicable worn or damaged sealing parts to be replaced when included in the kit.
- Maintenance Efficiency: A repair-kit approach may reduce the need to replace the complete valve assembly when the fault is limited to serviceable components.
- Part Number Traceability: The 47545141001 and 99289894 identifiers help maintenance teams organize spare parts and document repair work.
- Condition-Based Servicing: Valve behavior, leakage, pressure buildup, and inspection findings can guide decisions about whether repair or complete assembly replacement is appropriate.
Working Principle
The minimum pressure check-valve assembly operates at the interface between the compressor’s internal pressure circuit and its compressed-air discharge path. In applicable oil-injected compressor designs, the minimum pressure function helps maintain a required pressure level within the separator system before or during discharge. This pressure can support effective air/oil separation and the circulation of lubricating oil.
As internal pressure rises, the valve opens according to its operating characteristics and permits compressed air to flow toward the outlet. The check-valve function helps prevent downstream air from returning into the compressor when the pressure relationship changes or the equipment shuts down. The precise opening pressure, flow characteristics, and internal arrangement depend on the specific valve design.
Over time, sealing surfaces, moving elements, or other serviceable components may wear, become contaminated, or fail to move freely. Such conditions can interfere with pressure buildup, valve closure, or reverse-flow prevention. A repair kit addresses the components included in its service configuration, but it cannot correct every possible valve fault. Damaged valve bodies, distorted mounting surfaces, or problems elsewhere in the compressor may require additional repair.
After servicing, the assembly should be checked for correct operation, leakage, and expected pressure behavior before the compressor returns to normal duty.
Role in a Compressor Pressure-Control Architecture
The minimum pressure check valve connects internal compressor pressure management with downstream compressed-air delivery. Its performance depends on the surrounding separation, discharge, and lubrication components operating within their intended conditions.
| System Element | Function | Relationship to the Repair Kit |
|---|---|---|
| Compressor Airend | Compresses incoming air and, in oil-injected systems, mixes it with lubricating oil | Supplies the compressed air and oil mixture entering the separation process |
| Air/Oil Separator | Separates entrained oil from compressed air | May depend on suitable internal pressure conditions for effective separation |
| Minimum Pressure Check Valve | Maintains minimum internal pressure and restricts reverse flow where these functions are combined | The assembly serviced by the repair kit |
| Oil Return Circuit | Returns recovered oil to the lubrication system where fitted | Depends on the intended pressure and flow conditions of the compressor |
| Compressor Oil Filter | Removes particulate contaminants from circulating oil | Supports oil cleanliness but does not perform the valve’s pressure-control function |
| Compressed-Air Outlet | Carries treated compressor discharge air to downstream equipment | Receives airflow regulated by the applicable valve arrangement |
| Downstream Air Receiver | Stores compressed air and helps accommodate demand fluctuations | Can create pressure differences across the check-valve assembly during operation and shutdown |
| Pressure Monitoring Devices | Indicate pressure conditions at designated points in the system | Help maintenance personnel evaluate pressure buildup and post-repair behavior |
Industrial Applications
| Application | Operating Requirement | Relevance of the Repair Kit |
|---|---|---|
| Industrial Screw Compressors | Maintain suitable internal pressure and controlled compressed-air discharge | Supports servicing of the applicable minimum pressure check-valve assembly |
| Manufacturing Plant Compressed-Air Systems | Provide compressed air for production machinery and pneumatic equipment | Helps maintenance teams address valve-related pressure or reverse-flow problems |
| Central Compressor Rooms | Coordinate service work across equipment operating on different schedules | Provides an identifiable repair item for maintenance planning |
| Continuous-Duty Compressor Installations | Maintain stable operation over extended production periods | Supports corrective maintenance when inspection identifies serviceable valve-component faults |
| Pneumatic Production Lines | Limit unwanted changes in compressed-air supply conditions | Contributes to restoring the valve’s intended pressure-control behavior |
| Preventive Maintenance Programs | Inspect pressure-control components and replace worn parts when necessary | Allows valve servicing to be documented alongside other compressor maintenance |
| Compressor Overhaul Operations | Inspect internal components and renew applicable wear parts | Provides a repair-kit option when the valve assembly is suitable for servicing |
Installation and Maintenance
- Verify the kit identification: Confirm that Ingersoll Rand 47545141001 99289894 matches the minimum pressure check-valve assembly being serviced.
- Confirm the kit contents: Check the applicable parts configuration and identify which seals, springs, valve elements, or other components are actually included before disassembly.
- Shut down and isolate the compressor: Follow the equipment’s lockout procedure and prevent unintended startup during maintenance.
- Depressurize the system: Release stored pressure from the relevant compressor and discharge circuits according to the prescribed service procedure.
- Allow components to cool: Wait until the valve assembly and surrounding equipment have reached a safe temperature for handling.
- Document the original arrangement: Record the valve orientation, component positions, and relevant connections before dismantling the assembly.
- Inspect the valve body: Check for cracks, corrosion, damaged threads, distorted sealing surfaces, or other defects that a repair kit may not correct.
- Examine internal components: Look for contamination, sticking, worn contact surfaces, damaged springs, or deteriorated seals where these components are present.
- Replace applicable service parts: Install only the components included in the kit and follow the correct orientation and assembly procedure for each part.
- Check sealing and movement: Verify that the serviced components are correctly seated and that moving elements operate as specified for the valve design.
- Test the assembly after installation: Restore the system according to the required startup procedure and check for leakage, abnormal pressure buildup, or reverse-flow symptoms.
- Record the repair results: Document the kit number, components replaced, inspection findings, and post-service operating observations for future maintenance.
Related Components
| Component | Function | Relationship to the Repair Kit |
|---|---|---|
| Minimum Pressure Check Valve Assembly | Controls minimum internal pressure and restricts reverse flow in applicable designs | The assembly serviced by the kit |
| Air/Oil Separator | Removes entrained oil from compressed air | Operates within the same pressure-management system in oil-injected compressors |
| Oil Return Line | Carries recovered oil back to the lubrication circuit where fitted | Depends on the intended operating conditions of the separation system |
| Compressor Oil Filter | Removes suspended contaminants from lubricating oil | Supports lubrication-system maintenance alongside valve servicing |
| Compressor Pressure Gauge or Sensor | Monitors pressure at designated points | Helps evaluate pressure buildup and system behavior after repair |
| Valve Seals and Gaskets | Maintain sealing at applicable joints and interfaces | May be included in the kit, depending on its actual contents |
| Compressor Discharge Piping | Carries compressed air toward downstream equipment | Forms part of the flow path controlled by the valve arrangement |
| Air Receiver | Stores compressed air downstream of the compressor | Creates downstream pressure conditions relevant to check-valve operation |
Recommended Related Models
| Product or Model | Product Type | Relationship |
|---|---|---|
| Ingersoll Rand 47545141001 99289894 | Minimum Pressure Check Valve Repair Kit | Primary maintenance kit covered in this article |
| Ingersoll Rand 47545141001 54509427 | Air/Oil Separator | Related component in the compressor’s air/oil separation system |
| Ingersoll Rand 47545141001 39911631 | Oil Filter | Related maintenance component for the compressor lubrication circuit |
| Ingersoll Rand 47545141001 39218193 | High Temperature Grease | Maintenance consumable for applicable servicing tasks |
| Ingersoll Rand Compressor Minimum Pressure Valve Assembly | Pressure-Control Valve Assembly | Related assembly category; compatibility must be established for the specific compressor |
| Ingersoll Rand Compressor Check Valve | Non-Return Valve Component | Related valve category for controlling reverse flow; not automatically interchangeable with a minimum pressure valve |
Key Advantages
- Supports servicing of the minimum pressure check-valve assembly.
- Helps restore valve sealing and movement when the fault involves included service components.
- Supports minimum pressure regulation and reverse-flow prevention in compatible compressor systems.
- Provides a clearly identified repair item for spare-parts planning.
- Helps maintenance teams document valve condition, repair work, and post-service performance.
Technical FAQs
What is the purpose of the Ingersoll Rand 47545141001 99289894 Minimum Pressure Check Valve Repair Kit?
It is a repair kit for servicing the applicable minimum pressure check-valve assembly. The assembly helps maintain required internal pressure and restrict reverse airflow in compatible compressor configurations.
What symptoms may indicate a problem with the minimum pressure check valve?
Possible symptoms include abnormal pressure buildup, unexpected pressure loss, reverse airflow after shutdown, leakage, or changes in compressor operation. These symptoms can also result from other system faults, so the valve should be inspected as part of the complete pressure and lubrication circuit.
Does this repair kit replace the complete minimum pressure check valve?
A repair kit generally provides components for servicing an existing assembly rather than replacing the entire valve. The exact contents of part 99289894 must be established from its applicable parts configuration, and a damaged valve body may require a different repair approach.
What should be checked after repairing the minimum pressure check valve?
Verify correct assembly, sealing, pressure buildup, and valve operation according to the compressor’s service procedure. Also check for leakage and abnormal pressure behavior before returning the equipment to normal operation.
