- Ingersoll Rand
- 47545141001 24172215
- Air Filter
- USA
- 126.2 × 126.2 × 209.6 mm
- 4.32 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 30
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

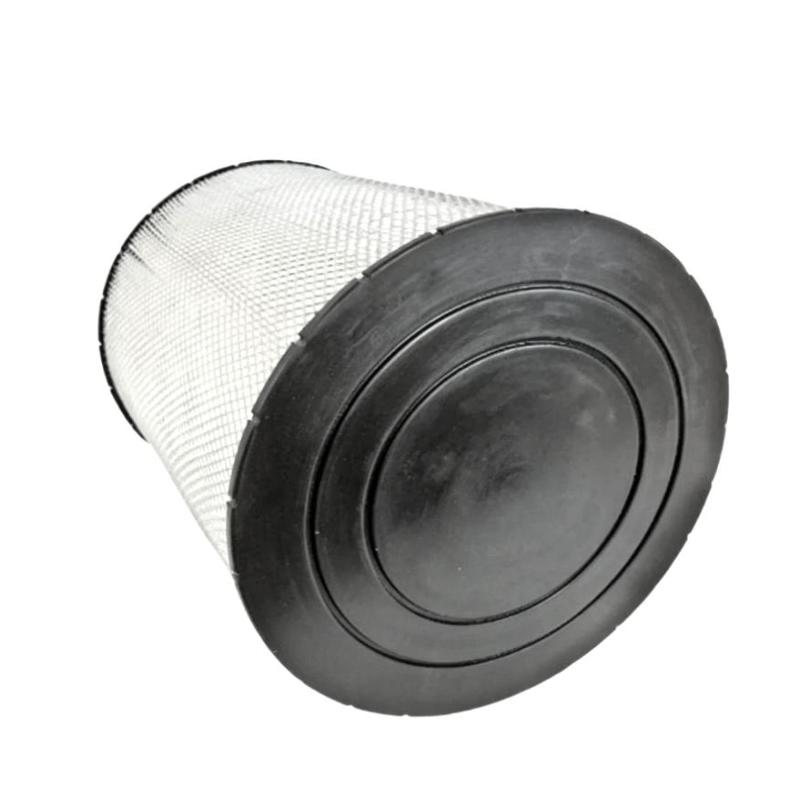

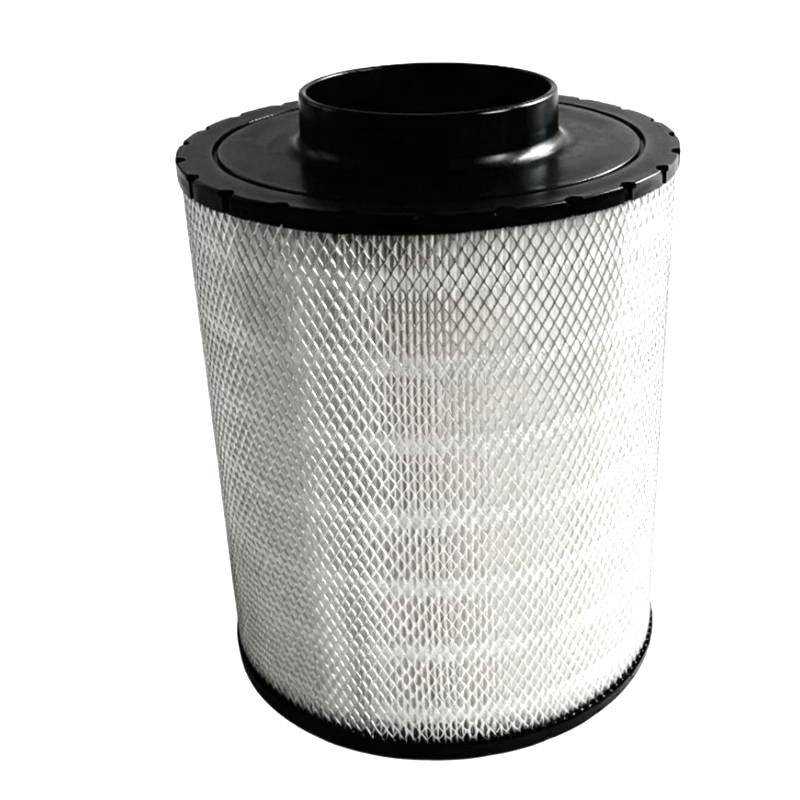

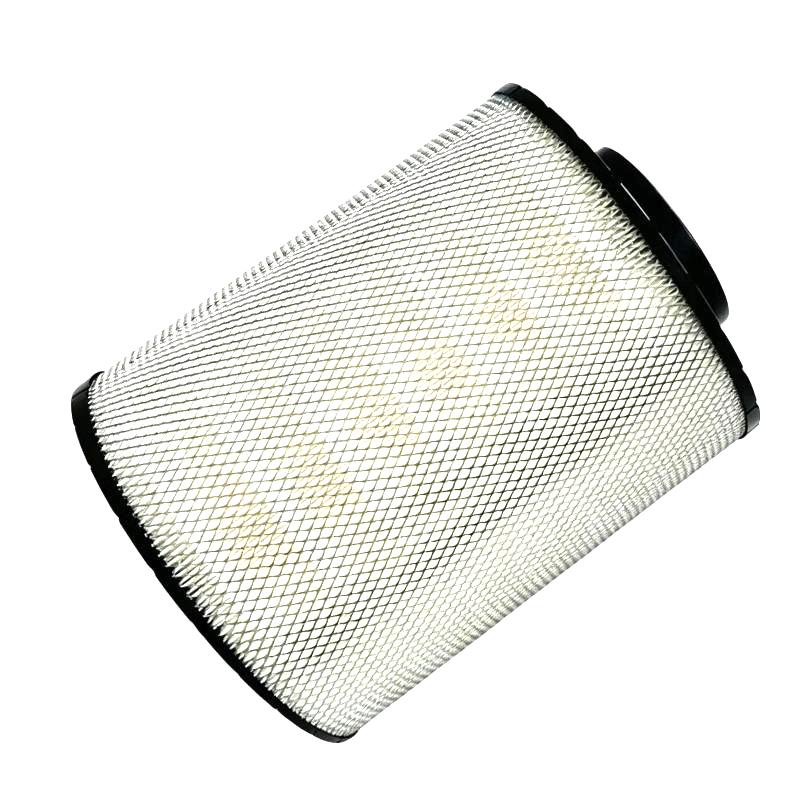

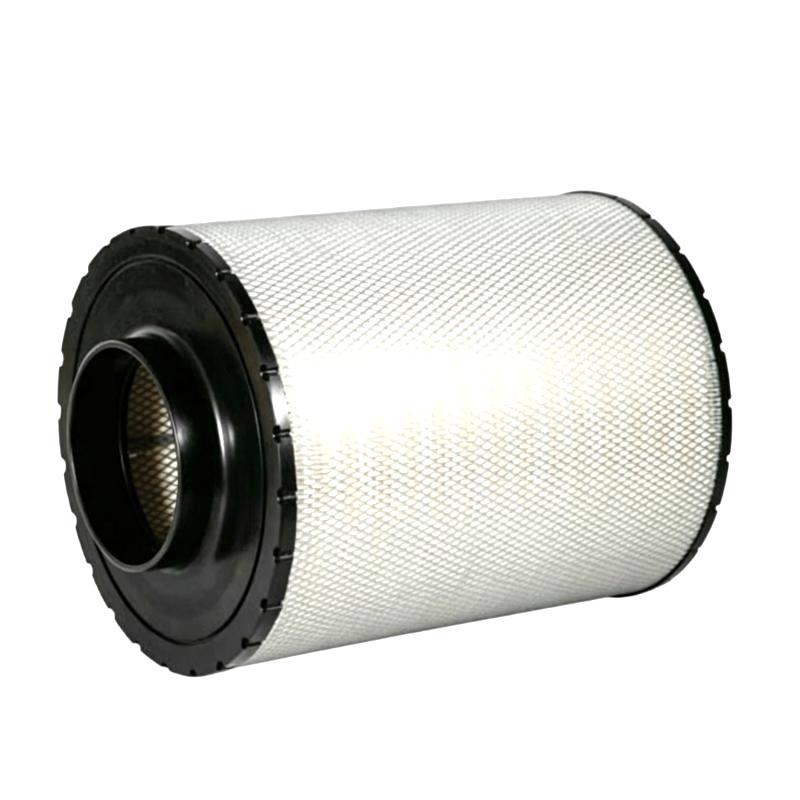

The Ingersoll Rand 47545141001 24172215 Air Filter is an air filtration component associated with industrial compressed-air equipment. In compressor systems, filtration helps limit the amount of airborne particulate matter entering or circulating through equipment, reducing contamination risks for components that depend on clean airflow.
Ingersoll Rand compressor installations operate in a range of industrial environments, including manufacturing plants, workshops, processing facilities, and production lines. Dust, airborne debris, and contaminants can accumulate around equipment during normal operation. Selecting the correct replacement filter is therefore important when carrying out scheduled servicing or restoring an existing filtration assembly.
When identifying this filter for maintenance, both the 47545141001 and 24172215 identifiers are useful for distinguishing the required part. The replacement should match the installed assembly’s intended application, mounting arrangement, airflow requirements, and filtration function. A filter that looks similar may not provide the same fit or operating characteristics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Model Number | 47545141001 |
| Alternate Part Number | 24172215 |
| Product Type | Air Filter |
| Product Category | Industrial Air Filtration Component |
| Equipment Application | Compatible Ingersoll Rand compressor equipment |
| Primary Function | Airborne particulate filtration |
| Filtration Purpose | Helps reduce particulate contamination in the relevant airflow path |
| Installation Location | Equipment-specific filter housing or air intake assembly |
| System Type | Industrial compressed-air equipment |
| Maintenance Type | Inspection and scheduled filter replacement |
| Replacement Consideration | Part number, housing fit, airflow direction, and filtration requirements |
| Operating Environment | Industrial and workshop environments, depending on the installed equipment |
| Dimensions | 126.2 × 126.2 × 209.6 mm |
| Weight | 4.32 kg |
Product Features
- Air filtration function: Helps capture airborne particles before they enter or move through the associated equipment’s airflow path.
- Equipment-specific identification: The two part identifiers support spare-parts identification and reduce the risk of selecting an unrelated filter component.
- Maintenance-oriented replacement: Suitable for consideration during scheduled servicing when the installed filter has reached its service limit or shows signs of contamination or damage.
- Support for equipment cleanliness: Proper filtration helps limit dust accumulation in downstream areas that depend on appropriately filtered air.
- Fit within the intended assembly: Correct housing compatibility helps maintain the intended airflow path and reduces the likelihood of air bypassing the filter element.
- Industrial service application: Can be used in suitable industrial compressor environments where the corresponding equipment and filtration specifications match.
- Condition-based inspection: Visual checks for dirt accumulation, deformation, damage, or abnormal restriction can help maintenance teams determine when further inspection or replacement is needed.
Working Principle
An air filter works by passing air through a filtration medium that captures or retains particles according to the medium’s characteristics. As air moves through the filter, contaminants are separated from the airflow and accumulate within or on the filtration material.
In a compressor installation, the filter’s exact position determines which air stream it treats. An intake filter limits particulate matter entering the compressor, while other air filters may serve different locations or functions within an equipment package. The intended installation must therefore be established from the associated equipment configuration rather than inferred from the general product name alone.
As the filtration medium collects contaminants, airflow resistance can increase. Excessive restriction may affect equipment performance, while a damaged element or an incorrectly seated filter can allow unfiltered air to bypass the media. Regular inspection and replacement according to the equipment’s service requirements help maintain the intended filtration performance.
The filter itself does not regulate compressor pressure or control compressor operation. Its role is to treat the relevant airflow, complementing the compressor’s mechanical and control systems.
Role in a Compressed-Air Equipment Architecture
| System Layer | Role of the Air Filter |
|---|---|
| Ambient Air or Equipment Airflow | Provides the air stream entering the relevant filtration stage. |
| Filtration Assembly | Captures airborne particles as air passes through the filter medium. |
| Compressor Air Path | Receives filtered air when the component is installed in the appropriate intake position. |
| Downstream Equipment | Benefits from reduced particulate contamination when the filter serves the relevant upstream airflow path. |
| Maintenance System | Relies on inspection, service records, and correct part identification to keep filtration equipment in suitable condition. |
The 47545141001 air filter is a filtration component rather than a compressor control or pressure-regulation device. It does not independently determine compressor loading, discharge pressure, or operating speed.
During troubleshooting, engineers should distinguish between filter restriction, air leakage, damaged filtration media, and faults elsewhere in the compressor system. A dirty filter may contribute to an airflow problem, but unusual pressure readings or reduced performance can also originate from other components. Inspection should follow the actual airflow arrangement of the equipment.
Industrial Applications
- Industrial compressor installations: Used in compatible compressor equipment where the specified air filtration component is required.
- Manufacturing plants: Supports filtration maintenance in facilities where compressors supply air for production equipment and general plant operations.
- Workshop compressor systems: Can be considered for servicing suitable compressor installations exposed to dust and airborne workshop debris.
- Production-line utilities: Supports routine maintenance of compressor packages supplying air to equipment distributed across a manufacturing line.
- Equipment maintenance programs: Provides a part-identification reference for scheduled filter inspection and replacement activities.
- Industrial service environments: Relevant to maintenance operations where airborne contamination, filter condition, and airflow restriction are monitored.
- Compressor refurbishment projects: May be included in a refurbishment parts list after confirming the equipment model and installed filtration assembly.
Installation and Maintenance
- Verify the part identification: Confirm both 47545141001 and 24172215 against the required replacement specification and installed equipment.
- Identify the filter location: Determine whether the part serves the intake or another designated airflow position before removing the existing element.
- Shut down the equipment safely: Follow the applicable isolation procedure and allow the compressor system to reach a safe condition before maintenance.
- Inspect the filter housing: Check the housing for accumulated dirt, corrosion, damage, or foreign material that could affect the replacement element’s seating.
- Compare the replacement element: Check the replacement’s physical arrangement and interfaces against the removed component and the intended assembly.
- Check airflow orientation: Follow any directional markings or equipment-specific installation instructions to ensure the filter is fitted correctly.
- Inspect sealing surfaces: Examine the relevant seals and mating surfaces for wear, deformation, contamination, or damage that could allow air bypass.
- Install without damaging the media: Handle the element carefully and avoid crushing, tearing, or deforming its filtration material.
- Secure the assembly correctly: Ensure the filter is seated and retained according to the equipment’s installation requirements.
- Check for airflow leakage: After reassembly and safe restart, inspect the relevant connections and housing for signs of leakage or improper seating.
- Monitor operating conditions: Where applicable, review airflow, pressure-drop indications, or other equipment measurements to identify possible restriction or installation problems.
- Record the maintenance work: Document the part number, replacement date, observed filter condition, and any abnormal findings for future service planning.
Related Components
| Component | Role in the System | Relationship to the Air Filter |
|---|---|---|
| Compressor Air Intake Assembly | Directs incoming air into the compressor’s intake path. | May contain or connect to the filter when the part is used for intake filtration. |
| Filter Housing | Holds the filtration element in its intended position. | Must match the replacement filter’s fit and sealing arrangement. |
| Air Intake Duct or Connection | Carries air toward the filtration stage or compressor inlet. | Connects the filter assembly to the relevant airflow path. |
| Sealing Gasket or O-Ring | Helps prevent air leakage around a mating connection. | A damaged seal can allow air to bypass the filter media. |
| Compressor Element | Performs the main compression process. | Depends on the equipment’s specified intake arrangement and appropriate air quality. |
| Air Pressure Sensor | Measures pressure at its designated monitoring point. | May help maintenance personnel investigate airflow or pressure abnormalities but does not measure filter condition directly unless the system is configured for that purpose. |
| Differential Pressure Monitoring Device | Measures pressure difference across a filtration stage when installed for that function. | Can help identify increasing filter restriction in systems equipped with suitable monitoring. |
| Compressor Controller | Monitors operating conditions and manages compressor functions. | May display operating alarms or measurements relevant to diagnosing system performance, depending on the equipment configuration. |
Recommended Related Models
| Model or Product Family | Product Type | Application Relationship |
|---|---|---|
| Ingersoll Rand 47545141001 | Air Filter | The primary part identifier for this filter and the starting point for replacement identification. |
| Ingersoll Rand 24172215 | Air Filter Part Number | An alternate identifier associated with the specified filter; verify the equipment application before ordering. |
| Ingersoll Rand Compressor Air Filters | Air Filtration Components | Relevant when planning filter maintenance for compatible compressor models. |
| Ingersoll Rand Compressor Intake Components | Air Intake Components | Related equipment parts that may be inspected when servicing an intake filtration assembly. |
| Ingersoll Rand Filter Housings | Filter Mounting Components | Relevant to checking element fit, sealing, and installation condition during maintenance. |
| Ingersoll Rand Compressor Service Kits | Maintenance Parts | May be useful during scheduled servicing when the applicable kit includes the required filter and matches the equipment model. |
Key Advantages
- Targeted filtration maintenance: Supports the removal of accumulated particulate contamination from the relevant airflow path.
- Clear spare-parts identification: The primary and alternate part numbers help maintenance teams identify the intended component.
- Support for equipment cleanliness: Appropriate filtration helps limit dust and debris entering protected areas of the compressor system.
- Practical servicing: Inspection and replacement can be incorporated into planned compressor maintenance.
- Compatibility-focused selection: Matching the filter to the correct housing and equipment helps reduce installation errors and air bypass.
- Contribution to airflow performance: Maintaining a suitable filter condition helps avoid unnecessary restriction caused by excessive contamination.
Technical FAQs
1. What is the Ingersoll Rand 47545141001 24172215 Air Filter used for?
It is an industrial air filtration component intended for compatible Ingersoll Rand equipment. Its function is to capture airborne particles in the airflow path served by the installed filtration assembly.
2. Are 47545141001 and 24172215 interchangeable part numbers?
They are identifiers associated with the specified filter, but the intended equipment application should still be confirmed. Matching the part number to the installed compressor model and filter assembly helps prevent an incorrect replacement.
3. What are the signs that an air filter needs inspection or replacement?
Common indicators include visible contamination, damaged or deformed filter media, unusual airflow restriction, and relevant equipment measurements showing abnormal conditions. The actual service interval should follow the requirements for the specific compressor and filter installation.
4. Can a dirty air filter affect compressor performance?
Yes. If the filter serves the compressor intake, excessive contamination can increase airflow resistance and may reduce intake performance. However, similar symptoms can arise from other faults, so the filter should be inspected alongside the rest of the relevant airflow system.
