Product Overview

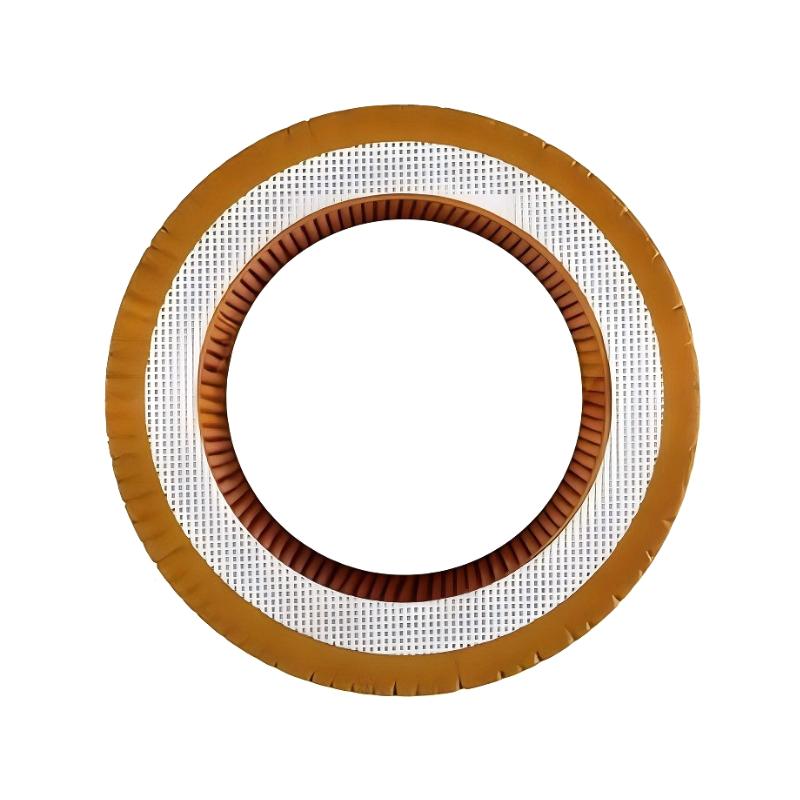

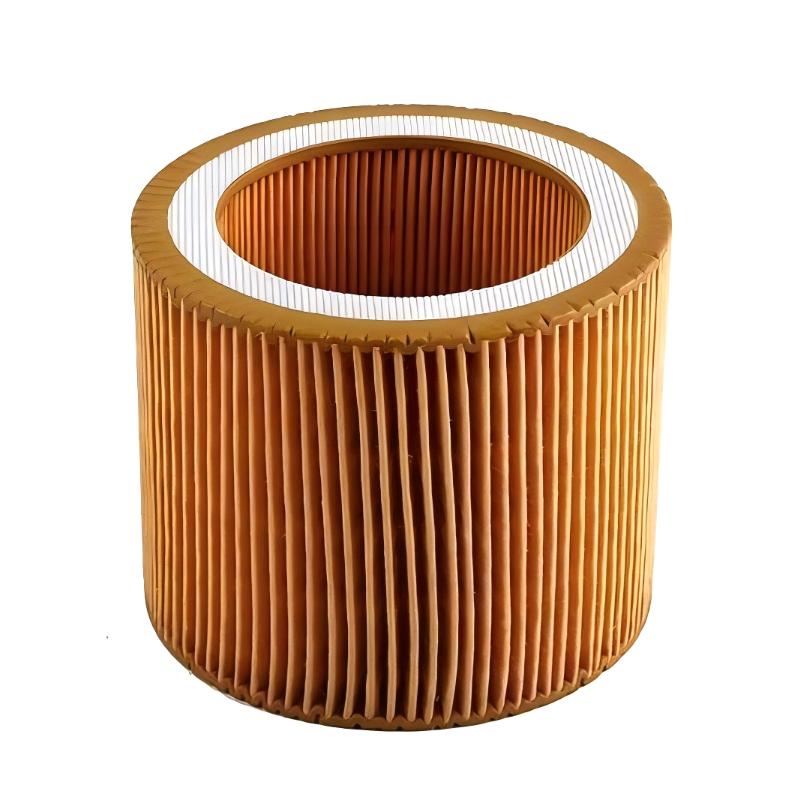

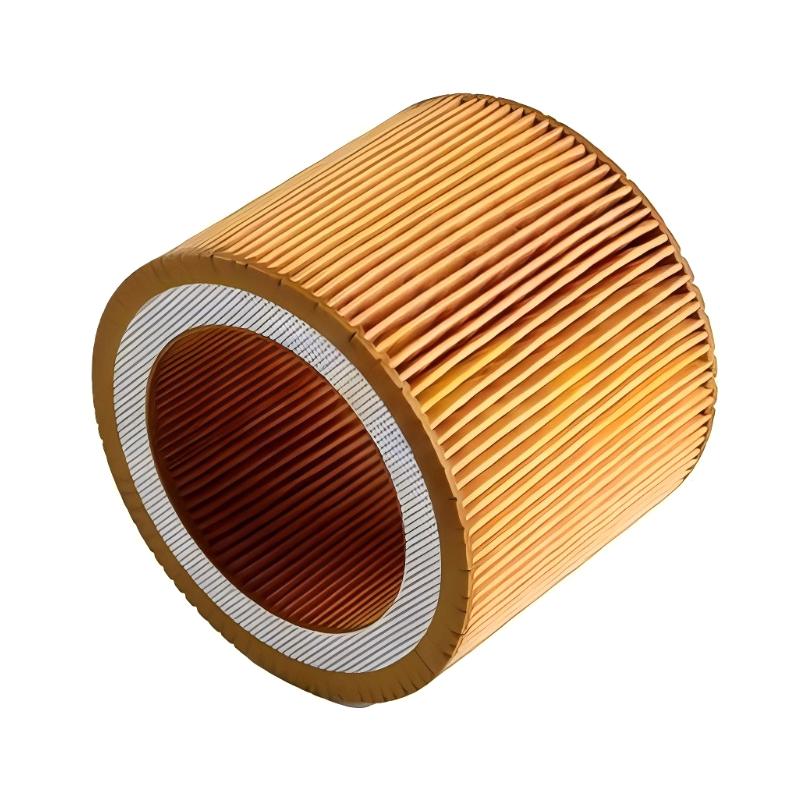

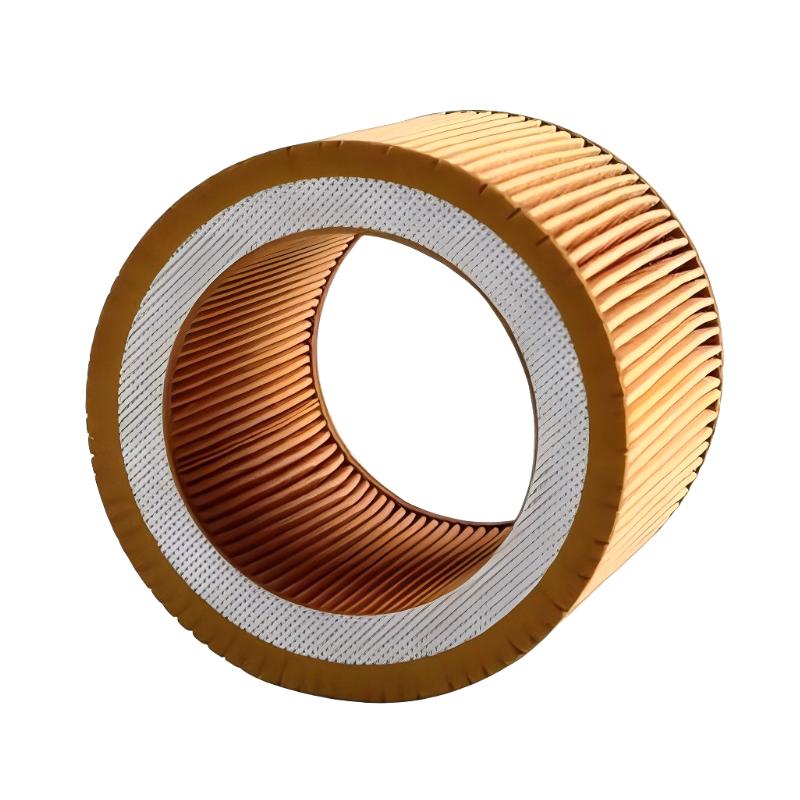

The Ingersoll Rand 15483522 88171913 Air Filter is an inlet air filter element used in compatible Ingersoll Rand rotary screw compressors. The 88171913 reference is associated with smaller compressor configurations, including selected UP6 5–15 hp units and R-series compressors. Its function is to capture airborne dust and particulate matter before incoming air reaches the compressor’s internal components.
During operation, the compressor continuously draws air from the surrounding environment. The filter media retains contaminants while allowing air to pass through the intake path. This helps reduce the amount of dust entering the compression chamber, where particulate contamination can contribute to wear and contaminate the circulating lubricant.
Filter condition directly affects intake airflow. As dust accumulates, resistance through the media can increase. Regular inspection and replacement help maintain the intended intake conditions, particularly in workshops and production areas where airborne particles are common. Before installation, confirm that the 88171913 reference matches the compressor model and existing filter housing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Part Number | 15483522 |
| Reference Number | 88171913 |
| Product Type | Air Filter |
| Filter Application | Compressor inlet air filtration |
| Filter Construction | Dry-type filter element |
| Filter Media | Fiberglass, as listed for the 88171913 filter reference |
| Filtration Rating | 3 micron |
| Filtration Efficiency | 99.9% |
| Compatible Equipment | Selected Ingersoll Rand rotary screw compressors |
| Referenced Compressor Family | UP6 5–15 hp and selected R-series models |
| Outer Diameter | 120 × 85 × 100 mm |
| Weight | 0.1 kg |
Product Features
- Inlet air filtration: Captures airborne dust and particles before they enter the compressor.
- Dry-type filter element: Uses a dry filtration medium for incoming air.
- Fine-particle capture: The 88171913 reference is listed with a 3-micron filtration rating and 99.9% efficiency.
- Compressor component protection: Helps limit particulate contamination entering the compression process.
- Airflow maintenance: A clean element helps avoid the increased intake resistance associated with accumulated dust.
- Defined replacement reference: The part number supports spare-parts identification and service planning.
- Routine maintenance suitability: Allows filter replacement as part of scheduled compressor servicing.
- Equipment-specific fitment: Requires verification against the installed housing and compressor configuration.
Working Principle
When the compressor operates, ambient air enters the intake assembly and passes through the filter medium. The medium captures airborne particles while allowing air to continue toward the compressor airend. By reducing particulate entry, the filter helps protect internal surfaces and limit dust contamination in the compressor’s operating environment.
As the filter collects particles, the available passages through the media gradually become restricted. A loaded element can increase intake pressure drop, potentially affecting compressor performance. A damaged element or an incorrect seal can also allow unfiltered air to bypass the media, reducing filtration effectiveness.
The 88171913 filter should be inspected and replaced according to the equipment’s maintenance requirements and operating environment. Dusty conditions may require more frequent attention than relatively clean installations. During replacement, technicians should ensure that the element seats correctly and that the housing is free from debris that could enter the downstream intake path.
Role in an Ingersoll Rand Compressor Air Intake System
The 88171913 Air Filter is installed upstream of the compressor airend as part of the intake filtration arrangement. It reduces particulate contamination in the incoming air before compression begins.
| System Component | Function | Relationship to the Air Filter |
|---|---|---|
| Ambient Air Intake | Draws surrounding air into the compressor | Supplies air to the filter |
| Intake Filter Housing | Holds and seals the filter element | Directs air through the filtration medium |
| 88171913 Air Filter | Captures airborne particulate matter | Performs the intake filtration function |
| Intake Ducting | Carries filtered air toward the airend | Transports air downstream of the filter |
| Compressor Airend | Compresses incoming air | Receives air after the intake filtration stage |
| Filter Cover or Retainer | Secures the filter in its housing | Helps prevent displacement and bypass |
| Intake Restriction Indicator, where fitted | Indicates excessive intake resistance | Helps identify a loaded filter |
| Compressor Controller | Monitors and controls compressor operation | May display relevant operating alarms, depending on the model |
| Maintenance Access Panel | Allows access to the filter assembly | Supports inspection and replacement |
Industrial Applications
| Application | Filtration Requirement | Role of the 88171913 Air Filter |
|---|---|---|
| Small Industrial Compressor Installations | Filter ambient air before compression | Captures airborne contaminants at the intake |
| Manufacturing Workshops | Reduce dust entering compressor equipment | Supports routine intake filtration |
| Automotive Production Facilities | Maintain compressor air intake conditions | Helps limit particulate entry into the airend |
| Packaging Plants | Maintain filtration during regular compressor operation | Provides a replaceable intake filter element |
| Assembly Lines | Support compressed-air equipment maintenance | Helps control airborne contamination entering the compressor |
| Industrial Service Rooms | Maintain compressor filtration components | Provides a defined spare-part reference |
| Textile and Paper Processing Areas | Manage airborne dust and fibres where present | Helps capture particles before air enters the compressor |
| Compressor Maintenance Workshops | Replace contaminated or damaged filter elements | Supports scheduled service and filter inspection |
Installation and Maintenance
- Verify the part reference: Confirm that 88171913 matches the compressor’s required inlet air filter specification.
- Check the compressor model: Verify the equipment model and installed filter housing before removing the existing element.
- Shut down the compressor: Follow the site’s safety and isolation procedure before accessing the intake assembly.
- Inspect the filter housing: Check for accumulated dust, loose debris, damage or deterioration around the housing and cover.
- Remove the old element carefully: Prevent accumulated dust from entering the clean side of the intake system.
- Examine the removed filter: Look for heavy contamination, tears, deformation or signs of moisture damage.
- Clean the housing: Remove loose contaminants using an appropriate method that keeps debris out of the downstream intake path.
- Check the sealing surfaces: Ensure that the filter seat and sealing areas are clean and undamaged.
- Install the replacement element: Position the filter correctly and make sure it seats securely in the housing.
- Secure the filter cover: Refit the cover or retaining components according to the equipment’s maintenance procedure.
- Check operation after servicing: Restart the compressor safely and check for abnormal intake noise, alarms or indications of excessive restriction.
- Record the maintenance: Document the replacement part number, service date, operating hours and condition of the removed filter.
Related Components
| Component | Function | Relationship to the Air Filter |
|---|---|---|
| Intake Filter Housing | Holds and seals the filter element | Must match the filter’s intended installation |
| Filter Housing Seal | Prevents unfiltered air from bypassing the element | Helps maintain the intended airflow path |
| Intake Ducting | Carries air toward the compressor | Should be checked for leaks and contamination |
| Filter Retainer | Secures the element in position | Helps prevent displacement during operation |
| Intake Restriction Indicator | Indicates filter restriction where fitted | Supports condition-based maintenance |
| Compressor Airend | Compresses incoming air | Receives filtered air from the intake system |
| Ingersoll Rand Oil Filter | Removes contaminants from circulating lubricant | Performs a separate filtration function |
| Ingersoll Rand Air/Oil Separator | Separates lubricant from compressed air | Serves the downstream separation stage rather than the intake |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Ingersoll Rand 88171913 | Inlet Air Filter | Main filter reference | Confirm compatibility with the compressor model and housing |
| Ingersoll Rand 47516568001 | High-Dust Air Filter | Related filter option for certain compressor applications | Verify fitment and filtration requirements before selecting |
| Ingersoll Rand 23487457 | Air Filter | Related compressor intake filter reference | Not a direct substitute without confirming the required application |
| Ingersoll Rand 23523772 | Filter Pad | Related filtration component | Used as a pad-style filter in compatible arrangements |
| Ingersoll Rand 23545841 | Air/Oil Separator | Related compressor filtration component | Separates oil from compressed air rather than filtering intake air |
| Ingersoll Rand 23424922 | Coolant Filter | Related compressor maintenance component | Serves a separate filtration circuit |
Key Advantages
- Helps reduce airborne particulate contamination entering the compressor.
- Supports protection of internal compressor components against intake dust.
- Maintains the intended intake filtration path when correctly fitted and serviced.
- Provides a defined reference for filter replacement and inventory control.
- Supports routine compressor maintenance through inspection and timely replacement.
Technical FAQs
Which compressor configurations are associated with the 88171913 air filter?
The 88171913 reference is listed for selected Ingersoll Rand UP6 5–15 hp units and other small rotary screw compressor configurations. The exact fit should be checked against the compressor model and parts identification before installation.
What does the listed 3-micron filtration rating mean?
The micron rating indicates the particle size associated with the filter’s stated filtration performance. The 88171913 reference is listed as a 3-micron filter with 99.9% efficiency; these figures should be interpreted according to the rating method used for that product.
What problems can arise if the inlet filter becomes heavily loaded?
Dust accumulation can increase airflow resistance and reduce the amount of air entering the compressor under operating conditions. A loaded element should be inspected and replaced according to the compressor’s service requirements.
Should the filter housing be cleaned when replacing the 88171913 element?
Yes. Loose dust and debris should be removed from the housing before fitting the new element. This helps prevent contamination from entering the clean side of the intake and supports correct seating of the replacement filter.
