Product Overview

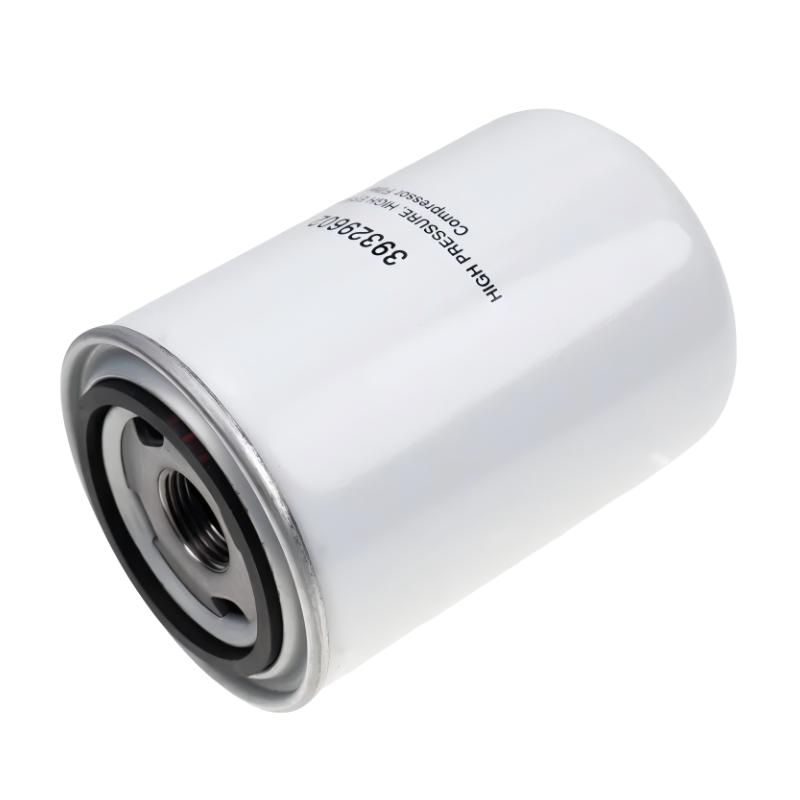

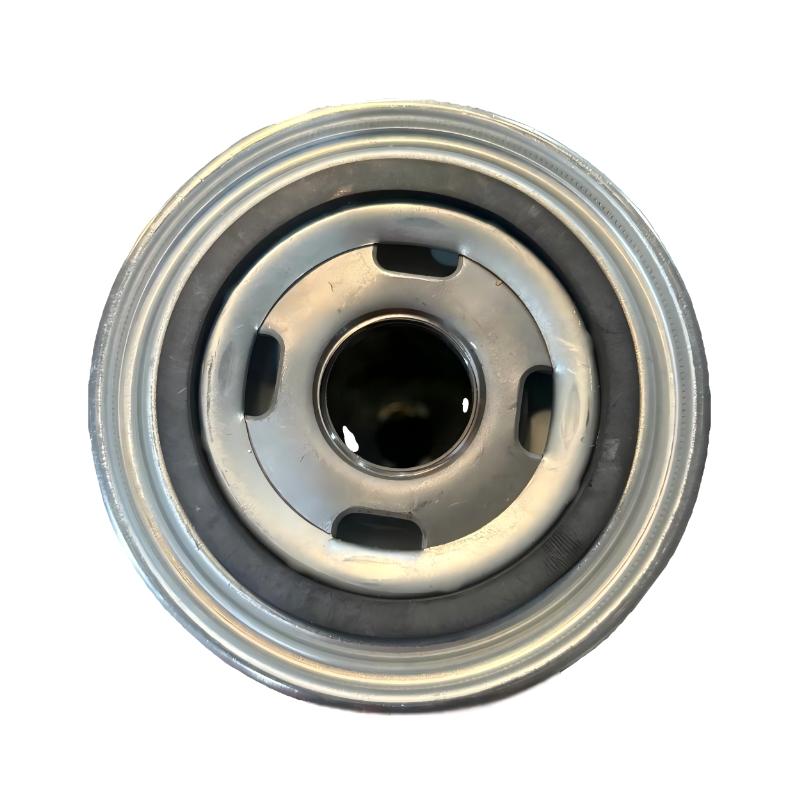

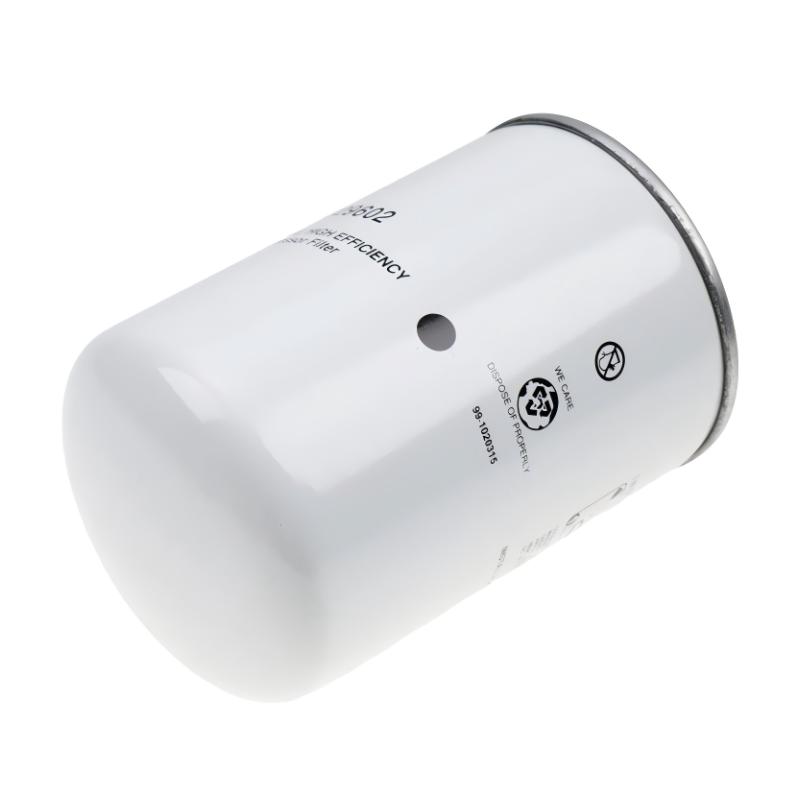

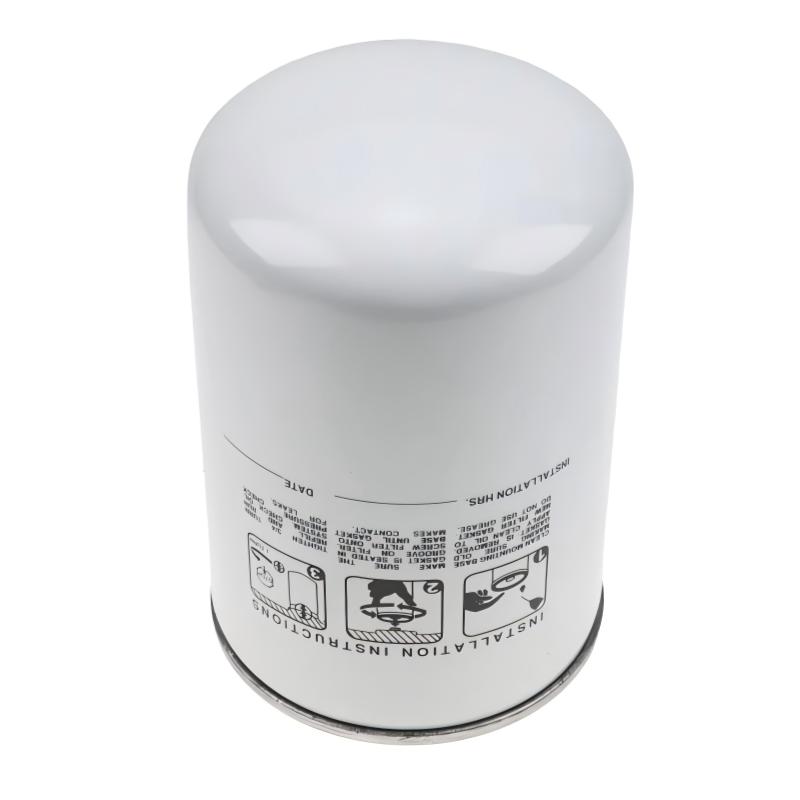

The Ingersoll Rand 15483514 39329602 Oil Filter is an oil filtration component used in compressor lubrication systems. During compressor operation, lubricating oil circulates through the equipment and may collect fine particles, wear debris, and other contaminants. The oil filter helps retain these impurities and supports the circulation of cleaner oil through the designated lubrication circuit.
In oil-injected air compressors, oil serves several functions depending on the machine configuration, including lubrication, sealing, and heat transfer. Contamination in the oil can affect internal surfaces and contribute to wear when it continues circulating through the system. Maintaining the oil filter as part of routine service helps control this contamination and supports the compressor’s ongoing operation.
For maintenance personnel servicing Ingersoll Rand equipment, the 15483514 and 39329602 part designations provide identification references for replacement planning and spare-parts inventory. Before fitting a replacement, the complete part number and intended compressor application should be checked to ensure that the filter matches the required mounting arrangement and lubrication circuit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Model | 15483514 |
| Additional Part Number | 39329602 |
| Product Type | Oil Filter |
| Product Category | Compressor Lubrication System Component |
| Primary Function | Removal of contaminants from circulating lubricating oil |
| Application | Compressor lubrication and maintenance |
| Installation Location | Compressor oil circuit, according to equipment configuration |
| Filter Configuration | Model-specific filter assembly |
| Filtration Medium | Model-specific filter material |
| System Integration | Compressor lubrication circuit |
| Maintenance Method | Inspection and periodic replacement |
| Dimensions | 135 × 40 × 95 mm |
| Weight | 0.45 kg |
Product Features
- Oil Contamination Control: Helps retain particles and impurities carried by circulating lubricating oil.
- Lubrication Circuit Support: Contributes to maintaining oil cleanliness within the compressor’s lubrication system.
- Model Identification: The 15483514 and 39329602 references support parts identification and replacement planning.
- Routine Maintenance: Can be included in scheduled compressor servicing according to the applicable maintenance requirements.
- Equipment-Specific Fit: Correct installation depends on matching the filter reference, mounting interface, and sealing arrangement.
- Service Traceability: Recording the installed part number and replacement date supports maintenance documentation.
- Condition-Based Inspection: Filter condition can be assessed alongside oil condition and operating history when investigating lubrication problems.
Working Principle
The Ingersoll Rand 15483514 39329602 Oil Filter works by directing lubricating oil through a filtration element. As the oil passes through the filter medium, suspended contaminants are retained while the filtered oil continues through the designated oil circuit.
During normal operation, the lubrication system circulates oil through the components specified by the compressor design. The filter reduces the amount of particulate contamination carried by the oil, helping limit the repeated circulation of impurities through the system. Its performance depends on the filter condition, lubricant characteristics, and the operating requirements of the compressor.
Typical filtration path:
Oil circulation → Filter inlet → Filtration element → Contaminant retention → Filter outlet
As contaminants accumulate, the filter may develop increased flow resistance. Oil viscosity, operating temperature, and the overall condition of the lubrication circuit can also influence system performance. A restricted filter may contribute to abnormal pressure conditions or lubrication problems, depending on the compressor’s design and protective arrangements.
During troubleshooting, technicians should inspect the filter together with the lubricant condition, oil level, connecting lines, and relevant system indicators. A filter replacement alone may not resolve an issue caused by degraded oil, blocked passages, or another component fault.
Role in an Industrial Compressor Lubrication Architecture
The oil filter forms part of the compressor’s lubrication architecture, where it helps control contamination in circulating oil. It works alongside other components that manage oil movement, temperature, and separation. Its role differs from that of an air filter, which removes contaminants from intake air, and an oil separator, which separates entrained oil from compressed air in oil-injected compressor systems.
| System Component | Function | Relationship to the Oil Filter |
|---|---|---|
| Oil Filter | Retains contaminants from circulating oil | Helps maintain lubricant cleanliness |
| Compressor Lubricating Oil | Lubricates internal components and may support sealing and heat transfer | Passes through the designated filtration circuit |
| Oil Circulation Mechanism | Moves oil through the lubrication system where applicable | Establishes flow through the filter |
| Airend | Compresses air and contains internal mechanical components | Depends on the lubrication arrangement specified for the compressor |
| Oil Cooler | Reduces lubricant temperature where fitted | Supports oil temperature management |
| Oil Separator | Separates entrained oil from compressed air | Performs a different function from oil filtration |
| Oil Lines and Fittings | Transport lubricant between system components | Connect the filter to the surrounding oil circuit |
| Pressure Monitoring Components | Monitor operating conditions where installed | May help identify abnormal pressure or filter restriction |
The filter’s exact position and flow direction depend on the compressor configuration. Maintenance procedures should follow the lubrication circuit arrangement used in the installed equipment.
Industrial Applications
| Application Area | Typical Use | Relevance of the Oil Filter |
|---|---|---|
| Industrial Air Compressors | Routine servicing of oil-injected compressor systems | Helps control contamination in circulating lubricant |
| Manufacturing Facilities | Maintenance of compressed-air equipment used in production | Supports lubrication-system maintenance |
| Pneumatic Equipment Supply | Servicing compressors that supply pneumatic machinery | Contributes to the upkeep of the compressor oil circuit |
| Process Plant Maintenance | Scheduled servicing of industrial compressor equipment | Provides a specific replacement-part reference |
| Compressor Overhaul | Inspection and renewal of service components | Allows the filter to be replaced when required |
| Preventive Maintenance Programs | Planned servicing based on operating hours and equipment condition | Supports filter condition management |
| Spare Parts Management | Inventory control for compressor consumables | Helps maintain accurate part identification and ordering records |
Installation and Maintenance
- Verify the part identification: Check the 15483514 and 39329602 designations against the installed component and the compressor’s parts records before replacement.
- Prepare the compressor: Stop the equipment and follow the approved shutdown procedure before beginning maintenance.
- Isolate the equipment: Apply the required electrical and mechanical isolation procedures, and address stored pressure and hot-oil hazards before opening the lubrication circuit.
- Allow the system to cool: Wait until the relevant components and lubricant have reached a safe handling temperature.
- Locate the oil filter: Identify the filter position and confirm its connection to the compressor lubrication circuit before removal.
- Inspect the surrounding area: Check for oil leakage, damaged fittings, loose connections, or signs of contamination around the filter assembly.
- Remove the existing filter: Use the appropriate removal method and collect residual oil to prevent spills and contamination of nearby equipment.
- Check the mounting interface: Inspect the sealing surface, threads, housing, and connection points for damage or contamination.
- Prepare the replacement filter: Confirm the replacement reference and inspect the mounting features and sealing components before installation.
- Install the new filter: Follow the applicable installation procedure and tightening requirements. Avoid excessive force that could damage the filter or its connection.
- Perform operational checks: Restore the equipment according to the approved procedure and inspect for leakage, abnormal pressure indications, or lubrication-system warnings.
- Document the maintenance: Record the replacement date, part identification, filter condition, oil condition, and post-maintenance inspection results.
Related Components
| Component | Function | Relationship to the Oil Filter |
|---|---|---|
| Compressor Lubricating Oil | Lubricates internal components and may support sealing and heat transfer | Circulates through the lubrication system |
| Oil Separator Element | Separates entrained oil from compressed air | Performs a separate air/oil separation function |
| Air Filter Element | Removes airborne particles from intake air | Protects the compressor intake path |
| Oil Cooler | Removes heat from circulating lubricant | Supports oil temperature control |
| Oil Lines and Fittings | Carry lubricant between system components | Connect the filter to the designated circuit |
| Filter Housing or Mounting Assembly | Supports and seals the filter where a separate housing is used | Provides the filter’s installation interface |
| Compressor Service Kit | Groups selected service components | May include filters and other consumables, depending on the kit |
Recommended Related Models
| Model or Product Category | Product Type | Relationship |
|---|---|---|
| Ingersoll Rand 15483514 39329602 | Oil Filter | Specified part identification for maintenance and replacement |
| Ingersoll Rand Compressor Oil Filters | Oil Filter | Related category for lubrication-system servicing |
| Ingersoll Rand Compressor Air Filters | Air Filter | Related consumable for intake-air filtration |
| Ingersoll Rand Compressor Oil Separators | Oil Separator Element | Related service component for oil-injected compressor systems |
| Ingersoll Rand Compressor Lubricating Oil | Compressor Lubricant | Supports the lubrication circuit |
| Ingersoll Rand Compressor Service Kits | Maintenance Kit | May group several components for scheduled servicing |
These are related product categories and are not confirmed interchangeable replacements. Alternative filters must match the intended compressor application and specified part requirements.
Key Advantages
- Helps reduce particulate contamination in circulating compressor oil.
- Supports routine maintenance of the lubrication system.
- Provides clear part identification for purchasing and inventory management.
- Allows filter condition to be assessed during scheduled servicing.
- Supports systematic troubleshooting of lubrication-related problems.
- Helps maintain accurate records of compressor service and component replacement.
Technical FAQs
What is the function of the Ingersoll Rand 15483514 39329602 Oil Filter?
It removes contaminants from circulating lubricating oil in the compressor system where the specified filter is installed. Its function differs from that of an air intake filter or an oil separator.
When should this oil filter be replaced?
The replacement interval depends on the compressor’s maintenance schedule, operating conditions, lubricant condition, and any applicable filter restriction indicators. Follow the service requirements for the specific compressor model.
What should be checked if the compressor shows signs of restricted oil flow?
Inspect the filter, oil level, lubricant condition, connecting lines, and relevant system indicators. Restriction may originate elsewhere in the lubrication circuit, so the surrounding components should also be assessed.
Can another oil filter be used as a replacement?
A different filter should not be considered interchangeable based on appearance or dimensions alone. Confirm the part reference, mounting and sealing interfaces, and suitability for the intended compressor model.
