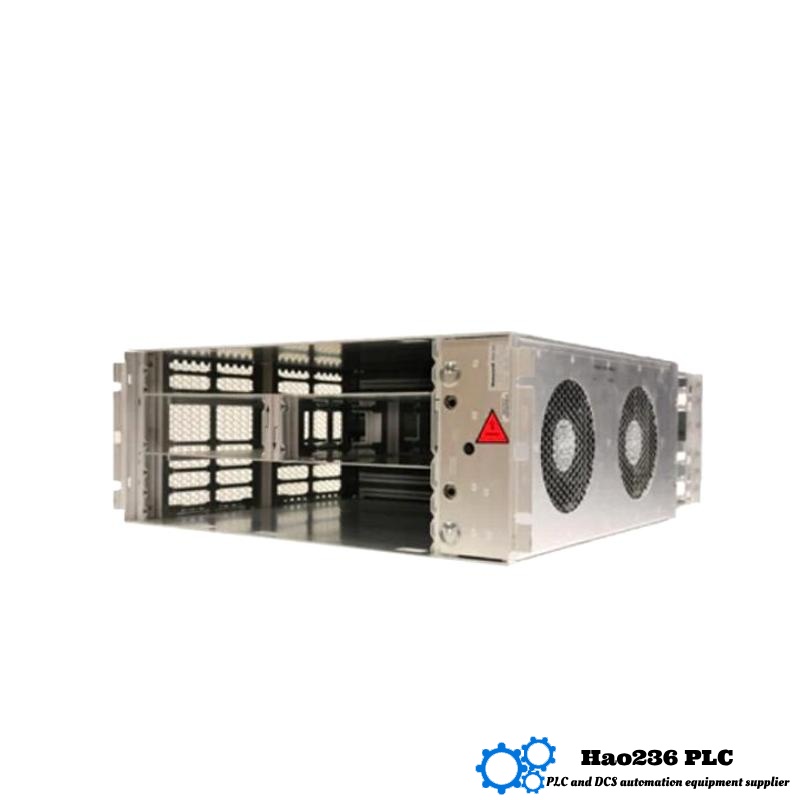

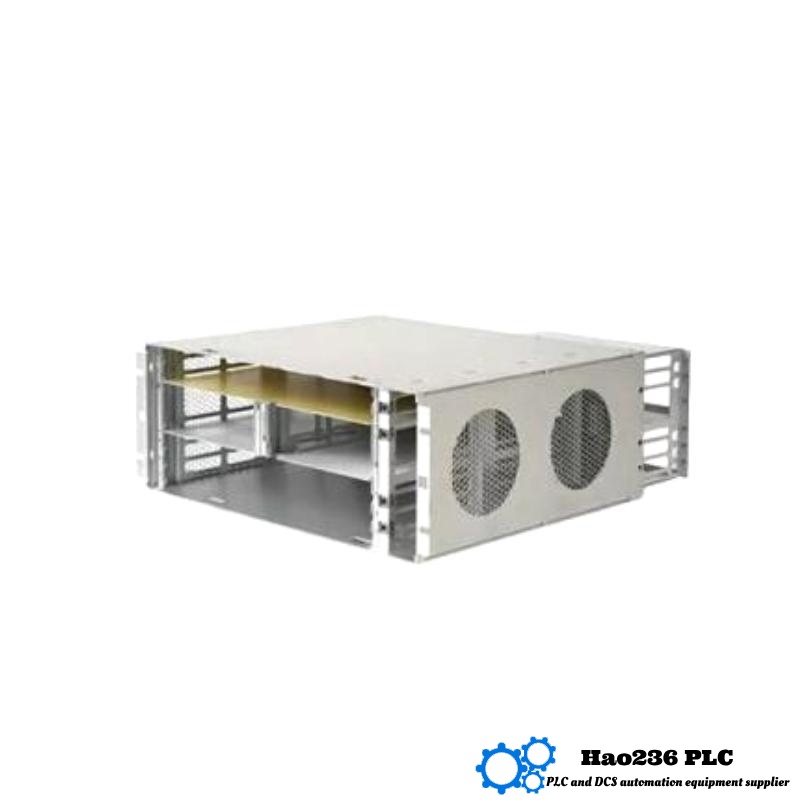

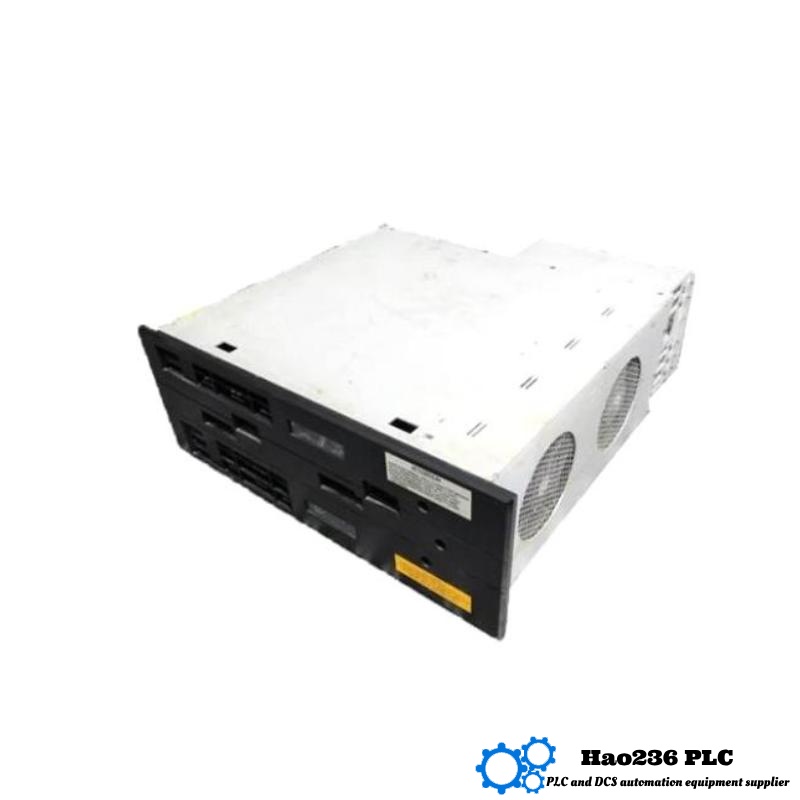

Honeywell MP-DNCF02-200 51402455-100 PLC Card File Chassis Assembly
Product Overview
The Honeywell MP-DNCF02-200 is a rugged chassis and card file assembly designed to house and interconnect multiple PLC I/O and processor cards within Honeywell’s modular I/O platforms. Built for harsh industrial environments, this chassis provides precision-engineered backplane slots, integrated power distribution, and cable-management features to simplify system wiring and maintenance. Its robust steel frame and quick-release card guides allow fast installation and removal of up to 20 plug-in cards, minimizing downtime during upgrades or service.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | MP-DNCF02-200 |
| Part Number | 51402455-100 |
| Assembly Type | PLC Card File Chassis Assembly |
| Compatible Cards | Up to 20 Honeywell PLC I/O & CPU cards |
| Backplane Type | 32-bit, high-speed parallel bus |
| Power Distribution | Integrated 5 V, 24 V, and –5 V rails |
| Cooling | Passive vent slots; optional fans |
| Material | Powder-coated steel frame |
| Slot Guides | Quick-release plastic/card guides |
| Cable Management | Rear cable duct with snap-in clamps |
| Dimensions (W × H × D) | 480 × 120 × 30 mm |
| Weight | 7.57 kg |
| Mounting | Panel-mount or rack-mount kit |
| Operating Temperature | –10 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Certifications | CE, UL, RoHS |
Applications
-
Distributed Control Systems (DCS): Central backbone for Experion® PK / ControlEdge™ PK I/O cards and logic modules.
-
Process Automation: Houses I/O cards for chemical, petrochemical, and refining applications requiring high availability.
-
Power Generation: Supports turbine control, generator monitoring, and safety interlock modules.
-
Water/Wastewater Treatment: Integrates fieldbus, analog, and digital I/O for plant monitoring and control.
-
Manufacturing OEMs: Provides flexible chassis for custom control panels and skids in automotive, packaging, and food processing.
Advantages
-
High Slot Capacity: Accommodates up to 20 plug-in cards, maximizing I/O density in limited panel space.
-
Robust Construction: Powder-coated steel and secure card guides withstand vibration, shock, and temperature extremes.
-
Integrated Power & Cooling: Built-in power rails and passive vents (plus optional fans) ensure stable operation of high-power cards.
-
Tool-free Maintenance: Quick-release card guides and rear cable duct clips allow rapid card swaps and wiring changes.
-
Versatile Mounting: Panel-mount or rack-mount installation kits adapt to varied control cabinet layouts.
Brand
Honeywell is a global leader in industrial automation, providing reliable, high-performance control hardware and software for critical process industries.
Related Chassis and Backplane Assemblies
| Model | Description | Slot Count | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| MP-DNCF02-100 | 10-slot PLC card chassis assembly | 10 | 240 × 120 × 30 | 4.00 |
| MP-DNCF02-150 | 15-slot PLC card chassis assembly | 15 | 360 × 120 × 30 | 5.80 |
| MP-DNCF04-200 | 20-slot PLC chassis with integrated fans | 20 | 480 × 120 × 50 | 8.20 |
| MP-BP02-200 | 20-slot backplane only | 20 | 480 × 120 × 20 | 6.50 |
| MP-DNCF02-200-FX | 20-slot chassis with fiber I/O bus | 20 | 480 × 120 × 30 | 7.75 |
Popular Honeywell Control Components
| Model | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| MP-CPU-EXPK | Experion® PK CPU Module | Controller | 80 × 120 × 30 | 0.85 |
| MP-IOM-16AI | 16-Channel Analog Input Module | Analog Input | 40 × 120 × 30 | 0.40 |
| MP-IOM-16DI | 16-Channel Digital Input Module | Digital Input | 40 × 120 × 30 | 0.38 |
| MP-IOM-16DO | 16-Channel Digital Output Module | Digital Output | 40 × 120 × 30 | 0.40 |
| MP-PSU-24V | 24 V DC Power Supply Module | Power Supply | 60 × 120 × 30 | 0.60 |
Frequently Asked Questions (FAQ)
Q1: How many cards can the MP-DNCF02-200 hold?
A1: Up to 20 Honeywell PLC I/O or logic cards.
Q2: What are the chassis dimensions?
A2: 480 × 120 × 30 mm (W×H×D).
Q3: How much does the assembly weigh?
A3: Approximately 7.57 kg.
Q4: What power rails are provided?
A4: Integrated +5 V, +24 V, and –5 V distribution for all slots.
Q5: Can I install cooling fans?
A5: Yes, optional fan kit slots into the top vented section.
Q6: How is maintenance simplified?
A6: Quick-release card guides and rear cable clamps allow tool-free card swaps.
Q7: What mounting options are available?
A7: Panel-mount brackets or standard 19” rack-mount kit.
Q8: What is the operating temperature range?
A8: –10 °C to +60 °C, suitable for most industrial environments.
Q9: Does it include overcurrent protection?
A9: No, individual cards typically incorporate their own protection.
Q10: Which systems is it compatible with?
A10: Honeywell Experion® PK and ControlEdge™ PK I/O platforms.
