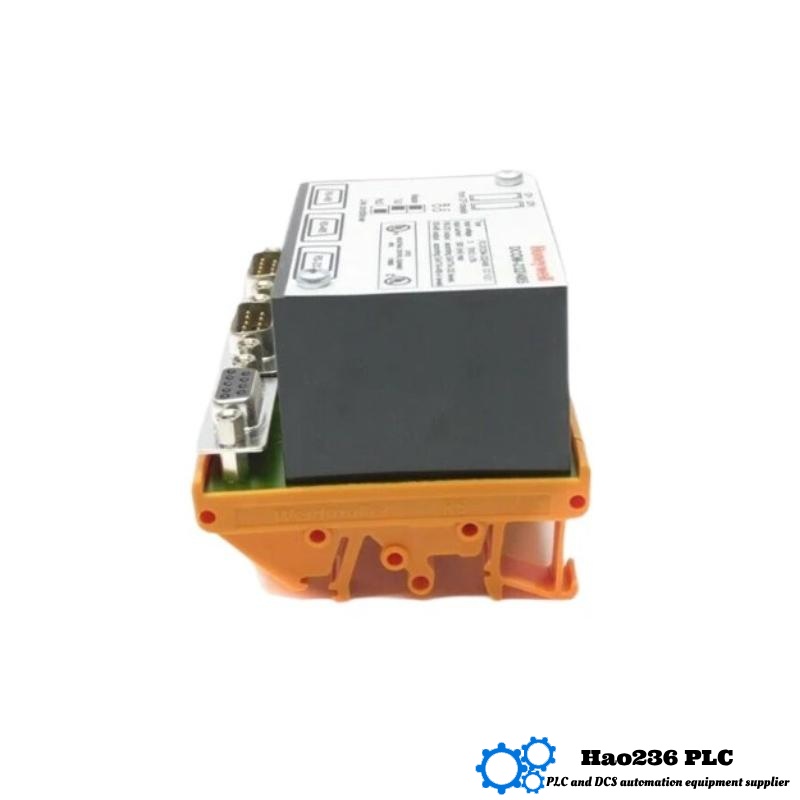

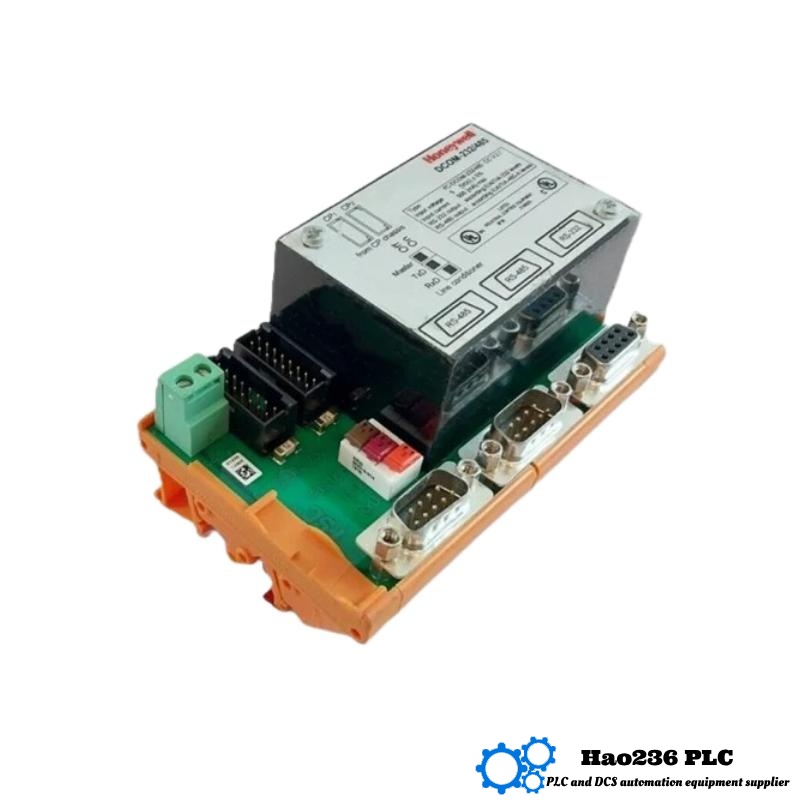

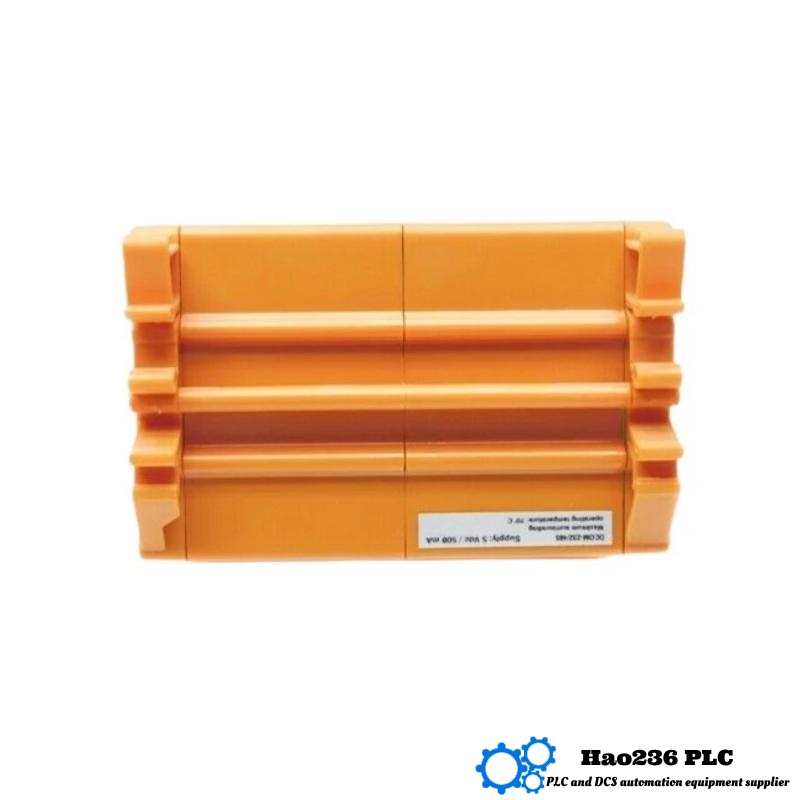

Honeywell FS-DCOM-232/485
Product Introduction
The Honeywell FS-DCOM-232/485 is a high-performance communication module designed for industrial automation systems. It provides dual communication interfaces supporting both RS-232 and RS-485 standards, enabling seamless connection and data exchange between various devices and controllers. This versatile device is engineered for robust, reliable data transmission even in demanding environments, making it ideal for integration in process control, factory automation, and building management systems.
The FS-DCOM-232/485 module ensures smooth communication in complex networks by supporting multiple protocols and offering flexible wiring options. Its compact design and rugged construction allow easy installation in control panels or cabinets, ensuring long-lasting operation.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | FS-DCOM-232/485 |
| Communication Ports | 1 × RS-232, 1 × RS-485 |
| Data Rate | Up to 115.2 kbps |
| Operating Voltage | 24 V DC |
| Power Consumption | Max 3 W |
| Operating Temperature | -40°C to +85°C |
| Dimensions (L×W×H) | 150 mm × 45 mm × 35 mm |
| Weight | 0.22 kg |
| Connector Type | Screw terminals |
| Mounting | DIN rail compatible |
| Isolation Voltage | 1500 V AC (input/output isolation) |
| Compliance | CE, UL certified |
Product Applications
-
Industrial automation systems requiring serial communication
-
Process control systems integrating multiple field devices
-
Building management systems with legacy device integration
-
Factory automation networks with RS-232/RS-485 devices
-
Data acquisition and monitoring systems in harsh environments
Product Advantages
-
Dual Port Communication: Simultaneously supports RS-232 and RS-485 interfaces for versatile connectivity.
-
High Data Rate: Supports up to 115.2 kbps, ensuring timely and efficient data transmission.
-
Wide Operating Temperature Range: Suitable for use in extreme environments from -40°C to +85°C.
-
Robust Electrical Isolation: 1500 V AC isolation protects connected equipment and enhances safety.
-
Compact and Lightweight: Easily installed in standard DIN rail-mounted control cabinets.
-
Certified Quality: Meets CE and UL standards for safety and performance assurance.
-
Flexible Wiring: Screw terminal connectors provide secure and easy wiring options.
Brand and Series Information
-
Brand: Honeywell
-
Series: FS (Fieldbus System)
-
Product Category: Communication Modules
-
Intended Industry: Industrial Automation, Process Control, Building Management
Recommended Similar or Related Models
| Model | Communication Ports | Data Rate | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| FS-DCOM-232 | RS-232 | Up to 115.2 kbps | 150 × 45 × 35 | 0.20 | Single RS-232 port |
| FS-DCOM-485 | RS-485 | Up to 115.2 kbps | 150 × 45 × 35 | 0.21 | Single RS-485 port |
| FS-DCOM-485-MP | RS-485 | Up to 1 Mbps | 160 × 50 × 40 | 0.25 | High-speed RS-485 communication |
| FS-DCOM-232/422/485 | RS-232, RS-422, RS-485 | Up to 115.2 kbps | 155 × 48 × 38 | 0.26 | Supports multiple serial standards |
| FS-DCOM-ETH-232/485 | Ethernet, RS-232, RS-485 | Up to 1 Mbps | 170 × 60 × 45 | 0.30 | Ethernet combined communication |
Recommended Popular Models from Honeywell
| Model | Type | Function | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| FS-CPU-1000 | CPU Module | Control processing | 200 × 100 × 50 | 0.90 | Central processing unit |
| FS-IO-32-DO | Digital Output Module | Output control | 150 × 40 × 35 | 0.60 | 32 channel digital outputs |
| FS-IO-32-DI | Digital Input Module | Input monitoring | 150 × 40 × 35 | 0.60 | 32 channel digital inputs |
| FS-PSU-24V-3A | Power Supply Unit | Power supply | 130 × 70 × 40 | 1.10 | 24 V DC, 3 A |
| FS-NET-1000 | Network Communication | Ethernet networking | 180 × 80 × 45 | 0.75 | High-speed network communication |
Frequently Asked Questions (FAQ)
Q1: What communication protocols does the FS-DCOM-232/485 support?
A1: It supports standard serial communication protocols over RS-232 and RS-485 interfaces.
Q2: Can the FS-DCOM-232/485 operate in extreme temperatures?
A2: Yes, it functions reliably in environments ranging from -40°C to +85°C.
Q3: What are the power requirements for this module?
A3: The module operates on 24 V DC power supply, consuming up to 3 Watts.
Q4: How is the FS-DCOM-232/485 mounted?
A4: It is designed for DIN rail mounting for easy installation in control cabinets.
Q5: What type of connectors does it use?
A5: Screw terminal connectors provide secure wiring connections.
Q6: Is there electrical isolation between the ports?
A6: Yes, it offers 1500 V AC isolation to protect equipment and ensure signal integrity.
Q7: What is the maximum data rate supported?
A7: The maximum data rate supported is 115.2 kbps.
Q8: Can this module be used to connect legacy devices?
A8: Yes, it is ideal for integrating devices that use RS-232 and RS-485 communication standards.
Q9: What certifications does this product have?
A9: It holds CE and UL certifications, ensuring compliance with safety and performance standards.
Q10: What is the weight and size of this communication module?
A10: It weighs 0.22 kg and measures 150 mm by 45 mm by 35 mm.
