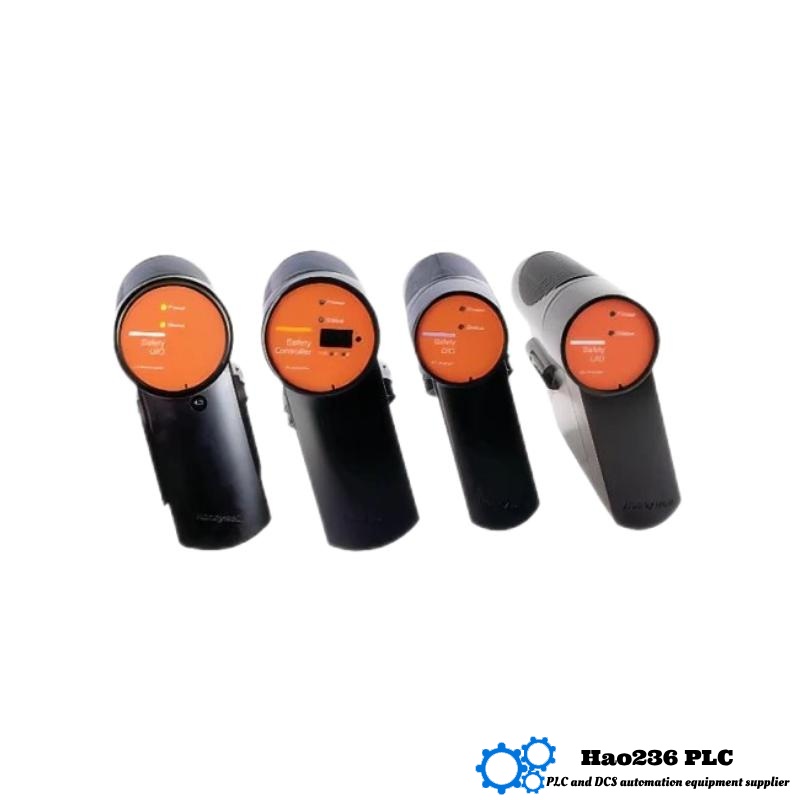

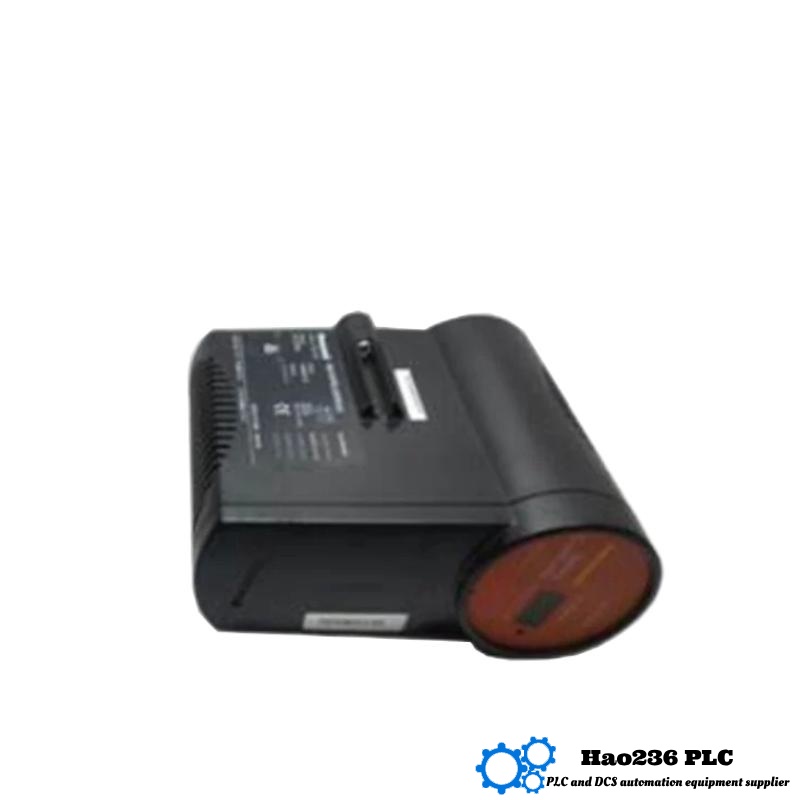

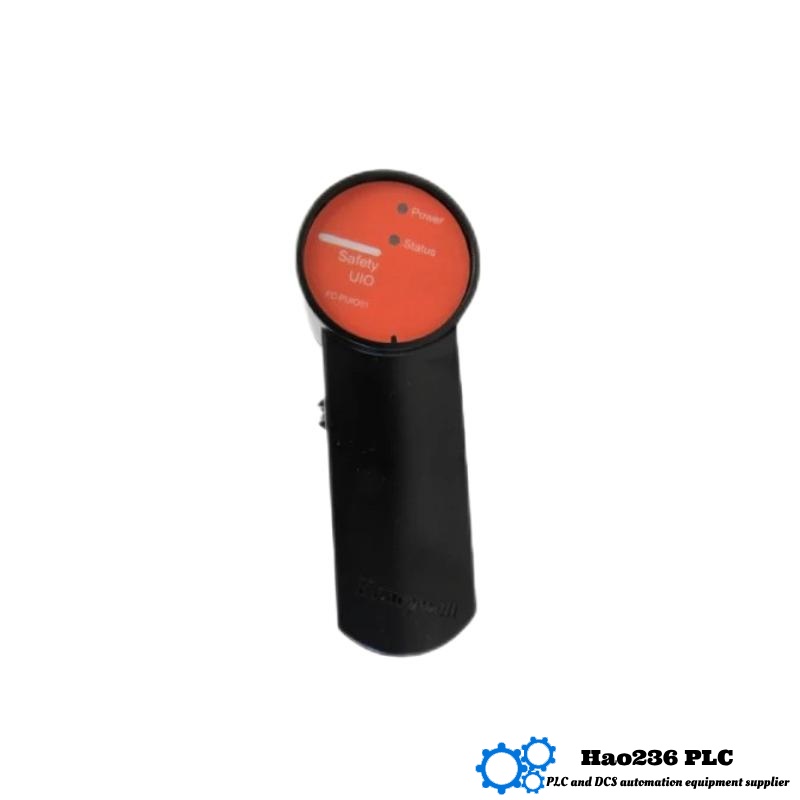

Product Overview: Honeywell FC-PUIO01 (51454294-176)
Product Description
The FC-PUIO01 is a versatile Universal Input/Output (I/O) module designed for industrial process control and safety systems. It supports multiple signal types including analog and digital, making it ideal for integration into Honeywell’s process control and safety instrumented systems. This module ensures high reliability, flexible configuration, and robust performance in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FC-PUIO01 |
| Part Number | 51454294-176 |
| Brand | Honeywell |
| Series | Universal/Safety I/O Modules |
| Signal Types | Analog Input/Output (±10 V, 4-20 mA), Digital Input/Output, Pulse I/O |
| Power Supply | 24 V DC |
| Maximum Current Draw | Up to 2 A |
| Operating Temperature | -40°C to +70°C (standard); extended up to +85°C available |
| Storage Temperature | -40°C to +125°C |
| Communication Protocols | Profibus DP, Modbus (depending on system integration) |
| Number of Channels | Typically 8 channels, configurable mix of AI, AO, DI, DO |
| Accuracy | Analog ±0.1% Full Scale |
| Protection Rating | Minimum IP65 (installation dependent) |
| Mounting | DIN rail or panel mount; supports hot swapping |
| Dimensions | Approx. 107 mm × 61 mm × 41 mm (4.2″ × 2.4″ × 1.6″) |
| Weight | Approximately 0.6 – 1.2 kg depending on configuration |
Applications
-
Safety Instrumented Systems (SIS) for emergency shutdown, interlocks, and fault handling
-
Distributed Control Systems (DCS) and PLCs for process variable monitoring and control (temperature, pressure, flow, level)
-
Chemical plants, oil & gas, refineries, power plants, pharmaceuticals requiring high safety and reliability
-
Water and wastewater treatment facilities
-
Equipment protection and alarm systems in industrial automation
Product Advantages
-
Multi-signal capability: Handles analog and digital signals in one compact unit, reducing inventory and simplifying installations.
-
Robust and reliable: Wide temperature range, strong vibration and surge immunity, IP65 protection available.
-
Safety-certified: Suitable for safety-critical applications with SIL2/SIL3 compliance.
-
Flexible configuration: Easily configurable channel mix, hot-swappable for minimal downtime.
-
Accurate and stable: High precision analog measurements with low drift over time and temperature.
-
Easy integration: Compatible with Honeywell control and safety systems; built-in diagnostics simplify maintenance.
Brand and Series
-
Brand: Honeywell
-
Series: Universal I/O Modules / Safety Universal I/O Modules within Honeywell’s process automation and safety product families.
Recommended Related or Same Series Models
| Model | Main Function | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| FC-PUIO02 | Universal I/O with higher channel counts | 107 × 61 × 41 | 0.8 – 1.0 | More I/O channels, extended analog/digital options |
| FC-DPIO01 | Digital I/O focused module | 107 × 61 × 41 | 0.7 – 0.9 | High-speed digital inputs and outputs |
| FC-AIO01 | Analog input/output dedicated module | 107 × 61 × 41 | 0.6 – 0.8 | Higher analog accuracy and low temperature drift |
| FC-UIO02 | Universal I/O with hot-swap support | Similar to FC-PUIO01 | ~1.0 | Flexible configuration, hot-swappable |
| SM-PUIO01 | Safety-certified I/O module | Slightly larger size | ~1.2 | High safety integrity and heavy-duty design |
Popular Honeywell Models (Other than FC-PUIO01)
| Model | Main Function | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| FC-QPP-0002 | Multi-core processor module for complex logic | ~180 × 140 × 80 | ~1.2 | Powerful processing for complex control and redundancy |
| TC-FTEB01 | Fieldbus to Ethernet gateway | 150 × 100 × 50 | ~0.9 | Protocol bridging and communication gateway |
| CC-PUIO31 | Universal I/O module with HART support | Similar to FC-PUIO01 | 0.7 – 1.0 | Supports HART devices and expanded I/O |
| DC-TDILO1 | High-speed analog input module | 120 × 80 × 45 | ~0.6 | Fast response time for analog signals |
| TP-OPADP1-200 | Analog output adapter module | 100 × 60 × 40 | 0.5 – 0.8 | Output signal conditioning and conversion |
FAQ (Frequently Asked Questions)
Q1: What signal types does FC-PUIO01 support?
A1: It supports analog inputs and outputs (±10 V, 4-20 mA), digital inputs/outputs, and pulse inputs/outputs configurable per channel.
Q2: How many I/O channels are typically available?
A2: Typically, the module provides 8 channels, which can be configured as AI, AO, DI, or DO.
Q3: What is the operating temperature range?
A3: The standard operating range is -40°C to +70°C; some versions extend up to +85°C.
Q4: Is hot swapping supported?
A4: Yes, the module is designed to support hot-swappable installation in compatible racks.
Q5: What power supply does the module require?
A5: It requires a 24 V DC power supply and typically draws up to 2 A depending on load.
Q6: Which communication protocols does it support?
A6: Primarily Profibus DP and often compatible with Modbus; depends on the system setup.
Q7: How accurate are the analog signals?
A7: Analog inputs and outputs maintain ±0.1% full-scale accuracy.
Q8: Can it operate in harsh environments?
A8: Yes, it is built for industrial environments with vibration resistance and protection up to IP65.
Q9: What safety certifications does the module have?
A9: It meets SIL2 or SIL3 safety integrity levels for use in safety instrumented systems.
Q10: How is fault detection handled?
A10: It features built-in diagnostics and LED indicators for real-time monitoring of faults and operational status.
