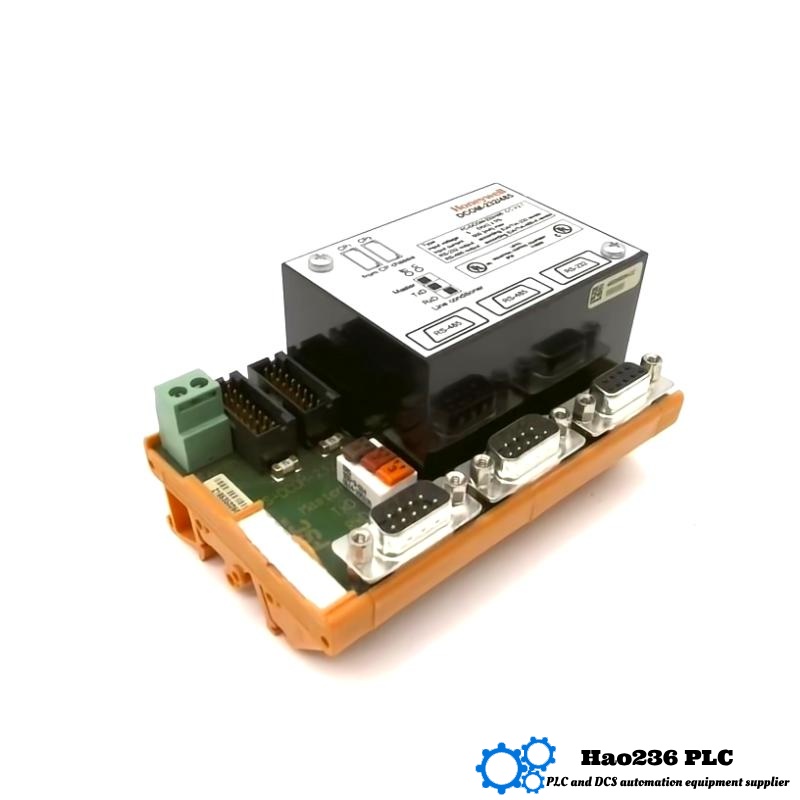

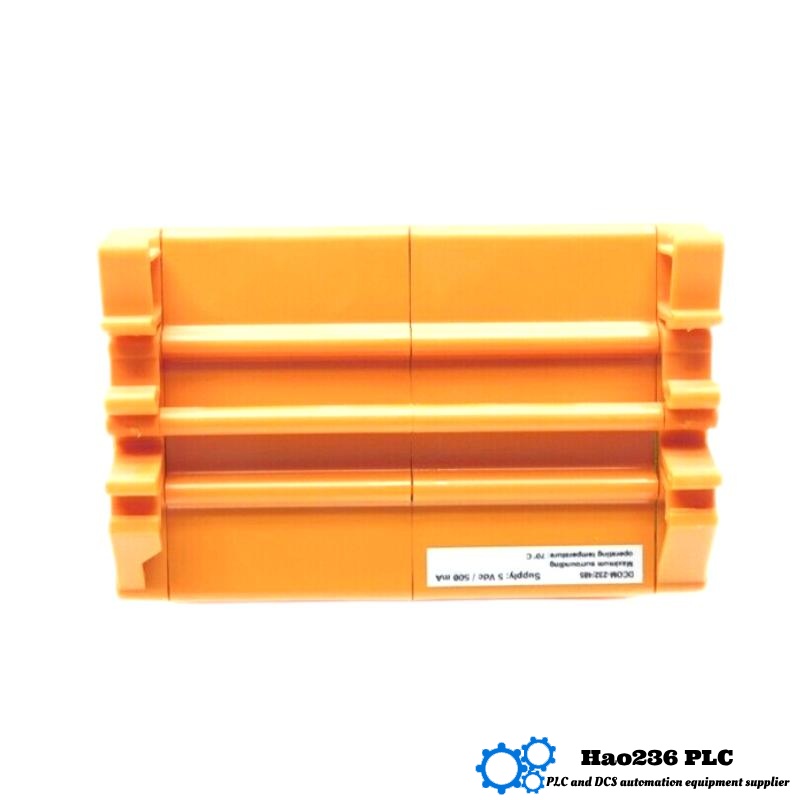

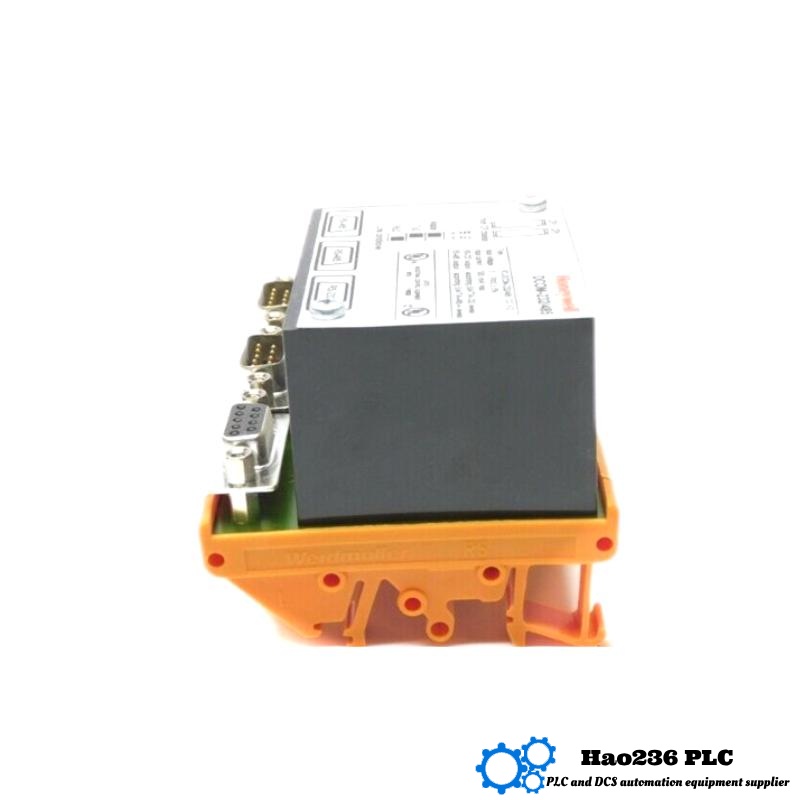

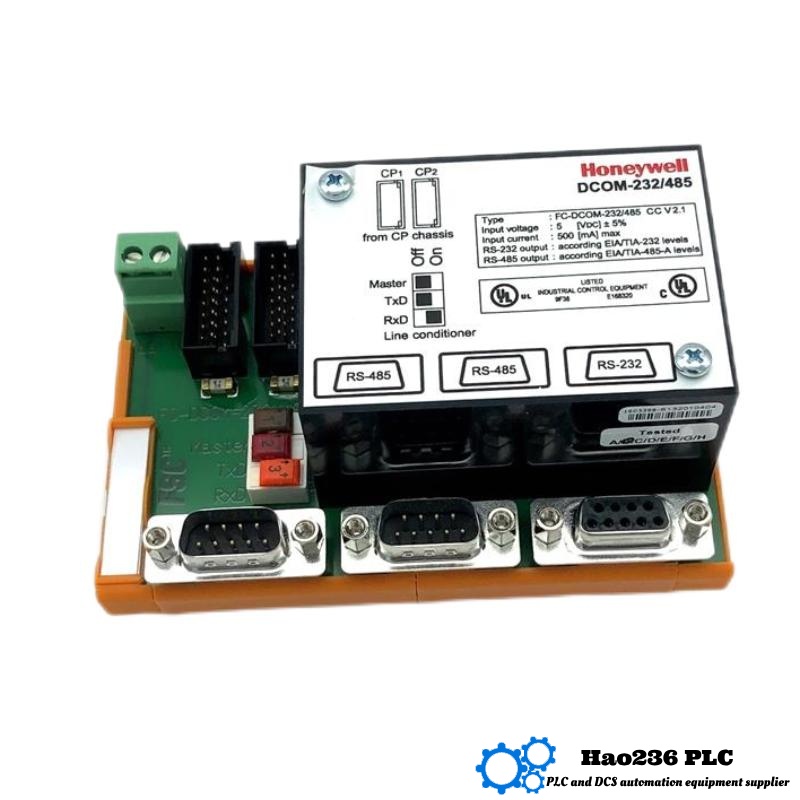

Honeywell FC‑DCOM‑232/485
Product Introduction
The FC‑DCOM‑232/485 is a rugged, compact communication interface module designed to bridge RS‑232 and RS‑485 serial communications. It delivers seamless protocol conversion and data exchange between Honeywell automation controllers and third-party devices across industrial environments such as process control, SCADA, and building automation.
Applications
-
Integrating legacy RS‑232 devices into modern RS‑485 networks
-
Enabling RS‑232/485 connections in process automation systems
-
Facilitating communication in pipeline SCADA, RTU, PLC, or sensor networks
-
Supporting Modbus RTU or custom serial protocols
-
Providing reliable connectivity in oil & gas, power, chemical, and HVAC systems
Key Advantages
-
Dual‑protocol support: Operates either in RS‑232 or RS‑485 mode for versatile deployment
-
Rugged design: Durable metal enclosure and industrial-grade EMC protection
-
Long‑reach communication: Supports RS‑485 transmission up to 1,200 m
-
Easy installation: DIN‑rail mountable and hot‑swappable for maintenance convenience
-
Configurable communication: Software-configurable baud rate, parity, data bits, and stop bits
-
Diagnostic LEDs: Real-time indicators for TX, RX, error, and module status
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FC‑DCOM‑232/485 |
| Brand | Honeywell |
| Function | RS‑232 / RS‑485 communication interface module |
| Supported Protocols | RS‑232 (0–250 kbps), RS‑485/422 (0–2 Mbps, FM0/FM1/Manchester) |
| Input Voltage | 5 V DC (±5 %) via controller backplane |
| Power Consumption | ≤ 2.5 W |
| Isolation | Opto‑isolated RS‑485 line to power |
| Mounting | DIN‑rail (TS32/TS35 × 7.5) |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5%–95% RH (non‑condensing) |
| Dimensions | 110 × 70 × 61 mm |
| Weight | Approx. 0.66 kg |
| Protocols Supported | Modbus RTU (master/slave), ASCII (limited), custom serial |
| Certifications | CE, UL, TUV, FM (select versions) |
Related Models (Same Series / Category)
| Model | Description | Key Specs |
|---|---|---|
| FC‑DCOM‑232 | RS‑232 only interface module | Single RS‑232 port, similar spec |
| FC‑DCOM‑485 | RS‑485 only interface module | Single RS‑485 port, robust termination |
| FC‑DCOM‑234/485 | RS‑232 & RS‑485 combo with Modbus | DIN‑rail, LED diagnostics, 120 mm size |
| FC‑DCOM‑ETH | Ethernet (Modbus TCP) interface | Network-level communication module |
| FC‑DCOM‑CAN | CAN‑bus interface for motion control | Supports CAN protocol across networks |
Popular Honeywell Models (Same Brand)
| Model | Description | Typical Use Case |
|---|---|---|
| FC‑DCOM‑232/485 | Serial communication bridge (this model) | RS‑232/485 field integration |
| FC‑DCOM‑234/485 | Combo serial interface module | Dual-port serial conversion |
| FC‑DCOM‑ETH | Ethernet/Modbus TCP interface | Network-based field communication |
| FC‑DCOM‑CAN | CAN‑bus module | Industrial motion systems |
| FC‑PUI001 | Safety digital I/O signal module | Safety-critical I/O systems |
Frequently Asked Questions (FAQ – QA Format)
Q1: What do you use the FC‑DCOM‑232/485 for?
A1: It bridges RS‑232 and RS‑485 devices in industrial automation systems.
Q2: Can both RS‑232 and RS‑485 operate simultaneously?
A2: No — only one port is active at a time based on configuration.
Q3: What is the maximum RS‑485 cable length?
A3: Up to approximately 1,200 m, depending on baud rate and network setup.
Q4: Is the RS‑485 port isolated?
A4: Yes — it includes opto-isolation to protect against electrical noise.
Q5: Does it support Modbus RTU protocol?
A5: Yes — supports Modbus RTU in both master and slave modes.
Q6: What power does the module use?
A6: Powered with 5 V DC via the controller (no external supply required).
Q7: What environmental specs does it meet?
A7: Operates between –40 °C to +70 °C and up to 95% humidity (non-condensing).
Q8: How is baud rate configured?
A8: Configurable via software or via jumpers—standard rates up to 115.2 kbps for RS‑232 and up to 2 Mbps for RS‑485.
Q9: Can the module be hot-swapped?
A9: Yes — hot-swap capability is supported, depending on controller architecture.
Q10: What are its mounting options?
A10: It mounts easily on standard DIN rails (TS32/TS35 × 7.5).
