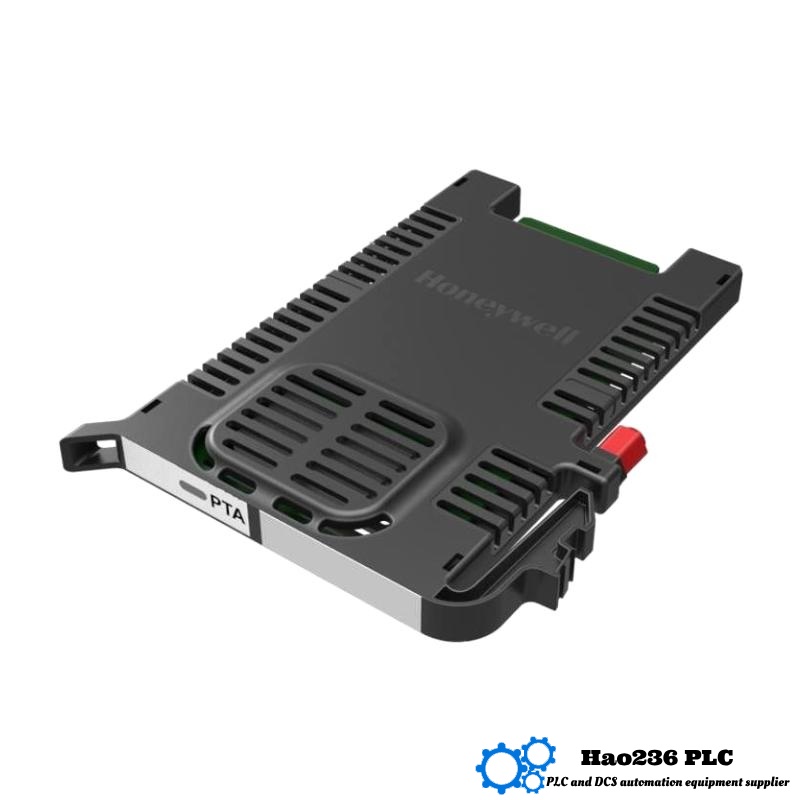

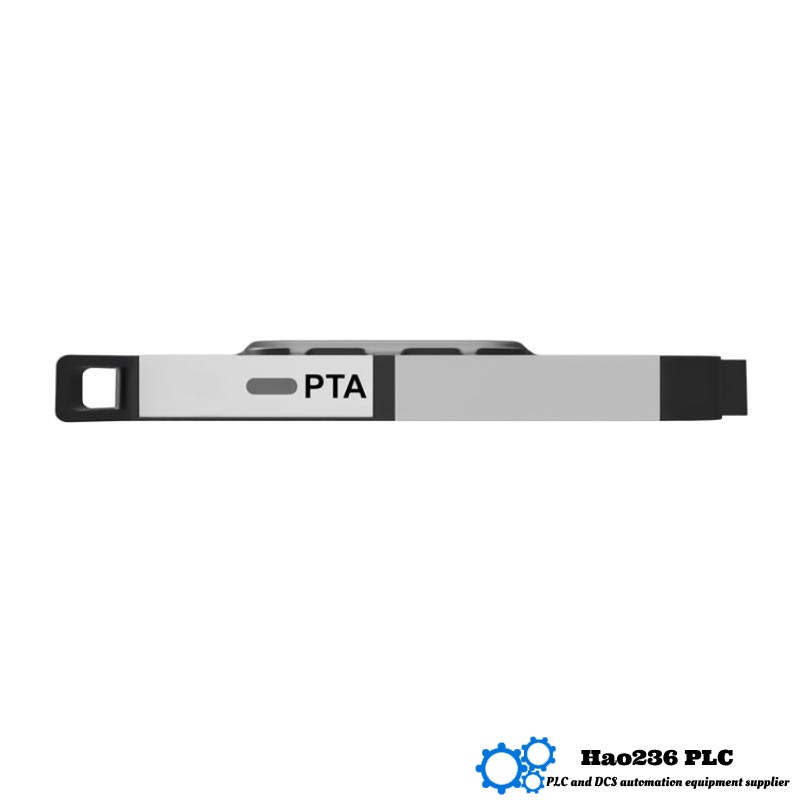

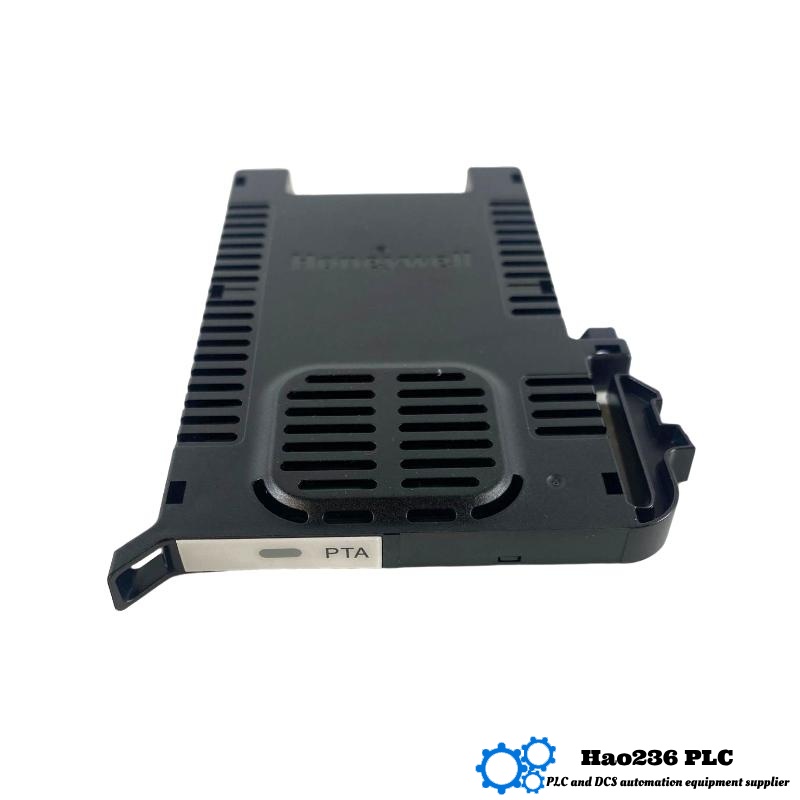

Honeywell CC-UPTA01 Universal Pass-Through Adapter
Product Introduction
The Honeywell CC-UPTA01 is a single-channel universal pass-through adapter designed primarily for industrial automation and safety systems. It provides a direct connection between field devices and safety or control systems without requiring external power. This versatile module supports multiple signal types, including analog input/output, digital input/output, and relay outputs. It is engineered to meet international safety standards, making it suitable for applications demanding high reliability and safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CC-UPTA01 |
| Type | Single-channel universal pass-through adapter |
| Signal Types | 2-wire analog input/output, digital input/output, relay output |
| Power Supply | 24V DC (powered from system) |
| Maximum Current | 500mA |
| Dimensions (L x W x H) | 118 mm x 85.75 mm x 10 mm |
| Weight | Approx. 0.2 kg |
| Mounting | DIN rail mounting with clip housing |
| Interface | 37-pin DSUB (for SIC cable connection) |
| Field Wiring | 3 terminals per channel, supports 12-24 AWG cables |
| Operating Temperature | -40°C to +70°C |
| Storage/Transport Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Vibration Tolerance | Operational: 0.5g (10Hz–150Hz), Non-operational: 1g (10Hz–150Hz) |
| Shock Tolerance | Operational: 5g, Non-operational: 15g |
| Ingress Protection | IP20 (per IEC 60529) |
| Flammability Rating | V0 (per UL 94) |
| Safety Integrity Level (SIL) | SIL 3 (per IEC 61508) |
| Certifications | ATEX, IECEx, ANSI/ISA, IEC 61326-1, RoHS compliant |
Applications
-
Industrial Automation: Connects field devices to control systems for accurate data acquisition and control.
-
Safety Systems: Provides reliable signal transmission for safety-critical applications.
-
Building Management Systems: Integrates diverse devices for smart building control.
-
Process Control: Enables precise monitoring and control in manufacturing processes.
Product Advantages
-
No External Power Needed: Operates using system power, simplifying installation and reducing wiring complexity.
-
Multi-Signal Support: Handles various input/output types for flexible use.
-
High Safety Standards: Certified for safety-critical environments.
-
Compact and Space-Saving: Small footprint for easy integration into crowded control panels.
-
Robust and Reliable: Designed for harsh environments to ensure consistent operation.
Brand & Series
-
Brand: Honeywell
-
Series: Universal I/O Modules (Universal Input/Output family designed for scalable, flexible I/O solutions)
Recommended Models
Same Series or Related Models
| Model | Description | Signal Types | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| CC-UDIR01 | Digital Input Relay Adapter | Digital Input | 118 mm x 85.5 mm x 10 mm | 0.2 kg |
| CC-UDOR01 | Digital Output Relay Adapter | Digital Output | 118 mm x 85.5 mm x 10 mm | 0.2 kg |
| CC-UPTA02 | Dual-Channel Pass-Through Adapter | Multi-signal | 118 mm x 85.75 mm x 20 mm | 0.4 kg |
| CC-UPTA03 | Triple-Channel Pass-Through Adapter | Multi-signal | 118 mm x 85.75 mm x 30 mm | 0.6 kg |
| CC-UPTA04 | Four-Channel Pass-Through Adapter | Multi-signal | 118 mm x 85.75 mm x 40 mm | 0.8 kg |
Popular Honeywell Models
| Model | Description | Signal Types | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| CC-IP0101 | Digital I/O Module | Digital I/O | 120 mm x 100 mm x 75 mm | 0.4 kg |
| CC-TUIO31 | Universal I/O Termination Module | Multi-signal | 118 mm x 85.75 mm x 10 mm | 0.3 kg |
| CC-TUIO41 | Redundant Universal I/O Module | Multi-signal | 118 mm x 85.75 mm x 10 mm | 0.3 kg |
| CC-TFE021 | Analog Output Module | Analog Output | 118 mm x 85.75 mm x 10 mm | 0.3 kg |
| CC-TAIN11 | Analog Input Module | Analog Input | 118 mm x 85.75 mm x 10 mm | 0.3 kg |
FAQ
Q1: What is the CC-UPTA01 used for?
A1: It is a single-channel universal pass-through adapter used to connect field devices directly to control or safety systems.
Q2: Does the CC-UPTA01 require an external power supply?
A2: No, it operates using the system’s 24V DC power, eliminating the need for an additional power source.
Q3: What types of signals does it support?
A3: It supports analog input/output, digital input/output, and relay output signals.
Q4: What are the dimensions of the CC-UPTA01?
A4: The module measures 118 mm in length, 85.75 mm in width, and 10 mm in height.
Q5: How much does the CC-UPTA01 weigh?
A5: It weighs approximately 0.2 kilograms.
Q6: Can the CC-UPTA01 be installed on a DIN rail?
A6: Yes, it is designed for easy DIN rail mounting.
Q7: What is the operating temperature range?
A7: It operates reliably from -40°C to +70°C.
Q8: Is the CC-UPTA01 suitable for hazardous environments?
A8: Yes, it meets safety certifications like ATEX and IECEx, making it suitable for hazardous locations.
Q9: What is the maximum current it can handle?
A9: It can handle up to 500mA.
Q10: What kind of connector does the CC-UPTA01 use?
A10: It uses a 37-pin DSUB connector for SIC cable connections.
