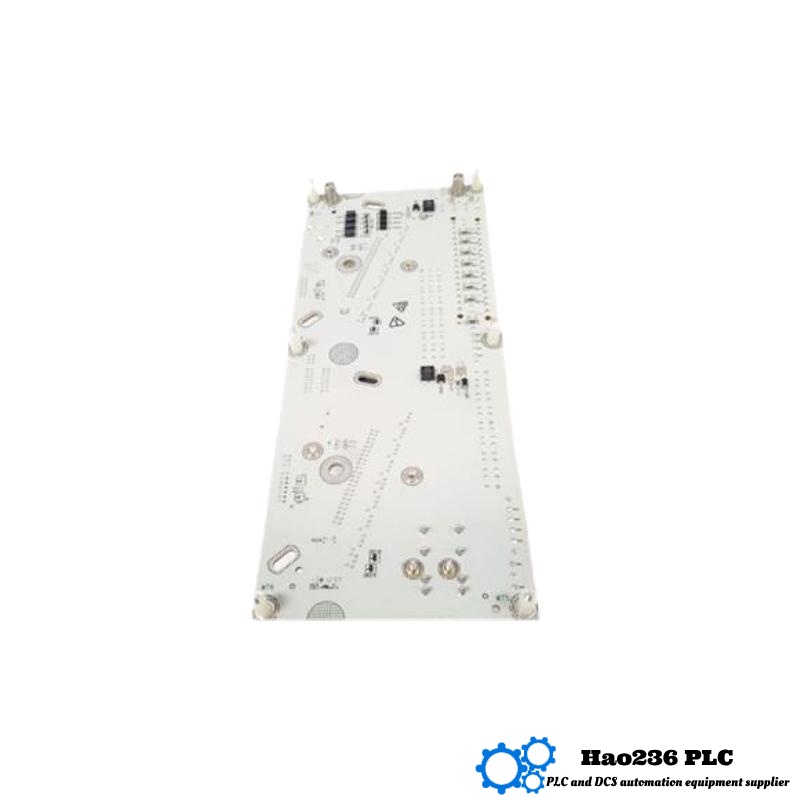

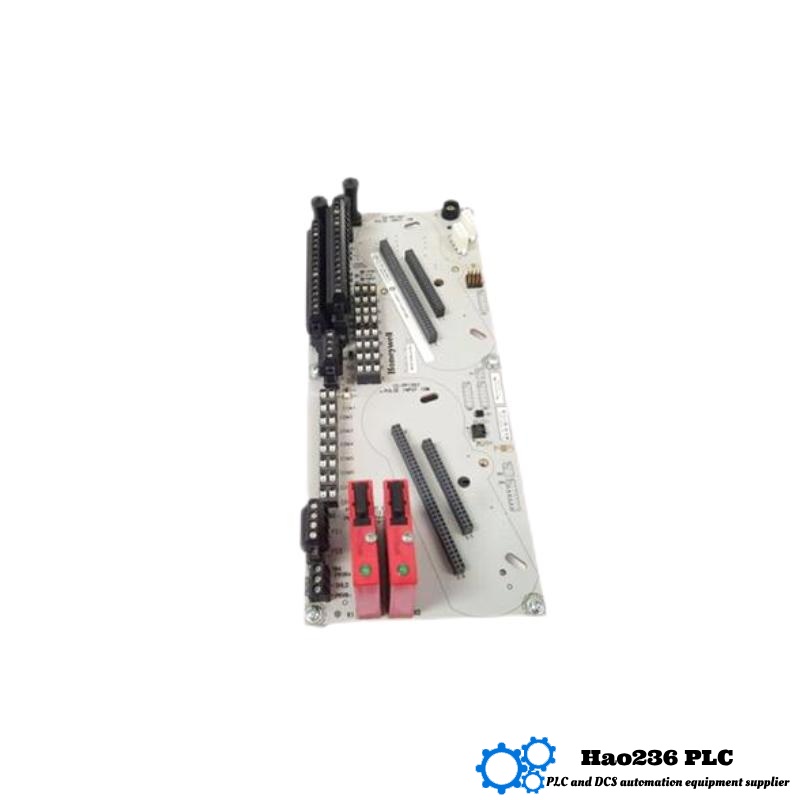

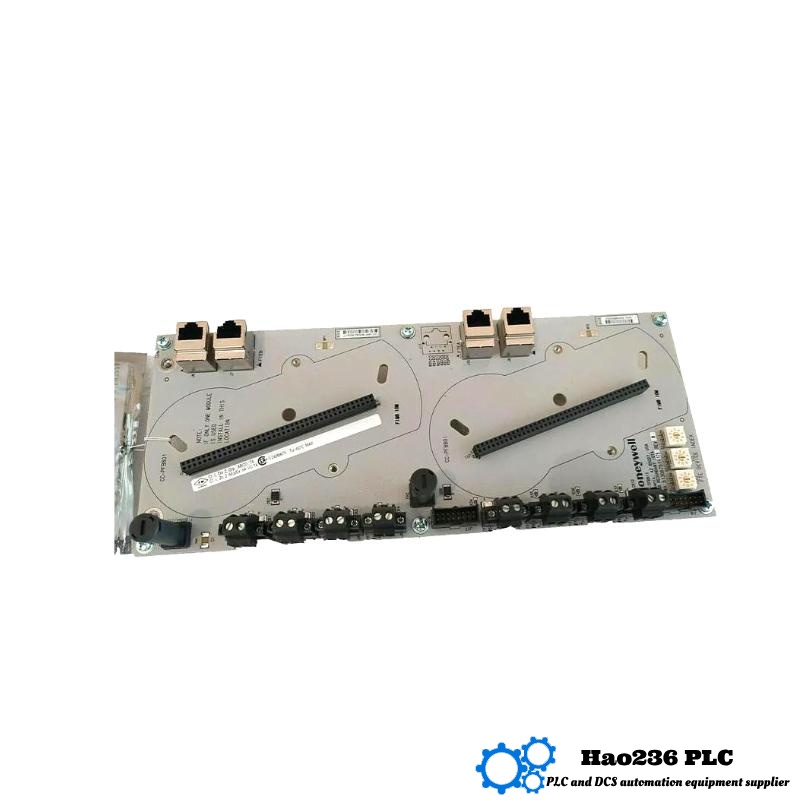

📘 Product Overview: Honeywell CC-TPIX11 (51306544-125)
The Honeywell CC-TPIX11 is a Thermocouple Input Module designed for precise temperature measurement in industrial automation systems, particularly within the Experion PKS / C300 Series. This module accepts multiple thermocouple inputs, converting analog temperature signals into reliable digital data for control and monitoring.
Equipped with advanced signal conditioning and cold-junction compensation, the CC-TPIX11 ensures high accuracy and stability. It supports various thermocouple types (J, K, T, E, R, S, B, N), making it versatile across multiple industries.
Its rugged construction and compatibility with Series 8 chassis provide seamless integration and reliable operation in harsh environments.
🧾 Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | CC-TPIX11 (51306544-125) |
| Function | Thermocouple Input Module |
| Input Channels | 8 |
| Supported Thermocouple Types | J, K, T, E, R, S, B, N |
| Input Range | -200°C to +1820°C (depending on thermocouple type) |
| Accuracy | ±0.25% of reading |
| Cold-Junction Compensation | Yes |
| Input Impedance | > 10 MΩ |
| Response Time | < 500 ms |
| Isolation | Channel-to-channel and channel-to-ground |
| Power Supply | 24V DC ±10% |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% Non-condensing |
| Certifications | CE, UL, CSA, RoHS |
| Dimensions (H x W x D) | 127 mm x 25 mm x 200 mm |
| Weight | 0.45 kg |
🏭 Product Applications
-
Power Plants: Accurate temperature monitoring of turbines, boilers, and heat exchangers.
-
Chemical and Petrochemical Industry: Process temperature control for reactors, distillation columns, and storage tanks.
-
Pharmaceutical Industry: Precise temperature control in manufacturing processes to ensure quality and compliance.
-
Food and Beverage: Monitoring cooking, pasteurization, and sterilization temperatures.
-
General Industrial Automation: Any application requiring reliable thermocouple temperature measurement and data acquisition.
⭐ Product Advantages
-
Multi-Thermocouple Support: Compatible with 8 channels and various thermocouple types for versatile temperature monitoring.
-
High Accuracy: ±0.25% accuracy ensures reliable temperature measurement critical for process control.
-
Cold-Junction Compensation: Ensures stable readings even with fluctuating ambient temperatures.
-
Robust Design: Built to operate reliably in harsh industrial environments with wide temperature and humidity tolerance.
-
Series 8 Compatibility: Seamless integration with Honeywell’s Experion PKS / C300 automation systems.
🏷️ Brand and Series Information
-
Brand: Honeywell
-
Series: Experion PKS / C300 Series
-
Category: Thermocouple Input Module
🔄 Related or Same Series Models
| Model | Description | Channels | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CC-TPOX01 | Thermocouple Input Module | 8 | Thermocouple Input | 127 x 25 x 200 | 0.47 |
| CC-TAIX01 | Isolated Analog Input Module | 8 | Analog Input | 127 x 25 x 200 | 0.45 |
| CC-TPIX01 | Thermocouple Input Module | 8 | Thermocouple Input | 127 x 25 x 200 | 0.45 |
| CC-TPIX12 | Thermocouple Input Module (Higher Accuracy) | 8 | Thermocouple Input | 127 x 25 x 200 | 0.46 |
| CC-TAIX02 | Analog Input Module | 16 | Analog Input | 127 x 50 x 200 | 0.50 |
🌟 Top 5 Popular Honeywell Modules
| Model | Description | Function | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CC-PCF901 | Control Processor | Controller | N/A | 127 x 50 x 200 | 0.50 |
| CC-PFB801 | Profibus-DP Interface Module | Communication Module | Profibus-DP | 127 x 25 x 200 | 0.44 |
| CC-PAIN01 | Analog Input Module | Analog Input | 8 | 127 x 25 x 200 | 0.46 |
| CC-TDOB01 | Digital Output Module | Digital Output | 32 | 127 x 25 x 200 | 0.44 |
| CC-TDIL01 | Digital Input Module | Digital Input | 32 | 127 x 25 x 200 | 0.43 |
❓ Product FAQ – Honeywell CC-TPIX11
Q1: What thermocouple types does the CC-TPIX11 support?
A1: It supports types J, K, T, E, R, S, B, and N thermocouples.
Q2: How many channels are available on this module?
A2: It has 8 thermocouple input channels.
Q3: What is the accuracy of the temperature measurements?
A3: The accuracy is ±0.25% of the reading.
Q4: Does the module provide cold-junction compensation?
A4: Yes, it includes cold-junction compensation to ensure accurate readings.
Q5: What is the operating temperature range for this module?
A5: It operates between 0°C and +60°C.
Q6: Can this module be used in hazardous environments?
A6: It is designed for industrial environments but does not have intrinsic safety certification for hazardous locations.
Q7: What type of isolation does the module have?
A7: Channel-to-channel and channel-to-ground isolation to prevent interference.
Q8: Is the module compatible with the Experion PKS system?
A8: Yes, it integrates seamlessly with Experion PKS and C300 series systems.
Q9: What kind of diagnostics are included?
A9: The module monitors input signal integrity and reports faults if any.
Q10: How is the module mounted?
A10: It is designed for rack mounting in the Series 8 chassis.
