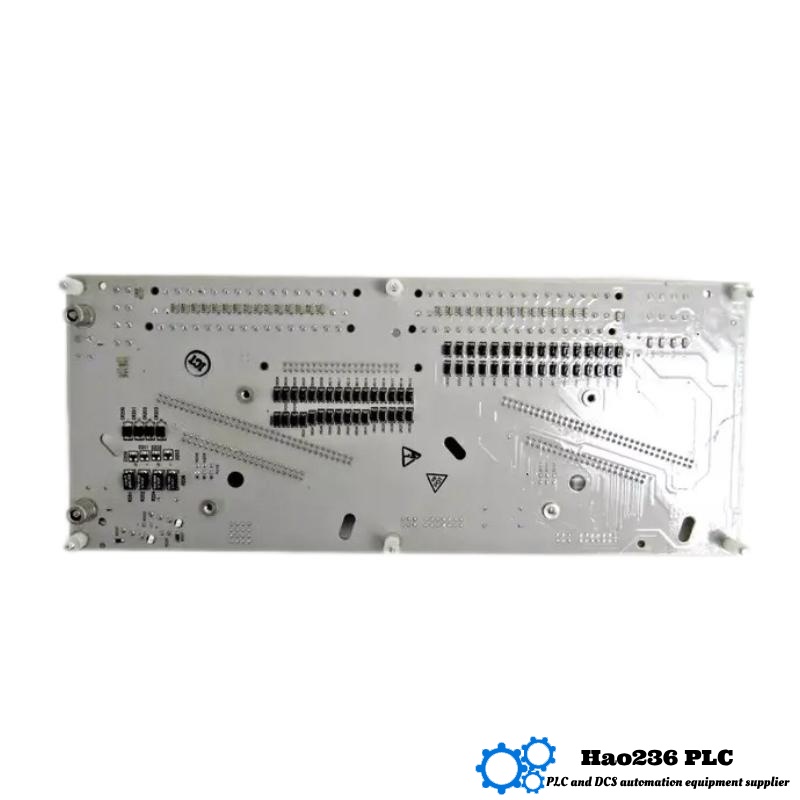

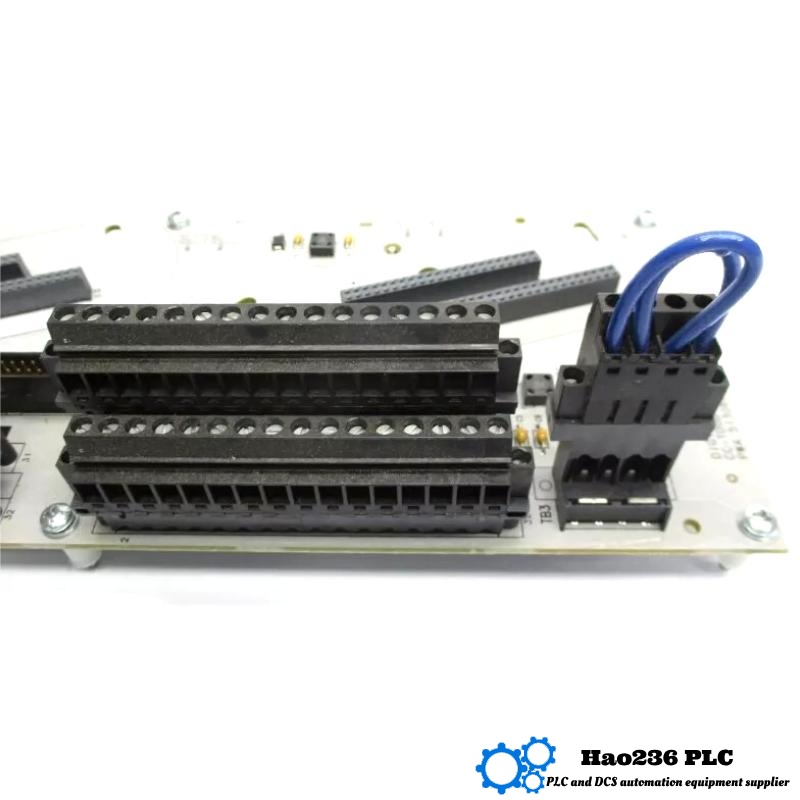

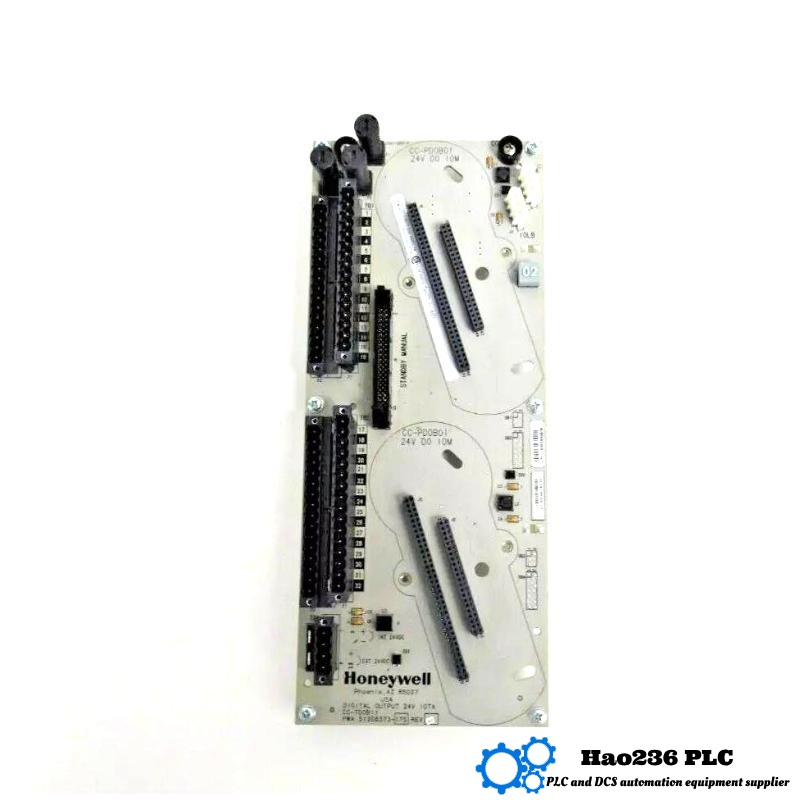

📘 Product Overview: Honeywell CC-TDOB11 (51308373-175)
The Honeywell CC-TDOB11 is a 24V DC Digital Output Module designed to deliver high-performance, isolated control signals in industrial automation and process control systems. It forms part of the Experion PKS / C300 Series, known for scalable architecture and advanced diagnostics.
This module supports isolated digital outputs across 16 channels, each capable of sourcing current to drive external field devices like relays, contactors, solenoids, and signal lights. Built for high-reliability applications, the CC-TDOB11 ensures precise switching operations in demanding field environments. Each output is protected and monitored to ensure uninterrupted operation.
As part of the Series 8 I/O platform, the CC-TDOB11 integrates easily with Honeywell’s C300 controller, offering efficient wiring, simplified maintenance, and real-time fault monitoring.
🧾 Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | CC-TDOB11 (51308373-175) |
| Function | Digital Output Module |
| Output Channels | 16 |
| Output Type | Sourcing (High-side Switch) |
| Output Voltage | 24V DC nominal |
| Max Output Current | 0.5 A per channel |
| Output Protection | Short-circuit, Overload |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostics | Channel status, open load, short detection |
| Power Supply | 24V DC ±10% |
| System Compatibility | Experion PKS / C300 Controllers |
| Mounting | Rack-mounted (Series 8 Chassis) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% Non-condensing |
| Certifications | CE, UL, CSA, RoHS |
| Dimensions (H x W x D) | 127 mm x 25 mm x 200 mm |
| Weight | 0.43 kg |
🏭 Product Applications
-
Discrete Manufacturing: Activates field devices like actuators, alarms, and motor starters in packaging, assembly, and conveyor systems.
-
Energy Plants: Interfaces with turbines and switchgear for precise switching operations in utility environments.
-
Petrochemical Plants: Controls valves, pumps, and emergency systems in explosion-prone zones with safe and stable output delivery.
-
Infrastructure Automation: Utilized in building control, lighting systems, and HVAC where reliable digital output is critical.
-
Pharmaceutical and Batch Control: Provides traceable digital signals in regulated environments requiring process documentation.
⭐ Key Product Advantages
-
Channel Isolation: Each output channel is independently isolated, increasing protection and reducing fault propagation.
-
Robust Output Control: With up to 0.5 A per channel, it reliably drives industrial-grade field loads.
-
Advanced Fault Monitoring: Real-time diagnostics for short circuits and load failures improve system uptime.
-
Compact Footprint: 16-channel density in a narrow-width module conserves control cabinet space.
-
Integrated Series 8 Architecture: Full compatibility with Honeywell’s modern chassis and controllers minimizes wiring and commissioning time.
🏷️ Brand and Series Information
-
Brand: Honeywell
-
Series: Experion PKS / C300 Series
-
Category: Digital Output (DO) Module
🔄 Related or Same Series Models
| Model | Description | Channels | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CC-TDIL01 | Digital Input Module (Isolated) | 32 | 24V DI Isolated | 127 x 25 x 200 | 0.43 |
| CC-TDOB01 | Digital Output Module (32-Channel) | 32 | 24V DO Isolated | 127 x 25 x 200 | 0.44 |
| CC-PUIO01 | Universal I/O Module | 16 | Mixed AI / AO / DI / DO | 127 x 25 x 200 | 0.48 |
| CC-TAIX01 | Isolated Analog Input Module | 8 | Analog Input | 127 x 25 x 200 | 0.45 |
| CC-TPOX01 | Thermocouple Input Module | 8 | T/C Input | 127 x 25 x 200 | 0.47 |
🌟 Top 5 Popular Honeywell Modules
| Model | Description | Function | Channels / Interface | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CC-PFB801 | Profibus-DP Interface Module | Communication Module | Profibus-DP | 127 x 25 x 200 | 0.44 |
| CC-PAIN01 | Analog Input Module | Analog Input | 8 Channels | 127 x 25 x 200 | 0.46 |
| CC-PAOH01 | Analog Output Module | Analog Output | 8 Channels | 127 x 25 x 200 | 0.46 |
| CC-PCF901 | Control Processor (C300) | CPU Module | N/A | 127 x 50 x 200 | 0.50 |
| CC-TDIL01 | Digital Input Module (Isolated) | Digital Input | 32 Channels | 127 x 25 x 200 | 0.43 |
❓ Product FAQ – Honeywell CC-TDOB11
Q1: What is the main function of the CC-TDOB11?
A1: It provides 16 independent 24V DC digital output channels for driving field devices like solenoids, relays, and alarms.
Q2: How does this differ from CC-TDOB01?
A2: The CC-TDOB11 has 16 output channels, whereas the CC-TDOB01 has 32. The CC-TDOB11 may be used when fewer outputs are needed or where system configuration requires different load balancing.
Q3: Is each output channel isolated?
A3: Yes, all channels are individually isolated to prevent signal interference and improve electrical safety.
Q4: What types of loads can it drive?
A4: It can drive DC solenoids, indicators, relays, and any device that operates within the 24V DC, 0.5 A range.
Q5: Does the module offer diagnostics?
A5: Yes, it includes short-circuit, overload, and open-circuit detection for fast fault identification.
Q6: Can this module be used in redundant systems?
A6: Yes, it supports integration into redundant configurations via controller and chassis-level redundancy.
Q7: Is hot-swapping supported?
A7: No, the module must be inserted or removed with system power turned off.
Q8: What is the recommended operating environment?
A8: 0°C to +60°C, non-condensing humidity up to 95%.
Q9: How is the module mounted?
A9: It mounts into a Series 8 chassis, which is rack-installed in a standard control cabinet.
Q10: Is this module certified for industrial use?
A10: Yes, it holds CE, UL, CSA, and RoHS certifications for use in global industrial environments.
