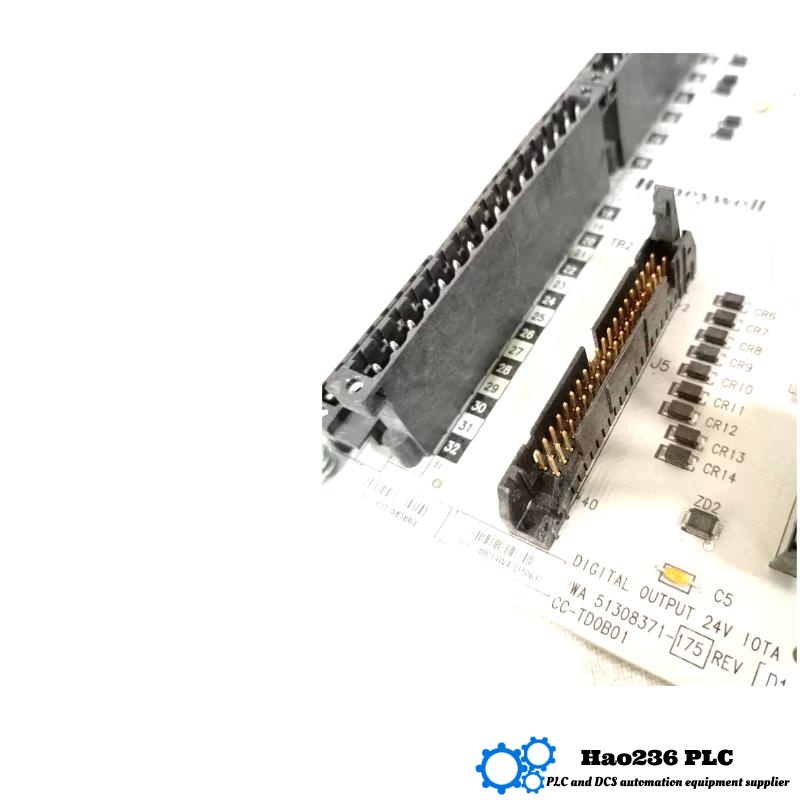

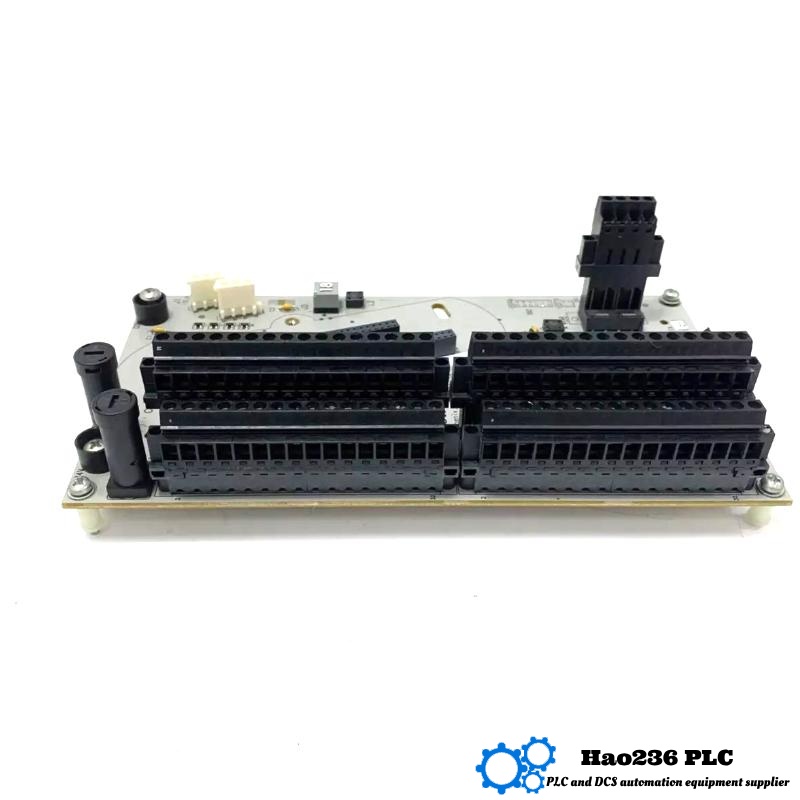

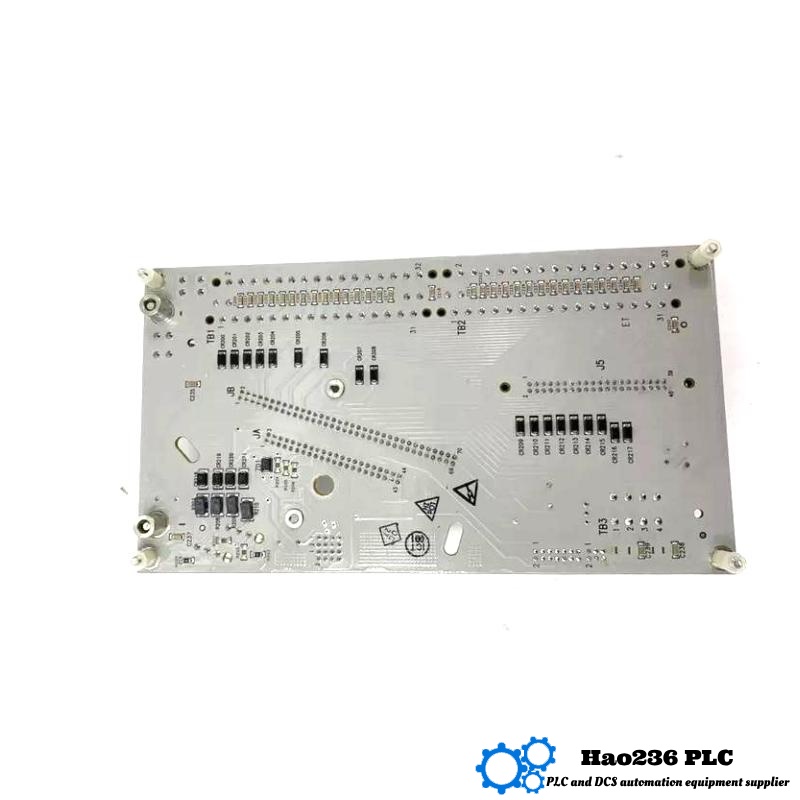

📘 Product Overview: Honeywell CC-TDOB01 (51308371-175)
The Honeywell CC-TDOB01 (part number 51308371-175) is a Digital Output Module specifically engineered for Honeywell’s Experion PKS and C300 control systems. This module is designed to provide isolated 24V DC digital outputs to field devices such as relays, solenoids, contactors, and other control elements.
Its high-channel density, robust signal isolation, and reliable response time make it a powerful component in modern distributed control systems. With 32 individually isolated output channels, the CC-TDOB01 ensures consistent and safe operation in mission-critical industrial environments.
The module is fully compliant with the Series 8 I/O platform, making it easily integrable into existing Experion infrastructure, and capable of serving diverse process industries with high reliability and diagnostics.
🧾 Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | CC-TDOB01 (51308371-175) |
| Function | Digital Output Module |
| Number of Output Channels | 32 |
| Output Voltage | 24V DC nominal |
| Output Type | Current-sourcing (High-side switch) |
| Output Current per Channel | Max 0.5 A |
| Output Protection | Short-circuit and overload protection |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Power Supply | 24V DC ±10% |
| Diagnostics | Open wire, short circuit, output status |
| Mounting Type | Series 8 Chassis / Rack-mounted |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% Non-condensing |
| Certifications | CE, UL, CSA, RoHS |
| Dimensions (H x W x D) | 127 mm x 25 mm x 200 mm |
| Weight | 0.44 kg |
🏭 Product Applications
-
Process Control Systems: Provides direct control signals to field devices in refineries, power plants, and chemical processing facilities.
-
Factory Automation: Drives actuators, interlocks, and signaling devices in high-speed manufacturing environments.
-
Energy Sector: Enables safe and reliable switching for distributed I/O in power generation and distribution systems.
-
Water and Wastewater Treatment: Controls valves, motors, and pumps remotely with rapid output response.
-
Pharmaceutical and Food Industries: Ensures clean and precise digital control for hygiene-sensitive and batch-based processes.
⭐ Key Product Advantages
-
High-Density Design: Offers 32 isolated outputs in a compact module, saving space in control cabinets.
-
Enhanced Reliability: Short-circuit and overload protection ensure long-term durability and safe operation.
-
Advanced Diagnostics: Built-in status indicators and system feedback help identify faults faster.
-
Seamless Integration: Easily integrates into Honeywell’s Series 8 and Experion control architecture without additional hardware.
-
Reduced Wiring Complexity: Each output is isolated, reducing grounding issues and simplifying field wiring.
🏷️ Brand and Series Information
-
Brand: Honeywell
-
Series: Experion PKS / C300 Series
-
Category: Digital Output Module (DO)
🔄 Related or Same Series Models
| Model | Description | Channel Count | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CC-TDIL01 | Digital Input Module (Isolated) | 32 | 24V DI Isolated | 127 x 25 x 200 | 0.43 |
| CC-PAIN01 | Analog Input Module | 8 | Analog Input | 127 x 25 x 200 | 0.46 |
| CC-PAOH01 | Analog Output Module | 8 | Analog Output | 127 x 25 x 200 | 0.46 |
| CC-PCF901 | C300 Controller with Firmware | N/A | Control Processor | 127 x 50 x 200 | 0.50 |
| CC-PFB801 | Profibus Communication Module | N/A | Profibus-DP Interface | 127 x 25 x 200 | 0.44 |
🌟 Top 5 Popular Honeywell Modules
| Model | Description | Function | Channels / Interface | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CC-PUIO01 | Universal I/O Module | Mixed I/O | 8 Inputs / 8 Outputs | 127 x 25 x 200 | 0.48 |
| CC-TAIX01 | Isolated Analog Input Module | AI (Isolated) | 8 Channels | 127 x 25 x 200 | 0.45 |
| CC-TPOX01 | Thermocouple Input Module | T/C Input | 8 Channels | 127 x 25 x 200 | 0.47 |
| CC-TDIL01 | Digital Input Module (Isolated) | 24V DI Isolated | 32 Channels | 127 x 25 x 200 | 0.43 |
| CC-PFB801 | Profibus-DP Interface Module | Communication Module | Profibus-DP | 127 x 25 x 200 | 0.44 |
❓ Product FAQ – Honeywell CC-TDOB01
Q1: What is the function of the CC-TDOB01 module?
A1: It provides 32 isolated digital outputs to field devices for control operations using 24V DC signals.
Q2: Can this module be used with non-Honeywell systems?
A2: No, it is specifically designed for integration with Honeywell’s Experion PKS and C300 systems.
Q3: Are the digital outputs isolated?
A3: Yes, all 32 channels are individually isolated for improved electrical safety and signal integrity.
Q4: What is the maximum current per channel?
A4: Each output can handle up to 0.5 A of current.
Q5: Does it offer diagnostic capabilities?
A5: Yes, the module includes diagnostics for open wires, short circuits, and output status.
Q6: Can it be used in hazardous environments?
A6: Yes, it is certified for use in industrial and hazardous area installations with appropriate enclosure and wiring.
Q7: How is it mounted?
A7: The module is rack-mounted using a Series 8 chassis designed for C300 and Experion systems.
Q8: Does it support redundancy?
A8: The module itself does not have redundant channels, but can be used in redundant system configurations.
Q9: Is the module hot-swappable?
A9: No, the system must be powered down before inserting or removing the module.
Q10: What field devices can it control?
A10: It can control relays, solenoid valves, contactors, lights, and other digital actuators.
