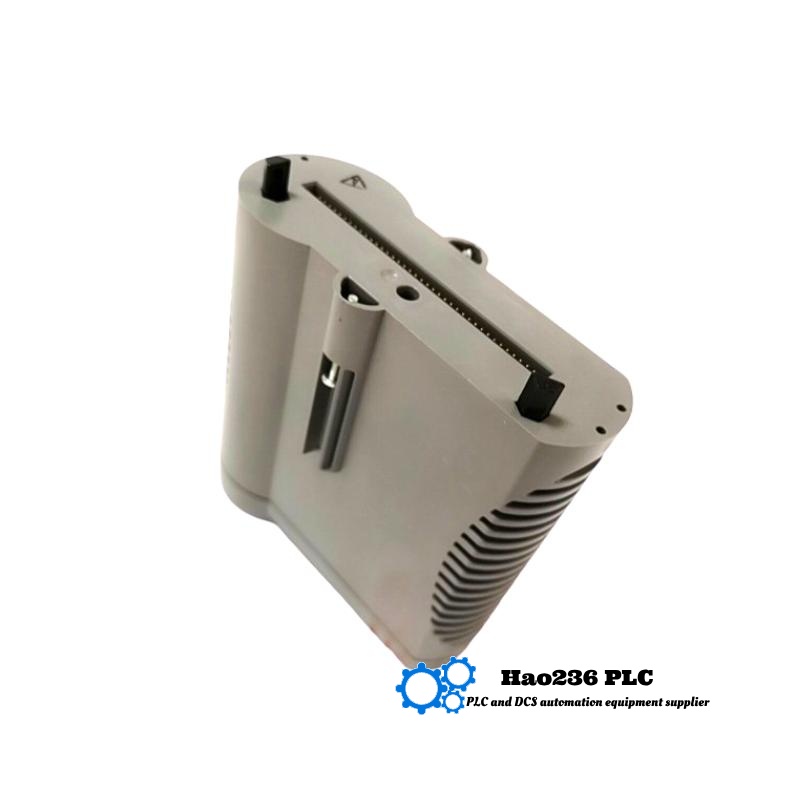

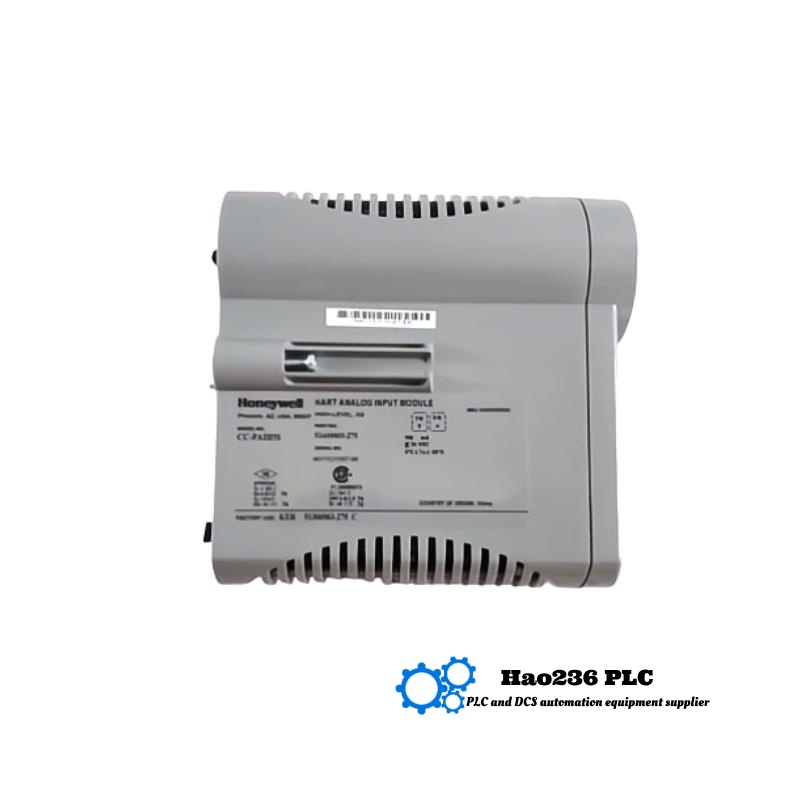

Honeywell CC-PAIH51 51410069-275 Analog Input Module
Product Overview
The Honeywell CC-PAIH51 51410069-275 is a high-precision analog input module designed to convert analog signals from field devices into a format suitable for control systems. This module is part of Honeywell’s advanced range of input/output (I/O) modules for industrial automation and control systems. With its high performance, accuracy, and reliability, the CC-PAIH51 ensures seamless operation in various industrial environments. It supports multiple input types such as 4-20 mA and 0-10 V, making it versatile and adaptable to numerous industrial applications.
Key Features
-
Multi-Input Signal Compatibility: The module supports a wide range of analog signals, including 4-20 mA and 0-10 V, making it compatible with most industrial sensors and devices.
-
High Accuracy: With high-resolution data conversion and processing, it ensures accurate measurements of analog signals for reliable monitoring and control.
-
Compact Design: The CC-PAIH51 is designed with a compact form factor, providing a space-efficient solution for control panels and systems with limited space.
-
High Noise Immunity: The module is engineered to provide excellent noise immunity, ensuring stable and precise performance even in environments with electrical noise.
-
Easy Integration: It integrates seamlessly with Honeywell’s control systems, making installation and configuration quick and efficient.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CC-PAIH51 51410069-275 |
| Input Channels | 8 Analog Inputs |
| Input Types | 4-20 mA, 0-10 V |
| Signal Conversion | Analog-to-Digital Conversion |
| Accuracy | ±0.1% of Full Scale |
| Operating Temperature | –20°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (H x W x D) | 63.5 x 124.46 x 307.34 mm |
| Weight | 0.299 kg |
| Power Supply | 24 VDC ±20% |
| Current Consumption | 150 mA |
| Mounting | DIN rail mountable |
Applications
-
Industrial Automation: The CC-PAIH51 is ideal for use in industrial automation systems where high-precision analog signals need to be monitored and controlled.
-
Process Control: This module is commonly used in chemical, oil & gas, and power plants to acquire data from various process sensors such as temperature, pressure, and flow sensors.
-
Building Automation: In building management systems, the module can be used to monitor and control HVAC systems, lighting, and energy usage.
-
Factory Automation: It’s widely used in factory environments to collect data from machines, equipment, and various sensors, ensuring smooth operation.
-
Energy Management: The module can also be used to monitor and control energy usage, providing data for energy optimization in industrial and commercial buildings.
Advantages
-
Versatile Input Compatibility: With support for 4-20 mA and 0-10 V input signals, the module is compatible with a wide variety of industrial sensors and devices, offering flexibility in application.
-
Accurate Data Conversion: High accuracy in signal conversion ensures reliable data for effective decision-making and process optimization.
-
Space-Efficient Design: Its compact size allows for easy integration into systems where space is at a premium, without compromising performance.
-
Noise Immunity: The module is designed with high immunity to electrical noise, ensuring that it performs reliably in environments with significant electrical interference.
-
Seamless Integration with Honeywell Systems: The CC-PAIH51 integrates easily with Honeywell’s existing control systems, streamlining setup and ensuring compatibility with other Honeywell components.
Brand Information
Honeywell is a global leader in technology and manufacturing, providing innovative solutions for industrial control, automation, and safety. Known for its robust and reliable products, Honeywell is committed to improving operational efficiency, safety, and sustainability across multiple industries, including aerospace, building management, energy, and manufacturing. Their I/O modules, like the CC-PAIH51, exemplify their commitment to delivering high-performance solutions for demanding industrial applications.
Related Models in the Same Series
| Model | Module Type | Channels | Input Type | Power Supply |
|---|---|---|---|---|
| CC-PAIH51 51410069-275 | Analog Input Module | 8 | 4-20 mA, 0-10 V | 24 VDC |
| CC-PAIH52 51410069-276 | Analog Input Module | 8 | 4-20 mA, 0-10 V | 24 VDC |
| CC-PAIH53 51410069-277 | Analog Input Module | 8 | 4-20 mA, 0-10 V | 24 VDC |
| CC-PAIH54 51410069-278 | Analog Input Module | 8 | 4-20 mA, 0-10 V | 24 VDC |
| CC-PAIH55 51410069-279 | Analog Input Module | 8 | 4-20 mA, 0-10 V | 24 VDC |
Popular Honeywell Models
| Model | Module Type | Channels | Input Type | Power Supply |
|---|---|---|---|---|
| 51306522-190 | Analog Input Module | 8 | 4-20 mA | 24 VDC |
| 51306306-171 | Digital Input Module | 16 | Dry Contact (Digital) | 24 VDC |
| 51306579-177 | Digital Output Module | 8 | Digital Output (Relay) | 24 VDC |
| 51410069-280 | RTD Input Module | 4 | RTD (Pt100) | 24 VDC |
| 51306525-182 | Analog Output Module | 8 | 4-20 mA | 24 VDC |
Frequently Asked Questions (FAQs)
Q1: What input types does the CC-PAIH51 module support?
A1: The CC-PAIH51 module supports 4-20 mA and 0-10 V analog inputs.
Q2: How many channels does the CC-PAIH51 module have?
A2: The CC-PAIH51 provides 8 analog input channels.
Q3: What is the operating temperature range of the CC-PAIH51 module?
A3: The CC-PAIH51 operates within a temperature range of –20°C to 60°C.
Q4: Can the CC-PAIH51 be used in harsh industrial environments?
A4: Yes, the module is built to handle industrial environments, offering high noise immunity for reliable performance.
Q5: What is the size of the CC-PAIH51 module?
A5: The module measures 63.5 x 124.46 x 307.34 mm in dimensions.
Q6: Is the CC-PAIH51 easy to install?
A6: Yes, the module is designed to be easily integrated into Honeywell systems and is DIN rail mountable for straightforward installation.
Q7: What is the weight of the CC-PAIH51 module?
A7: The weight of the module is 0.299 kg.
Q8: What power supply does the CC-PAIH51 module require?
A8: The module operates with a 24 VDC ±20% power supply.
Q9: Can the CC-PAIH51 module be used for temperature and pressure monitoring?
A9: Yes, the module is suitable for temperature, pressure, and other process monitoring where analog sensors are used.
Q10: What is the accuracy of the CC-PAIH51 module?
A10: The module provides an accuracy of ±0.1% of full scale for precise signal conversion.
