Product Overview

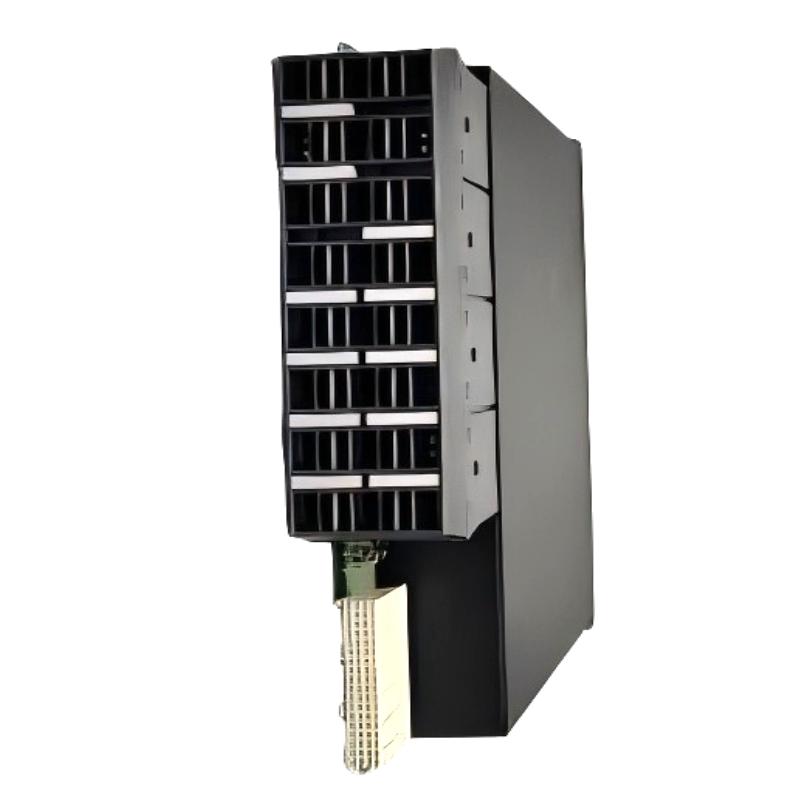

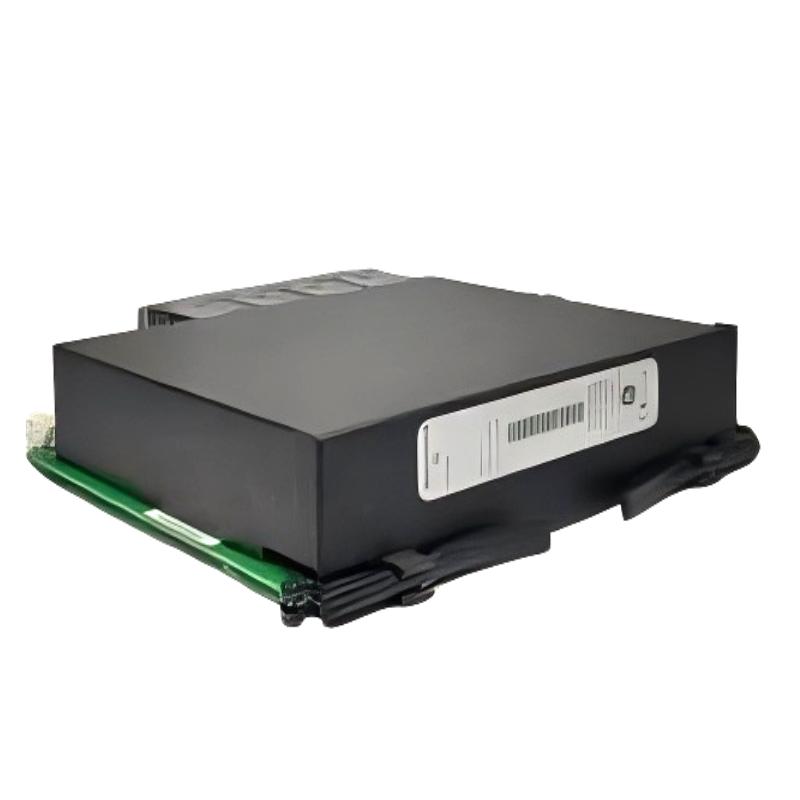

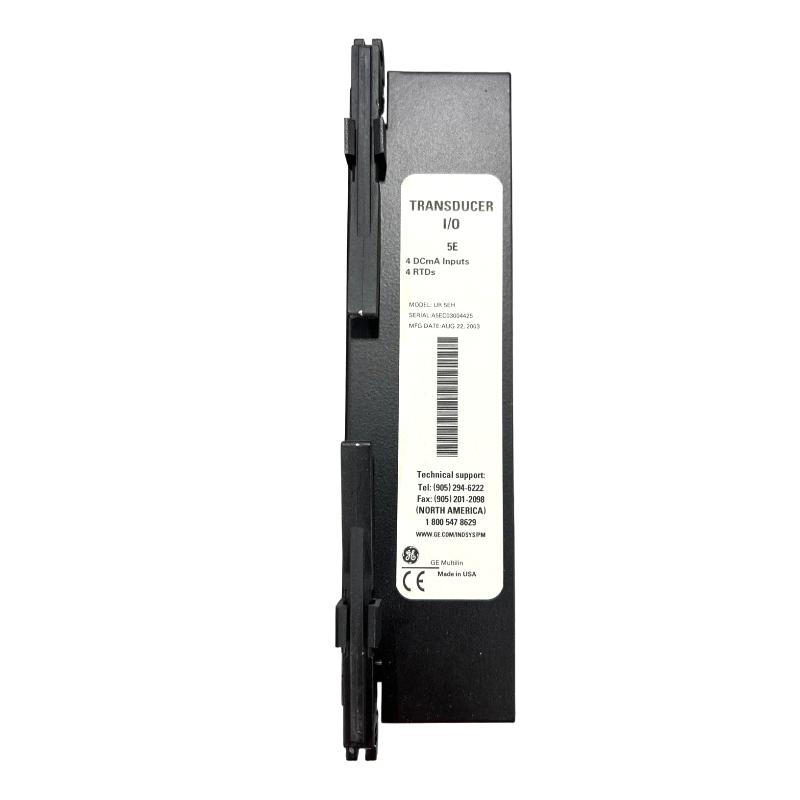

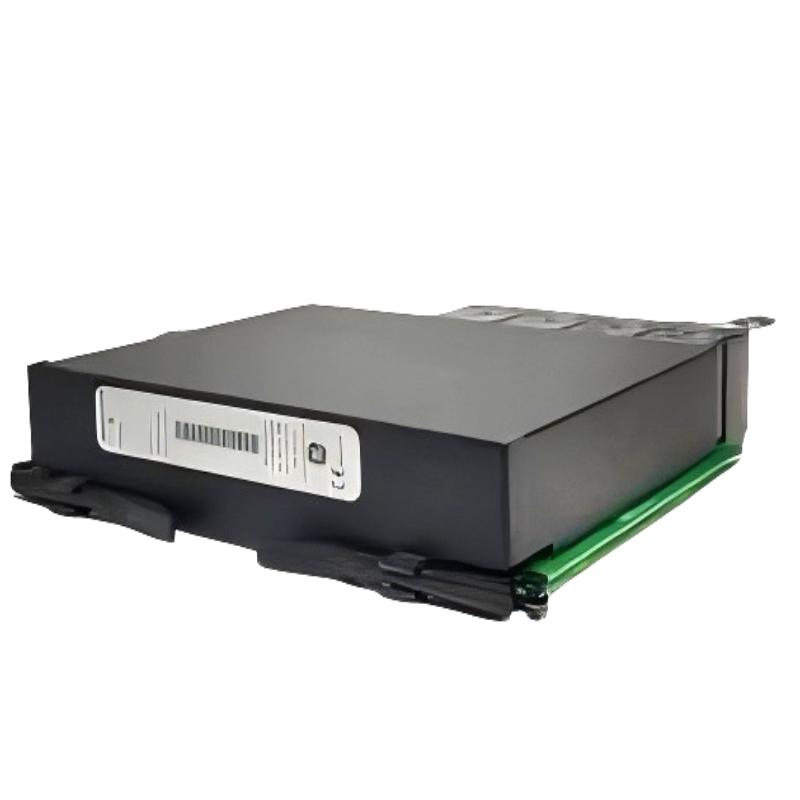

The GE UR 5CH Multilin UR Series Transducer I/O Module is an I/O component used within compatible GE Multilin UR Series protection and control equipment. It handles transducer-related signal interfaces, allowing external measurement devices to be incorporated into the relay’s monitoring and control architecture.
Unlike a standard power supply module, the UR 5CH participates in the signal interface layer. It works alongside the relay processor and other I/O sections to bring transducer information into the overall UR Series device for monitoring, measurement, protection, or control functions.
For maintenance and retrofit work, the exact UR Series relay configuration should be identified before replacing the module. The transducer module, connected field wiring, terminal interfaces, and relay configuration all affect how the installed hardware operates.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | UR 5CH |
| Product Family | Multilin UR Series |
| Product Type | Transducer I/O Module |
| Primary Function | Transducer Signal Interface |
| System Role | I/O and Measurement Interface |
| Application | Protection and Control Systems |
| Installation | GE Multilin UR Series Devices |
| Dimensions | 120 × 30 × 100 mm |
| Weight | 0.92 kg |
Product Features
The UR 5CH provides transducer-related I/O capability within compatible Multilin UR Series equipment.
Key characteristics include:
- GE Multilin UR Series I/O hardware
- Model UR 5CH
- Transducer signal interface
- Supports integration of external transducer signals
- Works with the relay’s internal processing architecture
- Suitable for measurement and monitoring applications
- Supports system-level I/O expansion
- Integrates with compatible UR Series relay hardware
- Suitable for protection and control installations
- Useful for maintenance and replacement projects
The actual signal function depends on the UR Series relay configuration in which the module is installed.
Working Principle
The UR 5CH operates between external transducer circuits and the internal processing system of the Multilin UR Series relay.
A simplified signal path is:
External Transducer → UR 5CH → Relay Processing → Monitoring / Protection / Control System
The module receives signals from compatible transducer circuits and makes those signals available to the relay’s internal processing architecture. The processor can then use the available measurement information according to the configured application.
This arrangement allows transducer information to become part of a broader protection and control system instead of requiring a separate monitoring device for every measurement.
The module itself should not be confused with the relay processor. The UR 5CH provides the I/O interface, while the processor performs the applicable measurement handling, logic, protection, and control functions.
Role in a Multilin UR Protection Architecture
The UR 5CH occupies the transducer I/O layer within the UR Series architecture.
Transducer → UR 5CH → UR Series Processor → Protection / Monitoring / Control → Station System
| System Layer | Typical Component | Function |
|---|---|---|
| Field Measurement Layer | Transducers | Generates measurement signals |
| I/O Layer | UR 5CH | Interfaces transducer signals |
| Processing Layer | UR Series Processor | Processes available measurements |
| Protection Layer | Protection Functions | Performs configured protection logic |
| Communication Layer | Relay Communication Interface | Exchanges system information |
| Control Layer | Relay Outputs | Provides control commands |
This structure allows transducer measurements to be incorporated into the relay’s overall control and protection strategy.
Industrial Applications
The UR 5CH is relevant to electrical installations using compatible GE Multilin UR Series protection and control equipment.
| Application | Typical Use |
|---|---|
| Power Generation | Generator monitoring and protection |
| Electrical Substations | Measurement and protection systems |
| Industrial Power Systems | Equipment monitoring |
| Motor Control | Transducer-based monitoring |
| Transformer Systems | Measurement and control |
| Distribution Systems | Electrical monitoring |
| Process Plants | Integration of electrical measurements |
| Utility Protection | Relay-based measurement architecture |
The specific application depends on the transducer type, relay model, and configured I/O functions.
Installation and Maintenance
The UR 5CH should be replaced according to the hardware configuration of the applicable UR Series relay.
Recommended checks include:
- Confirm the complete UR 5CH model designation.
- Identify the exact UR Series relay.
- Verify module compatibility with the existing relay configuration.
- Record the existing module position.
- Document connected transducer wiring.
- Isolate the applicable equipment before replacement.
- Inspect connectors and terminals.
- Check field wiring for damage or loose connections.
- Verify correct module installation.
- Ensure connectors are fully seated.
- Restore the system according to the applicable procedure.
- Check transducer signal availability.
- Verify relay measurements and diagnostics.
- Confirm related protection or monitoring functions.
- Record the completed maintenance configuration.
If the expected transducer signal remains unavailable after replacement, the investigation should include the transducer, field wiring, terminals, module connections, relay configuration, and processor-side diagnostics.
Related Components
The UR 5CH works with several functional sections of a Multilin UR Series device.
| Component | Function |
|---|---|
| UR Series Protection Relay | Provides protection and control functions |
| UR 5CH | Interfaces transducer-related signals |
| Processor Module | Processes measurements and executes configured logic |
| Analog I/O | Handles applicable electrical measurements |
| Digital I/O | Interfaces with control circuits |
| Communication Interface | Connects the relay with external systems |
| Transducers | Provides external measurement signals |
| Terminal Hardware | Provides field circuit connections |
| Control Power Supply | Supplies relay operating power |
The transducer I/O module should be selected according to the exact relay configuration and required signal interface.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| GE UR 5CH | Multilin UR Series Transducer I/O Module | Transducer signal interface |
| GE UR 1HH | Multilin UR Series Power Supply Module | Relay power infrastructure |
| GE Multilin UR Series Relays | Protection and Control Relay | Electrical protection |
| GE Multilin UR Feeder Protection Relays | Feeder Protection | Feeder and distribution systems |
| GE Multilin UR Generator Protection Relays | Generator Protection | Generator protection and monitoring |
| GE Multilin UR Transformer Protection Relays | Transformer Protection | Transformer protection |
Selection should be based on the complete relay model, I/O configuration, and required transducer interface.
Key Advantages
- GE Multilin UR Series I/O hardware
- Model UR 5CH
- Transducer signal interface capability
- Integrates external measurement signals with compatible UR Series relays
- Supports relay monitoring and control functions
- Works with the UR Series processing architecture
- Suitable for electrical protection systems
- Useful for measurement-related applications
- Supports maintenance and replacement of existing relay hardware
- Suitable for utility and industrial installations
Technical FAQs
What type of signals is the UR 5CH intended to interface?
The UR 5CH is identified as a transducer I/O module and is intended to interface compatible transducer-related measurement signals with the UR Series relay architecture. The applicable signal configuration depends on the specific relay and system setup.
How does the UR 5CH contribute to relay measurement functions?
It provides the interface between external transducer circuits and the relay’s internal processing system. The processor can then use the received information for configured monitoring, control, or protection functions.
What should be considered when replacing a UR 5CH module?
The exact UR Series relay model, existing module position, transducer wiring, terminal connections, and configured I/O functions should be verified. A replacement module should match the installed relay architecture rather than being selected only by the UR 5CH designation.
What can cause incorrect transducer readings after installing the module?
Possible causes include incorrect field wiring, loose terminals, an unsuitable transducer signal, connector problems, configuration errors, or an issue with the transducer itself. The complete signal path should be checked before replacing additional relay hardware.
