Product Overview

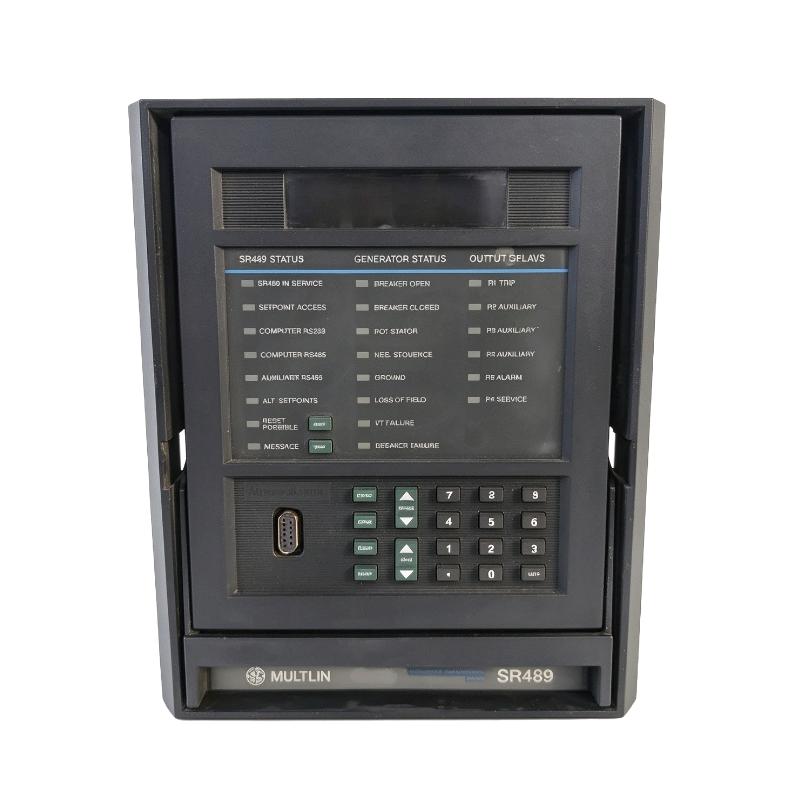

The GE SR489-P5-HI-A20 Generator Management Relay is part of the GE Multilin 489 generator protection and management family. It combines generator electrical protection, metering, temperature monitoring, alarm handling and trip control in a dedicated relay package for synchronous and induction generator applications.

This configuration uses 5 A phase current transformer inputs, a high-range control power supply and 4–20 mA analog outputs. The HI power option accepts 90–300 V DC or 70–265 V AC at 48–62 Hz. Unlike versions with the E suffix, this model has the basic display configuration.

The relay evaluates current, voltage and connected condition-monitoring signals against configured protection settings. When an enabled protection element detects a condition that meets its programmed criteria, the relay can activate assigned trip or alarm outputs. Its serial communication interfaces and analog outputs support integration with compatible generator control panels and plant monitoring systems.

Technical Specifications

Product Features

• Generator protection: Supports configurable protection functions for abnormal electrical and operating conditions.
• 5 A phase CT inputs: Matches generator protection systems using current transformers with 5 A secondary outputs.
• High-range control power: Accepts the specified high-range AC or DC auxiliary supply.
• 4–20 mA analog outputs: Provides four configurable channels for transmitting selected measurements to compatible equipment.
• Basic local display: Provides local access to relay messages, status and operating information without the enhanced-display option.
• RTD temperature monitoring: Supports connected temperature sensors for configured generator and bearing monitoring points.
• Electrical metering: Supplies generator measurements for operating assessment and supervisory monitoring.
• Trip and alarm outputs: Allows configured protection elements to activate assigned relay contacts.
• Serial communications: Supports data exchange with compatible supervisory systems and engineering tools.

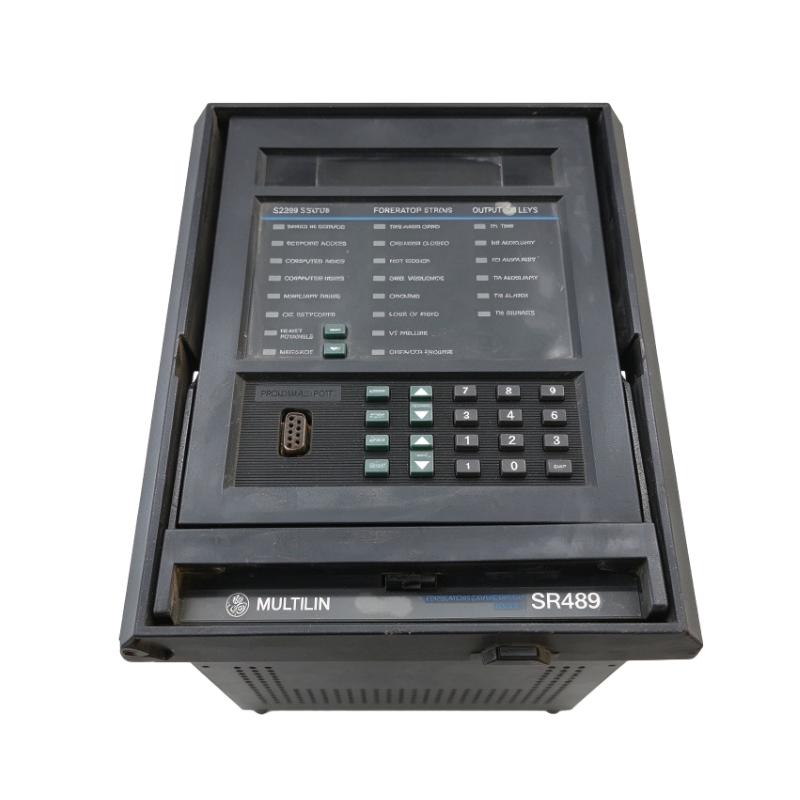

• Drawout construction: Allows the relay unit to be withdrawn from its case for inspection and testing under the prescribed isolation procedure.

Working Principle

The SR489-P5-HI-A20 receives generator current and voltage signals from connected instrument transformers. It processes these measurements and compares them with programmed settings for enabled protection elements, which may include overcurrent, voltage, frequency, reverse power and other generator protection functions.

RTD sensors and configured digital inputs provide additional operating information. When a measured condition meets a protection element’s pickup threshold and timing requirements, the relay can operate assigned trip or alarm outputs. Event and diagnostic information can then assist maintenance personnel in investigating abnormal operation.

The A20 option provides four 4–20 mA analog output channels. Each channel can be configured to represent a supported measured parameter, allowing selected generator measurements to be transmitted to compatible meters, controllers or plant monitoring equipment.

The HI option defines the required auxiliary supply range. Correct current-transformer and voltage-transformer wiring, transformer-ratio settings, protection thresholds and output assignments are essential to proper operation. The relay’s response depends on the functions enabled and the settings applied during commissioning.

Role in a Generator Protection and Control Architecture

The GE Multilin 489 serves as a dedicated generator protection and monitoring device between the generator measurement circuits, breaker-control circuitry and plant supervision system. It evaluates connected signals locally and issues configured trip or alarm commands when programmed conditions are satisfied.

Industrial Applications

Installation and Maintenance

1. Verify the complete order code: Confirm that SR489-P5-HI-A20 matches the required current-input, control-power, analog-output and display configuration.

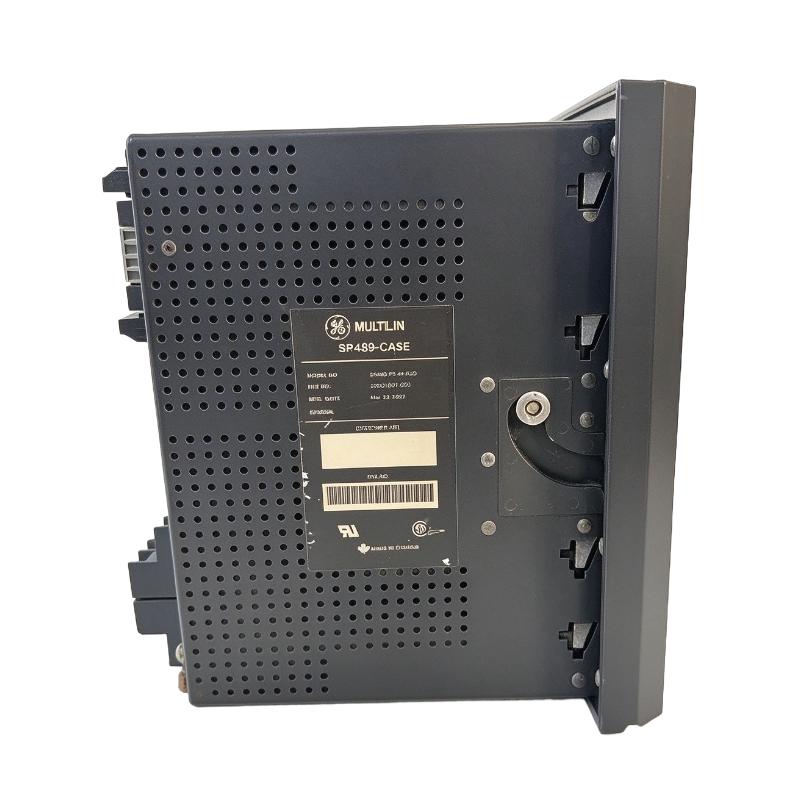

2. Check panel mounting requirements: Verify that the panel opening, case arrangement and installation clearances match the applicable installation documentation.
3. Confirm auxiliary power: Ensure that the supply is within the HI option’s range of 90–300 V DC or 70–265 V AC at 48–62 Hz.

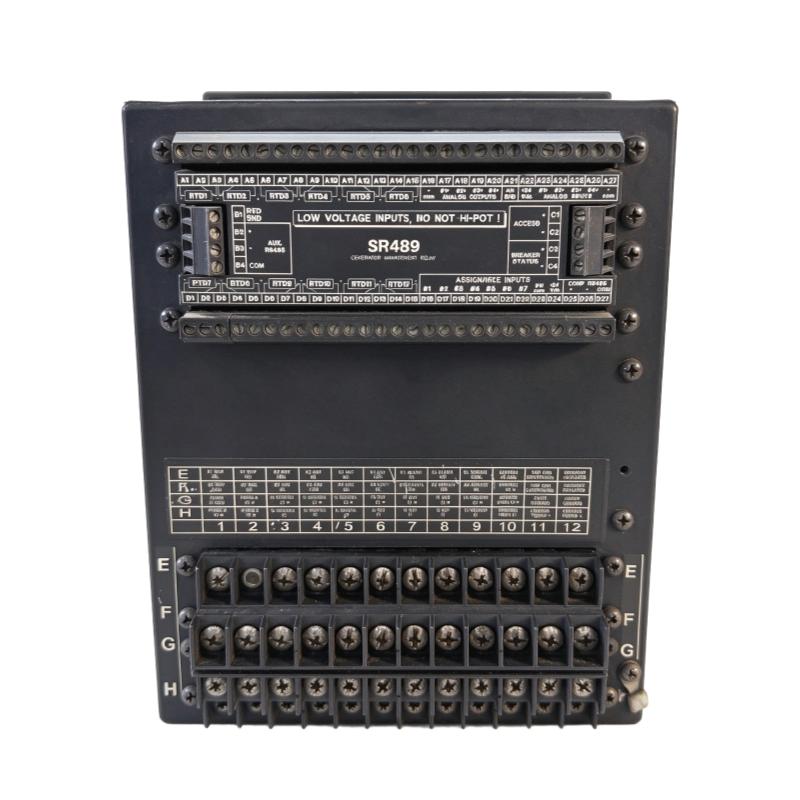

4. Inspect current transformer wiring: Confirm the 5 A secondary rating, phase identification, polarity and grounding arrangements before connecting current inputs.
5. Verify voltage transformer connections: Check voltage wiring, phase relationships, transformer ratios and corresponding relay settings.
6. Check digital input circuits: Verify that external contacts and status signals are connected to the intended opto-isolated inputs.
7. Test analog output loops: Confirm that receiving equipment supports 4–20 mA signals and that output scaling and loop wiring are correct.
8. Inspect RTD connections: Verify sensor types, terminal assignments and wiring for configured stator or bearing temperature monitoring.
9. Review protection settings: Check generator ratings, CT and VT ratios, trip thresholds, time delays and output-relay assignments before commissioning.
10. Verify communication configuration: Check RS232 or RS485 wiring, protocol selection, baud rate and device addressing where applicable.
11. Perform functional testing: Test measurement scaling, alarms, trip logic, output contacts and breaker-interface circuits using an approved commissioning procedure.
12. Document the final configuration: Record the relay order code, control-power range, protection settings, communication parameters and functional test results.

Compatible System Components

Recommended Related Models

Key Advantages

• Combines generator protection, metering and monitoring functions in one relay.
• Supports 5 A phase current transformer inputs.
• Accepts high-range AC or DC auxiliary power.
• Provides four configurable 4–20 mA analog output channels.
• Supports RTD-based temperature monitoring and programmable protection logic.
• Offers serial communications, local status information and event data for maintenance and supervision.

Technical FAQs

How can the basic display help operators identify an active generator protection condition?

The relay’s front-panel display presents operating messages, and active trips or alarms can override the default status messages. Operators can use these indications together with the relay’s event and trip records to investigate the reported condition.

How should the four A20 analog outputs be assigned in a generator monitoring system?

Each 4–20 mA output channel can be configured to represent a supported measured parameter. Assign channels according to the monitoring system’s requirements, then verify signal scaling, polarity, common return wiring and the receiving input range during commissioning.

What should be verified when replacing this relay in a panel using high-range auxiliary power?

Confirm that the replacement supports the HI supply range of 90–300 V DC or 70–265 V AC at 48–62 Hz. Also compare the 5 A phase CT input, A20 analog-output option, terminal wiring and programmed protection settings before returning the generator to service.

How can the relay’s event records help diagnose repeated generator trips?

Review the recorded event sequence and pre-trip measurements to identify which protection element operated and what the measured conditions were around the trip. Compare those records with the configured pickup thresholds, time delays and instrument-transformer scaling before changing settings.
