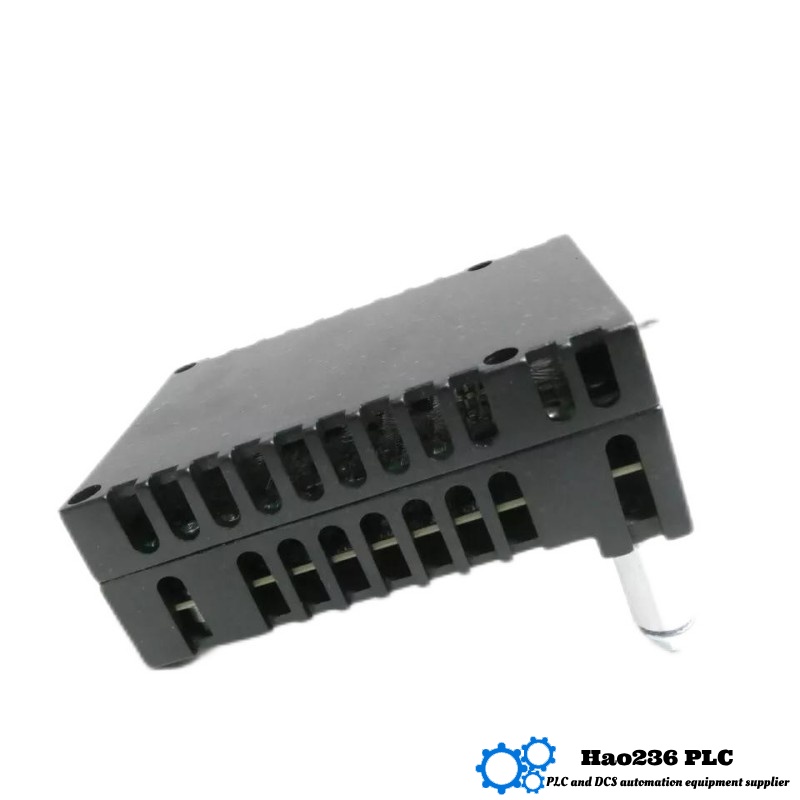

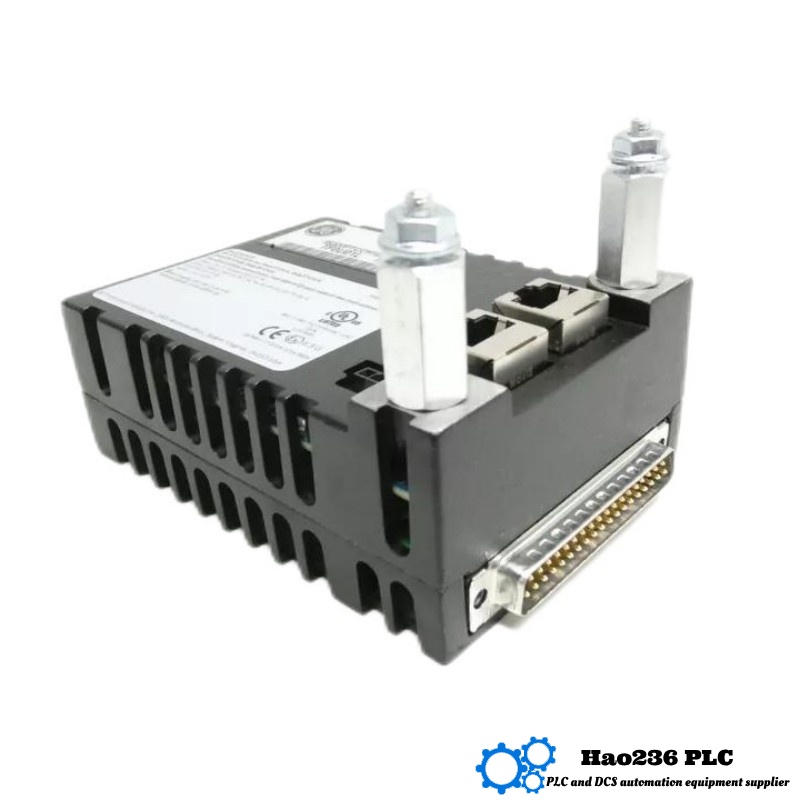

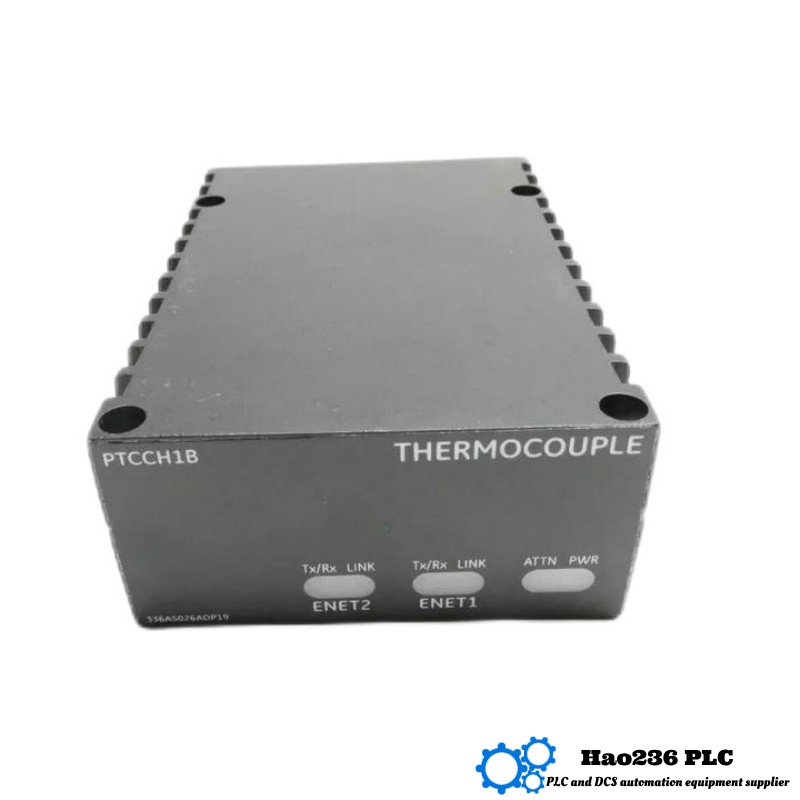

GE IS220PTCCH1B Thermocouple Input Pack
Product Introduction
The GE IS220PTCCH1B is a high-performance thermocouple input pack designed for use with the Mark VIe series of controllers by General Electric (GE). This module provides highly accurate and reliable temperature measurements by converting the signals from thermocouples to a form usable by the control system.
Thermocouples are widely used in industrial processes to measure temperature in applications such as power plants, refineries, and manufacturing environments. The IS220PTCCH1B module is an essential component for systems that require high-precision temperature data, enabling real-time monitoring and control of temperature-sensitive processes.
The module’s compact size and easy integration make it ideal for systems where space is a concern but high performance is still required. The GE IS220PTCCH1B is engineered to meet the demanding needs of modern industrial automation systems, offering both versatility and reliability.
Product Applications
The IS220PTCCH1B thermocouple input pack is suitable for a variety of applications where accurate temperature measurement and data conversion are essential:
-
Power Generation: Used in power plants for monitoring critical temperature points in turbines, boilers, and generators.
-
Chemical Processing: Helps maintain safe and efficient temperatures in reactors, distillation columns, and heat exchangers.
-
Oil & Gas: Essential in upstream and downstream operations for maintaining the optimal temperature of drilling, refining, and transportation systems.
-
Manufacturing: Provides real-time temperature data to ensure quality control and consistency in production lines, especially in high-temperature manufacturing processes.
-
HVAC Systems: Monitors the temperature in heating, ventilation, and air conditioning systems to ensure performance and safety.
Product Advantages
-
High Accuracy: The IS220PTCCH1B ensures precise temperature readings, critical for maintaining the integrity of your process.
-
Wide Thermocouple Compatibility: It supports a wide range of thermocouple types, offering flexibility for various industrial applications.
-
Compact Design: The module’s small size (120 x 80 x 40 mm) allows for easy installation in tight spaces, making it ideal for systems with limited space.
-
Reliable Performance: Designed for rugged industrial environments, the IS220PTCCH1B provides long-term, reliable performance even in harsh conditions.
-
Seamless Integration: The module integrates effortlessly into the Mark VIe series, ensuring smooth communication between the input and control system.
-
Energy-Efficient: With low power consumption, it helps reduce the overall energy footprint of the system.
Brand
-
Brand Name: General Electric (GE)
-
Product Series: Mark VIe Series
Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 120 x 80 x 40 mm |
| Weight | 0.5 kg |
| Input Type | Thermocouple (multiple types supported) |
| Thermocouple Range | -200°C to +1800°C |
| Signal Conversion | Thermocouple to Digital |
| Operating Temperature | -40°C to +85°C |
| Power Consumption | 1 W |
| Mounting Type | Rack Mount |
| Connection Type | 16 Channels (Individual Inputs) |
Related Models
| Model | Key Specifications |
|---|---|
| IS220PTCCH1A | Thermocouple Input, 16 Channels, Analog to Digital |
| IS220PTCCH2B | Thermocouple Input, Dual Channel, RS-485 Communication |
| IS220PTCCH1C | Thermocouple Input, High-Temperature Range, 8 Channels |
| IS220PTCCH1D | Thermocouple Input, 32 Channels, Signal Conditioning |
| IS220PTCCH2A | Dual Input Thermocouple Pack, Digital Interface |
Popular Models from GE
| Model | Key Specifications |
|---|---|
| IS200EDCIG1A | Digital Input Card, 32 Channels, GE Mark VIe Series |
| IS220PPXH1A | Power Supply Module for GE Mark VIe Series |
| IS200TBCIH1A | Thermocouple Input, 16 Channels, Signal Conditioning |
| IS200TTURH1A | Temperature Transmitter Module, 8 Channels |
| IS210AGCNR1 | Analog Output Module, 8 Channels |
FAQ
Q1: What types of thermocouples are supported by the IS220PTCCH1B?
A1: The module supports multiple types of thermocouples, including Type J, K, T, E, N, S, R, and B.
Q2: What is the temperature range of the IS220PTCCH1B?
A2: The module can handle temperature measurements from -200°C to +1800°C.
Q3: How many input channels does the IS220PTCCH1B support?
A3: The IS220PTCCH1B supports 16 individual thermocouple input channels.
Q4: What is the power consumption of the IS220PTCCH1B?
A4: The module consumes 1 W of power.
Q5: Can the IS220PTCCH1B be used in extreme temperature environments?
A5: Yes, the module can operate in environments ranging from -40°C to +85°C.
Q6: What is the size of the IS220PTCCH1B module?
A6: The module has dimensions of 120 x 80 x 40 mm.
Q7: Is the IS220PTCCH1B compatible with the GE Mark VIe system?
A7: Yes, it is designed specifically for use with the GE Mark VIe series controllers.
Q8: How many thermocouple types can the IS220PTCCH1B support simultaneously?
A8: The module supports multiple types of thermocouples on different channels at the same time.
Q9: What mounting type does the IS220PTCCH1B support?
A9: The IS220PTCCH1B is designed for rack mount installation.
Q10: What is the weight of the IS220PTCCH1B module?
A10: The module weighs 0.5 kg.
