Product Overview

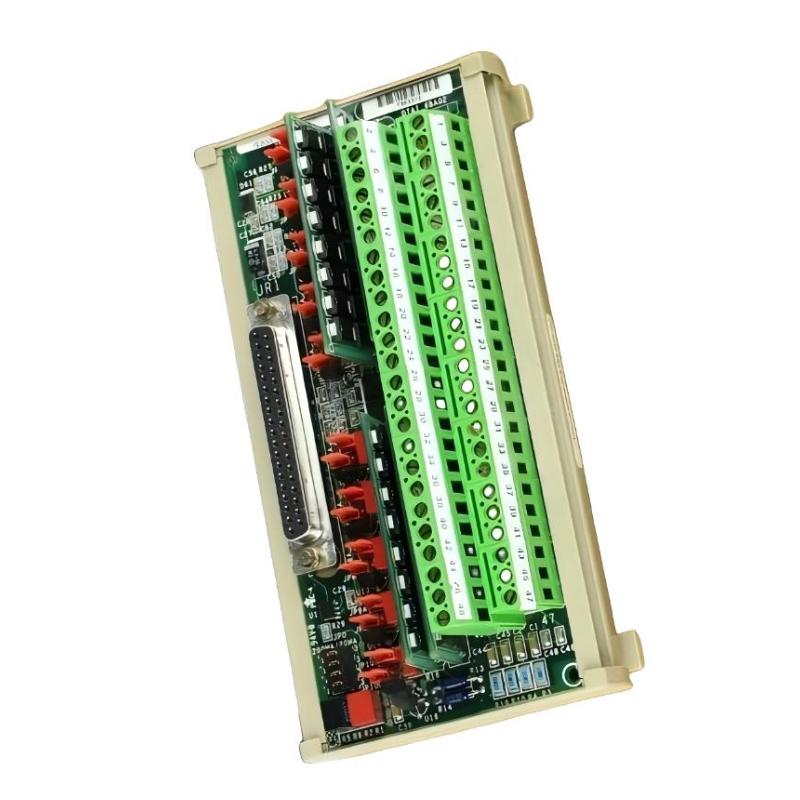

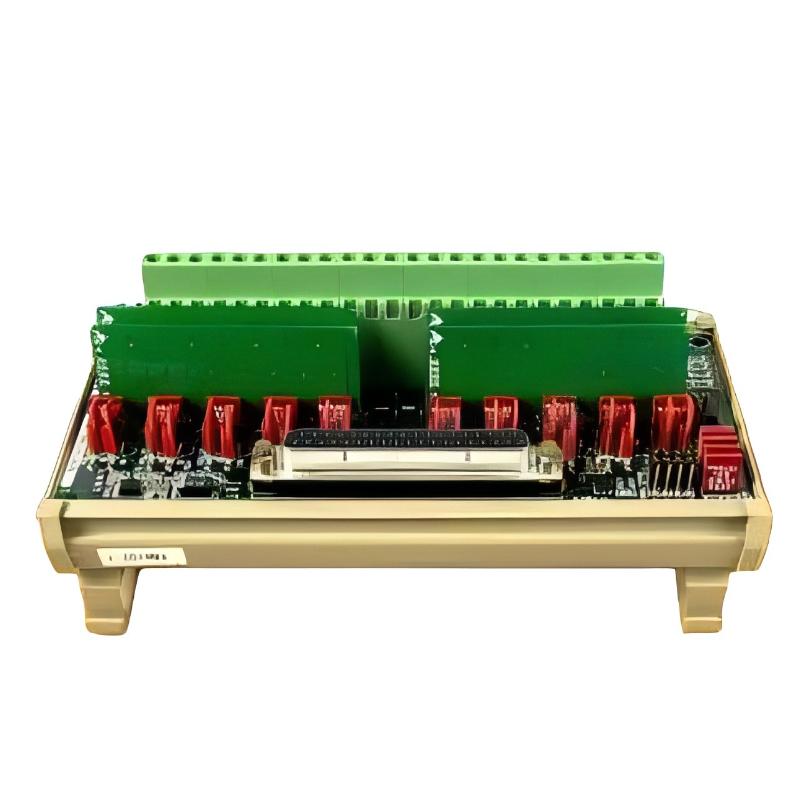

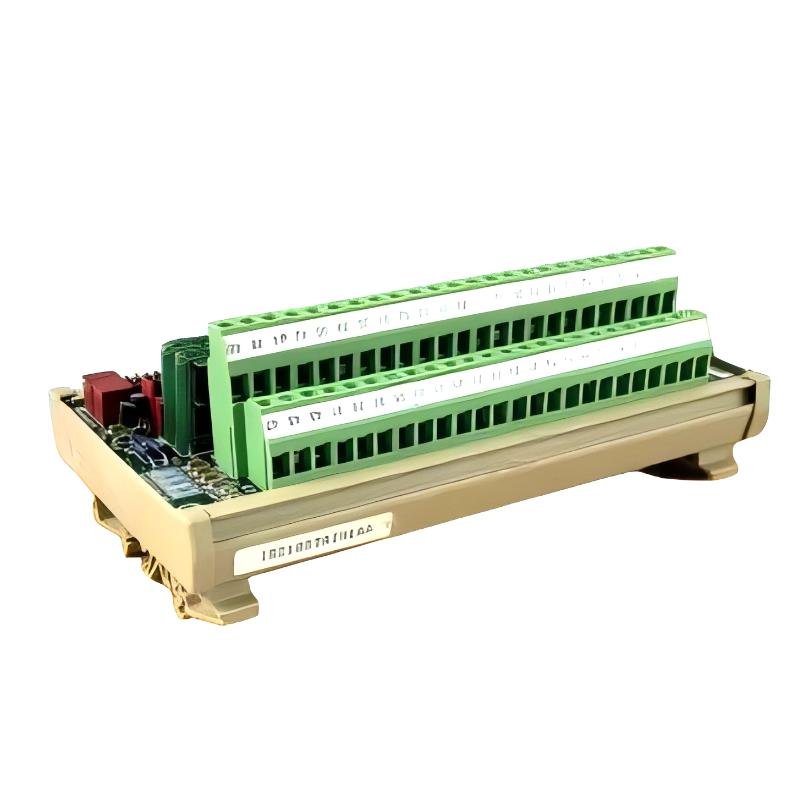

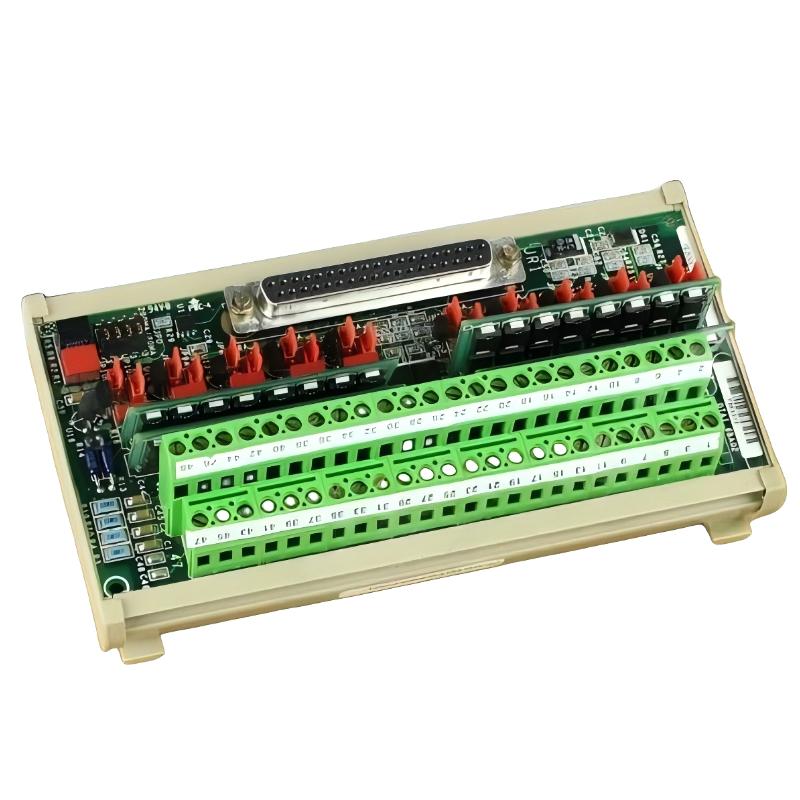

The GE IS210DTAIH1A / IS200DTAIH1A is a Mark VI Simplex Analog Input/Output Terminal Board used to connect analog field circuits with the GE Mark VI turbine control system. It belongs to the field-interface portion of the Mark VI architecture, providing an organized termination point between field wiring and the associated analog I/O hardware.
The board is used where analog process measurements or control signals need to pass between field equipment and the Mark VI control system. Depending on the configured circuit, field instrumentation can provide an analog measurement to the control system, while analog output commands can travel in the opposite direction toward an applicable field device.
The IS210DTAIH1A / IS200DTAIH1A is relevant to turbine control maintenance, control cabinet refurbishment, and replacement of existing terminal hardware. During service, the terminal assignments, I/O channel mapping, connected field circuits, and associated Mark VI configuration should be checked together to avoid wiring or channel-assignment errors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS210DTAIH1A / IS200DTAIH1A |
| Product Type | Mark VI Simplex Analog Input/Output Terminal Board |
| Product Family | GE Mark VI |
| Series | Mark VI |
| Manufacturer | General Electric |
| Component Category | Analog I/O Terminal Board |
| System Role | Analog Field Signal Termination |
| I/O Function | Analog Input and Output Interface |
| Interface Function | Field Analog Signal Interconnection |
| Application | Turbine and Industrial Control |
| System Integration | GE Mark VI Control System |
| Component Type | Terminal Board |
| Installation | Mark VI Control Cabinet |
| Dimensions | 190 × 130 × 35 mm |
| Weight | 0.45 kg |
Product Features
- Simplex analog input/output terminal board for GE Mark VI control systems.
- Provides an organized interface for analog field wiring.
- Connects analog field circuits with associated Mark VI I/O hardware.
- Supports both analog input and analog output signal paths according to the configured application.
- Keeps field wiring organized at the terminal interface.
- Separates field termination from the electronic analog I/O processing hardware.
- Supports turbine instrumentation and analog control circuits.
- Suitable for maintenance and replacement of existing Mark VI terminal-board assemblies.
- Helps technicians identify and trace individual analog circuits during troubleshooting.
- Integrates into the broader GE Mark VI turbine control architecture.
Working Principle
The IS210DTAIH1A / IS200DTAIH1A serves as the physical termination interface for analog input and output circuits in a GE Mark VI system. For an analog input, a field transmitter or other analog instrument generates an electrical signal corresponding to a measured process condition. The field wiring carries that signal to the terminal board, where the circuit is connected and routed toward the associated Mark VI I/O hardware.
The electronic I/O hardware then acquires the analog signal and makes the resulting information available to the Mark VI control system for monitoring, control, alarm, or protection functions according to the configured application.
The input path can be represented as:
Analog Field Device → Field Wiring → IS210DTAIH1A / IS200DTAIH1A → Mark VI Analog I/O Hardware → Mark VI Control System
For analog outputs, the signal path operates in the reverse direction:
Mark VI Control System → Mark VI Analog I/O Hardware → IS210DTAIH1A / IS200DTAIH1A → Field Wiring → Analog Control Device
The terminal board itself does not independently execute turbine control logic. Its primary role is to provide the physical electrical interface between field circuits and the associated I/O system.
When an analog channel shows an abnormal value, troubleshooting should include the complete circuit. Field wiring, transmitter or control device, terminal connections, I/O hardware, and Mark VI configuration can all influence the final signal.
Role in a GE Mark VI Analog I/O Control Architecture
The IS210DTAIH1A / IS200DTAIH1A occupies the field termination layer of the Mark VI analog I/O architecture. It connects analog field circuits with the electronic I/O hardware that acquires input signals or delivers output commands.
| Control Architecture Layer | Typical Component | Function |
|---|---|---|
| Supervisory Layer | HMI / Operator Station | Displays analog values, alarms, commands, and turbine operating information |
| Control Layer | GE Mark VI Control System | Executes configured turbine control, monitoring, and protection functions |
| I/O Processing Layer | Mark VI Analog I/O Hardware | Acquires analog inputs and generates applicable analog outputs |
| Termination Layer | IS210DTAIH1A / IS200DTAIH1A | Provides analog field wiring termination and interconnection |
| Field Interface | Transmitters / Control Devices | Provides measurements or receives analog control commands |
| Equipment Layer | Turbine / Generator / Auxiliary Equipment | Generates or responds to the controlled process variables |
| Plant Layer | Power and Process Equipment | Uses or supplies the resulting mechanical and electrical output |
Industrial Applications
| Application | Typical Use |
|---|---|
| Gas Turbine Control | Terminates analog measurement and control circuits within Mark VI turbine systems |
| Steam Turbine Control | Connects analog field instrumentation with turbine control I/O |
| Power Generation | Supports analog signals associated with turbine-generator equipment |
| Turbine Instrumentation | Provides organized termination for analog process measurements |
| Generator Systems | Supports analog monitoring and control circuits around generating equipment |
| Industrial Turbomachinery | Interfaces analog field devices with Mark VI control hardware |
| Process Plants | Supports analog instrumentation connected to turbine-driven equipment |
| Turbine Maintenance | Provides a replacement interface for existing Mark VI analog terminal arrangements |
Installation and Maintenance
- Verify the board identification — Confirm that IS210DTAIH1A / IS200DTAIH1A matches the existing Mark VI documentation and required replacement position.
- Review the analog I/O documentation — Check wiring diagrams, terminal assignments, loop drawings, I/O channel mapping, and applicable control-system documentation.
- Isolate the affected circuits — Follow the approved plant procedure to place the relevant control and field circuits in a safe maintenance condition.
- Identify analog connections — Label or record each field connection before disconnecting the existing terminal board to preserve the correct channel assignments.
- Inspect the replacement board — Check terminals, connectors, mounting features, and accessible surfaces for physical damage or contamination.
- Inspect field wiring — Examine analog signal conductors for loose connections, damaged insulation, corrosion, or other conditions that could affect signal quality.
- Remove the existing board carefully — Apply appropriate ESD precautions and avoid unnecessary mechanical force on terminals, connectors, or mounting hardware.
- Install the replacement board — Position the IS210DTAIH1A / IS200DTAIH1A correctly within the Mark VI terminal arrangement and secure it according to the applicable cabinet configuration.
- Reconnect analog circuits — Restore each conductor to its documented terminal position and verify that all connections are mechanically secure.
- Verify channel assignments — Confirm that field circuits correspond to the correct Mark VI I/O channels and configured input or output functions.
- Perform a controlled signal check — Restore the affected circuits and verify expected analog readings or output responses without unexpected alarms or signal faults.
- Document the maintenance activity — Record the board designation, terminal assignments, connected circuits, test results, and any changes made during replacement.
Related Components
| Component | Function in the System |
|---|---|
| GE Mark VI Control System | Provides overall turbine control, monitoring, and protection functions |
| Mark VI Analog I/O Hardware | Acquires analog inputs and generates applicable analog outputs |
| Analog Transmitter | Supplies process measurement signals to the I/O system |
| Analog Control Device | Receives applicable analog control commands |
| Field Wiring | Carries analog circuits between field devices and terminal hardware |
| Mark VI Terminal Board | Provides organized field signal termination |
| Turbine Instrumentation | Supplies measurements used for turbine monitoring and control |
| HMI / Operator Station | Displays analog process information and system status |
Recommended Related Models
| Model / Product Family | Product Type | Typical Relationship |
|---|---|---|
| GE IS200 Series | Mark VI Terminal and Interface Boards | Related Mark VI board family |
| GE IS210 Series | Mark VI Terminal and Interface Boards | Related Mark VI board family |
| GE Mark VI Analog I/O Boards | Analog I/O Hardware | Associated analog signal-processing hardware |
| GE Mark VI Terminal Boards | Turbine Control Terminal Hardware | Associated field wiring interface |
| GE Mark VI I/O Hardware | Turbine Control I/O Hardware | Associated signal acquisition and output hardware |
Key Advantages
- Provides an organized analog field interface within the GE Mark VI architecture.
- Supports both analog input and output circuit termination.
- Keeps field wiring separated from electronic I/O processing.
- Supports clear identification and tracing of analog signal circuits.
- Suitable for turbine instrumentation and analog control applications.
- Useful for maintenance and replacement of established Mark VI installations.
Technical FAQs
What is the function of the GE IS210DTAIH1A / IS200DTAIH1A?
The board provides the field termination interface for analog input and output circuits in a GE Mark VI system. It connects analog field wiring with the associated Mark VI I/O hardware.
Does the terminal board perform analog signal processing?
The terminal board primarily provides electrical termination and interconnection. Analog signal acquisition and output processing are handled by the associated Mark VI electronic I/O hardware.
What should be checked before replacing this analog terminal board?
The board designation, terminal assignments, field wiring, I/O channel mapping, signal direction, and Mark VI configuration should be verified. Correct point-to-channel identification is especially important when multiple analog circuits are connected to the same terminal arrangement.
What can cause an incorrect analog input or output after replacement?
Possible causes include incorrect field wiring, loose terminal connections, a mismatched I/O channel assignment, problems with the field instrument or control device, faults in the associated I/O hardware, or incorrect Mark VI configuration. The complete analog signal path should be checked before concluding that the terminal board is defective.
