Product Overview

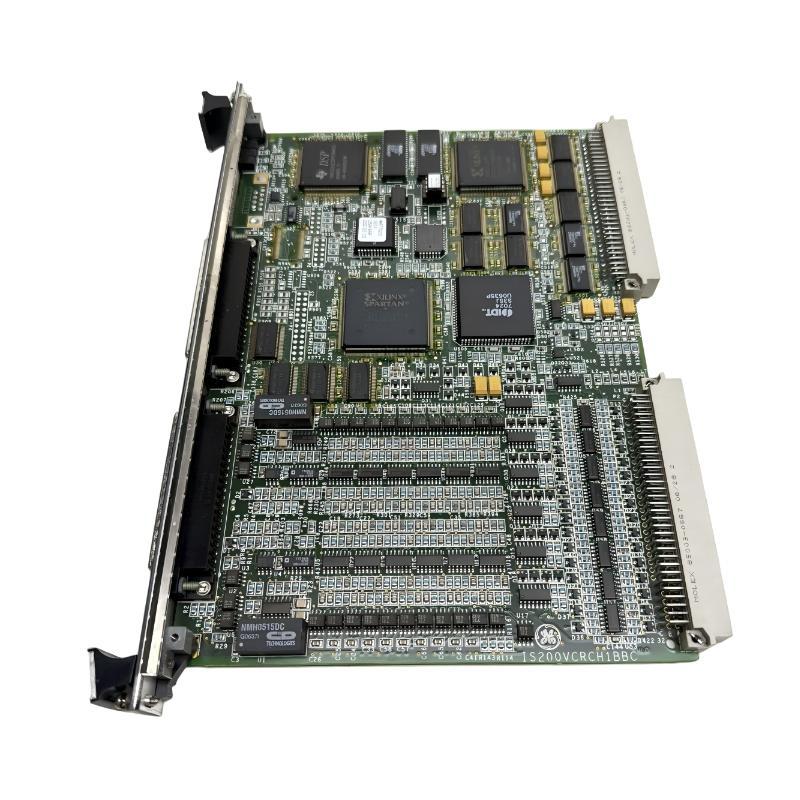

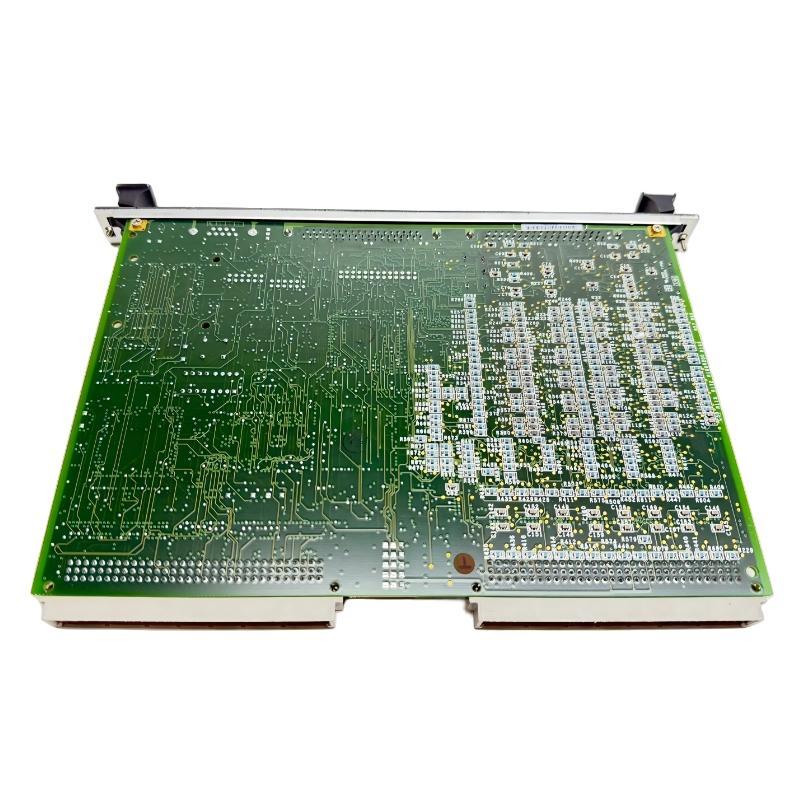

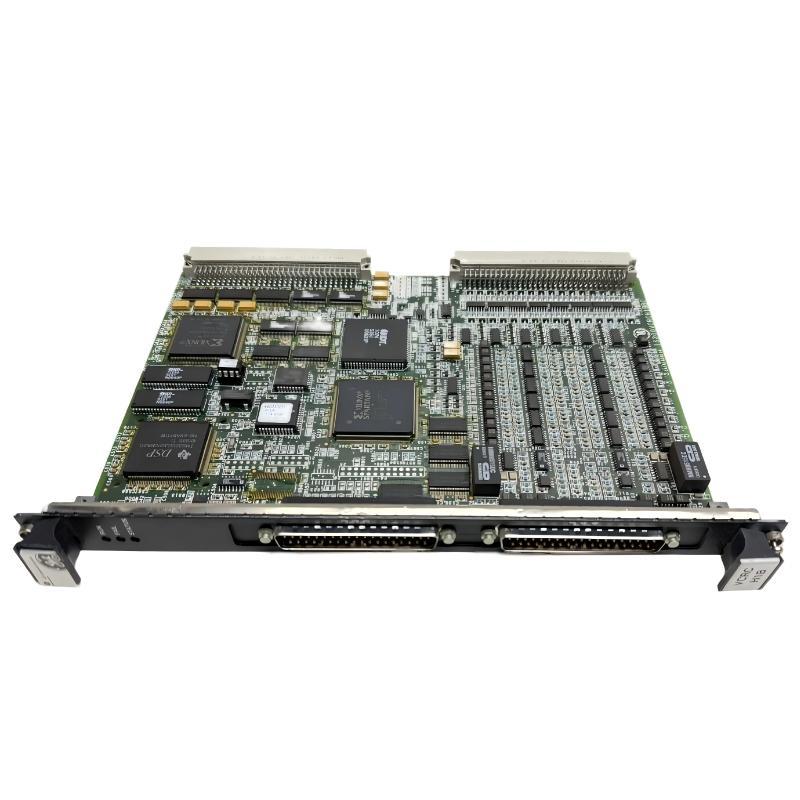

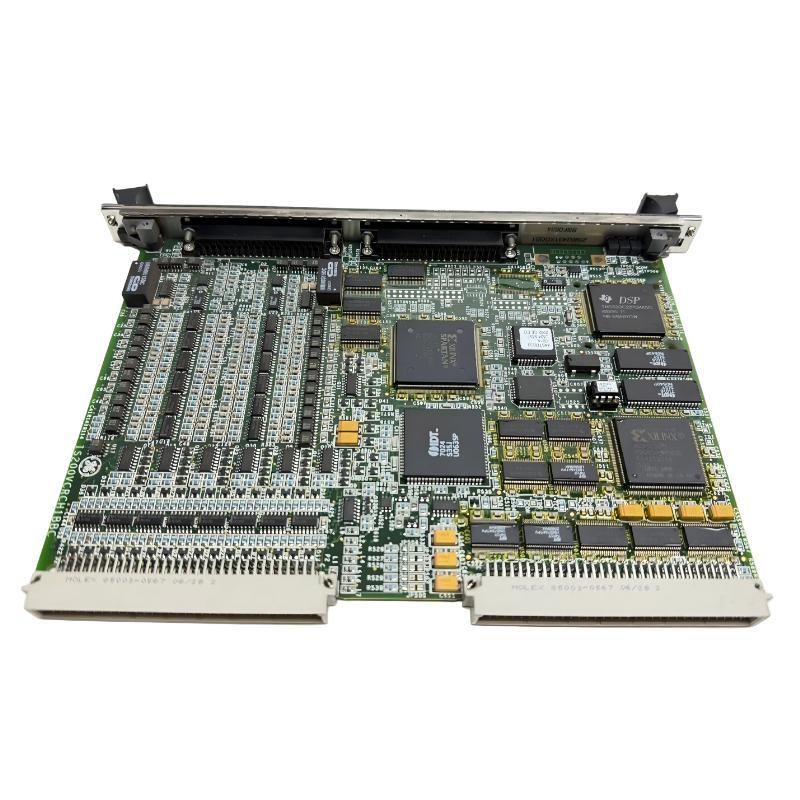

The GE IS200VCRCH1BBC Discrete Input/Output Board is a specialized industrial control interface board designed to handle discrete field signals within compatible GE automation and control system architectures. As part of the GE IS200 family, the board provides an interface between external field devices and the control system, allowing discrete operating states, commands, alarms, and interlock information to be incorporated into an automated control process.

Discrete input/output signals are fundamental to industrial automation. While analog signals represent continuously changing variables such as pressure or temperature, discrete signals normally represent clearly defined states such as running or stopped, open or closed, enabled or disabled, and normal or fault. A discrete I/O board provides the electronic interface necessary for the control system to recognize these states and, where applicable, transmit discrete commands to external equipment.

The IS200VCRCH1BBC has supplied dimensions of 280 × 33 × 220 mm and a weight of approximately 0.318 kg. Its board-level construction is intended for installation in compatible GE industrial control equipment and system racks.

The IS200VCRCH1BBC should be treated as a system-specific component. Before installation or replacement, the complete board designation, revision, connector arrangement, host equipment, and associated terminal hardware should be verified. Similar GE IS200 boards may have different electrical functions despite having comparable physical characteristics.

---

Technical Specifications

Parameter	Specification
Manufacturer	General Electric (GE)
Model	IS200VCRCH1BBC
Product Type	Discrete Input/Output Board
Product Family	GE IS200 Series
Primary Function	Discrete field signal interface
Signal Type	Digital / discrete signals
System Role	Field I/O and control interface
Application	Industrial automation and process control
Installation	Compatible GE industrial control equipment
Dimensions	280 × 33 × 220 mm
Weight	0.318 kg
Typical Functions	Status monitoring, control commands, alarms, permissives, interlocks
Replacement	Verify complete part number and revision

Exact channel count, electrical signal levels, current ratings, isolation characteristics, terminal assignments, and circuit limitations should be confirmed against the applicable IS200VCRCH1BBC hardware revision and host-system documentation.

---

What Is the GE IS200VCRCH1BBC?

The GE IS200VCRCH1BBC is a Discrete Input/Output Board designed to provide digital field-interface functionality within compatible GE industrial control systems.

The board forms part of the signal path between field equipment and control-processing electronics.

A simplified architecture can be represented as:

Field Equipment → Field Wiring → Terminal Interface → IS200VCRCH1BBC → Control System

For input functions, the board receives discrete information from field devices.

For output functions, the control system can transmit discrete commands toward external equipment through the appropriate interface.

This arrangement allows field conditions and control commands to become part of automated operating sequences.

---

Understanding Discrete Input and Output Signals

Industrial equipment contains many operating conditions that can be represented by discrete states.

Typical examples include:

• Motor running / stopped
• Valve open / closed
• Pump enabled / disabled
• Breaker open / closed
• Alarm normal / active
• Equipment healthy / fault
• Start permissive / unavailable
• Local / remote
• Manual / automatic

A discrete input detects a field state and transfers that information into the control system.

A discrete output performs the opposite type of function by providing a control state toward an external device or interface.

The IS200VCRCH1BBC is intended to support this type of digital interaction within its compatible GE control environment.

---

Function and Working Principle

Discrete Signal Acquisition

A discrete input receives a defined electrical state from an external field device.

The field device may be a:

• Limit switch
• Auxiliary contact
• Pressure switch
• Level switch
• Relay contact
• Equipment status contact
• Interlock contact
• Alarm contact

The board’s input interface detects the corresponding state and makes the information available to the associated control system.

Digital Output Control

For output functions, a command generated by the control application is transferred toward an external circuit.

Depending on the system design, discrete outputs can be associated with:

• Relay interfaces
• Solenoid commands
• Valve commands
• Equipment enable signals
• Start/stop commands
• Alarm interfaces
• Interlocking circuits

The exact load interface must be confirmed from the applicable system documentation.

Signal Conditioning

Industrial field signals can be exposed to electrical interference, switching transients, grounding differences, and long cable runs.

Discrete I/O electronics may therefore incorporate appropriate interface and conditioning functions to allow field states to be reliably interpreted by the control architecture.

The precise circuitry and electrical characteristics should not be assumed without verifying the relevant board documentation.

---

Role in Industrial Automation

The IS200VCRCH1BBC can contribute to several fundamental automation functions.

Equipment Status Monitoring

Discrete inputs provide the control system with information about the operating state of equipment.

Alarm Detection

External alarm contacts can be monitored so that the automation system can identify abnormal operating conditions.

Interlocking

Discrete signals can participate in permissive and interlock logic that controls whether equipment is allowed to operate.

Command Transmission

Discrete outputs can transmit commands from the control system to appropriate field devices.

Sequence Control

Digital states can be used to confirm that each stage of an automated sequence has been completed before the next operation begins.

A simplified sequence may look like:

Start Command → Output → Equipment Starts → Auxiliary Contact Changes State → Input Feedback → Controller Confirms Operation

This type of feedback is widely used in industrial automation.

---

Industrial Applications

Power Generation

Power plants contain extensive discrete signal networks associated with generators, turbines, breakers, pumps, valves, auxiliary systems, alarms, and protection interfaces.

Discrete I/O boards can provide the interface required to integrate these field states into the control architecture.

Turbine Control

Turbine systems use numerous discrete signals for equipment status, permissives, valve states, protection conditions, and operating sequences.

Reliable digital signal handling is therefore an important part of turbine automation.

Generator Systems

Generator control and auxiliary equipment can use discrete inputs for equipment status and discrete outputs for selected control commands.

Process Automation

Process plants use discrete I/O for pumps, valves, motors, switches, alarms, and interlocks.

Manufacturing Equipment

Production machinery frequently depends on digital signals from limit switches, proximity sensors, relays, contactors, and actuator feedback circuits.

Utility Systems

Water treatment, wastewater, electrical distribution, and other utility installations can use discrete I/O for equipment monitoring and control.

---

Discrete I/O Architecture

A typical industrial digital I/O system can be structured as:

Field Device → Terminal Interface → Discrete I/O Board → Control Processor → Logic → HMI / SCADA

Each stage performs a specific function.

The field device detects a physical condition.

The field wiring transfers the electrical state.

The terminal interface provides the physical connection.

The IS200VCRCH1BBC processes the appropriate discrete I/O interface.

The control processor executes the programmed logic.

The HMI or SCADA platform displays the resulting status to operators.

This architecture allows simple electrical states to become part of sophisticated automated processes.

---

System Integration

The IS200VCRCH1BBC should normally be integrated as part of a larger GE control architecture.

A representative system may contain:

Component	General Function
Field Switches	Provide discrete status signals
Sensors / Contacts	Detect equipment conditions
Terminal Board	Provides field wiring interface
IS200VCRCH1BBC	Provides discrete I/O interface
Control Processor	Executes automation logic
System Backplane	Provides board interconnection
Communication Interface	Transfers system information
HMI	Displays process and equipment status
SCADA	Provides supervisory monitoring
Actuators	Perform control commands

The exact combination depends on the specific GE control platform and system configuration.

---

Installation Guidelines

Verify the Part Number

Before installation, confirm the complete identification:

• IS200VCRCH1BBC
• Revision designation
• Board markings
• Rack position
• Connector arrangement
• Associated terminal boards
• Host equipment
• Existing field wiring

This information is particularly important when replacing an existing board.

Isolate the Equipment

The control equipment should be properly isolated before board replacement.

External field circuits may have separate power sources, so technicians should verify the relevant circuits and follow the applicable electrical safety procedures.

Use ESD Protection

Electronic boards should be handled using suitable electrostatic-discharge precautions.

Avoid touching exposed connector contacts and sensitive electronic components unnecessarily.

Install in the Correct Position

The board should be installed into the rack position specified by the host system.

Incorrect placement can result in system faults or prevent the control system from recognizing the board correctly.

---

Field Wiring and Terminal Connections

The reliability of a discrete I/O system depends heavily on field wiring quality.

Before commissioning, inspect:

• Terminal connections
• Cable condition
• Connector seating
• Wire identification
• Field-device contacts
• Cable routing
• Grounding arrangements

Loose connections can result in intermittent status changes or failure to detect field conditions.

Incorrect wiring can also cause an output command to operate the wrong external circuit, making wiring verification especially important during replacement work.

---

EMC and Electrical Noise Considerations

Industrial control cabinets can contain motors, contactors, variable-speed drives, transformers, switching power supplies, and other equipment capable of producing electrical interference.

Although discrete signals are generally less sensitive than low-level analog signals, excessive electrical noise can still affect signal reliability.

Recommended practices include:

• Route signal cables separately from high-power conductors.
• Maintain appropriate grounding.
• Keep connectors clean and secure.
• Avoid unnecessary cable loops.
• Protect wiring from mechanical damage.
• Use suitable shielding where required by the system design.
• Minimize exposure to strong electromagnetic sources.

If a discrete input changes state without a corresponding physical event, electrical interference should be considered as part of the troubleshooting process.

---

Commissioning Procedure

Following installation, the IS200VCRCH1BBC should be commissioned in a controlled sequence.

Step 1: Hardware Verification

Confirm the board part number, revision, rack position, and connector arrangement.

Step 2: Wiring Inspection

Verify all field wiring against the approved system configuration.

Step 3: Configuration Check

Confirm that the control system is correctly configured for the installed I/O hardware.

Step 4: Power Restoration

Restore system power according to the approved commissioning procedure.

Step 5: Input Testing

Operate known field devices and confirm that the corresponding input states are detected correctly.

Step 6: Output Testing

Test appropriate output commands under controlled conditions and verify the expected external response.

Step 7: Interlock Verification

Confirm that permissive and interlock logic responds correctly to the relevant input states.

Step 8: Alarm Verification

Check that required alarm states are detected and reported correctly.

Step 9: Normal Operation

Return the equipment to normal operation and monitor the system for unexpected state changes.

---

Troubleshooting the GE IS200VCRCH1BBC

A discrete I/O fault should be diagnosed by examining the complete signal path rather than immediately replacing the board.

Input Permanently ON

If an input remains active continuously, possible causes include:

• Field contact permanently closed
• Wiring error
• Short circuit
• Incorrect terminal connection
• Input-interface problem
• Configuration issue

The field device and wiring should be checked before assuming a board failure.

Input Permanently OFF

If an input never changes state, inspect:

• Field device
• Field power
• Wiring
• Terminal connections
• Board connectors
• Control-system configuration
• Input circuitry

Testing the signal at multiple points in the signal path can help identify where the state is being lost.

Output Command Does Not Operate

If the control system generates an output command but the field equipment does not respond, inspect:

• Control logic
• Output status
• Field wiring
• Terminal interface
• External power
• Relay or actuator
• External equipment
• Board output circuitry

Intermittent I/O

Intermittent digital signals may result from:

• Loose terminals
• Vibration
• Connector problems
• Damaged cables
• Electrical interference
• Unstable power
• Field-device degradation
• Board-level faults

The affected circuit should be monitored while checking the physical installation.

Multiple Channels Fail

When several I/O points fail simultaneously, investigate common causes first.

Potential causes include:

• System power problems
• Backplane issues
• Common terminal-interface faults
• Configuration problems
• Communication failures
• Shared field wiring

Multiple simultaneous failures do not necessarily indicate that the board itself has failed.

---

Preventive Maintenance

Inspect Connectors

Check board connectors and terminal interfaces periodically for contamination, oxidation, mechanical damage, or loose seating.

Check Field Wiring

Inspect cables for:

• Abrasion
• Broken conductors
• Loose terminals
• Moisture
• Corrosion
• Incorrect routing

Monitor Equipment Status

Unexpected changes in digital states can provide early indications of field-device or wiring problems.

Maintain Cabinet Conditions

Keep the control cabinet clean and maintain appropriate temperature and ventilation.

Review System Diagnostics

Diagnostic information and event logs can help identify intermittent I/O or communication problems.

Keep Spare Hardware

For critical control applications, maintaining an identified spare IS200VCRCH1BBC can help reduce restoration time during an unexpected hardware failure.

---

Replacement and Spare-Part Planning

When sourcing a replacement for the GE IS200VCRCH1BBC Discrete Input/Output Board, the exact identification should be verified before installation.

Important information includes:

• Full model number
• Revision
• Board markings
• Rack location
• Connector arrangement
• Terminal interface
• Host control platform
• Associated field wiring
• System configuration

A visually similar IS200 board should not be assumed to be compatible.

The electrical function, connector arrangement, revision, and system role must all be considered.

---

Physical Dimensions and Weight

The supplied physical specifications for the IS200VCRCH1BBC are:

Physical Parameter	Value
Length / Height	280 mm
Width	33 mm
Depth	220 mm
Weight	0.318 kg

The 280 × 33 × 220 mm dimensions can be used for cabinet planning, rack-space evaluation, maintenance access, spare-parts storage, and shipping preparation.

The listed 0.318 kg weight is also useful for inventory and logistics planning.

Physical dimensions should be treated as mechanical reference information only and should not be used to establish electrical compatibility.

---

Compatible System Components

Depending on the host architecture, the IS200VCRCH1BBC may operate alongside several categories of GE industrial control hardware.

Component	General Function
Digital Field Devices	Provide discrete process states
Terminal Boards	Connect field wiring
VME Backplane	Provides board interconnection
Control Processor	Executes application logic
Analog Input Boards	Acquire continuous process signals
Digital Signal Processor Boards	Perform specialized control processing
Communication Boards	Exchange system information
Power Supply Assemblies	Provide operating power
HMI	Displays equipment status
SCADA	Provides supervisory monitoring

Actual compatibility should be established from the specific host-system configuration.

---

Recommended Related GE Models

GE Model	Product Type	General Role
IS200VAICH1DAA	VME Analog Input Board	Analog signal acquisition
IS200DSPXH1CAA	Digital Signal Processor Control Board	Digital control processing
IS200DSPXH2CAA	Digital Signal Processor Control Board	Control and communication processing
IS200STAIH2ACB	Analog I/O Terminal Block	Analog signal termination
IS200TDBSH6ABC	Discrete Simplex Card	Discrete signal interface
IS200TRLYH1BED	Relay Output Terminal Block	Relay output interface
IS200SSCAH2AGD	Serial Communication I/O Terminal Board	Serial communication and I/O

These models may belong to related GE industrial control architectures. They should not be considered direct replacements for the IS200VCRCH1BBC unless the host-system requirements and applicable hardware revisions have been verified.

---

Engineering Best Practices

Verify Before Replacement

Always compare the complete board designation and revision before removing or installing an IS200 board.

Trace the Entire Signal Path

When troubleshooting, inspect the field device, wiring, terminal board, I/O board, processor, and control logic.

Test Known States

Use known field conditions during commissioning to verify that input and output states are correctly detected.

Investigate Common Causes

When multiple I/O channels fail, investigate power, backplane, terminal, and configuration issues before replacing the board.

Protect Electronic Hardware

Use appropriate ESD precautions and avoid unnecessary handling of exposed board components.

Maintain Documentation

Keep accurate records of board part numbers, revisions, rack locations, wiring, and system configurations.

Validate After Replacement

After installing a replacement board, verify input states, output commands, alarms, interlocks, system diagnostics, and normal process operation.

---

Key Advantages

Dedicated Discrete I/O Interface

The IS200VCRCH1BBC provides specialized digital signal interface functionality for compatible GE industrial control architectures.

Supports Equipment Monitoring

Discrete inputs can provide real-time status information from switches, contacts, alarms, and other field devices.

Supports Control Commands

Discrete outputs can allow the control system to transmit appropriate digital commands toward external equipment.

Useful for Interlocking and Sequencing

Discrete signals can form an important part of permissive, interlock, alarm, and sequence-control strategies.

Compact Board Construction

The supplied 280 × 33 × 220 mm dimensions provide a relatively narrow board profile for suitable industrial control installations.

Lightweight Design

The supplied weight of 0.318 kg simplifies handling during maintenance and replacement.

---

Technical FAQs

What is the GE IS200VCRCH1BBC?

The GE IS200VCRCH1BBC is a Discrete Input/Output Board designed to interface digital field signals with a compatible GE industrial control system.

What is the purpose of discrete I/O?

Discrete I/O allows an automation system to detect defined field states and, where applicable, transmit digital control commands to external equipment.

What are common discrete input signals?

Examples include motor status, valve position, breaker status, alarm contacts, limit switches, equipment permissives, and interlock states.

What are common discrete output applications?

Discrete outputs can be used for start/stop commands, valve commands, equipment enable signals, alarm interfaces, relay control, and other digital control functions, depending on the system configuration.

What are the dimensions of the IS200VCRCH1BBC?

The supplied dimensions are 280 × 33 × 220 mm.

What is the weight of the IS200VCRCH1BBC?

The supplied weight is approximately 0.318 kg.

Is the IS200VCRCH1BBC a PLC CPU?

No. It is a specialized Discrete Input/Output Board intended to operate as part of a larger GE industrial control architecture.

Why might a discrete input remain ON?

Possible causes include a permanently closed field contact, wiring problems, incorrect terminal connections, configuration errors, or an input-interface fault.

Why might a discrete input remain OFF?

Possible causes include a failed field device, missing field power, damaged wiring, poor connections, configuration problems, or an input-circuit issue.

Why might an output command fail to operate the field device?

Possible causes include control-logic errors, field wiring problems, missing external power, terminal-interface faults, actuator problems, or output-interface issues.

Can another GE IS200 board replace the IS200VCRCH1BBC?

Not automatically. The complete model number, revision, electrical function, connector arrangement, and host-system requirements must be verified.

How should the board be maintained?

Maintenance should include inspection of connectors, field wiring, terminal interfaces, cabinet conditions, power quality, and system diagnostics.

What should be checked before replacing the board?

Check the field device, wiring, terminal interface, connectors, power, control logic, configuration, and associated equipment before determining that the board itself requires replacement.

---

Conclusion

The GE IS200VCRCH1BBC Discrete Input/Output Board is a specialized industrial automation component designed to provide digital field signal interface functionality within compatible GE control architectures. By connecting discrete field states with the control system, the board can contribute to equipment monitoring, alarms, permissives, interlocks, sequence control, and digital command functions.

The supplied mechanical specifications are 280 × 33 × 220 mm with a weight of 0.318 kg. These values provide useful reference information for cabinet planning, rack installation, maintenance access, inventory management, and replacement logistics.

Reliable operation depends on the complete I/O signal chain. Field devices, wiring, terminal interfaces, connectors, system power, backplane connections, control configuration, and the I/O board itself can all influence system performance.

For maintenance or replacement, the complete IS200VCRCH1BBC model designation and applicable revision should be carefully verified against the host GE control system. Proper board identification, controlled installation, correct field wiring, ESD protection, systematic commissioning, and complete signal-path troubleshooting are essential for dependable discrete I/O performance in industrial automation applications.
