Product Overview

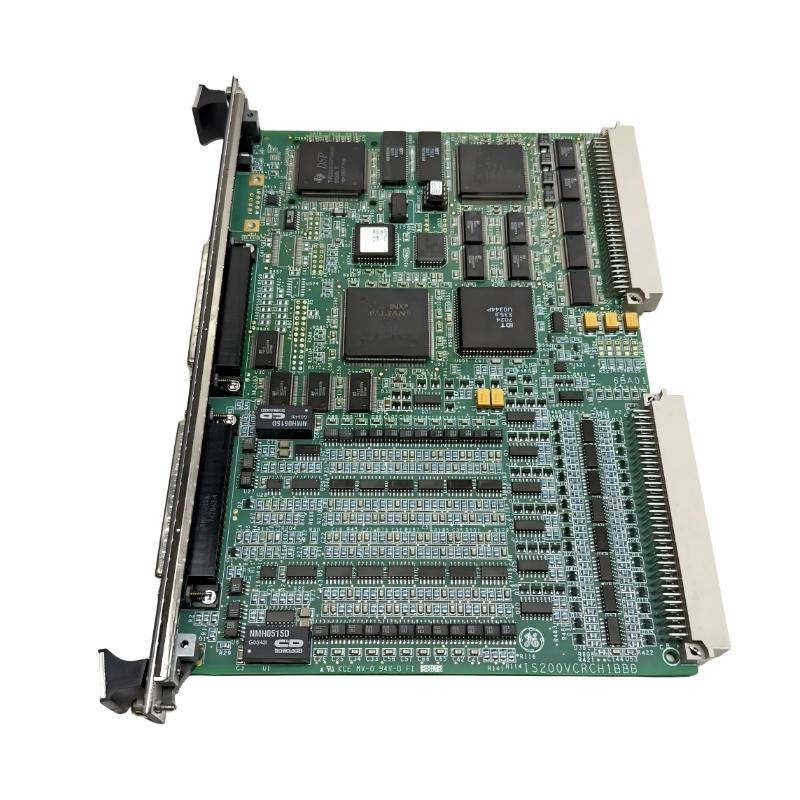

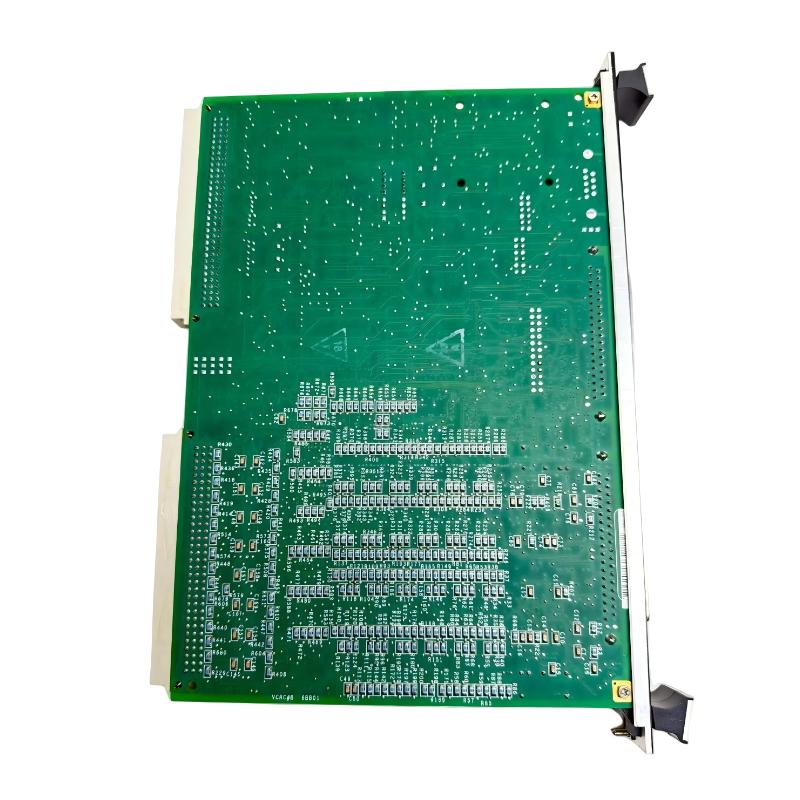

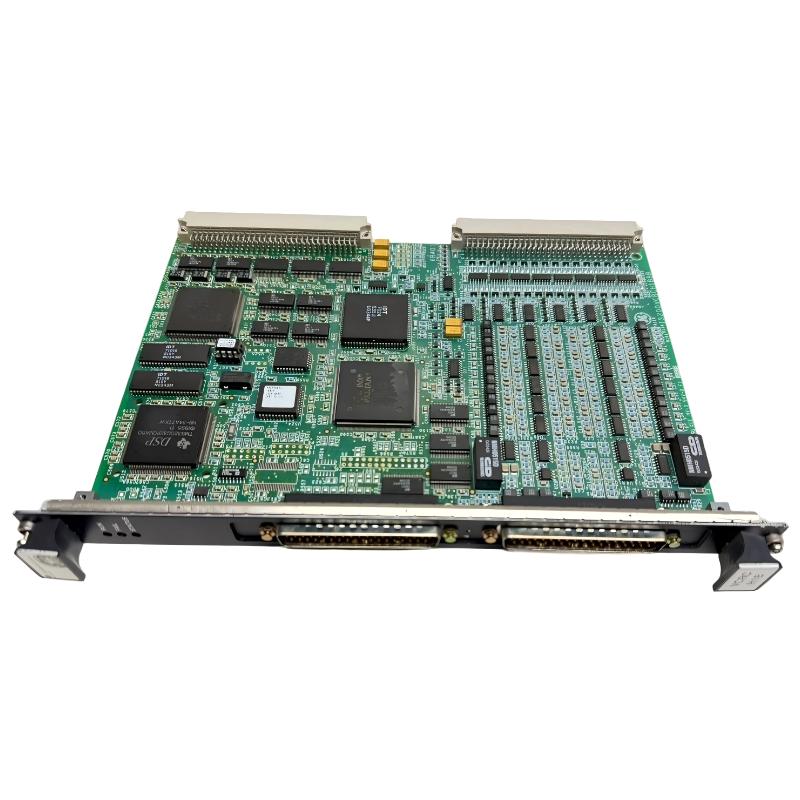

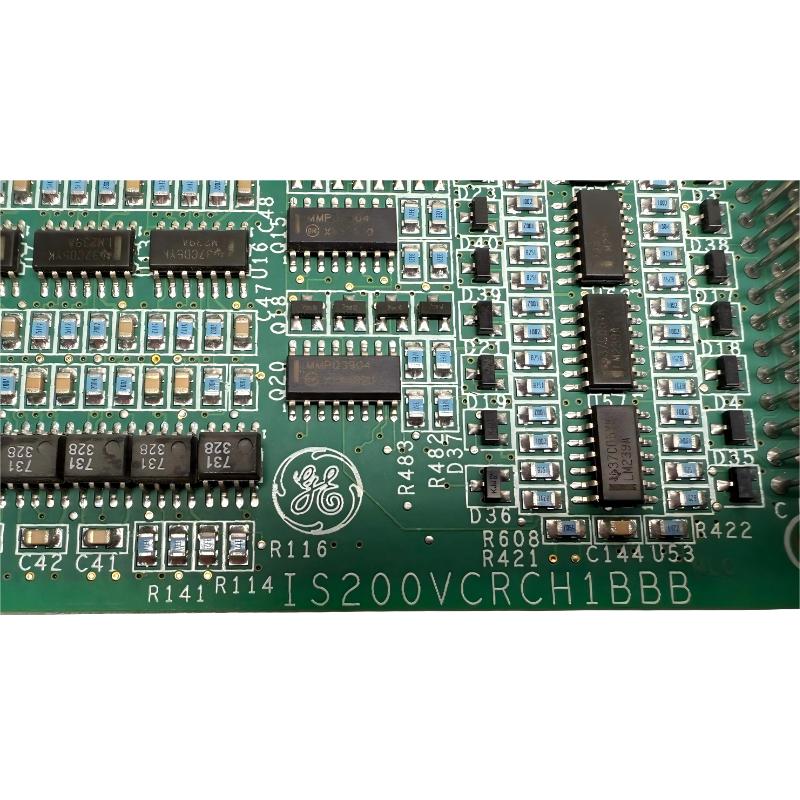

The GE IS200VCRCH1BBB Discrete Input/Output Board is a specialized industrial control interface board designed to handle discrete field signals within compatible GE control system architectures. As part of the GE IS200 family, the IS200VCRCH1BBB provides an interface between field devices and the control system, allowing discrete status information and control signals to be exchanged between industrial equipment and the automation platform.

Discrete I/O is fundamental to industrial automation because many operating conditions are represented by distinct states rather than continuously varying values. Examples include equipment running or stopped, valve open or closed, breaker energized or de-energized, permissive active or inactive, and alarm normal or active. A dedicated discrete I/O board provides the electronic interface required to integrate these signals into the control architecture.

The GE IS200VCRCH1BBB has supplied dimensions of 280 × 33 × 220 mm and a weight of approximately 0.318 kg. Its board-style construction is intended for installation within compatible industrial control equipment and rack or cabinet assemblies.

For maintenance and replacement applications, the complete IS200VCRCH1BBB identification should be verified carefully. GE IS200 boards can have similar mechanical characteristics while serving very different electrical and functional purposes.

---

Technical Specifications

Parameter	Specification
Manufacturer	General Electric (GE)
Model	IS200VCRCH1BBB
Product Type	Discrete Input/Output Board
Product Family	GE IS200 Series
Primary Function	Discrete signal interface
Signal Type	Discrete digital signals
System Role	Field I/O and control interface
Application	Industrial automation and process control
Installation	Compatible GE industrial control equipment
Dimensions	280 × 33 × 220 mm
Weight	0.318 kg
Typical Functions	Status monitoring, interlocking, control commands, alarm interfaces
Replacement	Verify complete part number and revision before installation

Exact channel count, voltage ranges, current ratings, isolation characteristics, terminal assignments, and electrical limits should be confirmed against the applicable IS200VCRCH1BBB revision and host-system configuration.

---

What Is the GE IS200VCRCH1BBB?

The IS200VCRCH1BBB is a Discrete Input/Output Board designed to provide digital signal interface functions within a compatible GE industrial control system.

The board can form an interface between field-level equipment and the system’s control-processing architecture.

A simplified signal path can be represented as:

Field Device → Terminal / Wiring → IS200VCRCH1BBB → Control Architecture → Logic / HMI / SCADA

For input signals, field devices provide discrete states to the control system.

For output signals, the control system generates discrete commands that are transferred toward field equipment.

This two-way interaction allows discrete operating conditions and control commands to become part of an automated process.

---

Understanding Discrete I/O

Discrete signals differ from analog signals because they normally represent defined states.

Common industrial examples include:

• ON / OFF
• Open / Closed
• Running / Stopped
• Healthy / Fault
• Permitted / Not Permitted
• Energized / De-energized
• Normal / Alarm
• Local / Remote

A discrete input allows the control system to detect a field condition, while a discrete output can be used to command or control an external device through the appropriate interface.

The IS200VCRCH1BBB provides the board-level interface required for these types of digital control signals within its intended GE system.

---

Function and Working Principle

Discrete Input Operation

A discrete input receives a signal representing a defined field condition.

Examples may include:

• Limit-switch status
• Motor auxiliary contact
• Valve-position feedback
• Breaker status
• Alarm contact
• Interlock signal
• Equipment permissive

The input circuitry detects the electrical state and makes the corresponding status available to the control system.

The controller can then use the status in programmed logic.

For example:

Motor Auxiliary Contact → Discrete Input → Control Logic → Motor Status Display

Discrete Output Operation

A discrete output provides a command from the control architecture toward a field device or external interface.

Possible applications include:

• Solenoid commands
• Relay control
• Valve commands
• Equipment enable signals
• Alarm interfaces
• Interlock commands
• Start/stop commands

The output state is determined by the control logic and the system configuration.

Signal Interface

The board provides the electrical interface between the field wiring and the control-system electronics.

Proper signal conditioning and interface design are important because field environments can contain electrical noise, transient conditions, and differences in grounding potential.

The exact electrical implementation should be verified against the applicable hardware documentation.

---

Role in Industrial Automation

The IS200VCRCH1BBB can participate in several important automation functions.

Equipment Status Monitoring

Discrete inputs can provide the controller with real-time information about equipment states.

Interlocking

Discrete signals can be used to establish permissive and interlock conditions that prevent equipment from operating outside defined process conditions.

Command Execution

Discrete outputs can transmit control commands from the automation system to field devices.

Alarm Monitoring

Discrete inputs can detect alarm contacts and abnormal equipment conditions.

Sequence Control

Discrete signals can provide the status information required for sequential operating logic.

A simplified control sequence might look like:

Start Command → Output Signal → Equipment Starts → Auxiliary Feedback → Input Signal → Controller Confirms Running

This type of feedback loop is common throughout industrial automation.

---

Industrial Applications

Power Generation

Power-generation facilities rely on extensive discrete signal networks for equipment status, alarms, permissives, breaker positions, auxiliary systems, and control commands.

Discrete I/O boards can form part of the control infrastructure connecting these field signals with the control processor.

Turbine Systems

Turbine systems contain numerous discrete states associated with valves, auxiliary equipment, protection circuits, permissives, and operating sequences.

Reliable digital signal acquisition and output control are important for coordinated turbine operation.

Generator Systems

Generator control equipment can use discrete signals to monitor equipment states and transmit commands to associated devices.

Process Plants

Industrial process facilities use discrete I/O for pumps, valves, motors, switches, alarms, and interlocking systems.

Manufacturing Automation

Production machinery frequently depends on discrete status signals from sensors, switches, contactors, actuators, and safety-related interfaces.

Utility Systems

Water, wastewater, power distribution, and other utility systems commonly use discrete inputs and outputs for equipment control and status monitoring.

---

Discrete I/O System Architecture

A typical architecture may contain several layers:

Field Device → Terminal Interface → Discrete I/O Board → Control Processor → Control Logic → Operator Interface

The field device may be a switch, contact, relay, actuator, or other discrete device.

The I/O board provides the interface between the field circuit and the control electronics.

The processor interprets the signal according to the programmed control strategy.

The HMI or SCADA system can then display the corresponding equipment state to the operator.

---

System Integration

The IS200VCRCH1BBB is intended to operate as part of a larger control architecture rather than as a standalone controller.

A representative system may include:

System Component	General Function
Field Switches	Provide discrete status signals
Sensors / Contacts	Detect equipment conditions
Terminal Board	Provides field wiring interface
IS200VCRCH1BBB	Handles discrete I/O interface functions
Control Processor	Executes control logic
VME / System Backplane	Provides board interconnection
Communication Interface	Transfers system information
HMI	Displays equipment status
SCADA	Provides supervisory monitoring
Actuators	Perform commanded field actions

The exact combination depends on the host GE control platform.

---

Installation Guidelines

Verify Board Identification

Before replacing or installing the IS200VCRCH1BBB, technicians should verify:

• Complete part number
• Revision designation
• Board markings
• Rack position
• Connector arrangement
• Host equipment
• Associated terminal boards
• Existing field wiring
• System configuration

This information should be recorded before removing the original board.

Power Isolation

The associated control equipment should be properly isolated before board replacement.

External field circuits may remain energized even after the control rack has been switched off, so applicable electrical safety procedures must be followed.

ESD Protection

Electronic boards should be handled using appropriate electrostatic-discharge precautions.

Avoid unnecessary contact with:

• Connector pins
• Circuit traces
• Component leads
• Exposed electronic devices

Correct Rack Position

The replacement board should be installed into the correct rack or system position according to the host equipment configuration.

---

Field Wiring and Signal Integrity

Discrete signals may appear simpler than analog signals, but wiring quality remains important.

Poor connections can result in:

• False status indications
• Intermittent signals
• Unexpected output behavior
• Unwanted alarms
• Control sequence interruptions

Field wiring should therefore be checked for:

• Loose terminals
• Damaged insulation
• Broken conductors
• Moisture
• Corrosion
• Incorrect connections
• Poor cable routing

The signal path should be verified from the field device through the terminal interface and into the I/O board.

---

Electrical Noise and Grounding

Industrial control cabinets frequently contain high-power equipment, switching devices, motors, contactors, and variable-speed drives.

These devices can generate electrical interference.

Appropriate installation practices include:

• Separating signal cables from high-power conductors.
• Maintaining proper grounding.
• Avoiding unnecessary cable loops.
• Securing field wiring.
• Keeping connectors clean.
• Using appropriate shielding where required by the system design.

If intermittent digital signals occur, electrical interference should be considered alongside hardware and wiring faults.

---

Commissioning Procedure

After installation, the IS200VCRCH1BBB should be commissioned systematically.

Step 1: Verify Hardware

Confirm the board part number and revision.

Step 2: Inspect Connections

Check board connectors, terminal interfaces, and field wiring.

Step 3: Verify Configuration

Confirm that the control system is configured for the installed hardware.

Step 4: Restore Power

Apply power according to the approved system commissioning procedure.

Step 5: Check Digital Inputs

Activate known field conditions and confirm that the control system detects the expected status.

Step 6: Check Digital Outputs

Test output commands under controlled conditions and confirm the corresponding field response.

Step 7: Verify Interlocks

Confirm that programmed permissives and interlocks respond correctly.

Step 8: Verify Alarms

Check that abnormal field conditions produce the expected alarm or status response.

Step 9: Monitor Operation

Observe the system during initial operation for intermittent signals or unexpected status changes.

---

Troubleshooting the GE IS200VCRCH1BBB

Discrete I/O faults should be diagnosed by examining the complete field-to-controller signal path.

Input Does Not Change State

If a discrete input remains permanently ON or OFF, inspect:

• Field device
• Contact or switch
• Field wiring
• Terminal connection
• Board connector
• Input circuit
• Control-system configuration

A failed field switch can produce the same symptom as a failed input circuit.

Output Does Not Operate

If an output command is generated but the external device does not respond, inspect:

• Control logic
• Output status
• Field wiring
• Terminal interface
• External device
• Associated relay or actuator
• Power supply
• Board output interface

Intermittent Digital Signal

Intermittent operation can result from:

• Loose wiring
• Vibration
• Connector problems
• Electrical noise
• Damaged field cable
• Faulty switch or contact
• Power instability
• Board-level problems

The signal should be monitored while checking the physical installation.

Multiple I/O Points Fail

If several inputs or outputs fail simultaneously, inspect common system-level causes first.

These may include:

• Power supply problems
• Backplane problems
• Common wiring
• Terminal interface faults
• System configuration problems
• Communication or processor issues

A multiple-channel failure should not automatically be attributed to the I/O board.

---

Preventive Maintenance

Inspect Field Wiring

Check cables and terminals periodically for mechanical damage, corrosion, loose connections, or moisture.

Inspect Connectors

Board and terminal connectors should remain clean and securely seated.

Monitor Equipment Status

Unexpected changes in discrete states can provide early indications of equipment or wiring problems.

Check Cabinet Conditions

Maintain suitable cabinet temperature and protect the electronics from excessive dust and moisture.

Review Diagnostic Information

System diagnostics and event logs can help identify intermittent communication or I/O problems.

Maintain Spare Hardware

For critical applications, keeping an identified spare IS200VCRCH1BBB can reduce maintenance downtime.

---

Replacement and Spare-Part Planning

When replacing the GE IS200VCRCH1BBB Discrete Input/Output Board, exact identification is essential.

Technicians should verify:

• Full model number
• Revision
• Board markings
• Rack location
• Connector configuration
• Terminal interface
• Host control system
• Associated software or configuration
• Field wiring arrangement

A different GE IS200 board should not be substituted simply because it has a similar appearance or physical size.

Electrical functionality and system compatibility must be verified before installation.

---

Physical Dimensions and Weight

The supplied mechanical specifications are:

Physical Parameter	Value
Length / Height	280 mm
Width	33 mm
Depth	220 mm
Weight	0.318 kg

The overall dimensions of 280 × 33 × 220 mm can be used for cabinet planning, rack installation, maintenance access, spare-parts storage, and transportation preparation.

The relatively narrow 33 mm profile can be useful when evaluating available installation space, but mechanical dimensions alone should never be used to establish electrical compatibility.

---

Compatible System Components

The IS200VCRCH1BBB may form part of a larger GE industrial automation system containing several complementary assemblies.

Component	General Function
Discrete Field Devices	Provide ON/OFF status
Terminal Boards	Connect field wiring
VME Backplane	Provides system interconnection
Control Processor	Executes automation logic
Analog I/O Boards	Handle continuous signals
Digital Signal Processor Boards	Perform specialized processing
Communication Boards	Exchange system information
Power Supplies	Provide operating power
HMI	Displays operating status
SCADA	Provides supervisory monitoring

Actual system compatibility depends on the host equipment and configured architecture.

---

Recommended Related GE Models

GE Model	Product Type	General Role
IS200VAICH1DAA	VME Analog Input Board	Analog signal acquisition
IS200DSPXH1CAA	Digital Signal Processor Control Board	Digital control processing
IS200DSPXH2CAA	Digital Signal Processor Control Board	Control and communication processing
IS200SSCAH2AGD	Serial Communication I/O Terminal Board	Serial I/O interface
IS200STAIH2ACB	Analog I/O Terminal Block	Analog signal termination
IS200TDBSH6ABC	Discrete Simplex Card	Discrete signal interface
IS200TRLYH1BED	Relay Output Terminal Block	Relay output interface

These boards may be used in related GE industrial control architectures, but they should not be treated as direct replacements for the IS200VCRCH1BBB without confirming the host-system configuration and revision compatibility.

---

Engineering Best Practices

Trace the Complete Signal Path

When diagnosing a digital I/O problem, inspect the field device, wiring, terminal interface, board, processor, and control logic as one complete system.

Document the Original Configuration

Record board identification, revision, rack position, connectors, and field wiring before removing the original board.

Test Known States

Use known field conditions during commissioning to verify that inputs and outputs respond correctly.

Check Common Causes First

If multiple channels fail, investigate common power, backplane, terminal, and configuration issues before replacing individual components.

Protect Against Electrical Noise

Maintain proper signal routing and grounding practices, especially near motors, contactors, drives, and other switching equipment.

Maintain Accurate Spare-Part Records

Inventory systems should record the full IS200VCRCH1BBB identification and applicable revision information.

---

Key Advantages

Dedicated Discrete Signal Interface

The IS200VCRCH1BBB is designed for discrete input/output functions within a compatible GE industrial control architecture.

Two-Way Field Interaction

Discrete I/O allows the control system to both monitor field conditions and transmit commands to external equipment.

Supports Automation Logic

Discrete signals can be incorporated into alarms, permissives, interlocks, sequences, and equipment control strategies.

Compact Board Design

The supplied dimensions of 280 × 33 × 220 mm provide a relatively narrow board format for compatible industrial control equipment.

Lightweight Construction

With a supplied weight of 0.318 kg, the board can be handled conveniently during maintenance and replacement procedures.

Broad Industrial Use

Discrete I/O technology is applicable to power generation, turbine control, process automation, manufacturing, utilities, and other industrial applications.

---

Technical FAQs

What is the GE IS200VCRCH1BBB?

The GE IS200VCRCH1BBB is a Discrete Input/Output Board designed to provide digital field signal interface functions within compatible GE industrial control systems.

What is a discrete input?

A discrete input detects a defined field state, such as ON/OFF, open/closed, running/stopped, or normal/alarm.

What is a discrete output?

A discrete output transmits a control command from the automation system toward an external device or interface.

What are common applications for discrete I/O?

Discrete I/O can be used for equipment status monitoring, start/stop commands, valve control, alarm signals, permissives, interlocks, and sequence control.

What are the dimensions of the IS200VCRCH1BBB?

The supplied dimensions are 280 × 33 × 220 mm.

What is the weight of the IS200VCRCH1BBB?

The supplied weight is approximately 0.318 kg.

Is the IS200VCRCH1BBB a PLC CPU?

No. It is a specialized Discrete Input/Output Board that operates as part of a larger GE industrial control architecture.

Why might a discrete input remain permanently ON or OFF?

Possible causes include a failed field switch, incorrect wiring, poor terminal connection, electrical interference, configuration problems, or an input-interface fault.

Why might a discrete output fail to activate equipment?

Possible causes include incorrect control logic, field wiring problems, terminal faults, external equipment faults, power issues, or an output-interface problem.

Can another IS200 board replace the IS200VCRCH1BBB?

Not automatically. GE IS200 boards perform different functions, and compatibility must be verified using the complete part number, revision, interface configuration, and host-system requirements.

How should the IS200VCRCH1BBB be maintained?

Maintenance should include inspection of field wiring, terminal connections, board connectors, cabinet conditions, power quality, and system diagnostic information.

What should be checked before replacing the board?

Check the field device, wiring, terminals, connectors, system power, control logic, configuration, and associated equipment before concluding that the board itself has failed.

---

Conclusion

The GE IS200VCRCH1BBB Discrete Input/Output Board is a specialized industrial control component designed to interface discrete field signals with a compatible GE automation architecture. By providing a connection between field devices and control-processing equipment, it can support equipment status monitoring, control commands, alarms, permissives, interlocks, and automated operating sequences.

The supplied physical specifications are 280 × 33 × 220 mm with a weight of 0.318 kg, making these values useful for cabinet planning, spare-parts management, maintenance preparation, and replacement logistics.

Reliable discrete I/O operation depends on the entire signal path. Field devices, wiring, terminal connections, power supplies, backplanes, board connectors, system configuration, and control logic can all influence the final result.

For replacement applications, the complete IS200VCRCH1BBB model designation and applicable revision should be verified against the host GE system. Correct identification, careful installation, proper wiring, controlled commissioning, and systematic troubleshooting help maintain dependable discrete signal monitoring and control in industrial automation environments.
