Product Overview

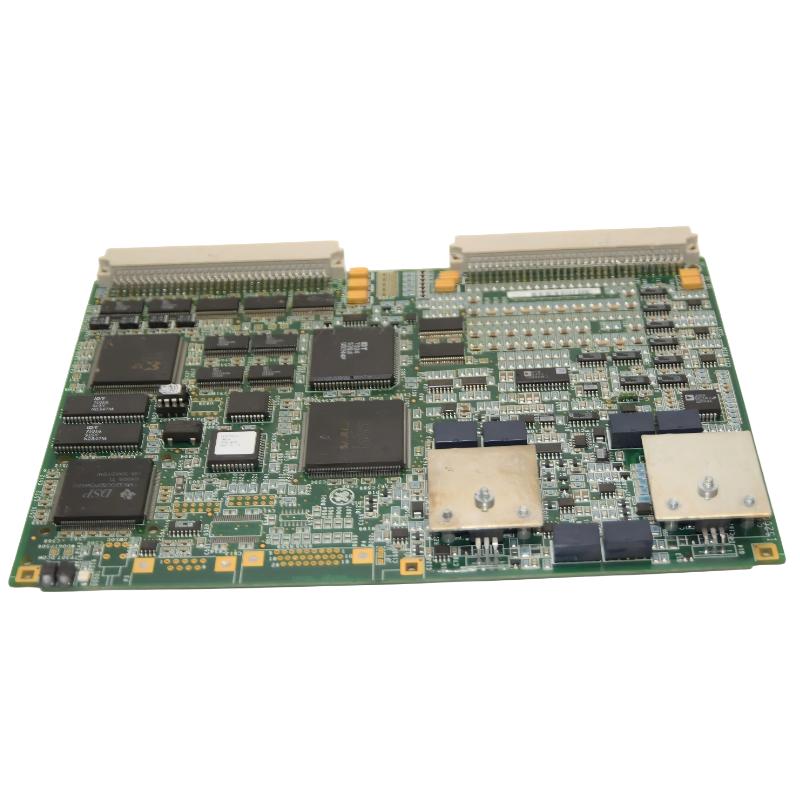

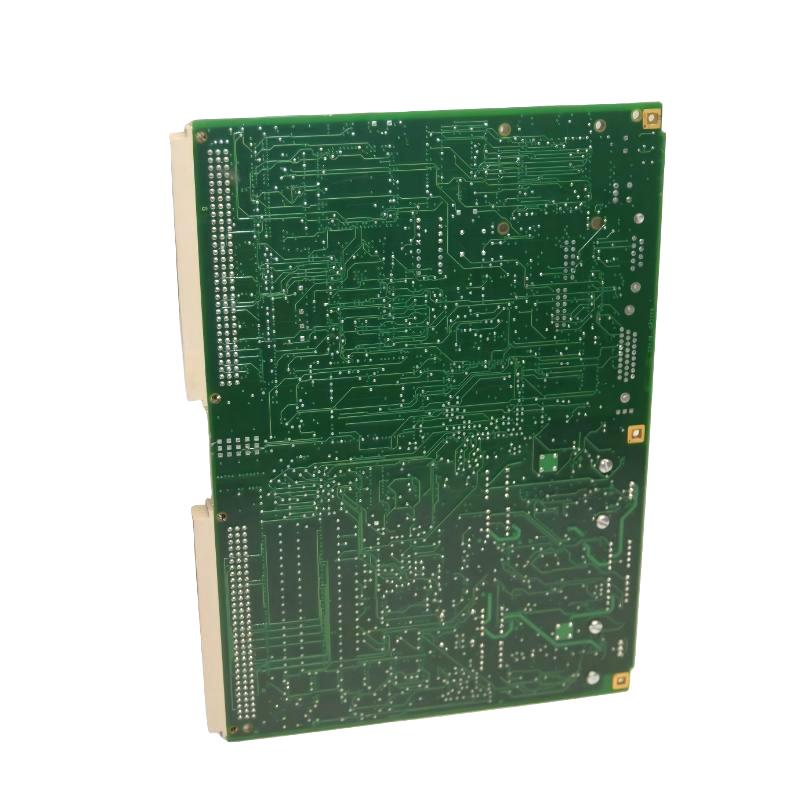

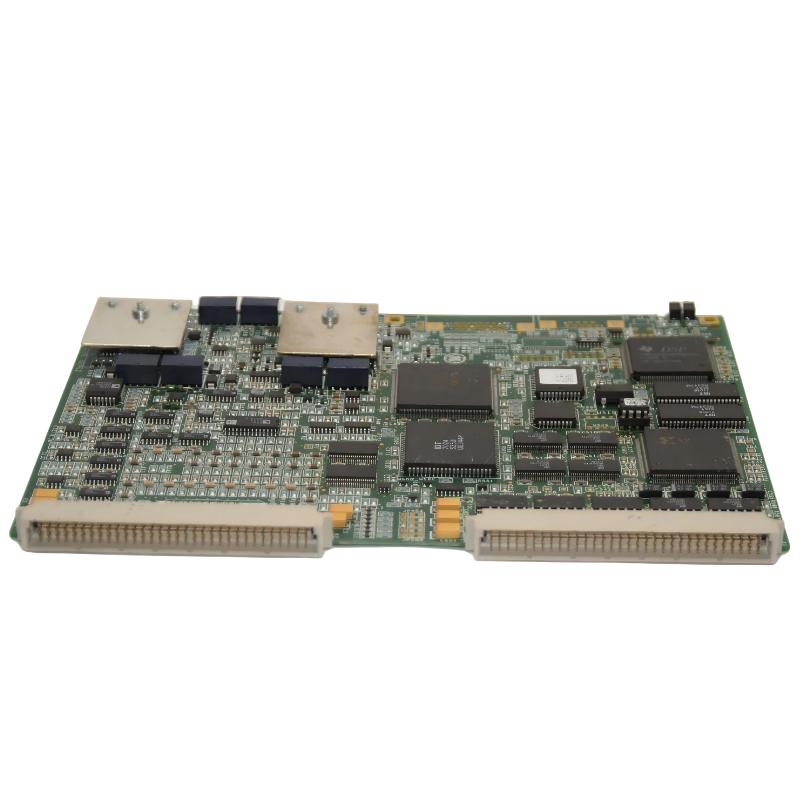

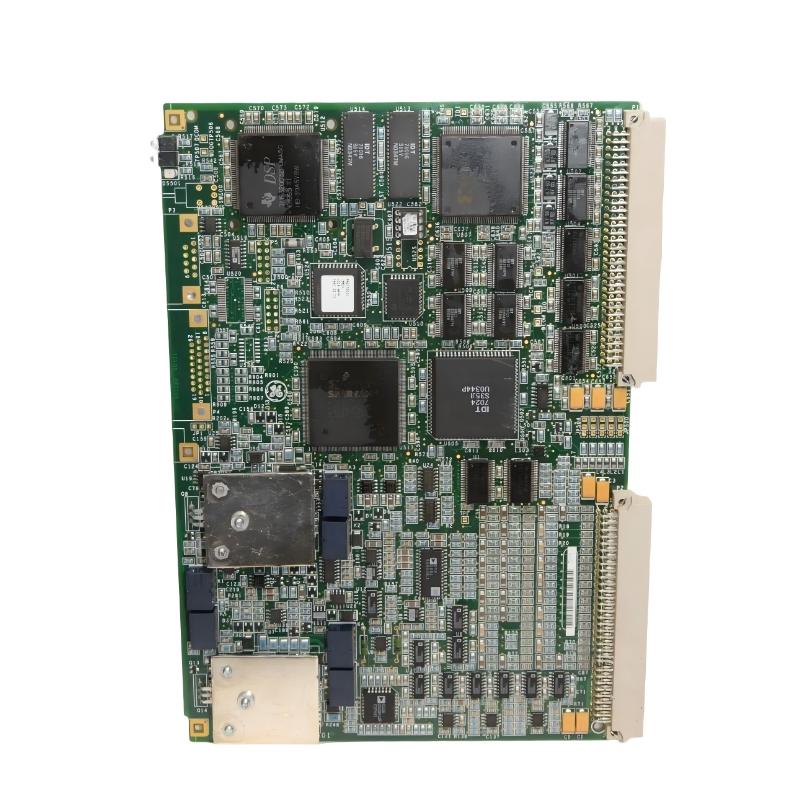

The GE IS200VAICH1DAA VME Analog Input Board is an industrial analog signal-interface board designed for use within compatible GE control-system architectures. As part of the GE IS200 family, the board provides an interface for analog field signals and supports the transfer of process information into the control system for monitoring, regulation, diagnostics, and automation functions.

Analog input boards are essential in industrial automation because many physical process variables are continuous rather than simply ON or OFF. Temperature, pressure, current, voltage, flow, level, and other measurements can be represented by analog electrical signals. A VME-based analog input board provides the electronic interface required to bring these measurements into a digital control architecture.

The GE IS200VAICH1DAA has listed dimensions of 280 × 150 × 25 mm and a weight of approximately 0.363 kg. Its compact board format is suitable for integration into industrial control equipment where analog measurement signals need to be acquired and transferred to a VME-based control system.

The board should be considered part of a complete control architecture rather than an independent controller. Its actual signal types, channel configuration, electrical ranges, terminal assignments, and system functions depend on the associated hardware and application.

A simplified architecture can be represented as:

Process Instrument → Field Wiring → Analog Input Interface → VME Control System → Control Logic → HMI / SCADA

---

Technical Specifications

Parameter	Specification
Manufacturer	General Electric (GE)
Model	IS200VAICH1DAA
Product Type	VME Analog Input Board
Product Family	GE IS200 Series
Primary Function	Analog signal acquisition and interface
Signal Type	Analog process signals
Interface Architecture	VME-based industrial control system
Application	Industrial process monitoring and control
Installation	Compatible GE control equipment
Board Format	Industrial control circuit board
Dimensions	280 × 150 × 25 mm
Weight	0.363 kg
Typical Inputs	Process instrumentation and analog feedback
Typical Role	Analog measurement interface
System Integration	VME control architecture

---

What Is the GE IS200VAICH1DAA?

The IS200VAICH1DAA is a VME Analog Input Board designed to connect analog process information to a compatible GE industrial control system.

Industrial equipment frequently generates analog signals representing continuously changing physical conditions. For example, a pressure transmitter may generate a signal that changes as process pressure changes, while a temperature transmitter provides an electrical representation of temperature.

The analog input board receives these signals and provides the interface through which the control architecture can acquire the associated process information.

A simplified signal chain is:

Physical Process → Sensor / Transmitter → Field Cable → IS200VAICH1DAA → VME Control Architecture → Application Logic

The exact signal architecture should be confirmed against the host equipment and applicable engineering documentation.

---

Understanding VME Analog Input Boards

VME is a modular computer-bus architecture that has been used in many industrial, embedded, instrumentation, and control applications.

Within an industrial control system, a VME analog input board can serve as an interface between physical instrumentation and the digital processing architecture.

The general operating concept is:

1. A field sensor detects a physical process condition.
2. A transmitter or signal source generates an analog electrical signal.
3. Field wiring transfers the signal into the control cabinet.
4. The analog input board receives the signal.
5. The associated electronics condition and convert the information as required.
6. The VME control system receives the digitized measurement.
7. Control software uses the measurement for monitoring or control.

This architecture enables continuously varying process information to become usable data within an industrial automation system.

---

Function and Working Principle

Analog Signal Acquisition

The primary role of the IS200VAICH1DAA is associated with acquiring analog signals from field instrumentation.

Analog signals may represent variables such as:

• Temperature
• Pressure
• Flow
• Level
• Voltage
• Current
• Position
• Process feedback

The actual supported signal ranges and channel assignments depend on the specific system configuration.

Signal Conditioning

Industrial analog signals may require conditioning before being processed by digital control electronics.

Depending on the overall architecture, signal conditioning can involve filtering, scaling, isolation, amplification, or other interface functions.

The purpose is to provide the control system with a stable representation of the measured process variable.

Analog-to-Digital Conversion

A digital control system cannot directly process a continuously varying electrical signal in the same manner as an analog circuit. The input information therefore needs to be converted into a digital representation.

The associated analog-input electronics perform the necessary conversion so that the measurement can be processed by the control system.

Data Transfer

After acquisition and conversion, measurement data is made available to the associated VME control architecture.

The control system can then use the information for:

• Process monitoring
• Alarm handling
• Control calculations
• Feedback processing
• Trend recording
• Diagnostic functions

---

Role in Industrial Control Systems

The IS200VAICH1DAA can serve as part of the measurement layer of an industrial automation system.

A typical architecture may contain several levels:

Field Instrumentation

Sensors and transmitters measure physical process conditions.

Analog Interface

The VME analog input board receives and interfaces the analog signals.

Processing Layer

The control processor receives digitized measurements and executes application logic.

Control Layer

Control algorithms use process information to regulate equipment.

Supervisory Layer

HMI and SCADA systems display process values, alarms, trends, and equipment status.

This structure allows analog measurements to move from the physical process into the digital control environment.

---

Industrial Applications

Turbine Control

Turbine systems rely on continuous measurements of operating parameters. Analog input interfaces can be used as part of the architecture for acquiring process measurements and feedback signals.

Generator Systems

Generator equipment can use analog instrumentation to monitor electrical and mechanical operating conditions.

Industrial Process Control

Manufacturing and process plants use analog measurements for pressure, temperature, flow, level, and other process variables.

Energy and Power Systems

Power-generation equipment requires continuous monitoring of electrical and mechanical parameters. Analog input interfaces support the acquisition of these measurements.

Manufacturing Automation

Industrial machines may use analog feedback for position, pressure, temperature, current, and other continuously varying parameters.

Equipment Monitoring

Analog measurement data can be incorporated into condition-monitoring and diagnostic systems to provide information about equipment performance.

---

Analog Signal Architecture

A typical industrial analog measurement path can be represented as:

Process Variable

↓

Sensor / Transmitter

↓

Field Wiring

↓

IS200VAICH1DAA

↓

Signal Conditioning / Conversion

↓

VME Processing System

↓

Control Logic

↓

HMI / SCADA

This architecture provides a clear separation between field instrumentation and control processing.

When troubleshooting a measurement problem, each section of this signal chain should be considered.

---

Installation Guidelines

Proper installation is important for reliable analog signal acquisition.

Verify Board Identification

Before installation, confirm:

• Complete part number
• IS200VAICH1DAA identification
• Board revision
• Connector arrangement
• VME rack position
• Associated control hardware
• Existing system configuration

A similar-looking IS200 board should not be assumed to have the same electrical function.

Inspect the Board

Before installation, inspect the board for:

• Physical damage
• Cracked components
• Corrosion
• Contamination
• Damaged connectors
• Loose hardware
• Signs of overheating

Verify Field Wiring

Analog signal wiring should be checked carefully.

Important items include:

• Wire identification
• Terminal assignments
• Cable condition
• Shielding
• Grounding
• Signal polarity where applicable
• Separation from power conductors

Incorrect wiring can result in unstable or incorrect process measurements.

---

Cabinet Installation and Environmental Considerations

The IS200VAICH1DAA has listed dimensions of 280 × 150 × 25 mm, making cabinet planning important when installing or replacing the board.

The control cabinet should provide appropriate space for:

• Board installation
• Connectors
• Field wiring
• Cable routing
• Cooling
• Maintenance access

The board should also be protected from excessive:

• Dust
• Moisture
• Heat
• Vibration
• Contamination

Good cabinet conditions can help maintain the reliability of electronic control equipment.

---

Analog Wiring and EMC Considerations

Analog signals can be more susceptible to electrical interference than simple discrete signals.

Potential interference sources include:

• Motor cables
• Variable-frequency drives
• Switching power supplies
• Contactors
• High-current conductors
• Electromagnetic equipment

Recommended practices include:

• Route analog signal cables separately from power cables.
• Use appropriate shielding.
• Avoid unnecessary parallel cable runs.
• Maintain proper grounding.
• Keep connectors clean and secure.
• Avoid unnecessary modifications to existing wiring.

The appropriate shielding and grounding method should be determined by the complete system design.

---

PLC, VME and SCADA Integration

The IS200VAICH1DAA is an analog interface board rather than a standalone PLC processor.

Its role can be represented as:

Analog Field Device → IS200VAICH1DAA → VME Control Processor → Application Logic → HMI / SCADA

The control system can use acquired analog values to perform:

• Process monitoring
• Closed-loop control
• Alarm generation
• Equipment status monitoring
• Data trending
• Diagnostic functions
• Performance analysis

Where PLCs or supervisory systems are incorporated into the overall architecture, the acquired process information can be transferred through the appropriate control-system interfaces.

---

Commissioning Procedure

After installation, a structured commissioning procedure should be performed.

Step 1: Verify Hardware

Confirm the exact IS200VAICH1DAA model and applicable revision.

Step 2: Inspect Installation

Check board seating, connectors, cabinet position, and physical condition.

Step 3: Verify Wiring

Compare field wiring with the applicable electrical drawings.

Step 4: Check Grounding

Verify grounding and shielding arrangements for analog circuits.

Step 5: Verify Signal Sources

Confirm that connected sensors or transmitters are operating correctly.

Step 6: Check Input Acquisition

Confirm that expected analog measurements are received by the control system.

Step 7: Compare Process Values

Compare displayed values with suitable reference measurements or known process conditions.

Step 8: Verify Control Logic

Confirm that the control application correctly interprets the acquired measurements.

Step 9: Document Results

Record board identification, wiring verification, test results, and any configuration changes.

---

Troubleshooting the IS200VAICH1DAA

Analog input problems should be investigated through the entire measurement chain.

No Analog Signal

Possible causes include:

• Failed sensor
• Failed transmitter
• Broken field cable
• Loose terminal
• Incorrect wiring
• Connector problem
• Board-level issue
• Control-system configuration problem

The field device and cable should be checked before replacing the analog input board.

Unstable Analog Reading

Possible causes include:

• Electrical interference
• Poor shielding
• Grounding problems
• Loose connections
• Damaged cable
• Unstable transmitter output
• Signal-conditioning issues

The measurement should be checked at different points in the signal path to isolate the problem.

Incorrect Analog Value

If the control system receives a stable but incorrect value, verify:

• Sensor calibration
• Transmitter output
• Wiring
• Signal scaling
• Input-channel configuration
• Grounding
• Reference conditions

An incorrect configuration can produce an incorrect displayed process value even when the hardware is functioning correctly.

Intermittent Input

Intermittent readings may be associated with:

• Loose wiring
• Connector movement
• Cable damage
• Vibration
• Electrical interference
• Field-device instability

Physical inspection combined with signal monitoring can help identify the source.

Multiple Inputs Fail

If several analog inputs fail at the same time, investigate common infrastructure.

Potential causes include:

• Shared power
• Common wiring
• Interface hardware
• Rack connections
• Control-system configuration
• System-level power problems

Multiple simultaneous failures should be investigated systematically rather than replacing individual boards immediately.

---

Preventive Maintenance

Regular preventive maintenance helps maintain stable analog signal acquisition.

Board Inspection

Inspect the board and connectors for contamination, corrosion, mechanical damage, and signs of overheating.

Wiring Inspection

Check analog cables for:

• Damaged insulation
• Loose conductors
• Moisture ingress
• Excessive bending
• Abrasion
• Poor shielding

Connector Maintenance

Associated connectors should remain clean, dry, and properly seated.

Process Instrument Inspection

Sensors and transmitters should also be inspected because an analog-input problem can originate in the field device.

Trend Monitoring

Long-term monitoring of process values can help identify gradual changes in instrumentation performance.

Cabinet Maintenance

Maintain appropriate environmental conditions inside the control cabinet.

---

Replacement Considerations

When replacing the GE IS200VAICH1DAA VME Analog Input Board, verify the complete hardware identification before installation.

Important information includes:

• Full model number
• Revision designation
• Board markings
• Connector configuration
• VME rack location
• Associated field wiring
• Input-channel configuration
• Host control-system requirements

The supplied dimensions are 280 × 150 × 25 mm, and the listed weight is 0.363 kg.

These physical specifications are useful for cabinet planning, transportation, and spare-parts management. However, physical similarity does not establish electrical compatibility.

The replacement should be confirmed against the applicable system documentation.

---

Physical Dimensions and Weight

The supplied physical specifications for the GE IS200VAICH1DAA are:

Physical Parameter	Specification
Length	280 mm
Width	150 mm
Height	25 mm
Weight	0.363 kg

The 280 × 150 × 25 mm format provides a compact industrial circuit-board configuration.

With a listed weight of 0.363 kg, the board is relatively lightweight for cabinet maintenance and spare-parts handling.

---

Compatible System Components

The IS200VAICH1DAA may form part of an industrial measurement architecture containing:

Component	Typical Function
Temperature Transmitter	Provides temperature measurement
Pressure Transmitter	Provides pressure measurement
Flow Transmitter	Provides flow measurement
Level Transmitter	Provides level measurement
Current Transformer / Sensor	Provides electrical measurement
Voltage Measurement Device	Provides voltage information
Field Wiring	Transfers analog signals
Analog Input Board	Interfaces analog signals
VME Control Processor	Processes acquired data
HMI	Displays process information
SCADA System	Provides supervisory monitoring
Control Equipment	Performs process-control functions

The actual component combination depends on the host system and application.

---

Recommended Related GE IS200 Models

Model	Product Description	General Role
IS200STAIH2ACB	Analog I/O Terminal Block	Analog field interface
IS200SSCAH2AGD	Serial Communication I/O Terminal Board	Communication and I/O interface
IS200TBC1H1BCE	Mark VI Contact Terminal Block	Contact signal interface
IS200TBCIH1BBC	Contact Input Terminal Block	Contact input interface
IS200TTURH1BCC	Turbine Terminal Block	Turbine field interface
IS200TVIBH2BBB	Vibration Terminal Block	Vibration signal interface
IS200TVIBH2BCC	Vibration Terminal Block	Vibration signal interface

These related assemblies may be used in broader GE industrial control architectures, but they should not be considered direct replacements for the IS200VAICH1DAA without confirming the required application and system configuration.

---

Engineering Best Practices

Reliable analog measurement depends on the complete signal chain.

Recommended engineering practices include:

• Verify the complete board part number before replacement.
• Record the board revision.
• Maintain accurate wiring documentation.
• Clearly label field signal cables.
• Keep analog signal cables away from high-power conductors.
• Maintain appropriate grounding and shielding.
• Inspect connectors during scheduled maintenance.
• Verify field instrumentation before replacing control hardware.
• Compare process readings with suitable reference measurements.
• Document all wiring and configuration changes.

These practices can improve measurement reliability and reduce unnecessary board replacement.

---

Key Advantages

Dedicated Analog Interface

The IS200VAICH1DAA provides an interface for incorporating analog process measurements into a compatible VME control architecture.

Compact Board Format

With listed dimensions of 280 × 150 × 25 mm, the board is suitable for integration into industrial control equipment.

Support for Continuous Process Monitoring

Analog signals allow the control system to monitor continuously changing process conditions.

VME-Based System Integration

The board can participate in a VME-based industrial control architecture when correctly matched to the host system.

Maintenance-Friendly Signal Architecture

A dedicated analog input interface helps technicians isolate problems between field instrumentation and control electronics.

Broad Industrial Measurement Applications

Analog inputs can be used for many types of industrial process and equipment measurements, depending on the system configuration.

---

Technical FAQs

What is the GE IS200VAICH1DAA?

The GE IS200VAICH1DAA is a VME Analog Input Board designed to interface analog process signals with compatible GE industrial control equipment.

What does an analog input board do?

An analog input board receives continuously varying electrical signals from field instrumentation and provides the control system with usable measurement data.

What types of signals can an analog input system monitor?

Depending on the system configuration, analog inputs can represent variables such as temperature, pressure, flow, level, current, voltage, position, and process feedback.

Is the IS200VAICH1DAA a PLC?

No. It is an analog signal-interface board rather than a standalone PLC processor.

What are the dimensions of the IS200VAICH1DAA?

The listed dimensions are 280 × 150 × 25 mm.

What is the weight of the IS200VAICH1DAA?

The listed weight is approximately 0.363 kg.

What can cause an analog input to read incorrectly?

Possible causes include sensor problems, transmitter errors, wiring faults, grounding issues, electrical interference, incorrect scaling, configuration errors, or problems in the signal-processing path.

Why is shielding important for analog signals?

Analog signals can be affected by electrical interference. Appropriate cable routing, grounding, and shielding can help reduce unwanted noise.

Can another GE IS200 analog board replace the IS200VAICH1DAA?

Not automatically. The complete part number, revision, electrical characteristics, connector arrangement, VME configuration, and host-system requirements should be verified before replacement.

How should the IS200VAICH1DAA be maintained?

Maintenance should include inspection of the board, connectors, field wiring, grounding, shielding, associated sensors, and control-system configuration.

---

Conclusion

The GE IS200VAICH1DAA VME Analog Input Board is an industrial analog signal-interface component designed to connect continuously varying process measurements with a compatible VME-based GE control architecture. By providing an interface between field instrumentation and digital control electronics, it supports the acquisition of process information required for monitoring, control, diagnostics, and automation.

Analog measurement is fundamental to industrial automation because many important process variables cannot be represented adequately by simple discrete signals. Temperature, pressure, flow, level, current, voltage, and other measurements can be acquired through suitable analog instrumentation and transferred into the control system through an appropriate input architecture.

With listed dimensions of 280 × 150 × 25 mm and a weight of 0.363 kg, the IS200VAICH1DAA provides a compact format for industrial control-system integration. For installation or replacement, technicians should verify the complete part number and revision, inspect connectors and wiring, confirm signal configuration, and perform appropriate commissioning tests.

Reliable operation depends on more than the analog input board itself. Proper field instrumentation, accurate wiring, effective grounding and shielding, suitable cabinet conditions, correct configuration, and systematic troubleshooting all contribute to stable and accurate industrial process measurement.
