Product Overview

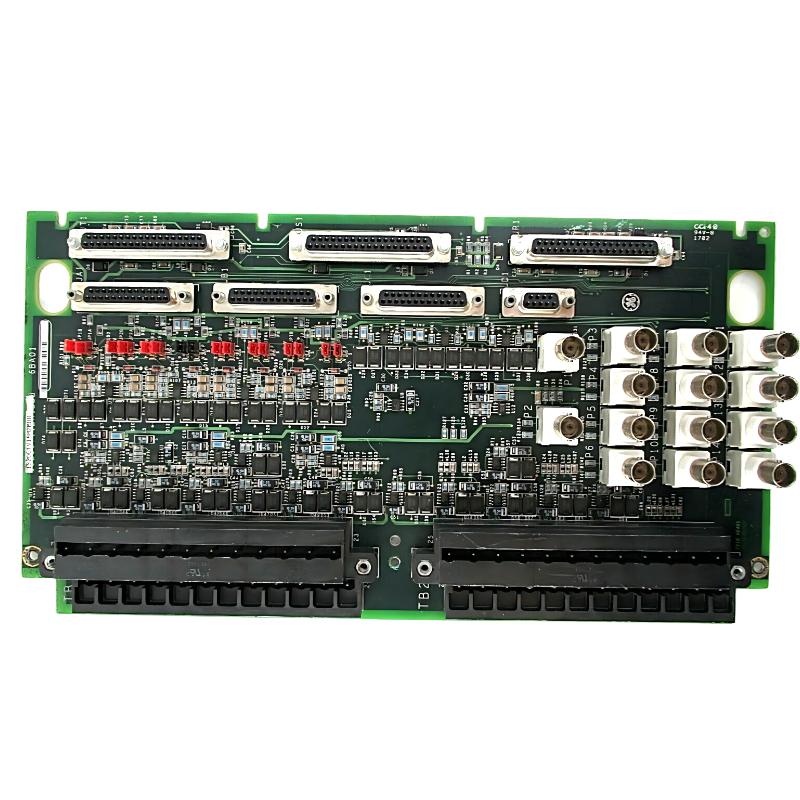

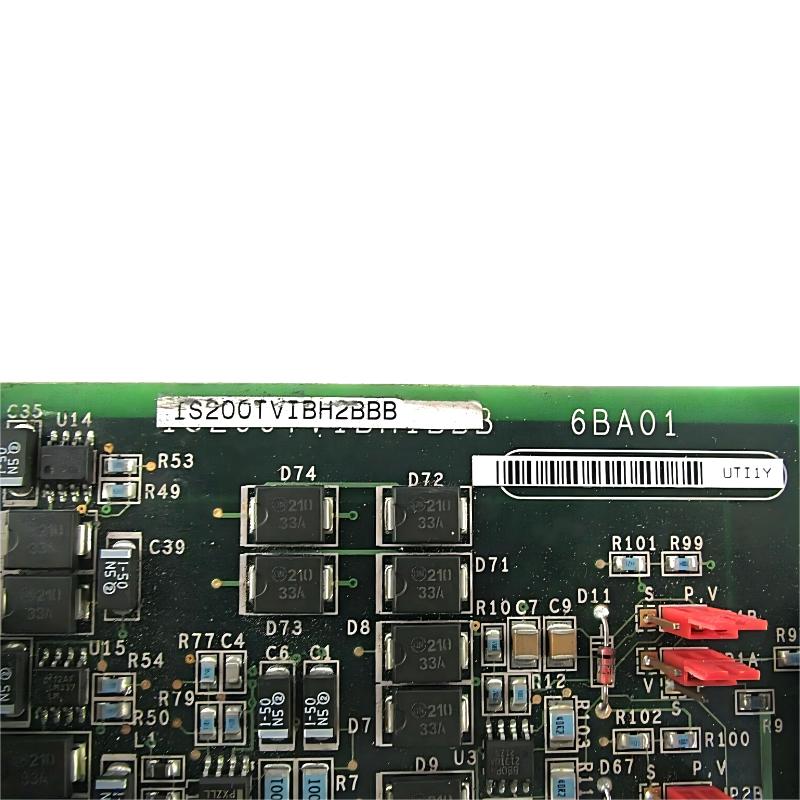

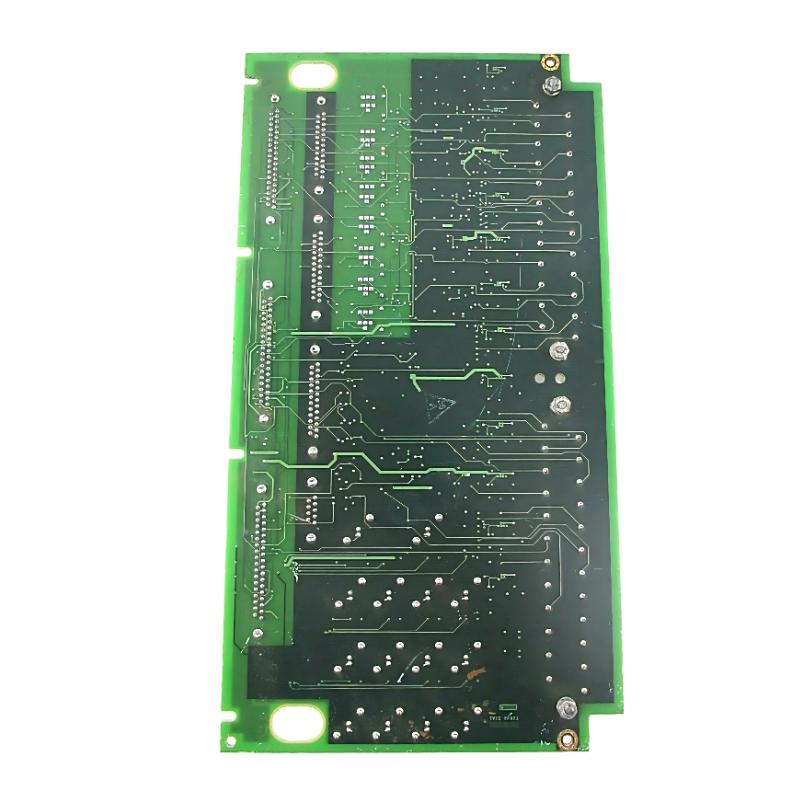

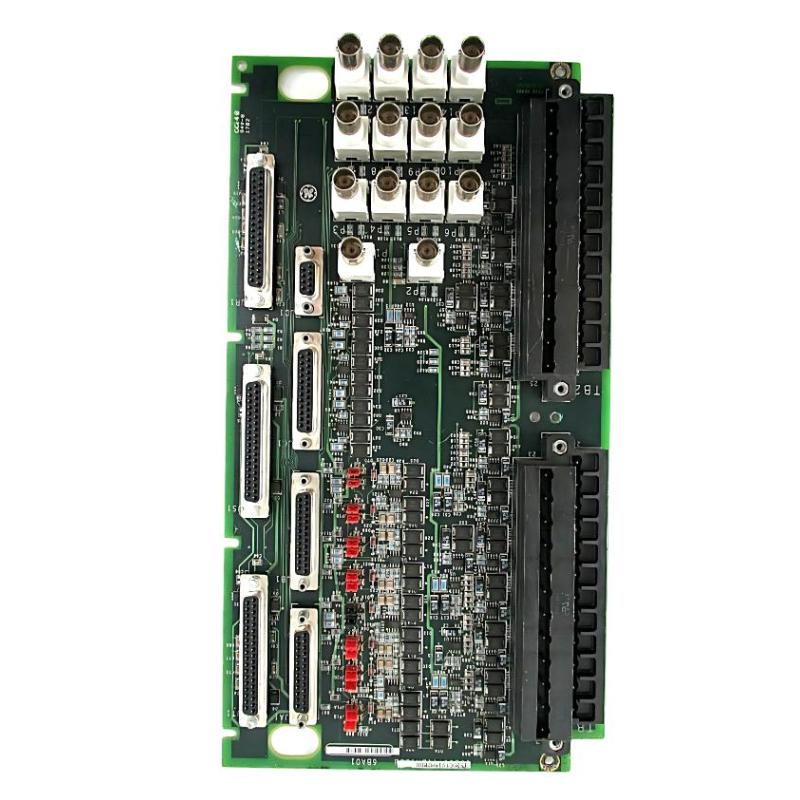

The GE IS200TVIBH2BBB Vibration Terminal Block is an industrial signal-interface component designed for vibration monitoring and equipment-condition monitoring applications within compatible GE control architectures. It provides an organized termination and connection point between vibration-related field devices and the associated monitoring or control electronics.

Vibration monitoring is an important part of rotating-equipment maintenance. Turbines, generators, compressors, pumps, motors, and other rotating machines can develop mechanical problems that produce characteristic changes in vibration. By connecting vibration-related instrumentation to a control and monitoring system, operators can observe equipment behavior and identify abnormal operating conditions.

The GE IS200TVIBH2BBB has listed dimensions of 250 × 150 × 50 mm and a weight of approximately 0.36 kg. Its compact enclosure format allows it to be incorporated into industrial control cabinets where vibration signal wiring needs to be terminated and organized alongside other instrumentation.

The terminal block is not intended to replace the vibration sensor or the primary monitoring processor. Instead, it forms part of the signal path connecting field instrumentation with the control architecture.

A simplified architecture is:

Rotating Equipment → Vibration Sensor → Field Wiring → IS200TVIBH2BBB → Monitoring / I/O Electronics → Control System

The exact electrical connections and terminal assignments depend on the host equipment and system configuration.

---

Technical Specifications

Parameter	Specification
Manufacturer	General Electric (GE)
Model	IS200TVIBH2BBB
Product Type	Vibration Terminal Block
Product Family	GE IS200 Series
Primary Function	Vibration signal termination and interface
Application	Vibration monitoring and industrial equipment condition monitoring
Interface Role	Field vibration instrumentation interface
Installation	Industrial control cabinet
Board / Assembly Format	Terminal interface assembly
Dimensions	250 × 150 × 50 mm
Weight	0.36 kg
Typical Equipment	Turbines, generators, rotating machinery
Signal Role	Vibration-related measurement and monitoring signals
Maintenance Role	Signal inspection, wiring verification and troubleshooting

---

What Is the GE IS200TVIBH2BBB?

The GE IS200TVIBH2BBB is a Vibration Terminal Block designed to provide an organized interface for vibration-monitoring signal circuits.

Rotating machinery produces mechanical vibration during normal operation. Changes in vibration amplitude, frequency, or pattern can indicate conditions such as imbalance, misalignment, looseness, bearing problems, shaft-related issues, or other mechanical abnormalities.

A vibration sensor detects the physical movement and converts it into an electrical signal. That signal then has to travel through field wiring into the monitoring architecture.

The terminal block provides a structured connection point within this signal path.

The basic measurement chain can be represented as:

Machine → Vibration Transducer → Cable → Terminal Interface → Signal Conditioning → Monitoring System

This architecture allows vibration information to be incorporated into a broader equipment-monitoring strategy.

---

Understanding Vibration Monitoring

Vibration monitoring is commonly used for rotating machinery because mechanical faults often produce changes in vibration before they become obvious through visual inspection or normal operating parameters.

Depending on the monitoring system, vibration-related instrumentation can be used to observe:

• Shaft vibration
• Bearing vibration
• Machine casing vibration
• Mechanical movement
• Rotational behavior
• Equipment condition
• Abnormal vibration trends

The actual measurement technology can vary. Different monitoring applications may use accelerometers, velocity sensors, proximity probes, or other specialized transducers.

The IS200TVIBH2BBB provides an interface point for the associated field wiring rather than defining the complete vibration measurement method.

---

Function and Working Principle

Vibration Signal Connection

A vibration transducer detects mechanical movement from the monitored equipment and generates an electrical signal.

The signal is routed through the field cable to the terminal interface.

The IS200TVIBH2BBB provides a structured termination point for the associated wiring.

Signal Routing

Once the vibration-related field wiring is terminated, the signal can be routed toward the appropriate signal-conditioning or monitoring hardware.

This creates a clear division between field instrumentation and electronic monitoring equipment.

Monitoring Interface

The terminal block can form part of the connection between vibration sensors and monitoring electronics.

The monitoring system can subsequently process the incoming information and make it available for:

• Condition monitoring
• Alarm handling
• Trend analysis
• Equipment diagnostics
• Maintenance planning
• Protective functions where configured

The exact processing functions depend on the host system.

Continuous Condition Monitoring

Unlike manual inspection, an automated vibration monitoring architecture can observe equipment continuously.

This allows abnormal trends to be detected while the machine is operating.

For critical rotating machinery, continuous monitoring can provide valuable information about changes in mechanical condition.

---

Role in Industrial Automation

The IS200TVIBH2BBB can serve as part of the instrumentation layer of an industrial equipment-monitoring system.

A typical architecture may be organized into several levels:

Field Measurement Layer

Vibration sensors and other instrumentation measure the physical condition of the equipment.

Interface Layer

Terminal assemblies provide organized field connections.

Signal-Processing Layer

Signal-conditioning and monitoring electronics process the measurement signals.

Control Layer

A control processor interprets relevant information and executes programmed logic.

Supervisory Layer

HMI or SCADA systems provide operators with trends, alarms, diagnostics, and equipment status.

The terminal block therefore supports the physical connection between field vibration instrumentation and the electronic monitoring architecture.

---

Industrial Applications

Gas Turbine Monitoring

Gas turbines contain high-speed rotating components that require continuous condition monitoring. Vibration information can contribute to the assessment of turbine mechanical behavior.

Steam Turbine Systems

Steam turbines rely on rotating shafts, bearings, and associated mechanical components. Vibration monitoring can provide important information about machine condition.

Generator Systems

Large generators operate with rotating assemblies where vibration monitoring can be integrated into the overall equipment protection and maintenance strategy.

Compressors

Industrial compressors contain rotating mechanical assemblies that can benefit from continuous vibration monitoring.

Pumps and Motors

Large industrial pumps and motors can use vibration instrumentation to identify changes in mechanical behavior and support predictive maintenance.

Rotating Industrial Equipment

Other equipment such as fans, blowers, gearboxes, and auxiliary rotating machinery may also incorporate vibration monitoring systems.

---

Vibration Monitoring Signal Path

A typical vibration-monitoring arrangement can be represented as:

Rotating Machine

↓

Vibration Sensor

↓

Sensor Cable

↓

GE IS200TVIBH2BBB

↓

Signal Conditioning / I/O

↓

Monitoring or Control Processor

↓

HMI / SCADA / Maintenance System

Each stage has a different function.

The sensor detects the physical vibration, the field wiring transfers the signal, the terminal block organizes the connection, and the monitoring electronics process the measurement.

This separation makes the system easier to maintain and troubleshoot.

---

Installation Guidelines

Correct installation is essential for maintaining reliable vibration signal transmission.

Verify Hardware Identification

Before installation, confirm:

• Complete model number
• IS200TVIBH2BBB identification
• Revision designation
• Terminal arrangement
• Connector configuration
• Existing cabinet location
• Associated monitoring hardware

A visually similar terminal assembly should not be assumed to have the same electrical function.

Inspect the Assembly

Before installation, inspect the terminal block for:

• Mechanical damage
• Cracked components
• Damaged terminals
• Loose hardware
• Corrosion
• Contamination
• Connector damage
• Signs of overheating

Verify Sensor Wiring

Vibration measurements can be sensitive to wiring problems.

Check:

• Sensor cable condition
• Wire identification
• Terminal positions
• Connector seating
• Shielding
• Grounding
• Cable routing

Incorrect wiring may produce unstable measurements or a complete loss of the vibration signal.

---

Cable Management and EMC

Vibration-monitoring signals can be relatively sensitive to electrical interference, depending on the sensor and signal architecture.

Potential sources of interference include:

• Motor cables
• Variable-frequency drives
• Switching power supplies
• Generators
• High-current conductors
• Poor grounding
• Incorrect shielding

Recommended practices include:

• Separate instrumentation cables from power conductors.
• Avoid long parallel runs with high-current cables.
• Secure cables against mechanical movement.
• Maintain consistent cable identification.
• Follow the host-system shielding requirements.
• Avoid unnecessary modifications to existing wiring.

Good cable management can improve signal stability and make future troubleshooting easier.

---

Grounding Considerations

Correct grounding is an important part of a reliable vibration-monitoring system.

Grounding problems can introduce electrical noise or create measurement inconsistencies.

Technicians should verify:

• Cabinet grounding
• Signal reference
• Cable shield termination
• Sensor grounding
• Terminal connections
• Ground continuity

Shielding should be implemented according to the system’s engineering design rather than applying a generic grounding method to every installation.

---

Integration With Control and Monitoring Systems

The IS200TVIBH2BBB can be incorporated into a larger equipment-monitoring architecture.

A typical arrangement may include:

Vibration Sensor → Terminal Block → Monitoring Electronics → Control Processor → HMI / SCADA

The monitoring system may use vibration information to generate:

• High-vibration alarms
• Equipment status information
• Trend data
• Maintenance notifications
• Diagnostic information
• Protective responses where specifically configured

The terminal block itself does not determine the alarm thresholds or diagnostic logic. These functions are established by the associated monitoring and control system.

---

Commissioning Procedure

Following installation, a structured commissioning process should be performed.

Step 1: Confirm Part Number

Verify that the installed assembly is the correct GE IS200TVIBH2BBB model and revision.

Step 2: Inspect Connections

Check all terminals, connectors, and associated field wiring.

Step 3: Verify Sensor Wiring

Confirm that each vibration sensor is connected to the intended terminal position.

Step 4: Check Grounding and Shielding

Verify the applicable grounding and shielding arrangements.

Step 5: Confirm Monitoring Hardware

Check the associated signal-conditioning and monitoring electronics.

Step 6: Verify Signal Acquisition

Confirm that expected vibration signals are visible in the monitoring system.

Step 7: Compare With Known Conditions

Compare measured vibration information against an appropriate operating reference.

Step 8: Verify Alarms

Confirm that configured monitoring and alarm functions respond correctly during controlled testing.

---

Troubleshooting the IS200TVIBH2BBB

When a vibration signal problem occurs, troubleshooting should begin with the complete measurement chain.

No Vibration Signal

Possible causes include:

• Failed vibration sensor
• Damaged sensor cable
• Loose terminal
• Incorrect wiring
• Connector problem
• Signal-conditioning fault
• Monitoring-system configuration issue

The terminal block should not be replaced before the sensor and field wiring have been checked.

Unstable Vibration Reading

Possible causes include:

• Electrical interference
• Poor shielding
• Loose wiring
• Cable damage
• Sensor installation problems
• Mechanical vibration at the sensor mounting point
• Signal-conditioning problems

Both the electrical and mechanical sides of the measurement system should be considered.

Unexpectedly High Vibration

A high reading does not necessarily indicate a failed terminal block.

Potential causes can include:

• Genuine machine vibration
• Sensor mounting problems
• Sensor degradation
• Cable problems
• Electrical interference
• Incorrect monitoring configuration

Mechanical operating conditions should be investigated before replacing electronic interface hardware.

Intermittent Signal

Intermittent vibration signals may be caused by:

• Loose terminals
• Damaged cables
• Connector movement
• Vibration-induced wiring problems
• Shielding problems
• Sensor degradation

Because the monitored machine itself generates vibration, secure cable installation is especially important.

---

Preventive Maintenance

Regular maintenance helps preserve the reliability of vibration-monitoring connections.

Inspect Terminals

Check terminal connections for looseness, contamination, corrosion, and mechanical damage.

Inspect Sensor Cables

Look for:

• Abrasion
• Crushed sections
• Broken insulation
• Loose conductors
• Moisture ingress
• Excessive bending

Check Sensor Mounting

The sensor mounting arrangement should be inspected because poor mechanical installation can affect vibration measurements.

Review Vibration Trends

Trend information can help distinguish gradual machine-condition changes from sudden electrical faults.

Inspect Cabinet Conditions

Maintain appropriate control-cabinet conditions and protect the terminal assembly from excessive dust, moisture, heat, and vibration.

---

Replacement Considerations

When replacing the GE IS200TVIBH2BBB Vibration Terminal Block, verify the complete hardware identification before installation.

Important information includes:

• Complete model number
• Revision
• Terminal arrangement
• Connector configuration
• Existing cabinet position
• Associated vibration-monitoring hardware
• Sensor wiring
• Host control-system configuration

The listed physical dimensions are 250 × 150 × 50 mm, with a listed weight of 0.36 kg.

The physical dimensions are useful for cabinet planning and spare-parts management, but physical similarity alone does not establish electrical compatibility.

The replacement should be confirmed against the applicable system documentation.

---

Physical Dimensions and Weight

The supplied physical specifications for the GE IS200TVIBH2BBB are:

Physical Parameter	Specification
Length	250 mm
Width	150 mm
Height	50 mm
Weight	0.36 kg

The 250 × 150 × 50 mm form factor provides a compact interface assembly for vibration-monitoring applications.

With a listed weight of 0.36 kg, the terminal block can be handled relatively easily during cabinet maintenance and replacement operations.

---

Compatible System Components

The IS200TVIBH2BBB may operate as part of a broader vibration-monitoring and turbine-control architecture containing:

Component	Typical Function
Vibration Sensor	Detects mechanical vibration
Proximity / Motion Sensor	Measures selected machine movement
Sensor Cable	Transfers measurement signals
Terminal Block	Provides organized signal termination
Signal Conditioner	Processes sensor signals
I/O Module	Transfers measurement information
Monitoring Processor	Analyzes vibration information
Control Processor	Executes configured control logic
HMI	Displays equipment condition
SCADA System	Provides supervisory monitoring
Alarm System	Provides abnormal-condition notification

The exact combination depends on the equipment and control-system design.

---

Recommended Related GE IS200 Models

Model	Product Description	General Role
IS200TTURH1BCC	Turbine Terminal Block	Turbine signal interface
IS200TTURH1BEC	Turbine Terminal Block	Turbine field interface
IS200TSVOH1BBB	Servo Terminal Block	Servo signal interface
IS200TSVOH1BDC	Servo Terminal Block	Servo interface
IS200TRLYH1BED	Relay Output Terminal Block	Relay signal interface
IS200TRPGH1BDD	Main Trip Terminal Block	Trip-system interface
IS200TBCIH1BBC	Contact Input Terminal Block	Contact signal interface

These related GE assemblies may serve different functions and should not be considered direct replacements for the IS200TVIBH2BBB without verifying the complete application and system configuration.

---

Engineering Best Practices

A reliable vibration-monitoring installation depends on the complete measurement chain rather than the terminal assembly alone.

Recommended practices include:

• Verify the exact part number before replacement.
• Record the hardware revision.
• Maintain accurate wiring documentation.
• Clearly identify every sensor cable.
• Keep vibration signal cables properly routed.
• Separate instrumentation from high-power conductors.
• Inspect terminals during scheduled maintenance.
• Monitor vibration trends over time.
• Investigate abnormal readings at both the sensor and machine level.
• Perform functional testing after maintenance.

These practices help prevent unnecessary component replacement and improve the reliability of equipment-condition monitoring.

---

Key Advantages

Dedicated Vibration Signal Interface

The IS200TVIBH2BBB provides an organized connection point for vibration-related instrumentation.

Compact Industrial Format

The listed 250 × 150 × 50 mm dimensions allow integration into industrial control and monitoring cabinets.

Improved Wiring Organization

A dedicated terminal interface simplifies the organization of sensor wiring and associated monitoring circuits.

Support for Condition Monitoring

Vibration signals can provide valuable information about the operating condition of rotating machinery.

Maintenance-Friendly Architecture

Clearly organized connections can simplify inspection, commissioning, and troubleshooting.

Integration With Industrial Automation

The terminal assembly can form part of a larger monitoring architecture involving sensors, I/O electronics, control processors, HMIs, and supervisory systems.

---

Technical FAQs

What is the GE IS200TVIBH2BBB?

The GE IS200TVIBH2BBB is a Vibration Terminal Block designed to provide an interface for vibration-monitoring field wiring within compatible GE industrial control architectures.

What is the purpose of a vibration terminal block?

It provides an organized connection point between vibration sensors and the associated signal-conditioning, I/O, monitoring, or control electronics.

What equipment can use vibration monitoring?

Vibration monitoring is commonly associated with turbines, generators, compressors, pumps, motors, gearboxes, fans, and other rotating machinery.

Does the IS200TVIBH2BBB itself measure vibration?

The terminal block primarily provides the physical signal interface. The sensing element and associated monitoring electronics perform the actual measurement and signal processing functions.

What are the dimensions of the IS200TVIBH2BBB?

The listed dimensions are 250 × 150 × 50 mm.

How much does the IS200TVIBH2BBB weigh?

The listed weight is approximately 0.36 kg.

What can cause a missing vibration signal?

Possible causes include a failed sensor, damaged cable, loose terminal, incorrect wiring, connector problems, signal-conditioning faults, or monitoring-system configuration issues.

Why is cable routing important for vibration signals?

Instrumentation signals can be affected by electrical interference. Proper separation from power cables, grounding, shielding, and mechanical cable support can help maintain signal integrity.

Can another GE IS200 terminal block replace the IS200TVIBH2BBB?

Not automatically. The complete model number, revision, terminal configuration, signal requirements, and host-system compatibility should be verified before replacement.

How should the vibration terminal block be maintained?

Maintenance should include terminal inspection, cable inspection, connector checks, grounding verification, cabinet inspection, and review of associated sensor and monitoring-system performance.

---

Conclusion

The GE IS200TVIBH2BBB Vibration Terminal Block is a specialized industrial interface assembly designed to support vibration-monitoring signal connections within compatible GE control architectures. By providing an organized termination point between vibration instrumentation and monitoring electronics, it contributes to a structured equipment-condition monitoring system.

Vibration information is particularly valuable for rotating machinery because changes in mechanical behavior can provide important indications of developing equipment problems. The terminal interface helps ensure that these signals can be routed through the control cabinet in an organized and maintainable manner.

With listed dimensions of 250 × 150 × 50 mm and a weight of 0.36 kg, the IS200TVIBH2BBB provides a compact format for industrial control and monitoring installations. For replacement and maintenance, the complete part number, revision, terminal arrangement, associated sensors, wiring, and host-system configuration should be verified.

Proper sensor installation, secure wiring, suitable grounding, effective cable management, accurate documentation, and system-level troubleshooting are essential for maintaining reliable vibration-monitoring performance.
