Product Overview

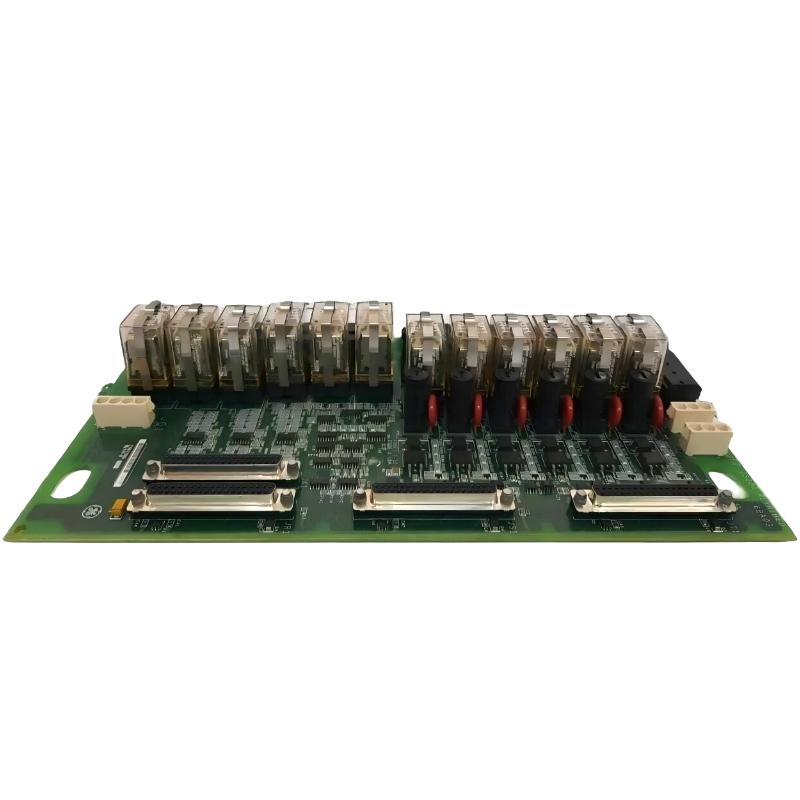

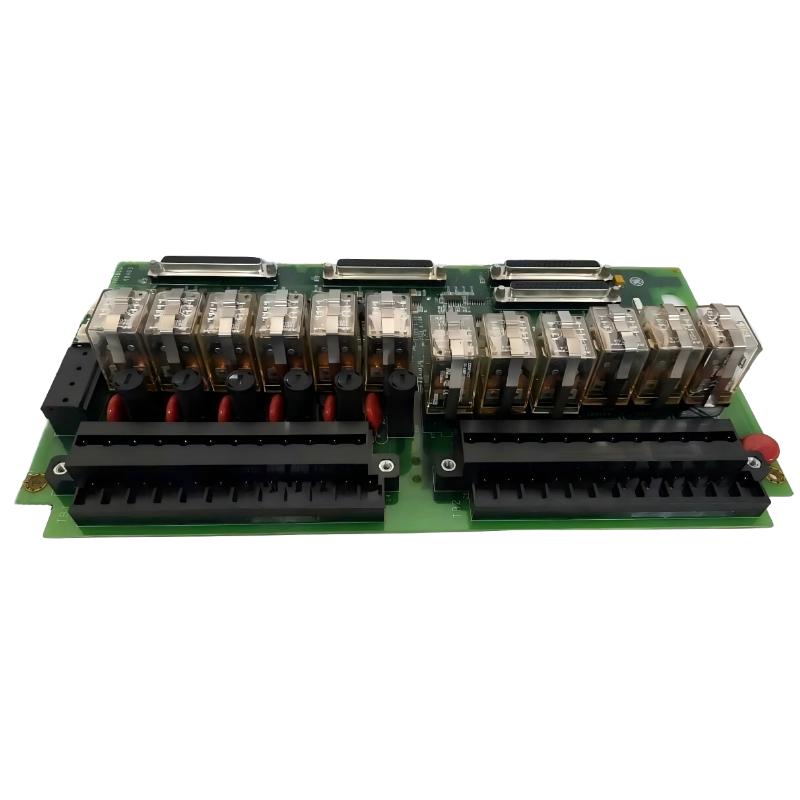

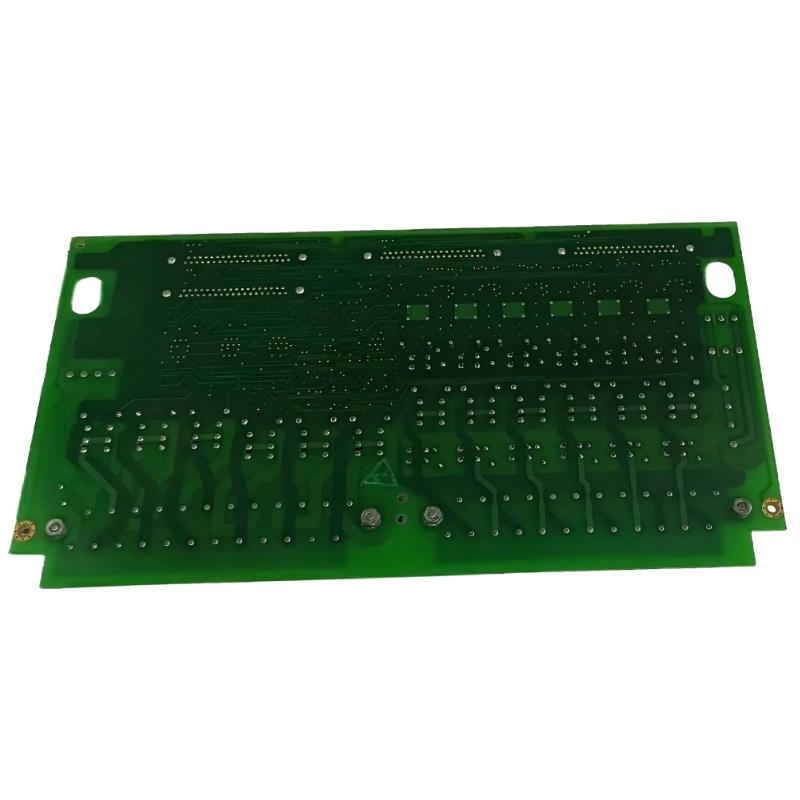

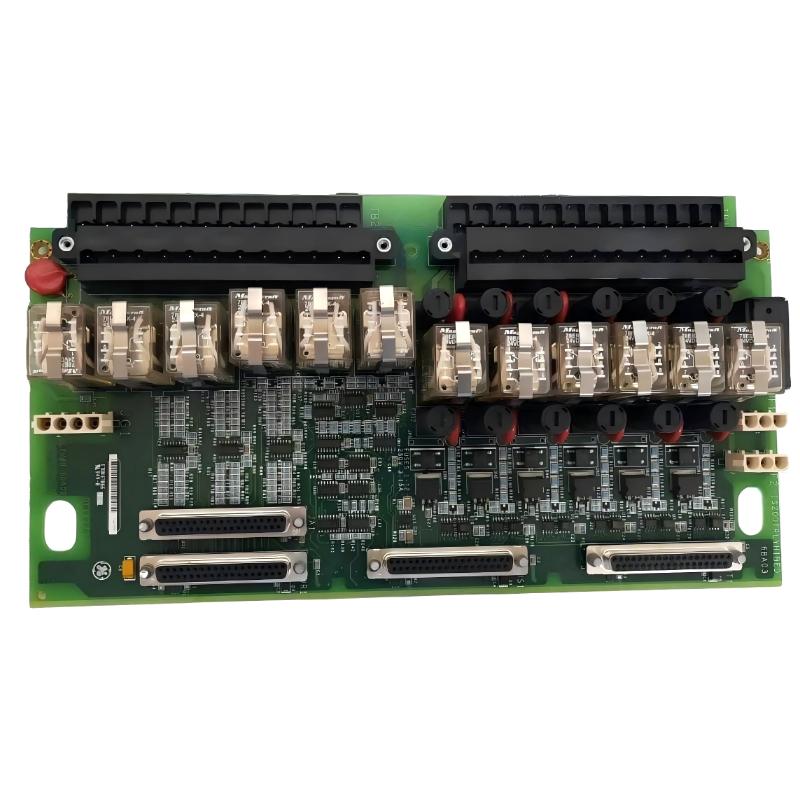

The GE IS200TRLYH1BED Relay Output Terminal Block is an industrial control interface component designed to provide organized relay-output connections between compatible GE control-system electronics and external field devices. As part of the GE IS200 family, the IS200TRLYH1BED is intended for applications where relay-based output signals must be terminated, routed, and connected to equipment operating in an industrial automation environment.

Relay output interfaces are widely used in industrial control systems because they provide a practical method for switching or transmitting discrete control signals to external devices. Typical applications can include contactors, solenoids, annunciators, auxiliary relays, interlocking circuits, and equipment status interfaces. A dedicated terminal block helps organize these field connections and provides a convenient point for installation, inspection, testing, and maintenance.

The GE IS200TRLYH1BED has listed dimensions of 330.2 × 20 × 178 mm and a weight of approximately 1.2 kg. Its elongated form factor is suitable for control-panel installations where multiple relay-related field connections need to be arranged in a structured manner.

The terminal block should always be installed in the control architecture for which it was designed. Exact terminal assignments, electrical ratings, relay configuration, and compatibility should be verified against the applicable GE system documentation and hardware revision before commissioning.

---

Technical Specifications

Parameter	Specification
Manufacturer	General Electric (GE)
Model	IS200TRLYH1BED
Product Family	GE IS200 Series
Product Type	Relay Output Terminal Block
Primary Function	Relay output signal termination and interface
Signal Type	Discrete / Relay Output
Interface Role	Control System-to-Field Device Interface
Application	Industrial Control and Automation
Installation	Compatible GE Industrial Control Equipment
Dimensions	330.2 × 20 × 178 mm
Weight	1.2 kg
Mounting	System-dependent
Typical Applications	Relay outputs, discrete control, alarms, interlocks, actuator interfaces

---

What Is the GE IS200TRLYH1BED?

The IS200TRLYH1BED is a GE Relay Output Terminal Block used to organize and interface relay-based output circuits within a compatible industrial control system.

The component is not a standalone PLC or controller. Instead, it operates as part of the field-interface layer of the control architecture.

A simplified signal path can be represented as:

Control Processor → I/O / Relay Interface → IS200TRLYH1BED → Field Wiring → External Device

The control system determines when an output should change state. The associated relay-output circuitry provides the electrical switching interface, while the terminal block provides an organized connection point for the external field circuit.

This architecture allows control commands generated by the automation system to be transferred to external equipment in a structured and maintainable manner.

---

Understanding Relay Output Interfaces

Relay outputs are commonly used when an industrial controller needs to interface with external devices through a switching contact.

A relay-based output can conceptually provide a transition between two states:

Control Command → Relay State → Field Circuit State

Depending on the system design, the output may be used to operate or enable equipment such as:

• Contactors
• Solenoid valves
• Auxiliary relays
• Indicating devices
• Alarm circuits
• Motor-control interfaces
• Interlock circuits
• External control panels

The exact electrical behavior depends on the associated relay hardware and system configuration.

The terminal block provides the physical interface for routing these output circuits to the field.

---

Function and Working Principle

Control Command Generation

The control processor executes application logic and determines when an output should be activated.

For example, a programmed sequence may require a pump-start command after a permissive condition has been satisfied.

The controller sends the appropriate output command to the associated output interface.

Relay Switching

The associated relay circuitry responds to the control command and changes the state of the relay contact.

This switching action allows the control system to interface with an external field circuit.

Field Signal Transfer

The switched circuit is routed through the terminal interface and into the external field wiring.

The external equipment then responds according to its own electrical configuration.

Output Deactivation

When the controller removes the command, the associated relay returns to its normal state according to the configuration of the output circuit.

This provides a controlled method of turning external equipment or auxiliary circuits on or off.

---

Role in Industrial Control Systems

The IS200TRLYH1BED can serve as an important field-interface component within a larger industrial control architecture.

A typical system can be divided into several layers:

Operator Interface → Control Logic → Output Interface → Relay Terminal → Field Device

At the supervisory level, an operator may issue a command through an HMI.

The control processor evaluates the command together with process conditions, permissives, and interlocks.

The output interface then generates the required relay command.

The IS200TRLYH1BED provides the physical termination point for the associated output circuits.

Finally, the field device responds to the resulting electrical signal.

This separation between control logic and field wiring makes large industrial systems easier to design, operate, and maintain.

---

Industrial Applications

Turbine and Generator Systems

Industrial turbine and generator control systems can contain numerous relay outputs for auxiliary equipment, alarms, permissives, and control functions.

Relay-based field interfaces may be associated with:

• Auxiliary motors
• Pumps
• Valve controls
• Breaker interfaces
• Alarm circuits
• Equipment permissives
• Protective-system interfaces

The terminal block helps organize these field-level connections.

Industrial Motor Control

Motor-control systems frequently require discrete output commands.

Examples include:

• Motor start
• Motor stop
• Contactor control
• Auxiliary relay activation
• Run-permissive signals
• Equipment reset

The relay output terminal interface can provide a structured connection between the control system and these circuits.

Valve and Actuator Control

Industrial valves and actuators may require discrete commands for open, close, enable, or auxiliary control functions.

Relay output circuits can be used where the control architecture requires electrically isolated or contact-based switching.

Alarm and Annunciation Systems

Relay outputs are also commonly used for:

• Alarm annunciation
• Horn activation
• Warning lamps
• External alarm panels
• Equipment fault indication

The terminal block can organize the field wiring associated with these signals.

Process Automation

Manufacturing and process plants use relay outputs for many auxiliary control functions.

Typical equipment includes:

• Pumps
• Fans
• Compressors
• Solenoid valves
• Contactors
• Auxiliary control circuits

---

System Integration

The IS200TRLYH1BED should be considered part of a complete control-system signal chain.

System Layer	Typical Function
Operator Interface	Provides operator commands
Control Processor	Executes control logic
I/O / Relay Interface	Generates output commands
IS200TRLYH1BED	Provides relay output termination
Field Wiring	Transfers switched signals
Relay / Contactor	Controls external circuit
Field Equipment	Performs the commanded action

The exact arrangement depends on the GE control platform and the specific equipment configuration.

For replacement projects, the terminal block should be matched to the original system configuration rather than selected solely by physical appearance.

---

Installation Guidelines

Proper installation is important because relay output circuits may control equipment with significant operational consequences.

Verify Part Number

Before installation, confirm:

• Complete part number
• Revision designation
• Board identification
• Terminal arrangement
• Connector configuration
• Host-system location
• Associated I/O hardware

The complete IS200TRLYH1BED designation should be recorded before removing the original component.

Inspect the Terminal Block

Before installation, inspect the assembly for:

• Physical damage
• Bent connectors
• Loose hardware
• Contamination
• Signs of overheating
• Damaged terminals
• Cracked insulation

Any abnormal condition should be investigated before energization.

Document Existing Wiring

Before replacing a terminal interface, document the existing wiring configuration.

Useful information includes:

• Wire numbers
• Terminal numbers
• Device tags
• Relay references
• Signal descriptions
• Cable identification

Clear documentation reduces the risk of incorrectly reconnecting field circuits.

---

Relay Output Wiring

Relay output circuits should be wired according to the approved control-system drawings.

Particular attention should be given to:

• Terminal identification
• Contact configuration
• Field-device voltage
• Load characteristics
• Protective components
• Interlock circuits
• External relay or contactor interfaces

The terminal block should not be treated as a generic replacement for another terminal assembly unless electrical and mechanical compatibility has been confirmed.

---

Cabinet Installation and Cable Management

The 330.2 × 20 × 178 mm physical form of the IS200TRLYH1BED should be considered during cabinet layout.

Adequate space should be provided for:

• Terminal access
• Field wiring
• Connector engagement
• Cable routing
• Inspection
• Maintenance

Field wiring should be secured and routed in an orderly manner.

Good cable management can help prevent:

• Accidental disconnection
• Mechanical stress
• Excessive bending
• Wiring identification problems
• Electrical interference

The listed weight of 1.2 kg should also be considered when evaluating mounting arrangements and mechanical support.

---

Grounding and EMC Considerations

Industrial control cabinets often contain equipment that can generate electrical noise.

Potential sources include:

• Motors
• Variable speed drives
• Contactors
• Transformers
• Switching power supplies
• High-current conductors

Relay output wiring should be routed according to the system’s electrical and EMC requirements.

Signal and power wiring should be separated appropriately where required. Grounding and shielding practices should follow the applicable system design.

Good EMC practices help reduce unwanted switching interference and improve the reliability of control signals.

---

PLC and Controller Integration

The IS200TRLYH1BED does not replace a PLC or control processor. Instead, it can form part of the output interface surrounding the controller.

For example:

PLC / Controller Logic → Output Command → Relay Interface → Terminal Block → Contactor

The controller may command an external motor starter only after checking:

• Start permissive
• Safety conditions
• Equipment availability
• Process sequence
• Interlock status

The terminal interface then provides the field connection for the resulting relay output.

---

HMI and SCADA Integration

Relay outputs can also be associated with operator commands and supervisory monitoring.

An HMI may display:

• Pump Start
• Pump Stop
• Valve Open Command
• Valve Close Command
• Alarm Reset
• Auxiliary Equipment Enable

The control system can use feedback signals to verify whether the commanded equipment actually reached the desired state.

This distinction between command and feedback is important during commissioning and troubleshooting.

---

Commissioning Procedure

After installation, the IS200TRLYH1BED should be commissioned systematically.

Step 1: Mechanical Verification

Confirm that the terminal block is correctly installed and securely supported.

Step 2: Wiring Verification

Compare every relevant field connection against approved drawings and existing documentation.

Step 3: Connector Inspection

Verify that associated connectors are properly seated and free from visible damage.

Step 4: Output Identification

Confirm that each output circuit corresponds to the intended field device.

Step 5: Point-to-Point Testing

Where appropriate, perform point-to-point tests to verify continuity and correct signal routing.

Step 6: Controller Testing

Confirm that the control processor recognizes and executes the intended output command.

Step 7: Field Device Testing

Test the controlled device under appropriate operating conditions.

Step 8: Interlock Verification

Confirm that required permissives and interlocks operate correctly.

Step 9: HMI Verification

Check that command and equipment-status information is correctly represented on the operator interface.

---

Troubleshooting the IS200TRLYH1BED

Relay output problems should be investigated through the entire signal chain.

Output Does Not Activate

If a field device does not respond to an output command, check:

• Controller logic
• Output configuration
• Associated I/O hardware
• Relay interface
• Terminal connections
• Field wiring
• External relay or contactor
• Field device

A terminal-block problem is only one possible cause.

Output Remains Active

If an output remains energized unexpectedly, verify:

• Control logic
• Command status
• Interlock conditions
• Relay contact behavior
• Wiring configuration
• External circuit conditions

Do not assume that the terminal block is defective without checking the complete circuit.

Intermittent Output

Intermittent behavior may result from:

• Loose wiring
• Poor terminal contact
• Connector problems
• Relay contact degradation
• Vibration
• Cable damage
• Control-system communication problems

Physical inspection combined with functional testing can help isolate the fault.

Multiple Outputs Fail

If several relay outputs fail at the same time, inspect common control hardware, power supplies, I/O interfaces, connectors, and system-level conditions.

Multiple simultaneous failures can indicate a common upstream issue rather than several independent terminal-block faults.

---

Preventive Maintenance

Regular inspection can help improve the reliability of relay output interfaces.

Terminal Inspection

Check terminals for looseness, contamination, corrosion, or signs of overheating.

Wiring Inspection

Inspect cables for:

• Damaged insulation
• Loose connections
• Mechanical stress
• Excessive bending
• Moisture exposure

Connector Inspection

Check associated connectors for secure engagement and visible damage.

Cabinet Environment

Maintain suitable cabinet conditions and minimize exposure to excessive:

• Dust
• Moisture
• Heat
• Vibration
• Electrical contamination

Functional Testing

Important relay outputs should be tested periodically according to the site’s maintenance procedures.

---

Replacement and Spare-Part Management

When purchasing or replacing a GE IS200TRLYH1BED Relay Output Terminal Block, the complete part number should be verified.

Recommended identification information includes:

• Full model number
• Revision
• Terminal arrangement
• Connector configuration
• Host control platform
• Cabinet location
• Associated output hardware

The listed physical dimensions are 330.2 × 20 × 178 mm, with a listed weight of 1.2 kg.

These specifications are useful for inventory management, shipping preparation, cabinet-layout planning, and replacement logistics.

Physical similarity between two IS200 components should not be considered proof of interchangeability.

---

Physical Dimensions and Weight

The GE IS200TRLYH1BED has the following listed physical characteristics:

• Length: 330.2 mm
• Width: 20 mm
• Height: 178 mm
• Weight: 1.2 kg

The elongated profile should be considered during cabinet design and replacement planning.

Adequate clearance should be maintained for field wiring and connector access rather than designing the installation around the component dimensions alone.

---

Compatible System Components

Depending on the specific GE control architecture, the IS200TRLYH1BED may be integrated with several categories of equipment, including:

• GE control processors
• GE I/O assemblies
• Relay output interfaces
• Terminal boards
• Field relay circuits
• Contactors
• Solenoid valves
• Motor-control equipment
• Alarm systems
• HMI equipment
• SCADA systems
• Industrial communication equipment

The exact compatible components depend on the host control platform and system configuration.

---

Recommended Related GE Models

GE Model	Product Description	General Role
IS200DRLYH1BBB	Positive Logic Output Module	Discrete output interface
IS200SRLYH2AAA	Simplex Relay Output Module	Relay output function
IS200TDBTH2ACD	Discrete Terminal Block	Discrete field termination
IS200TDBSH6ABC	Discrete Simplex Card	Discrete signal interface
IS200TBCIH1BBC	Contact Input Terminal Block	Contact input interface
IS200STAIH2ACB	Analog I/O Terminal Block	Analog signal interface
IS200SSCAH2AGD	Serial Communication I/O Terminal Board	Serial I/O interface

These assemblies perform different functions and should not be considered direct replacements for the IS200TRLYH1BED without verifying the complete system configuration.

---

Engineering Best Practices

Maintain Accurate Wiring Records

Terminal assignments and field-device connections should be documented clearly.

Verify Every Replacement

Always compare the complete part number and revision before installing a replacement assembly.

Separate Control and Power Wiring

Maintain appropriate separation between low-level control wiring and high-power circuits.

Test Critical Outputs

Important control, alarm, and interlock outputs should be functionally verified after maintenance.

Protect Field Circuits

External relay and contactor circuits should use the appropriate protection and suppression methods for the equipment being controlled.

Preserve Configuration

Before replacing related control hardware, document applicable configuration and diagnostic information.

---

Key Advantages

Organized Relay Connections

The IS200TRLYH1BED provides a structured interface for relay output field wiring.

Compact Installation Profile

With listed dimensions of 330.2 × 20 × 178 mm, it provides an elongated terminal-interface format suitable for industrial cabinet installations.

Simplified Maintenance

Clearly organized field connections can make inspection and troubleshooting more efficient.

Industrial Output Integration

Relay-based field circuits can interface control-system commands with external equipment such as contactors, valves, and auxiliary relays.

Suitable for Control Architectures

The terminal block can form part of a larger GE industrial control system when correctly matched to the host equipment.

Efficient Spare-Part Identification

The full model number, physical dimensions, and weight provide useful information for maintenance and inventory planning.

---

Technical FAQs

What is the GE IS200TRLYH1BED?

The GE IS200TRLYH1BED is a Relay Output Terminal Block designed to provide an organized interface between compatible GE control-system output circuits and external field wiring.

What is the purpose of a relay output terminal block?

It provides a structured connection point for relay-based output circuits used to control or interface with external industrial equipment.

What devices can relay outputs control?

Depending on the system design, relay outputs may interface with contactors, solenoids, auxiliary relays, alarms, annunciators, and other discrete field devices.

What are the dimensions of the IS200TRLYH1BED?

The listed dimensions are 330.2 × 20 × 178 mm.

How much does the IS200TRLYH1BED weigh?

The listed weight is approximately 1.2 kg.

Is the IS200TRLYH1BED a PLC module?

No. It is a relay output terminal interface rather than a PLC CPU. It forms part of the field-output connection architecture of a compatible control system.

What causes a relay output to fail?

Possible causes include controller logic problems, I/O faults, relay-interface problems, loose terminals, damaged wiring, connector issues, external relay faults, or field-device problems.

Can another GE IS200 terminal block replace it?

Not automatically. The complete part number, revision, terminal configuration, electrical requirements, and host-system compatibility should be confirmed before replacement.

How should the IS200TRLYH1BED be maintained?

Maintenance should include inspection of terminals, connectors, field wiring, cabinet conditions, and associated relay/output hardware. Critical output circuits should also be functionally tested according to site procedures.

---

Conclusion

The GE IS200TRLYH1BED Relay Output Terminal Block is a specialized industrial interface component designed to organize relay-based output connections within compatible GE control systems. By providing a structured termination point between relay output circuitry and field wiring, it supports the connection of control commands to external industrial equipment.

With listed dimensions of 330.2 × 20 × 178 mm and a weight of 1.2 kg, the IS200TRLYH1BED is suited to industrial control-cabinet applications requiring organized relay output interfaces.

Its reliable operation depends on correct system compatibility, accurate field wiring, secure connections, appropriate cabinet installation, and proper commissioning. For replacement and maintenance work, technicians should verify the complete IS200TRLYH1BED identification, revision, terminal arrangement, associated I/O hardware, and host control-system configuration before installation.
