Product Overview

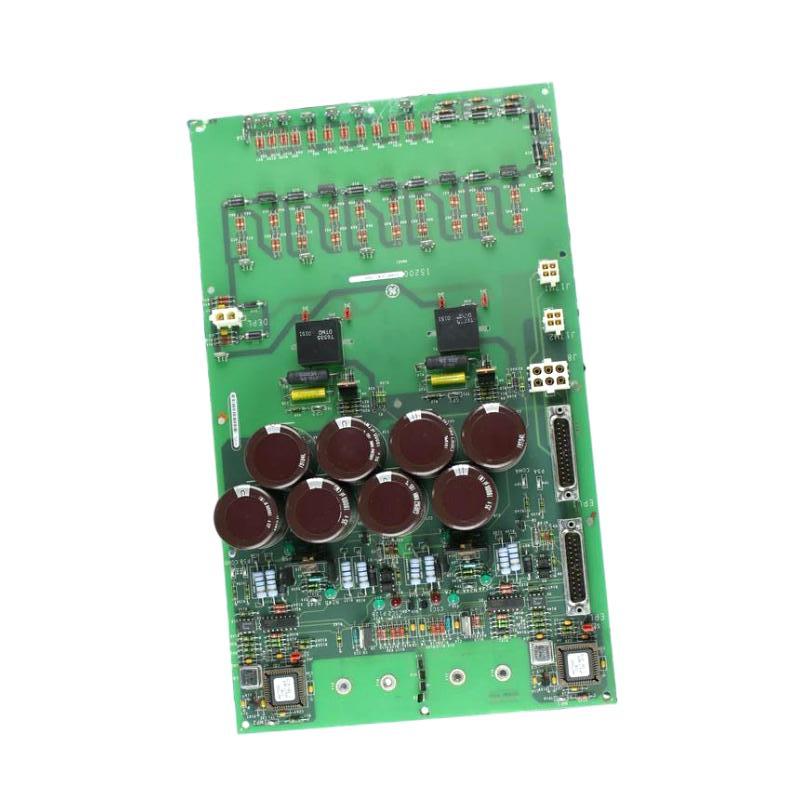

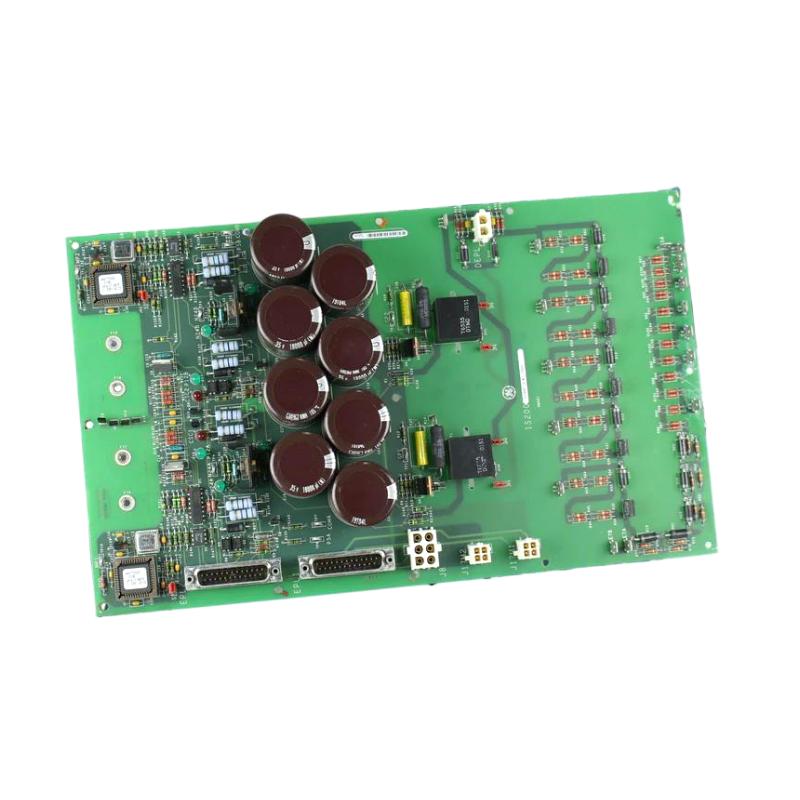

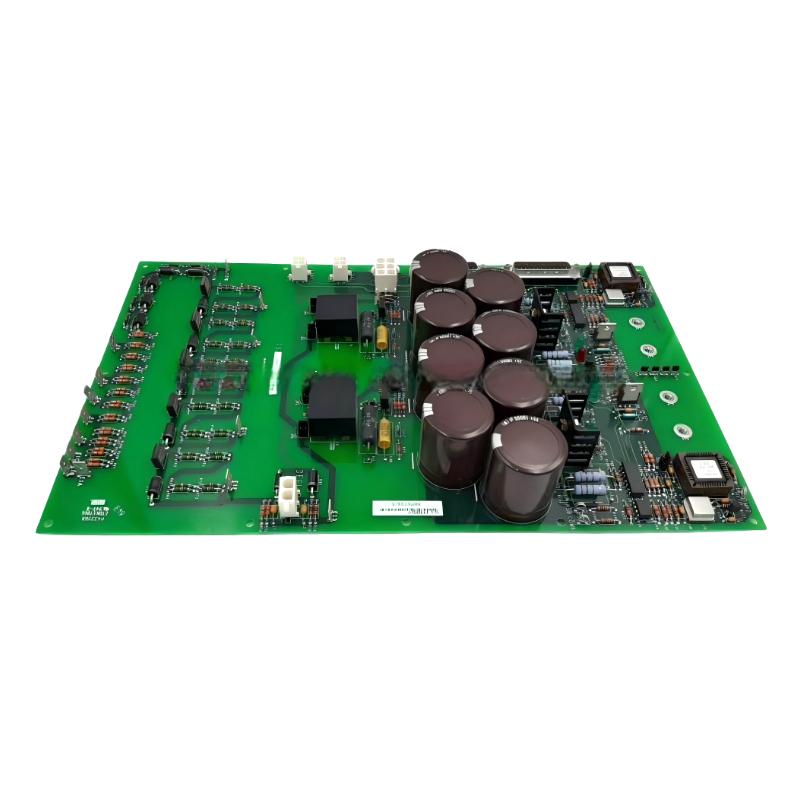

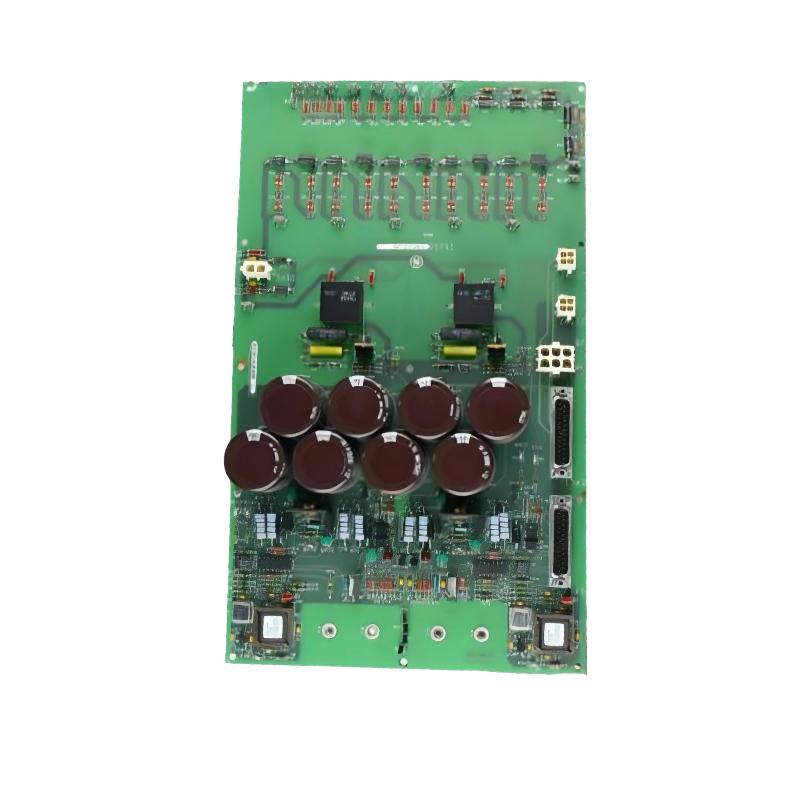

The GE IS200EDEXG1AFA Exciter Demagnetizing Plate is a high-reliability protection module developed for the GE EX2100 Excitation Control System and compatible GE Mark VI Speedtronic turbine control platforms. This industrial-grade demagnetizing plate is specifically engineered to safely dissipate residual magnetic energy stored within the generator field winding during shutdown, emergency trips, or maintenance procedures, thereby protecting critical excitation equipment from excessive induced voltage.

Within generator excitation systems, residual magnetic energy can remain in the rotor field circuit even after the excitation power has been removed. Without a controlled discharge path, this stored energy may generate harmful voltage spikes capable of damaging excitation bridges, thyristors, control boards, field windings, and associated electronic components. The IS200EDEXG1AFA provides a dedicated energy dissipation circuit that rapidly reduces residual field current while maintaining controlled electrical discharge.

Constructed using industrial-grade electronic components, reinforced multilayer PCB technology, and high-power discharge circuitry, the module delivers exceptional operational reliability under continuous industrial conditions. Its rugged design provides excellent resistance to electrical interference, vibration, humidity, and temperature fluctuations encountered in demanding power generation environments.

With dimensions of 200 × 150 × 30 mm and a weight of 0.6 kg, the GE IS200EDEXG1AFA offers a compact yet highly dependable solution for generator excitation protection and safe shutdown management.

Technical Specifications

Function and Working Principle

The GE IS200EDEXG1AFA is designed to eliminate residual magnetic energy remaining in the generator excitation circuit whenever excitation power is removed.

During generator operation, the field winding stores considerable electromagnetic energy. When the excitation supply is interrupted, this energy must be released in a controlled manner to prevent dangerous transient voltages. The demagnetizing plate automatically provides a safe discharge path, allowing excitation current to decay gradually while protecting surrounding electronic equipment.

The module incorporates high-power discharge components capable of absorbing magnetic energy and converting it into controlled thermal dissipation. This process significantly reduces voltage stress on excitation bridges, semiconductor devices, controller boards, and generator field windings.

Through rapid and stable demagnetization, the IS200EDEXG1AFA improves generator safety, minimizes electrical stress, and extends the service life of the overall excitation system.

Key operating features include:

• Controlled generator field demagnetization
• Fast residual energy dissipation
• Effective overvoltage suppression
• High-power discharge capability
• Excellent electrical insulation
• Industrial-grade protection circuitry
• Stable long-term operation
• High reliability during emergency shutdown

Role in Industrial Control Systems

Within the GE EX2100 excitation architecture, the IS200EDEXG1AFA functions as a dedicated protection module responsible for safely removing stored magnetic energy from the excitation circuit.

Its primary responsibilities include:

• Generator field demagnetization
• Residual magnetic energy discharge
• Excitation bridge protection
• Semiconductor overvoltage protection
• Shutdown safety enhancement
• Electrical transient suppression
• Generator equipment protection
• Long-term system reliability improvement

By preventing excessive voltage during shutdown, the module helps protect valuable control equipment while ensuring safe operation throughout the generator lifecycle.

Industrial Applications

The GE IS200EDEXG1AFA is widely installed in:

• Gas Turbine Power Plants
• Steam Turbine Generating Stations
• Hydroelectric Power Plants
• Combined Cycle Power Plants
• Utility Generator Excitation Systems
• Industrial Power Generation Facilities
• Oil & Gas Processing Plants
• Petrochemical Industries
• Steel Manufacturing Plants
• Mining Operations
• Marine Power Systems
• Cement Production Facilities
• Renewable Energy Power Stations
• Heavy Industrial Automation
• Electrical Infrastructure Projects

Its dependable demagnetization performance makes it an essential protection component wherever generator excitation systems require safe shutdown and reliable electrical protection.

Installation and System Integration

Correct installation ensures maximum protection and long-term operational stability.

Recommended installation procedures include:

• Install the module in the designated EX2100 excitation cabinet location.
• Observe electrostatic discharge (ESD) precautions during installation.
• Verify all discharge circuit connections before system startup.
• Ensure proper mechanical mounting and connector engagement.
• Confirm cabinet grounding and bonding requirements.
• Inspect discharge components before commissioning.
• Perform functional testing during generator startup and shutdown verification.
• Include the module in scheduled preventive maintenance inspections.

Proper installation improves excitation system reliability while minimizing unexpected equipment failures.

Compatible System Components

The GE IS200EDEXG1AFA commonly operates together with:

• GE EX2100 Excitation Controller
• GE IS200EBKPG1CAA Exciter Backplate
• GE IS200EDCFG1BAA Exciter DC Feedback Board
• GE IS200EDCFG1ADC Exciter DC Feedback Board
• GE IS200EACFG1B Exciter AC Feedback Board
• GE IS200EACFG2ABB Circuit Board
• GE IS200ECTBG1ADA Exciter Contact Terminal Block
• GE IS200ECTBG1ADE Exciter Contact Terminal Block
• GE IS200DSPXH2CAA Digital Signal Processor Control Board
• GE IS200DSPXH2DBD Digital Signal Processor Board
• GE IS200DAMDG2AAA Gate Driver Interface Board
• GE IS200DAMEG1ABA Gate Amplifier Interface Board
• Generator Excitation Bridge Assemblies
• Human Machine Interface (HMI)
• SCADA Monitoring Systems
• GE EX2100 Excitation Cabinets

Together, these components form a comprehensive excitation control solution capable of delivering precise generator regulation, dependable equipment protection, and long-term industrial reliability.

Recommended Alternative Models

Key Advantages

• Fast generator field demagnetization
• Reliable residual energy dissipation
• Effective overvoltage protection
• High-power industrial discharge circuitry
• Excellent insulation performance
• Rugged industrial construction
• Compact installation size
• Easy integration with GE EX2100 systems
• Long operational service life
• Designed for continuous industrial applications

Technical FAQs

What is the primary function of the GE IS200EDEXG1AFA?

The IS200EDEXG1AFA safely removes residual magnetic energy from the generator field winding after excitation power is disconnected, protecting excitation equipment from damaging transient voltages.

Which systems use the IS200EDEXG1AFA?

The module is specifically designed for the GE EX2100 Excitation Control System and is widely installed in GE Mark VI Speedtronic turbine and generator control platforms.

What equipment commonly operates with this module?

The IS200EDEXG1AFA is commonly integrated with EX2100 controllers, DC feedback boards, AC feedback boards, DSP processor boards, gate driver interface boards, excitation bridge assemblies, HMI workstations, SCADA systems, communication modules, and GE excitation cabinets, providing complete generator protection and excitation control.

Conclusion

The GE IS200EDEXG1AFA Exciter Demagnetizing Plate is a critical protection component within the GE EX2100 Excitation Control System. By providing controlled generator field demagnetization, rapid residual energy dissipation, and dependable overvoltage protection, it significantly improves excitation system safety, protects critical electronic components, and enhances long-term operational reliability.

Featuring industrial-grade construction, compact dimensions of 200 × 150 × 30 mm, and a weight of 0.6 kg, the GE IS200EDEXG1AFA is ideally suited for gas turbines, steam turbines, hydroelectric generators, combined-cycle power plants, and other industrial power generation facilities requiring safe excitation shutdown, reliable electrical protection, and continuous high-performance operation.
