Product Overview

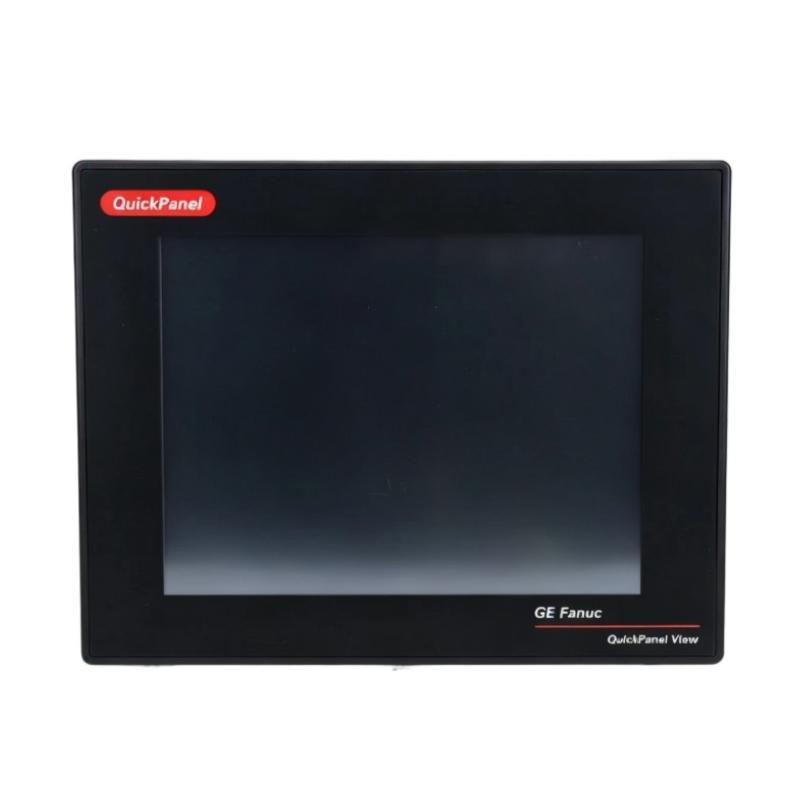

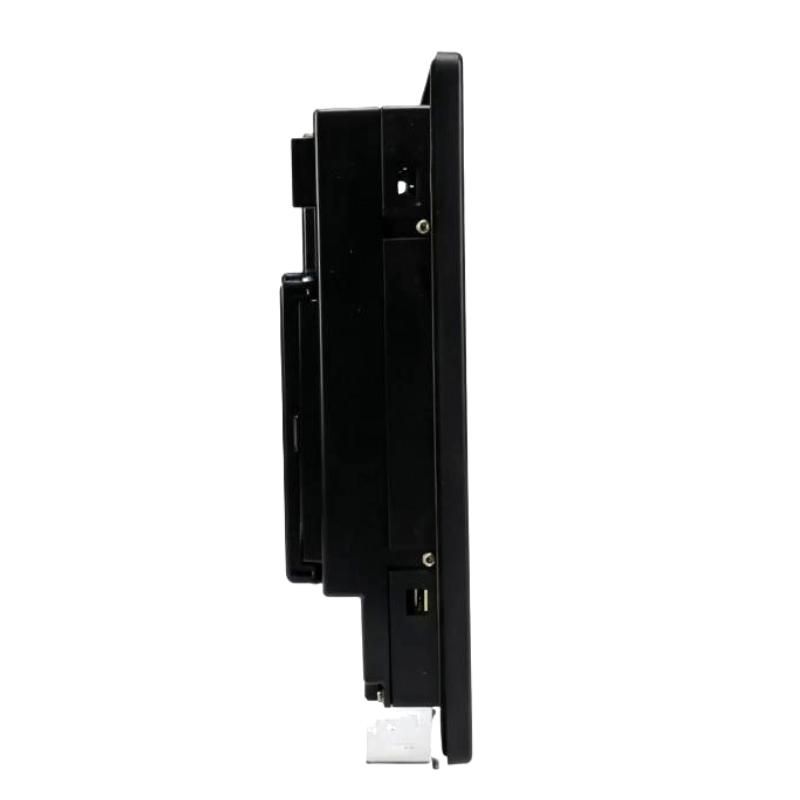

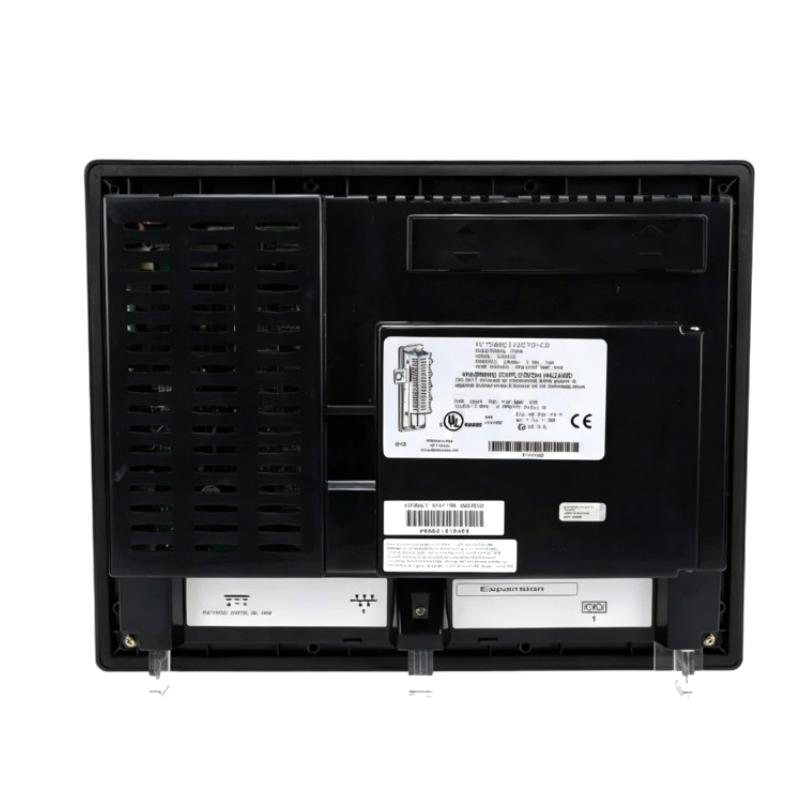

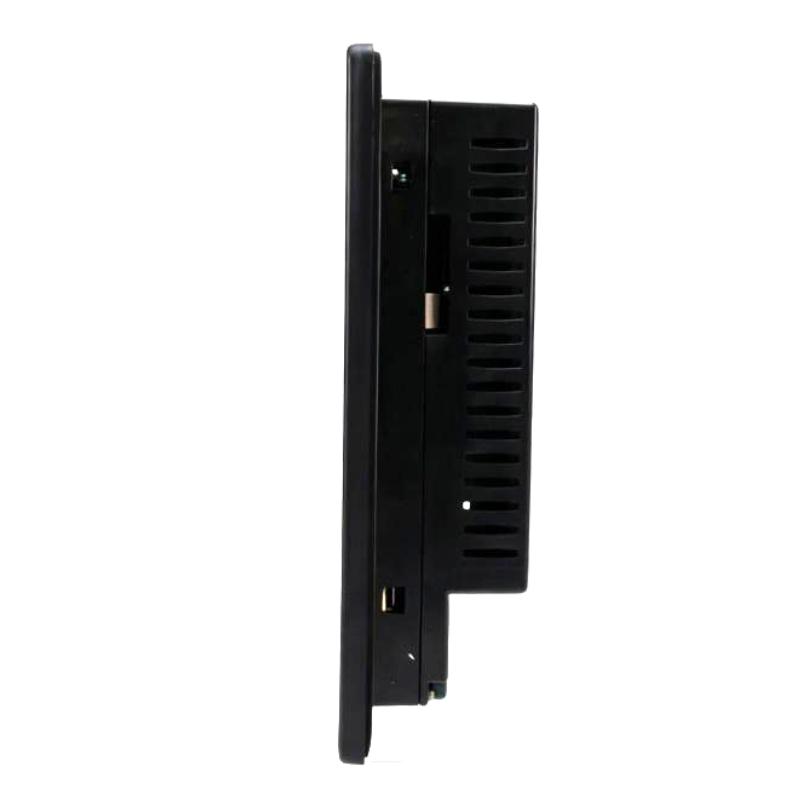

The GE IC754VGL12CTD QuickPanel View Operator Interface Terminal is an operator interface device used in industrial automation systems for machine and process visualization. It provides a local human-machine interface through which operators can view operating conditions, interact with control functions, and monitor equipment status.

As part of the GE QuickPanel View platform, the IC754VGL12CTD sits at the operator layer rather than the field I/O layer. It works with the underlying PLC or control equipment to present process information in a form that can be understood and acted upon by plant personnel.

Typical HMI functions include displaying equipment status, process values, alarms, operating screens, and control commands. The terminal therefore serves as the practical connection between the automation system and the person operating or maintaining the equipment.

For replacement projects, the exact QuickPanel model should be checked together with the existing application, communication arrangement, mounting method, and operator-screen configuration.

Technical Specifications

Product Features

The IC754VGL12CTD combines operator visualization with local interaction for industrial control applications.

Key characteristics include:

• GE QuickPanel View Operator Interface Terminal
• Model IC754VGL12CTD
• 12-inch display
• Intended for industrial HMI applications
• Provides local visualization of machine and process information
• Suitable for operator monitoring and control
• Can display equipment status and operating information
• Supports alarm-oriented operator interaction
• Suitable for control-panel installations
• Useful for modernization and replacement of established HMI stations

The terminal’s role is different from that of a PLC processor or I/O module. It primarily presents information and operator functions while the underlying control system performs the actual automation logic.

Working Principle

The IC754VGL12CTD operates as the operator-facing layer of an industrial automation system.

A simplified relationship is:

PLC / Controller → Communication Network → IC754VGL12CTD → Operator

The operating sequence can be viewed in several stages:

1. Control System Generates Data

   The PLC or controller obtains process information from field devices and executes the programmed control strategy.

2. Data Reaches the HMI

   Relevant operating values and equipment states are transferred through the configured communication path.

3. HMI Processes the Information

   The IC754VGL12CTD organizes the received information according to the configured operator screens.

4. Operator Views the Process

   Status information, operating values, alarms, and other configured graphics are presented on the display.

5. Operator Issues a Command

   Where the application permits operator control, an input from the HMI is sent back through the communication path.

6. Controller Executes the Function

   The PLC or control system evaluates the command according to its programmed logic.

The practical relationship is:

Controller Data → HMI Visualization → Operator Input → Control Logic

This arrangement separates visualization and operator interaction from the underlying control execution.

Role in an Industrial HMI Architecture

The IC754VGL12CTD occupies the operator interface layer of an automation system.

A typical architecture can be represented as:

Field Devices → PLC / Controller → Communication Network → QuickPanel HMI → Operator

The terminal therefore provides a practical operating window into the control system without replacing the PLC’s control function.

Industrial Applications

The actual HMI functions depend on the application software and the controller architecture connected to the terminal.

Installation and Maintenance

HMI replacement requires attention to more than the physical terminal. The communication configuration, application screens, and operator functions should also be considered.

Recommended practices include:

• Confirm the complete IC754VGL12CTD model.
• Verify the existing panel mounting arrangement.
• Record communication connections.
• Document connected controller equipment.
• Back up the existing HMI application where possible.
• Record configured screen and alarm requirements.
• Check power connections.
• Inspect communication cables and connectors.
• Verify the replacement terminal before installation.
• Confirm the correct application configuration.
• Install the terminal securely in the control panel.
• Restore the required communication settings.
• Verify controller communication.
• Check operator screens.
• Test alarm indications.
• Verify applicable operator commands.
• Confirm data displayed on representative screens.
• Monitor the HMI during normal operation.

If the terminal powers up correctly but fails to display current process information, the investigation should include communication settings, network connections, controller availability, and application configuration rather than assuming a display hardware failure.

Related Components

Recommended Related Models

Key Advantages

• GE QuickPanel View Operator Interface Terminal.
• Model IC754VGL12CTD.
• 12-inch operator display.
• Provides local machine and process visualization.
• Supports operator monitoring and interaction.
• Interfaces with PLC and control-system data.
• Suitable for equipment-status and alarm presentation.
• Useful for industrial control-panel installations.
• Suitable for established automation systems.
• Practical for HMI replacement and maintenance projects.

Technical FAQs

What information should be backed up before replacing an IC754VGL12CTD?

The HMI application, screen configuration, communication parameters, alarm settings, and other project-specific information should be preserved whenever possible. Having the application data available can significantly reduce commissioning time after hardware replacement.

Why can an HMI display appear normal while showing outdated process information?

A functioning display does not necessarily indicate that communication with the controller is working. If data stops updating, engineers should check the communication path, controller status, network connections, configuration parameters, and application tags.

Does the IC754VGL12CTD execute the main PLC control program?

No. The terminal serves primarily as the operator interface. The PLC or dedicated controller performs the underlying control logic, while the HMI displays information and can transmit operator commands through the configured communication architecture.

What should be tested after commissioning a replacement HMI?

Testing should cover controller communication, representative process values, equipment status indications, alarm behavior, screen navigation, and any permitted operator commands. The objective is to confirm both visualization and operator interaction rather than checking only whether the display powers on.
