Product Overview

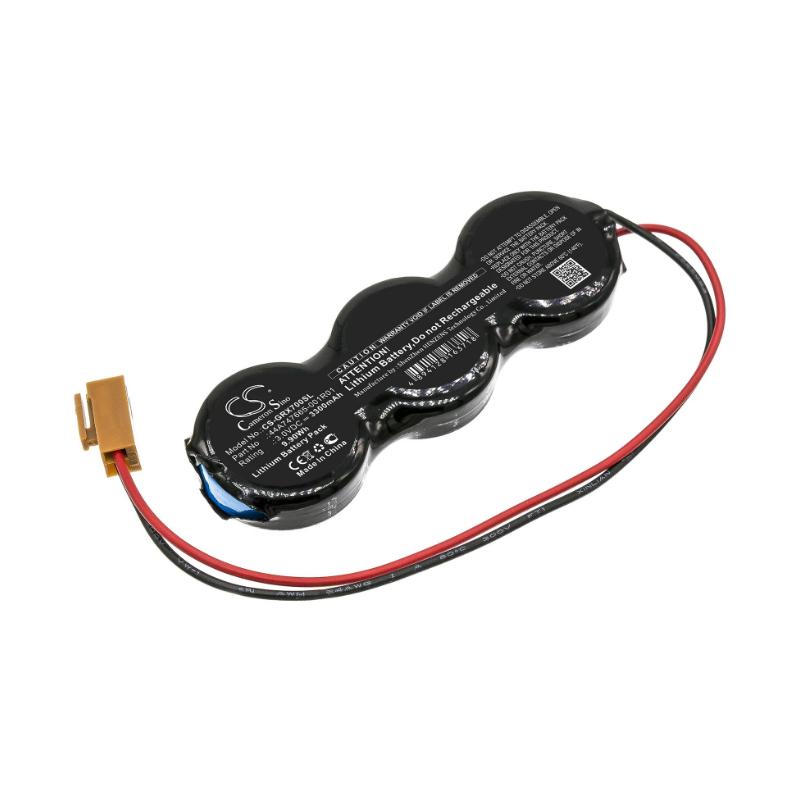

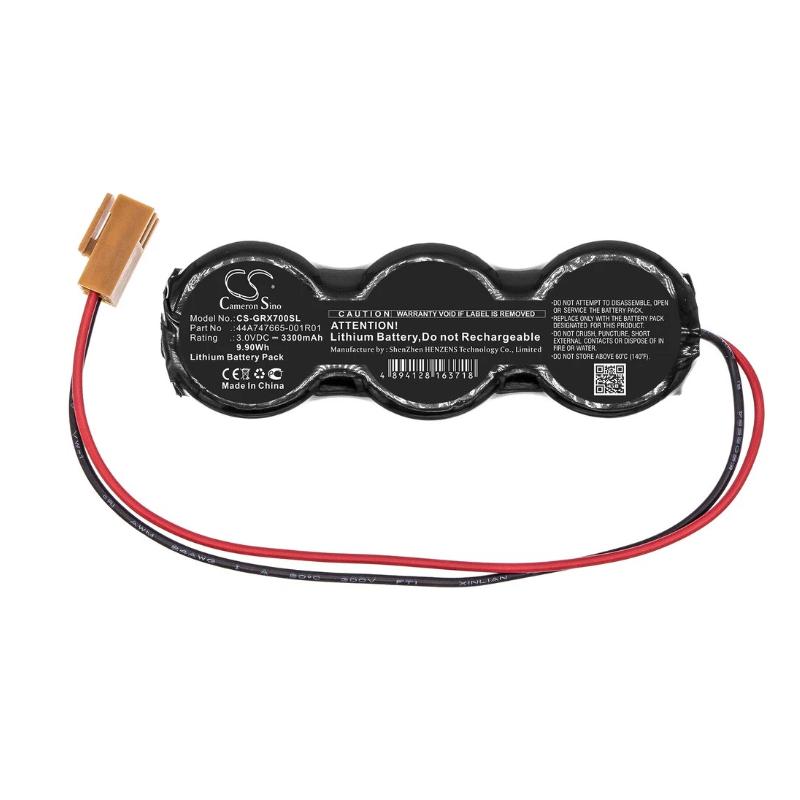

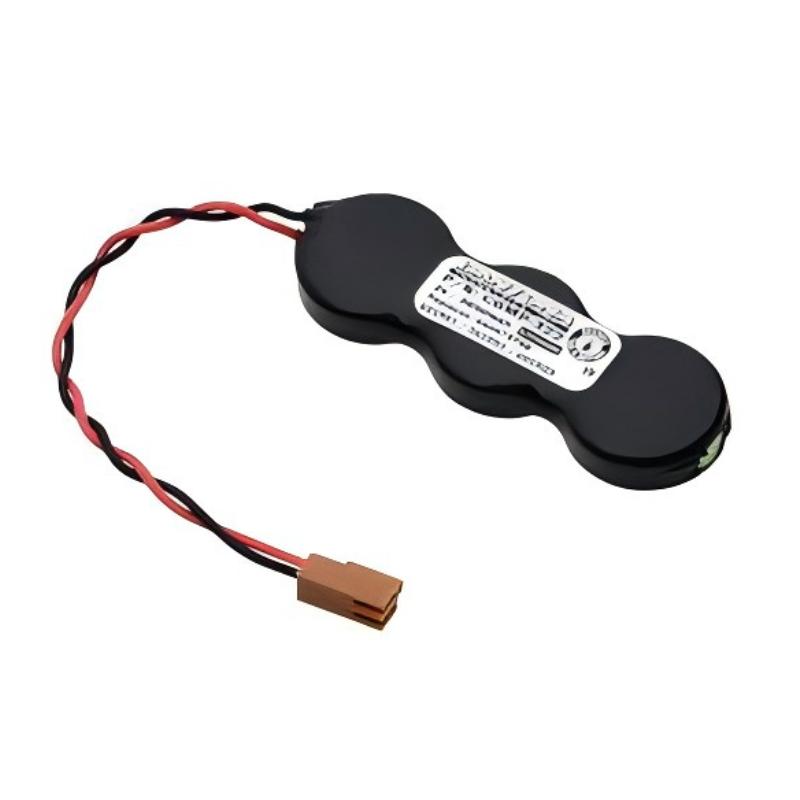

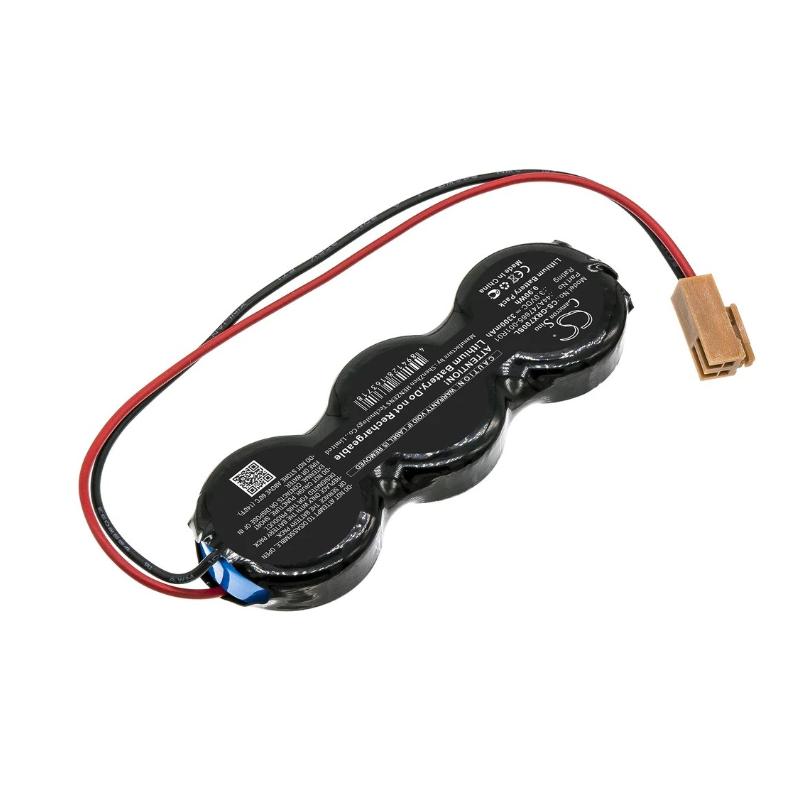

The GE IC698ACC701 Battery is a high-reliability backup battery designed for GE Fanuc PACSystems RX7i programmable automation controllers (PACs). It provides dependable backup power for volatile memory and real-time clock functions during power interruptions, helping preserve critical controller data and ensuring rapid system recovery after power restoration.
As an essential maintenance component within the RX7i automation platform, the IC698ACC701 supplies standby power to the controller’s memory subsystem whenever the primary power supply is unavailable. This capability helps protect user programs, configuration parameters, process data, and system diagnostics from being lost during planned maintenance, unexpected shutdowns, or temporary power failures.
Designed for continuous industrial operation, the battery features a compact and lightweight construction while offering long service life and dependable performance in demanding industrial environments. It can be replaced quickly during preventive maintenance, minimizing controller downtime and simplifying system servicing.
With dimensions of 59 × 33 × 14 mm and an approximate weight of 0.04 kg, the GE IC698ACC701 is suitable for installation within compatible PACSystems RX7i controllers installed in industrial control cabinets.
Typical applications include manufacturing automation, oil and gas facilities, chemical processing, power generation, water and wastewater treatment, mining, pharmaceutical manufacturing, food and beverage production, transportation infrastructure, and OEM automation equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Model | IC698ACC701 |
| Product Series | PACSystems RX7i |
| Product Type | Backup Battery |
| Primary Function | Memory backup power supply |
| Compatible Platform | GE Fanuc PACSystems RX7i |
| Battery Function | Maintains controller memory and RTC during power loss |
| Installation Method | Internal controller battery compartment |
| Maintenance Type | Replaceable battery |
| Dimensions | 59 × 33 × 14 mm |
| Weight | 0.04 kg |
| Typical Application | PLC memory backup |
Function and Working Principle
The GE IC698ACC701 supplies backup power whenever the controller’s primary power source is interrupted, allowing memory retention until normal power is restored.
Typical system architecture:
Primary Power Supply
↓
PACSystems RX7i CPU
↓
IC698ACC701 Backup Battery
↓
Memory & Real-Time Clock
↓
Controller Program and Configuration
During operation, the battery performs the following functions:
- Maintains volatile memory during power loss
- Preserves PLC application programs
- Retains configuration parameters
- Supports real-time clock operation
- Prevents loss of diagnostic information
- Enables faster system restart
- Supports preventive maintenance
- Improves controller availability
- Reduces commissioning time
- Enhances system reliability
The IC698ACC701 does not supply operating power to the controller; it only provides backup power for memory retention functions.
Role in Industrial Control Systems
Within a PACSystems RX7i automation system, the IC698ACC701 serves as the backup power source that protects controller memory whenever the primary power supply is unavailable.
Typical automation architecture:
Industrial Power Supply
↓
PACSystems RX7i CPU
↓
IC698ACC701 Backup Battery
↓
Application Memory
↓
Industrial Process
Its primary responsibilities include:
- Memory retention
- Backup power supply
- Configuration protection
- Real-time clock support
- Data preservation
- Reduced restart time
- Improved system availability
- Reliable controller operation
Industrial Applications
Manufacturing Automation
Typical applications include:
- Assembly lines
- Packaging systems
- Conveyor automation
- Robotic production cells
- CNC equipment
Oil and Gas
Suitable for:
- Compressor stations
- Pipeline monitoring
- Refinery automation
- Offshore platforms
- Process control systems
Power Generation
Frequently installed in:
- Turbine control systems
- Generator automation
- Auxiliary equipment
- Electrical substations
- Plant monitoring systems
Water and Wastewater Treatment
Common applications include:
- Pump stations
- Treatment plants
- Chemical dosing systems
- Filtration equipment
- Municipal infrastructure
Food and Beverage Processing
Widely used in:
- Filling systems
- Packaging lines
- Mixing equipment
- Conveyor systems
- Production automation
OEM Machinery
Ideal for:
- Industrial machine builders
- Material handling systems
- Textile machinery
- Printing equipment
- Automated manufacturing cells
Installation and System Integration
Before installation, engineers should verify:
- RX7i controller compatibility
- Battery condition
- Controller power status
- Battery compartment cleanliness
- Correct battery orientation
- Maintenance schedule
- Environmental conditions
- Controller diagnostics
- System documentation
- Replacement procedures
Recommended Installation Procedure
- Review controller maintenance instructions.
- If recommended, maintain controller power during battery replacement to preserve memory.
- Open the controller battery compartment.
- Remove the existing battery.
- Install the IC698ACC701 with correct polarity.
- Secure the battery in position.
- Close the battery compartment.
- Verify battery installation.
- Check controller diagnostics.
- Confirm memory retention status.
- Record the replacement date.
- Resume normal operation.
System Integration Considerations
Proper battery maintenance improves controller reliability and minimizes the risk of memory loss.
Preventive Replacement
Replace the battery according to the recommended maintenance schedule before its service life expires.
Environmental Protection
Avoid exposing the battery to excessive heat, moisture, or corrosive environments.
Storage
Store replacement batteries in a clean, dry location at appropriate temperatures.
Maintenance Records
Maintain battery replacement records to simplify preventive maintenance planning.
Controller Diagnostics
Regularly monitor battery status through controller diagnostics to identify replacement requirements before battery depletion.
Compatible System Components
| Component | Function |
|---|---|
| PACSystems RX7i CPU | Central controller |
| IC698ACC701 | Memory backup battery |
| RX7i Power Supply | Primary controller power |
| RX7i I/O Modules | Signal acquisition and control |
| Communication Modules | Industrial networking |
| Ethernet Interface Modules | Data communication |
| HMI Systems | Operator interface |
| SCADA Systems | Supervisory monitoring |
| Engineering Workstation | Programming and diagnostics |
| Industrial Power Supply | System power source |
Maintenance and Troubleshooting
Routine maintenance should include:
- Battery inspection
- Battery replacement scheduling
- Controller diagnostics
- Memory retention verification
- Battery compartment cleaning
- Visual inspection
- Installation verification
- Maintenance documentation
- Functional testing
- Preventive maintenance planning
Low Battery Alarm
Check:
- Battery service life
- Installation condition
- Controller diagnostics
- Replacement schedule
- Battery contacts
- Controller documentation
Memory Retention Failure
Inspect:
- Battery installation
- Battery polarity
- Battery condition
- Controller configuration
- Diagnostic messages
- CPU operation
Battery Replacement
Verify:
- Correct battery model
- Proper installation
- Secure battery connection
- Diagnostic status
- Memory retention
- System operation
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| IC698ACC701 | Backup Battery | PACSystems RX7i memory backup |
| IC698CPU310 | CPU Module | RX7i controller |
| IC698PSA100 | Power Supply | RX7i system power |
| IC698ETM001 | Ethernet Module | Industrial communication |
| IC698MDL Series | I/O Module | Distributed control and monitoring |
Key Advantages
- Designed for GE Fanuc PACSystems RX7i controllers
- Reliable memory backup during power interruptions
- Preserves user programs and configuration data
- Supports real-time clock retention
- Compact dimensions of 59 × 33 × 14 mm
- Lightweight design of 0.04 kg
- Easy replacement during preventive maintenance
- Improves controller availability
- Reduces restart and commissioning time
- Long service life
- Rugged industrial construction
- Suitable for continuous industrial operation
Technical FAQs
What is the GE IC698ACC701?
The GE IC698ACC701 is a backup battery designed for GE Fanuc PACSystems RX7i controllers to preserve memory and real-time clock functions during power interruptions.
What is its primary function?
Its primary function is to provide backup power for controller memory and clock functions when the main power supply is unavailable.
What are the battery dimensions?
The battery measures 59 × 33 × 14 mm.
What is the approximate weight?
The battery weighs approximately 0.04 kg.
Does the battery power the PLC during operation?
No. It only provides backup power for memory retention and real-time clock functions. It does not operate the controller itself.
Which systems is it compatible with?
It is designed for compatible GE Fanuc PACSystems RX7i controllers.
Which industries commonly use this battery?
It is widely used in manufacturing, oil and gas, chemical processing, water treatment, power generation, pharmaceuticals, food and beverage production, mining, transportation, and OEM automation equipment.
When should the battery be replaced?
The battery should be replaced during scheduled preventive maintenance or whenever controller diagnostics indicate a low battery condition.
What should engineers verify before installation?
Engineers should verify controller compatibility, battery orientation, battery condition, controller diagnostics, and maintenance procedures before replacement.
How can long-term reliability be maintained?
Regular battery inspections, scheduled replacement, proper storage, diagnostic monitoring, and preventive maintenance help maximize controller reliability and protect valuable application data.
Conclusion
The GE IC698ACC701 Battery is an essential maintenance component for GE Fanuc PACSystems RX7i automation systems. With compact dimensions of 59 × 33 × 14 mm and a lightweight design of 0.04 kg, it provides dependable backup power for controller memory and real-time clock functions, ensuring that critical application data is retained during power interruptions.
When used with compatible RX7i CPU modules, power supplies, communication modules, I/O systems, engineering workstations, and industrial control networks, the IC698ACC701 enhances system availability, reduces recovery time after power failures, simplifies preventive maintenance, and supports reliable long-term industrial automation operation.
