Product Overview

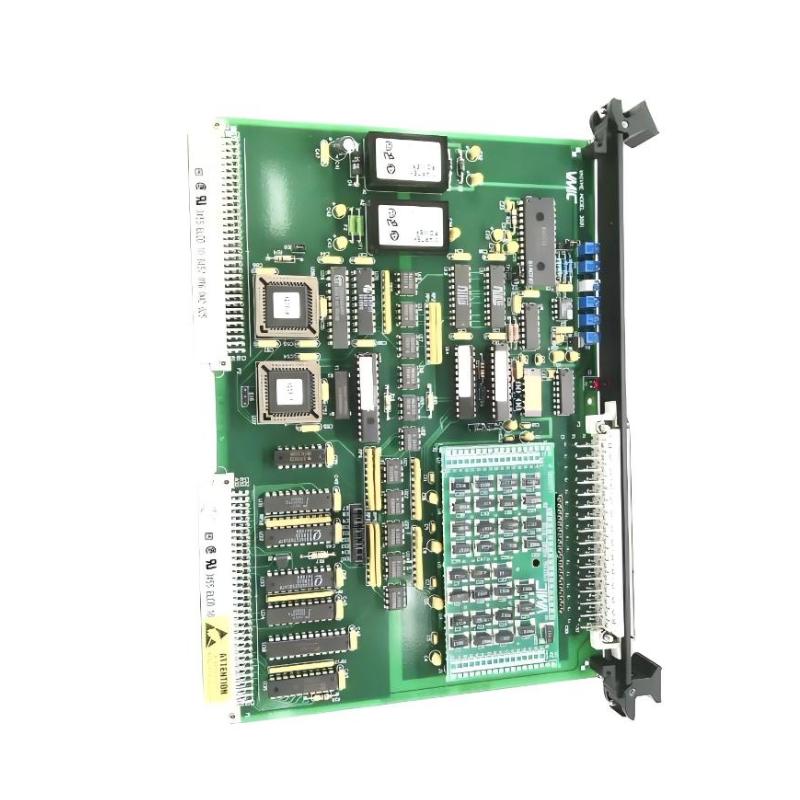

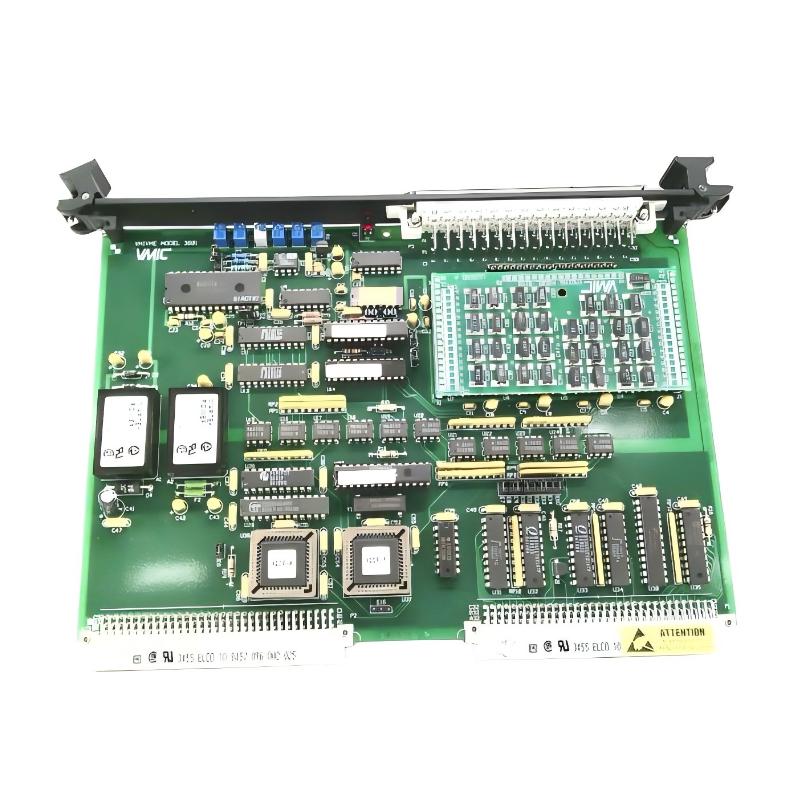

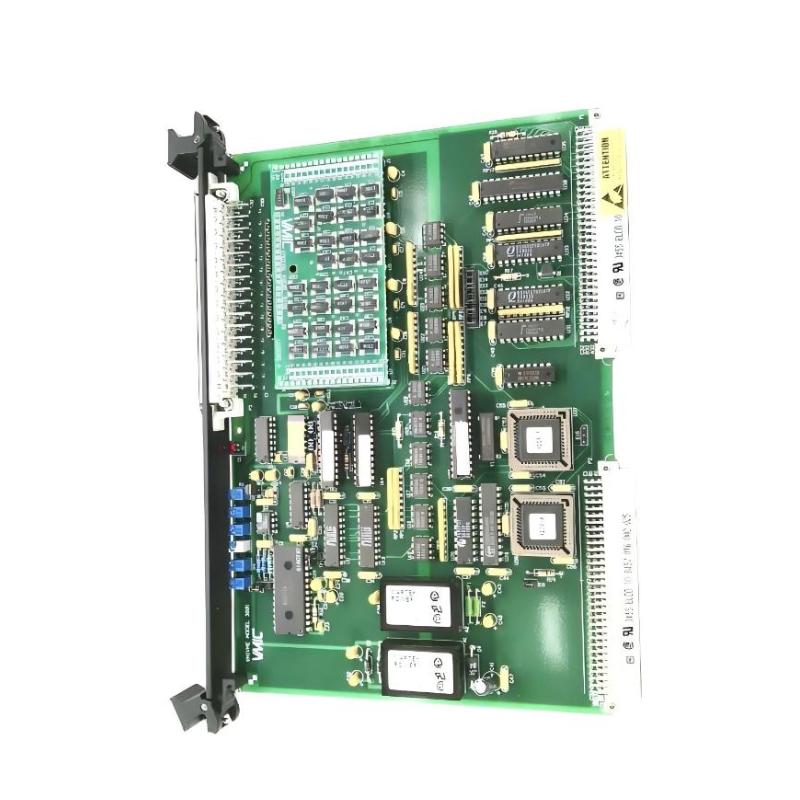

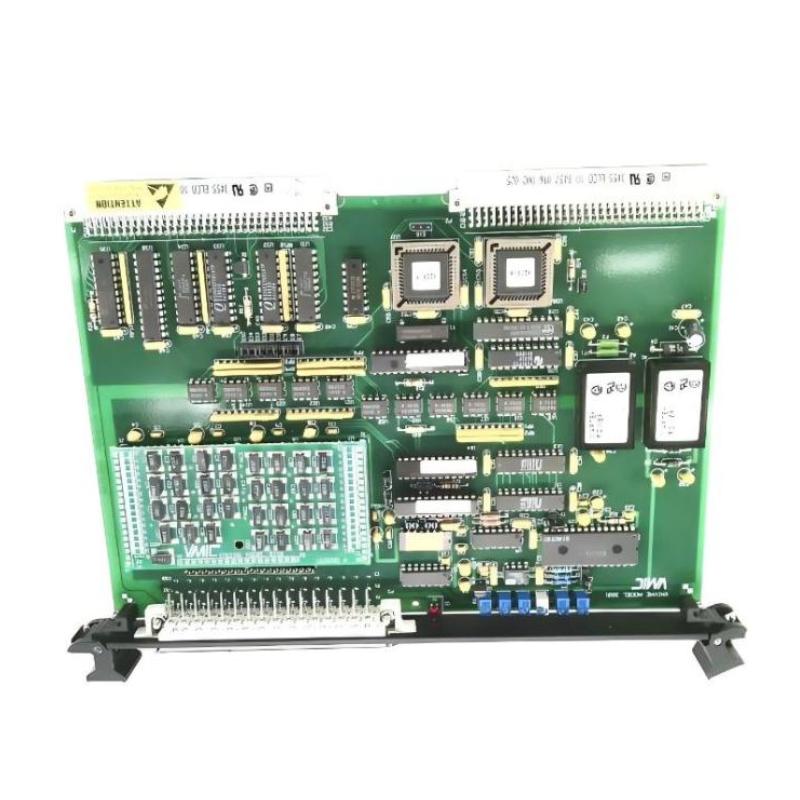

The GE IC697VAL132 Analog Input Module is an industrial analog input module designed for integration with GE Fanuc Series 90-70 PLC control systems. It provides an interface between field-level analog instruments and the PLC control system, allowing process variables such as temperature, pressure, flow, level, and other continuously varying signals to be acquired and processed by the controller.
Unlike discrete input modules that only recognize ON/OFF states, an analog input module converts continuously changing electrical signals into digital data that can be interpreted by the PLC CPU. This capability makes the IC697VAL132 suitable for process automation and machine-control applications where accurate measurement and continuous monitoring are required.
The module is installed within the Series 90-70 PLC rack and communicates with the PLC through the system backplane. Field instruments connected to the module provide analog measurement signals, while the PLC program uses the acquired values for monitoring, control calculations, alarming, sequencing, and process optimization.
Typical applications include industrial process control, water and wastewater treatment, manufacturing equipment, chemical processing, power generation, material handling, HVAC systems, and other automation applications requiring analog signal acquisition.
With listed dimensions of approximately 180 × 41 × 152 mm and a weight of approximately 1.36 kg, the IC697VAL132 provides a compact rack-mounted solution for integrating analog field signals into Series 90-70 control architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Model | IC697VAL132 |
| Product Family | Series 90-70 |
| Product Type | Analog Input Module |
| Primary Function | Analog signal acquisition |
| Signal Type | Analog field signals |
| Installation Method | PLC Rack Mounted |
| Communication | Series 90-70 PLC Backplane |
| Control Platform | GE Fanuc Series 90-70 PLC |
| Application | Process Measurement and Monitoring |
| Dimensions | 180 × 41 × 152 mm |
| Weight | Approximately 1.36 kg |
| Installation Environment | Industrial Control Cabinet |
Engineering note: The exact input channel configuration, supported signal ranges, resolution, accuracy, isolation characteristics, terminal assignments, and electrical specifications should be verified against the applicable hardware documentation before wiring or commissioning.
Function and Working Principle
The primary purpose of the GE IC697VAL132 is to acquire analog signals from field instruments and make the corresponding measurement data available to the Series 90-70 PLC.
A typical signal-processing path is:
Process Variable
↓
Field Sensor / Transmitter
↓
Analog Electrical Signal
↓
IC697VAL132 Analog Input Module
↓
Digital Measurement Data
↓
Series 90-70 CPU
↓
PLC Control Program
↓
Industrial Equipment
The field transmitter generates an electrical signal representing a physical process variable. The IC697VAL132 receives this signal and performs the necessary signal acquisition and conversion so that the PLC can process the measurement.
The controller can then use the acquired information for:
- Process monitoring
- Closed-loop control
- Alarm generation
- Data recording
- Equipment protection
- Production optimization
- Operator display
- Supervisory control
This makes analog input modules essential components in automation systems where process information cannot be represented adequately by simple digital ON/OFF signals.
Analog Signal Acquisition
Analog measurement is widely used throughout industrial automation because many physical parameters change continuously.
For example:
- Temperature gradually increases or decreases.
- Pressure varies according to process conditions.
- Tank level changes continuously.
- Flow rate changes according to pump or valve operation.
- Speed can vary across a defined operating range.
- Position can be represented as a continuously changing measurement.
A suitable transmitter converts these physical parameters into standardized electrical signals. The analog input module receives the signal and transfers the measurement information to the PLC.
The PLC program can subsequently compare the measurement against configured process limits or setpoints.
For example:
Temperature Sensor → Analog Input → PLC → Control Logic → Heating Equipment
or:
Pressure Transmitter → IC697VAL132 → PLC → PID Control → Pump / Valve
This architecture allows the Series 90-70 PLC to respond dynamically to changing process conditions.
Role in Industrial Control Systems
The IC697VAL132 serves as an important interface between field instrumentation and the PLC controller.
A typical control architecture consists of:
Industrial Sensors and Transmitters
↓
GE IC697VAL132 Analog Input Module
↓
GE Series 90-70 CPU
↓
PLC Control Logic
↓
Analog / Digital Output Modules
↓
Actuators and Industrial Equipment
↓
Production Process
The module therefore occupies an important position in the measurement side of an industrial control system.
Accurate analog signal acquisition enables the PLC to make decisions based on actual process conditions rather than predetermined ON/OFF states.
For example, a PLC can use an analog temperature measurement to determine when to increase or decrease heating output. Similarly, a pressure measurement can be used to adjust a pump or control valve.
Industrial Applications
Process Manufacturing
Analog input modules are widely used in process industries where continuous measurement is essential.
Typical applications include:
- Temperature monitoring
- Pressure monitoring
- Flow measurement
- Tank level monitoring
- Process equipment monitoring
- Production parameter acquisition
The IC697VAL132 can form part of a Series 90-70 control system responsible for collecting these measurements.
Water and Wastewater Treatment
Water treatment facilities use numerous analog instruments to monitor plant conditions.
Potential measurement applications include:
- Water pressure
- Tank levels
- Flow rates
- Chemical process parameters
- Pump operating conditions
- Filtration system measurements
The PLC can process these values and control pumps, valves, mixers, and other equipment according to programmed operating conditions.
Manufacturing Automation
Manufacturing equipment frequently requires continuous measurement for accurate production control.
Examples include:
- Machine temperature
- Hydraulic pressure
- Material position
- Process speed
- Production-line parameters
- Equipment condition monitoring
The analog input module provides the measurement interface required by the PLC.
Chemical Processing
Chemical plants depend heavily on instrumentation for monitoring process conditions.
Typical measurements include:
- Temperature
- Pressure
- Flow
- Liquid level
- Equipment operating conditions
The IC697VAL132 can be integrated into a larger Series 90-70 PLC system to acquire these measurements for process control and monitoring.
Power Generation and Utilities
Industrial utility systems use analog measurements throughout power generation and distribution facilities.
Potential applications include:
- Equipment temperature
- Pressure monitoring
- Cooling-system measurements
- Flow monitoring
- Auxiliary system monitoring
Reliable measurement acquisition supports stable plant operation and helps operators identify abnormal conditions.
HVAC and Building Automation
Analog measurement is also important for large HVAC and industrial climate-control systems.
Typical measurements include:
- Air temperature
- Pressure
- Flow
- Cooling-system conditions
- Ventilation parameters
The PLC can use these signals to control fans, pumps, dampers, and other equipment.
Installation and System Integration
Correct installation is important for obtaining reliable analog measurements from the GE IC697VAL132.
Before installation, engineers should verify:
- Series 90-70 rack compatibility
- PLC hardware configuration
- Module position
- Field instrument compatibility
- Signal type
- Signal range
- Wiring requirements
- Cable shielding
- Grounding
- Power supply conditions
- Environmental conditions
- Terminal assignments
Because analog signals can be affected by electrical interference, wiring practices are especially important.
Recommended Installation Procedure
- Shut down the PLC system according to the approved maintenance procedure.
- Disconnect electrical power where required.
- Verify the correct Series 90-70 rack configuration.
- Confirm the module position.
- Inspect the rack connector and module interface.
- Install the IC697VAL132 securely into the designated rack position.
- Connect the field analog signal wiring.
- Verify signal polarity and terminal assignments.
- Check cable shielding and grounding.
- Verify the connected transmitter configuration.
- Restore system power.
- Confirm that the PLC recognizes the module.
- Configure the corresponding input addresses.
- Verify analog values in the PLC diagnostic or programming environment.
- Compare displayed values with a calibrated field instrument.
- Test process alarms and control logic.
- Complete system commissioning.
Analog Wiring and Signal Integrity
Signal quality is particularly important when installing analog input modules.
Electrical noise from motors, contactors, variable frequency drives, transformers, and high-current power cables can interfere with low-level measurement signals.
Recommended engineering practices include:
Separate Signal and Power Wiring
Analog signal cables should be routed separately from high-voltage and high-current wiring whenever practical.
Use Appropriate Shielding
Shielded instrumentation cable can help reduce electromagnetic interference in electrically noisy environments.
Maintain Proper Grounding
Grounding should follow the overall control-system design and applicable electrical standards.
Check Terminal Connections
Loose terminals can cause unstable measurements, intermittent signals, or incorrect process values.
Verify Transmitter Configuration
The field transmitter and analog input system must be configured for compatible signal characteristics.
Validate Measurement Accuracy
After installation, the displayed PLC value should be compared against a known reference or calibrated instrument where appropriate.
PLC Programming and Data Processing
Once the IC697VAL132 acquires analog signals, the Series 90-70 PLC program can use the measurement data for a wide range of control functions.
Typical software functions include:
- Scaling
- Range checking
- Alarm monitoring
- Setpoint comparison
- PID control
- Data logging
- Trend monitoring
- Equipment interlocking
- Process sequencing
For example, a raw analog measurement can be converted into an engineering unit such as degrees Celsius, bar, liters per minute, or percentage level.
A simplified control sequence can be represented as:
Analog Measurement
↓
Input Processing
↓
Signal Scaling
↓
Engineering Value
↓
Limit / Setpoint Comparison
↓
Control Decision
↓
Output Command
This allows the PLC to transform field measurements into useful process-control information.
Maintenance and Troubleshooting
Proper maintenance helps maintain reliable analog measurement over the service life of the Series 90-70 control system.
Common Symptoms
Potential symptoms of an analog input problem include:
- No input signal
- Incorrect process value
- Unstable measurement
- Intermittent input
- Unexpected PLC value
- Input value outside the expected range
- Communication or module diagnostics
- Difference between PLC measurement and field instrument
Troubleshooting Procedure
1. Check the Field Instrument
Verify that the sensor or transmitter is operating correctly.
2. Inspect Wiring
Check terminal connections, cable continuity, shielding, and wiring polarity.
3. Verify Signal Range
Confirm that the field transmitter and input configuration use compatible signal characteristics.
4. Check PLC Configuration
Verify that the module is correctly configured within the Series 90-70 system.
5. Review Diagnostic Information
Check PLC diagnostics for module-related faults or abnormal operating conditions.
6. Compare Against a Reference
Use an appropriate calibrated measurement device to determine whether the problem originates from the field instrument or the PLC input system.
7. Inspect Environmental Conditions
Check for excessive temperature, moisture, vibration, contamination, and electromagnetic interference.
8. Check Adjacent Modules
Problems with rack power, backplane connections, or neighboring hardware can sometimes affect system operation.
9. Replace the Module if Required
If diagnostics and field testing indicate an internal module fault, replace the module with a properly verified compatible unit.
Compatible System Components
| Component | Function |
|---|---|
| GE Series 90-70 CPU | PLC processing and control |
| IC697VAL132 | Analog signal acquisition |
| Series 90-70 Rack | Module installation and backplane communication |
| Series 90-70 Power Supply | PLC system power |
| Analog Transmitters | Process measurement |
| Temperature Sensors | Temperature acquisition |
| Pressure Transmitters | Pressure measurement |
| Flow Transmitters | Flow measurement |
| Level Transmitters | Tank and vessel level measurement |
| Digital Input Modules | Discrete signal acquisition |
| Digital Output Modules | Equipment control |
| Analog Output Modules | Analog actuator control |
| HMI | Operator monitoring and control |
| SCADA System | Supervisory monitoring and data collection |
| Industrial Sensors | Field measurement |
Recommended Alternative Models
| Model / Family | Product Type | Typical Application |
|---|---|---|
| IC697VAL132 | Analog Input Module | Series 90-70 analog signal acquisition |
| Series 90-70 Analog Input Modules | Analog Input | Process measurement |
| Series 90-70 Analog Output Modules | Analog Output | Continuous actuator control |
| Series 90-70 Digital Input Modules | Digital Input | ON/OFF signal acquisition |
| Series 90-70 Digital Output Modules | Digital Output | Discrete equipment control |
| Series 90-70 Communication Modules | Communication Module | PLC networking |
| Series 90-70 CPU Modules | CPU Module | Centralized PLC control |
When selecting a replacement analog input module, engineers should evaluate more than physical dimensions. Signal type, channel configuration, input range, resolution, isolation, wiring, addressing, hardware configuration, and application requirements should all be checked before installation.
Key Advantages
- Designed for GE Fanuc Series 90-70 PLC systems
- Provides analog field signal acquisition
- Supports continuous process measurement
- Connects field instrumentation with PLC control logic
- Suitable for industrial process monitoring
- Rack-mounted Series 90-70 architecture
- Supports temperature, pressure, flow, level, and other analog measurements
- Enables PLC-based process control
- Useful for alarm and limit monitoring
- Supports integration with HMI and SCADA systems
- Compact industrial module design
- Dimensions of 180 × 41 × 152 mm
- Approximate weight of 1.36 kg
Technical FAQs
What is the GE IC697VAL132?
The GE IC697VAL132 is an Analog Input Module designed for GE Fanuc Series 90-70 PLC systems. It provides an interface for acquiring analog signals from field instrumentation.
What is the primary function of the IC697VAL132?
Its primary function is to acquire continuously varying analog signals and make the corresponding measurement data available to the Series 90-70 PLC for monitoring and control.
What types of process variables can an analog input module monitor?
Depending on the compatible signal configuration, analog input systems can be used to monitor variables such as temperature, pressure, flow, level, speed, and other continuously changing process conditions.
What are the physical dimensions?
The listed dimensions of the IC697VAL132 are approximately 180 × 41 × 152 mm.
What is the approximate weight?
The listed weight is approximately 1.36 kg.
Which PLC platform is compatible with the module?
The IC697VAL132 is associated with the GE Fanuc Series 90-70 PLC platform.
Why are analog inputs important in industrial automation?
Analog inputs allow PLC systems to measure continuously changing physical variables rather than only detecting ON/OFF conditions. This is essential for process control, equipment monitoring, and closed-loop automation.
Can the IC697VAL132 be used for temperature measurement?
An analog input module can be used as part of a temperature measurement system when the connected temperature transmitter or signal-conditioning device provides a signal compatible with the module’s input configuration.
How can analog signal problems be diagnosed?
Engineers should check the field transmitter, wiring, signal range, grounding, shielding, PLC configuration, module diagnostics, and measured values. Comparing the PLC value with a calibrated reference can help identify the source of the problem.
What should be verified before replacing the module?
Engineers should verify the Series 90-70 rack configuration, signal characteristics, channel requirements, wiring, addressing, hardware configuration, and the electrical specifications of the replacement module.
Conclusion
The GE IC697VAL132 Analog Input Module provides an important measurement interface for GE Fanuc Series 90-70 PLC control systems. By connecting field instrumentation with the PLC, it enables continuous acquisition of process variables and allows automation programs to use real-world measurements for monitoring, control, alarming, and process optimization.
Analog signal acquisition is fundamental to modern industrial automation because many critical process parameters—including temperature, pressure, flow, and level—change continuously. The IC697VAL132 can therefore serve as an important component in process-control architectures where reliable field measurement is required.
With listed dimensions of 180 × 41 × 152 mm and an approximate weight of 1.36 kg, the module provides a compact rack-mounted solution for Series 90-70 installations.
For maintenance or replacement applications, engineers should verify the complete electrical and system configuration before installation. Particular attention should be given to signal characteristics, wiring, grounding, shielding, PLC configuration, and module compatibility.
When properly integrated with Series 90-70 CPUs, racks, power supplies, field transmitters, I/O modules, HMIs, and SCADA systems, the GE IC697VAL132 can provide a dependable interface between industrial instrumentation and PLC-based control, supporting accurate process monitoring and stable automation performance.
