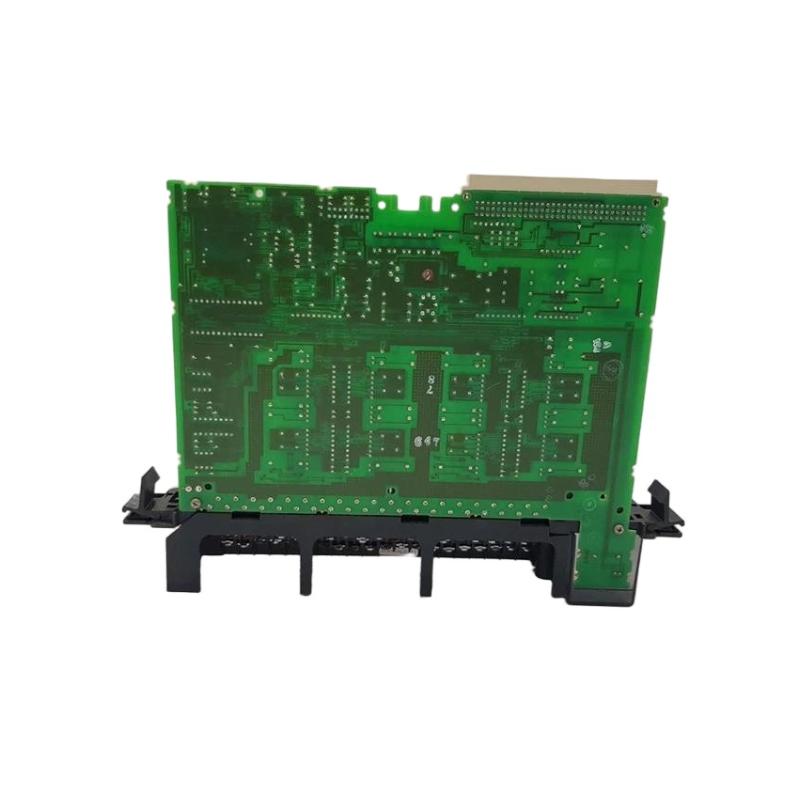

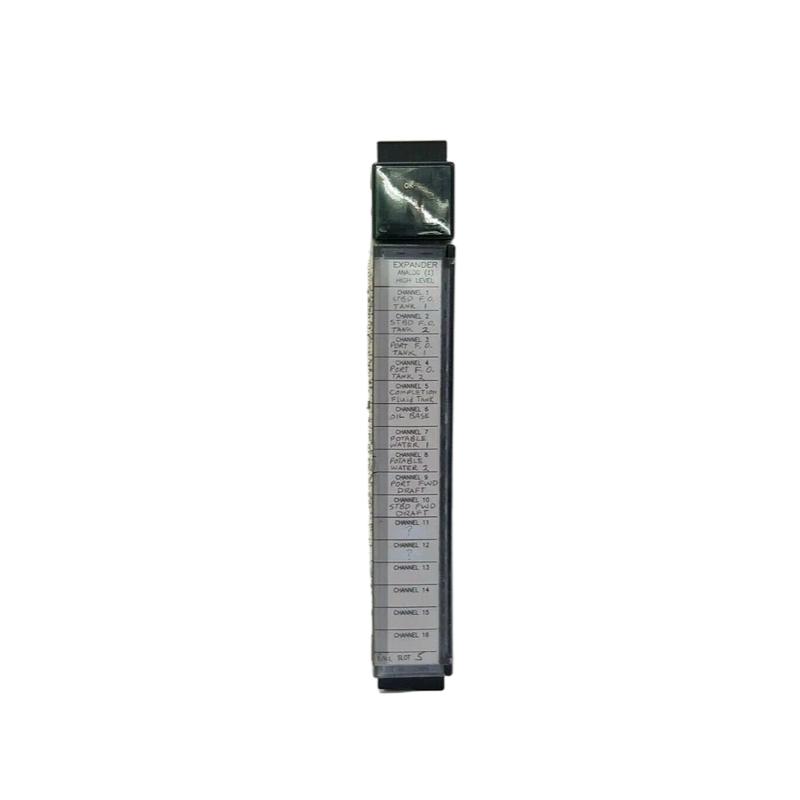

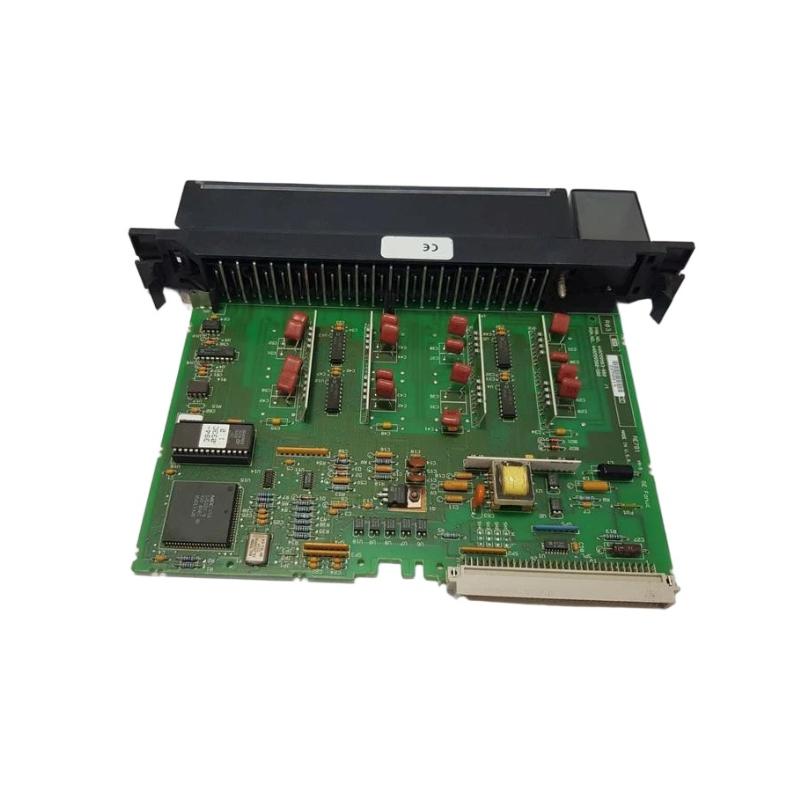

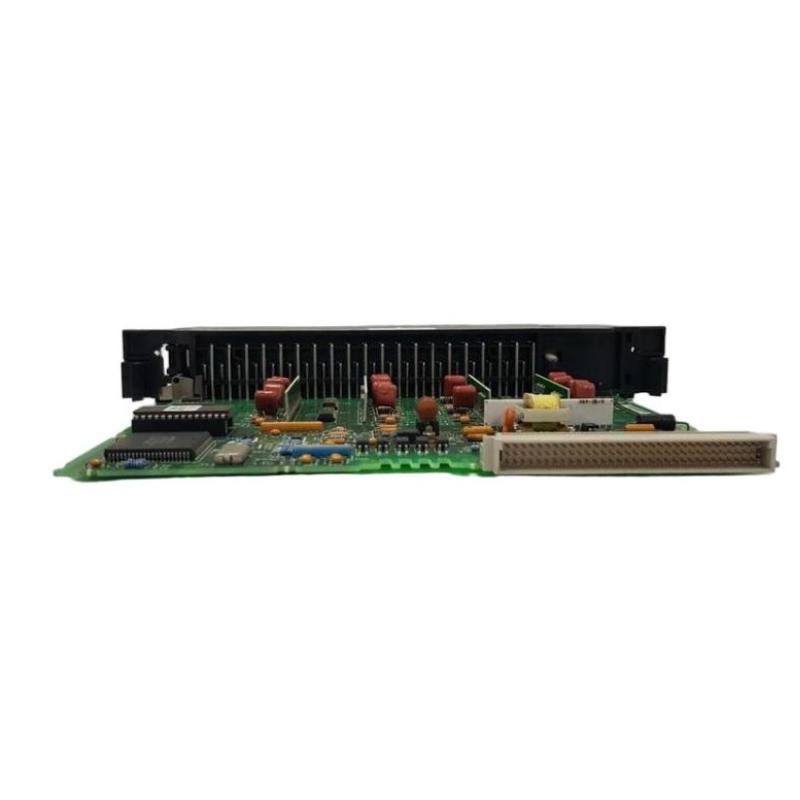

Product Overview

Reliable analog signal acquisition is essential in industrial automation systems where continuously changing process variables need to be measured, monitored, and processed by a PLC. The GE IC697ALG444 Analog Input Current Expansion Module is designed for integration with GE Fanuc Series 90-70 PLC systems, providing an interface for acquiring compatible analog current signals from industrial field instruments.

The IC697ALG444 serves as an analog signal interface between field-level transmitters and the PLC control system. It receives analog current signals representing physical process conditions and converts the acquired information into data that can be processed by the Series 90-70 PLC.

Unlike discrete input modules, which normally detect only ON/OFF conditions, analog input modules allow a control system to monitor continuously changing values. This makes the IC697ALG444 suitable for applications where accurate process measurements are required for monitoring, alarming, control calculations, and automatic process sequences.

Typical field instruments may measure pressure, flow, level, temperature, or other industrial variables. Their analog current outputs can be connected to the appropriate input interface of the IC697ALG444.

The specified dimensions of the IC697ALG444 are 138 × 70 × 25 mm, with an approximate product weight of 0.64 kg. Its compact design allows it to fit within the rack-based architecture of compatible GE Series 90-70 PLC systems.

The module can be particularly useful when an existing automation system requires additional analog current signal acquisition capacity.

For PLC engineers, system integrators, OEM machine builders, and maintenance professionals working with legacy GE Series 90-70 installations, the IC697ALG444 provides an additional interface for integrating analog field instrumentation into the PLC control architecture.

Technical Specifications

Function and Working Principle

The primary function of the IC697ALG444 is to acquire compatible analog current signals from field instruments and provide the corresponding measurement information to the Series 90-70 PLC.

A simplified signal path can be represented as:

Field Transmitter → Analog Current Signal → IC697ALG444 → A/D Conversion → PLC CPU → Control Program

A field transmitter measures a physical process variable and generates an electrical current signal proportional to the measured condition.

The signal is connected to an input of the IC697ALG444.

The module receives and processes the incoming analog signal before converting the measurement into digital information that can be handled by the PLC.

The PLC CPU can then use the acquired value for:

• Process monitoring
• Alarm generation
• Control calculations
• Interlocking
• HMI display
• Data logging
• Closed-loop control
• Production monitoring
• Process sequencing

For example, a pressure transmitter may continuously monitor the pressure of a process vessel.

When pressure changes, the transmitter output changes accordingly.

The IC697ALG444 receives the analog current signal and transfers the corresponding measurement into the PLC system.

The PLC program can then compare the measurement with configured process limits.

If the pressure exceeds a predefined threshold, the PLC can generate an alarm or execute a programmed control sequence.

The same operating principle can be applied to flow, level, temperature, and other compatible industrial measurements.

Because analog signals represent continuously changing physical conditions, correct signal wiring, scaling, grounding, and configuration are important for obtaining reliable measurements.

Role in Industrial Control Systems

The IC697ALG444 functions as an analog current input interface within the GE Series 90-70 PLC architecture.

A typical industrial control system may contain:

• GE Series 90-70 PLC CPU
• IC697ALG444 Analog Input Current Expansion Module
• Series 90-70 PLC rack
• GE PLC power supply
• Analog current transmitters
• Pressure transmitters
• Flow transmitters
• Level transmitters
• Temperature transmitters
• Signal conditioners
• HMI
• SCADA system
• Communication modules
• Remote I/O equipment
• Industrial network components
• Programming workstation

Field transmitters measure physical process conditions.

The transmitters generate compatible analog current signals.

The IC697ALG444 receives these signals and converts the measurement information into digital data.

The Series 90-70 PLC CPU processes the acquired data according to the control program.

The resulting information can be displayed through an HMI or SCADA system and can also be used for alarms, interlocks, process calculations, and automatic control.

This makes the IC697ALG444 useful as an additional analog signal-acquisition interface in Series 90-70 control systems.

Industrial Applications

The GE IC697ALG444 is suitable for industrial applications where analog current signals need to be acquired by a GE Series 90-70 PLC.

Typical applications include:

• Process automation
• Manufacturing systems
• Chemical processing
• Petrochemical facilities
• Oil and gas installations
• Power generation
• Water and wastewater treatment
• Industrial pumping systems
• HVAC systems
• Material processing
• Production lines
• Industrial instrumentation
• Machine automation

Pressure Monitoring

Compatible pressure transmitters can generate analog current signals representing process pressure.

The IC697ALG444 can acquire these signals and make the measurement available to the PLC.

The PLC can then use the pressure value for monitoring, alarms, pump control, valve control, or process sequencing.

Flow Measurement

Flow transmitters can continuously measure the flow of liquids or gases.

Their analog current outputs can be acquired by the IC697ALG444 and processed by the PLC.

The resulting flow information can be used for production monitoring, process calculations, and automatic control.

Level Monitoring

Level transmitters installed on tanks and vessels can provide analog current measurements representing the level of the process medium.

The PLC can use this information to control pumps and valves or initiate high-level and low-level alarm functions.

Temperature Monitoring

Compatible temperature transmitters can convert measured temperature into an analog current signal.

The IC697ALG444 can acquire the signal and provide the corresponding process information to the PLC.

Process Automation

Industrial plants can contain large numbers of analog transmitters distributed throughout different areas.

An analog current expansion module allows additional field measurements to be incorporated into the PLC architecture, increasing the amount of process information available to the control system.

Installation and System Integration

Correct installation is important for reliable analog current signal acquisition.

Recommended installation practices include:

• Install the module in the appropriate Series 90-70 PLC rack.
• Verify rack and system compatibility before installation.
• Switch off system power before inserting or removing the module.
• Confirm field transmitter signal compatibility.
• Verify current-loop wiring before energizing the system.
• Check terminal connections carefully.
• Use suitable industrial instrumentation cable.
• Use shielded cable where appropriate.
• Keep analog signal cables separated from high-voltage power cables.
• Avoid routing instrumentation wiring directly alongside motor cables.
• Apply appropriate grounding practices.
• Configure the PLC input data correctly.
• Verify signal scaling.
• Confirm the expected input range.
• Compare PLC measurements with calibrated field instruments.
• Monitor signal stability during commissioning.

Analog current measurements can be affected by wiring errors, damaged cables, poor grounding, electrical interference, or defective field transmitters.

Potential sources of electrical interference include:

• Variable speed drives
• Large motors
• Contactors
• Switching equipment
• High-current electrical conductors
• Poor grounding
• Improper cable shielding

For this reason, analog instrumentation wiring should be carefully separated from high-power electrical circuits whenever possible.

During commissioning, engineers should verify the entire signal path:

Field Instrument → Wiring → IC697ALG444 → PLC Configuration → Signal Scaling → HMI/SCADA

If the PLC measurement does not correspond to the expected process value, troubleshooting should proceed through each stage systematically.

Compatible System Components

The IC697ALG444 is intended to operate within the GE Series 90-70 PLC architecture.

Typical associated components include:

• GE Series 90-70 PLC CPU
• Series 90-70 PLC rack
• GE PLC power supply
• Analog input modules
• Analog current transmitters
• Pressure transmitters
• Flow transmitters
• Level transmitters
• Temperature transmitters
• Signal conditioners
• HMI systems
• SCADA systems
• PLC communication modules
• Remote I/O equipment
• Industrial network equipment
• Programming terminals
• Industrial control cabinets

A simplified system architecture can be represented as:

Field Transmitter → IC697ALG444 → Series 90-70 CPU → HMI / SCADA / Control System

The field transmitter measures the physical process.

The IC697ALG444 acquires the analog current signal.

The PLC CPU processes the acquired measurement.

The HMI or SCADA system can display the value to the operator.

The PLC can also use the measurement for alarms, interlocks, process calculations, and automatic control sequences.

Recommended Alternative Models

Depending on the existing Series 90-70 architecture and application requirements, the following related analog modules may be considered:

Alternative modules should not be selected solely on the basis of physical dimensions or product naming.

Before selecting a replacement or alternative, engineers should verify:

• Input signal type
• Current range
• Number of channels
• Resolution
• Accuracy
• Isolation requirements
• Wiring configuration
• Rack compatibility
• PLC CPU compatibility
• Software configuration
• Environmental requirements

A module with a similar appearance or physical size may have different electrical characteristics and therefore should not automatically be considered a direct replacement.

Key Advantages

• Designed for GE Series 90-70 PLC systems
• Analog current signal acquisition
• Provides additional analog input capability
• Interfaces with compatible industrial transmitters
• Suitable for process measurement applications
• Suitable for pressure monitoring
• Suitable for flow measurement
• Suitable for level monitoring
• Suitable for temperature monitoring
• Supports continuous process-variable acquisition
• Converts analog information into PLC-processable data
• Suitable for PLC-based industrial control
• Compact module construction
• Dimensions of 138 × 70 × 25 mm
• Weight of approximately 0.64 kg
• Suitable for industrial automation
• Supports HMI and SCADA architectures
• Useful for OEM applications
• Suitable for system integration
• Useful for maintenance and replacement projects

Technical FAQs

What is the GE IC697ALG444?

The GE IC697ALG444 is an Analog Input Current Expansion Module designed for use with GE Fanuc Series 90-70 PLC systems.

What does the IC697ALG444 do?

It provides analog current signal acquisition capability, allowing compatible industrial transmitters to send continuously changing process measurements to the PLC.

What type of signals does the IC697ALG444 handle?

The module is designed to acquire compatible analog current signals from industrial field instrumentation.

What field instruments can be used with an analog current input?

Typical applications include pressure transmitters, flow transmitters, level transmitters, temperature transmitters, and other compatible process instruments.

What are the dimensions of the IC697ALG444?

The specified dimensions are 138 × 70 × 25 mm.

How much does the IC697ALG444 weigh?

The specified product weight is approximately 0.64 kg.

Is the IC697ALG444 a digital input module?

No. It is an analog input current expansion module intended for continuously varying current signals.

Can the IC697ALG444 be installed in a Series 90-70 PLC system?

Yes. The module is designed for integration into the GE Fanuc Series 90-70 PLC architecture.

Why are analog current signals commonly used in industrial automation?

Analog current signals provide a practical way for industrial transmitters to communicate continuously varying measurement information to control systems.

Can the IC697ALG444 be used for pressure monitoring?

Yes. Compatible pressure transmitters can provide analog current signals that are acquired by the module and processed by the PLC.

Can the acquired signal be used for closed-loop control?

Yes. The analog measurement acquired by the module can be processed by the PLC and used as feedback information in an appropriately designed control loop.

What should be checked before replacing an IC697ALG444?

Engineers should verify input signal type, current range, channel configuration, resolution, accuracy, isolation, wiring requirements, Series 90-70 compatibility, PLC configuration, and environmental requirements.

Conclusion

The GE IC697ALG444 Analog Input Current Expansion Module provides additional analog current signal acquisition capability for GE Fanuc Series 90-70 PLC systems.

By interfacing compatible field transmitters with the PLC, the module allows continuously changing process variables such as pressure, flow, level, and temperature to be acquired and processed by the control system.

The IC697ALG444 has specified dimensions of 138 × 70 × 25 mm and an approximate weight of 0.64 kg, making it a compact solution for Series 90-70 rack-based installations.

When integrated with a Series 90-70 CPU, PLC rack, power supply, analog transmitters, HMI, SCADA system, and other automation components, the IC697ALG444 can provide an effective interface for industrial process measurement and monitoring.

For system integrators and maintenance engineers working with existing GE Series 90-70 installations, careful verification of signal compatibility, wiring, grounding, PLC configuration, and signal scaling is recommended before installation or replacement.
