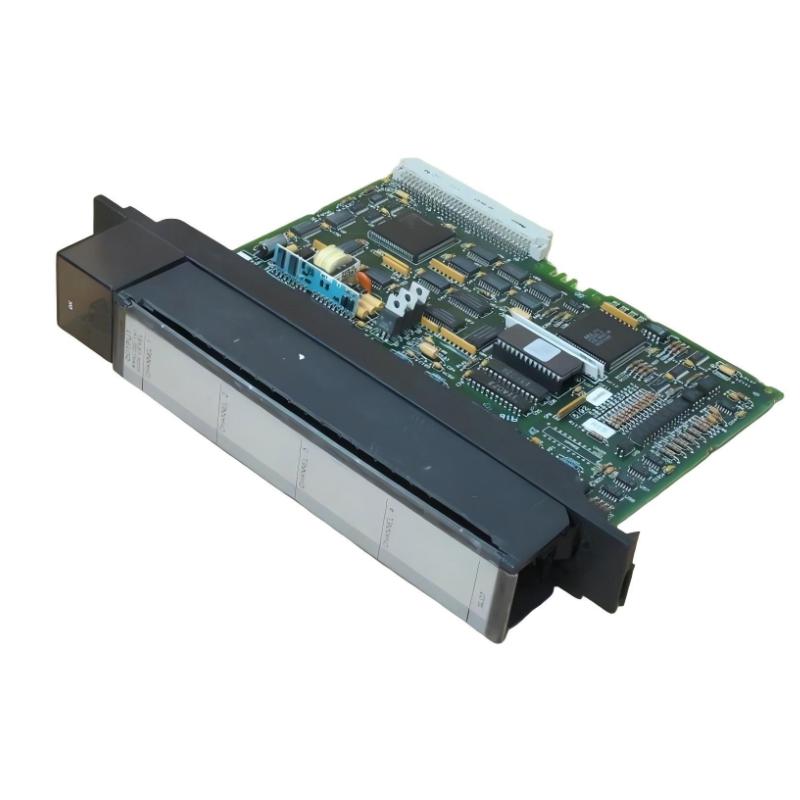

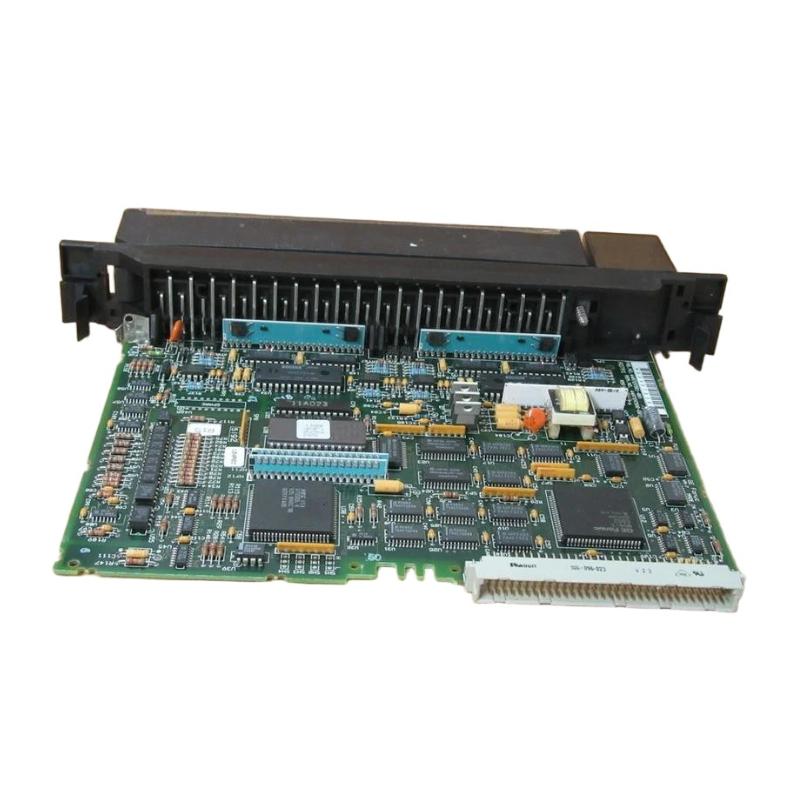

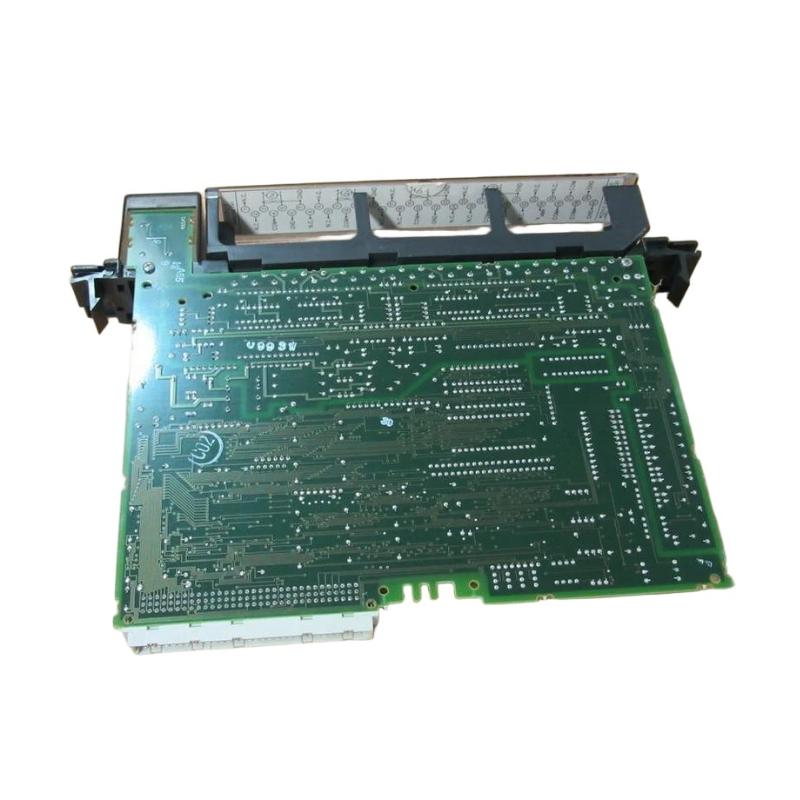

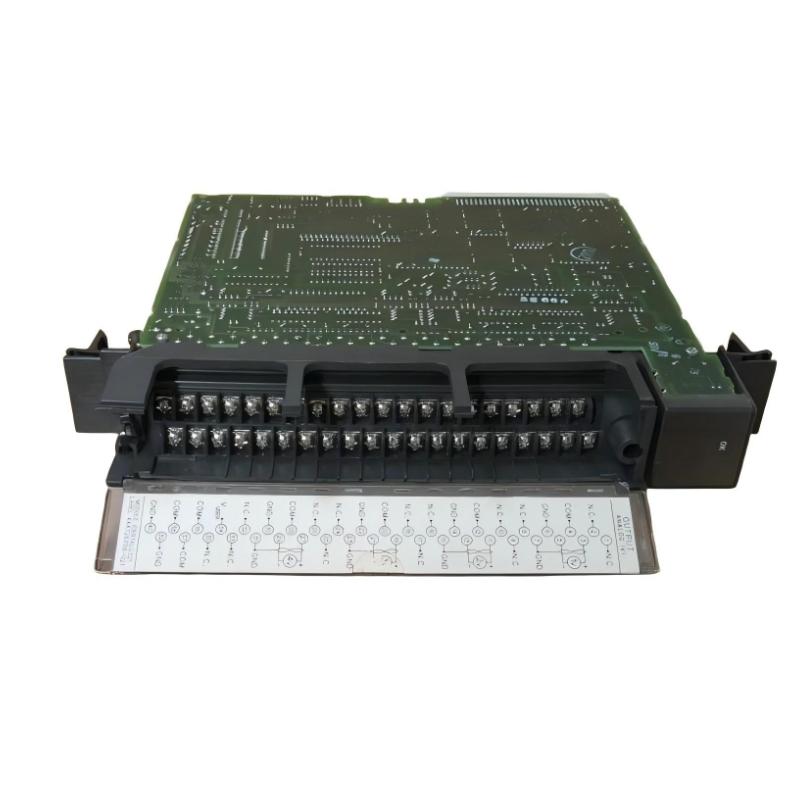

Product Overview

Accurate analog signal acquisition is essential in industrial automation systems where temperature, pressure, flow, level, speed, and other continuously changing process variables must be monitored by a PLC. The GE IC697ALG321 Analog Input Module is an analog input module designed for integration with the GE Fanuc Series 90-70 PLC family.

The IC697ALG321 provides the interface between field-level analog instruments and the PLC control system. It receives analog signals from compatible field devices, converts those signals into digital values, and makes the resulting process information available to the PLC CPU for monitoring, control logic, alarming, and data processing.

Unlike a discrete input module, which normally detects simple ON/OFF states, an analog input module can represent continuously changing measurements. This makes the IC697ALG321 useful for applications where the controller needs to know not only whether a process condition exists, but also its actual measured value.

The specified dimensions of the IC697ALG321 are 138 × 67 × 25 mm, and the approximate product weight is 0.33 kg. Its compact module design allows it to be installed within the Series 90-70 PLC rack architecture.

The module is particularly useful in applications where multiple analog process signals must be collected and transferred to the PLC control program. Typical applications include process monitoring, machine control, temperature measurement, pressure monitoring, flow measurement, level monitoring, and industrial instrumentation.

For PLC engineers, system integrators, OEM machine builders, and maintenance personnel working with GE Series 90-70 systems, the IC697ALG321 provides an important signal-acquisition interface between field instrumentation and the PLC.

Technical Specifications

Function and Working Principle

The primary function of the GE IC697ALG321 is to acquire analog information from field instrumentation and make that information available to the PLC control system.

A simplified signal path can be represented as:

Field Sensor → Analog Signal → IC697ALG321 → A/D Conversion → PLC Data → Control Program

A field transmitter or analog instrument measures a physical process variable.

For example, a pressure transmitter may measure the pressure inside a process vessel. The transmitter produces an electrical analog signal corresponding to the measured pressure.

The IC697ALG321 receives the compatible analog signal and processes it through its input circuitry.

The analog signal is converted into a digital representation that the PLC can process.

The PLC CPU can then use this digital value for:

• Process monitoring
• Alarm generation
• Control calculations
• Data logging
• HMI display
• Interlocking
• Closed-loop control
• Production monitoring

This conversion is an important part of industrial automation because PLC CPUs operate primarily with digital data while many physical process variables are continuous.

For example, a temperature sensor may represent a process temperature that changes gradually from 50°C to 51°C and then to 52°C.

An analog input module allows the PLC to process these changing values instead of simply identifying the signal as ON or OFF.

The quality of the analog signal acquisition can therefore directly affect the accuracy of the control system.

Proper field wiring, grounding, shielding, signal compatibility, and module configuration are important for maintaining reliable analog measurements.

Role in Industrial Control Systems

The IC697ALG321 acts as the interface between field instrumentation and the GE Series 90-70 PLC.

A typical control system may contain:

• GE Series 90-70 PLC CPU
• IC697ALG321 Analog Input Module
• Analog transmitters
• Temperature sensors
• Pressure transmitters
• Flow transmitters
• Level transmitters
• Signal conditioners
• PLC rack
• Power supply
• HMI
• Programming workstation
• Communication modules
• Remote I/O equipment
• Industrial network components

Field instruments collect information from the physical process.

The analog input module receives the electrical signals generated by these instruments.

The module converts the analog information into digital PLC data.

The Series 90-70 CPU can then use this information within the control program.

The HMI can display the measured values to operators, while the PLC can use the values for alarms, interlocks, control calculations, and automatic process sequences.

This makes the IC697ALG321 an important part of the signal-acquisition layer of the automation system.

Industrial Applications

The GE IC697ALG321 can be used in industrial automation systems where analog process information needs to be acquired by a Series 90-70 PLC.

Typical applications include:

• Process automation
• Manufacturing systems
• Power generation
• Water and wastewater treatment
• Chemical processing
• Petrochemical equipment
• Oil and gas facilities
• HVAC systems
• Machine automation
• Material processing
• Production lines
• Industrial monitoring systems

Temperature Monitoring

Temperature transmitters can provide analog measurements to the module.

The PLC can use these values to monitor process temperatures and generate alarms when configured limits are exceeded.

Pressure Monitoring

Pressure transmitters can be connected to compatible analog input channels.

The PLC can process the measured pressure values for monitoring, control, and alarm functions.

Flow Measurement

Flow transmitters can provide continuously changing process information.

The analog input system allows the PLC to monitor flow rates and use them in control calculations.

Level Monitoring

Tank and vessel level transmitters can provide analog measurements representing liquid levels.

The PLC can use these values for pump control, valve control, alarms, and process sequencing.

Manufacturing Automation

In manufacturing systems, analog signals can be used to monitor machine parameters such as pressure, temperature, force, speed, or other continuously varying process conditions.

Installation and System Integration

Proper installation is important for obtaining stable analog measurements from the IC697ALG321.

Recommended installation practices include:

• Install the module in the appropriate Series 90-70 PLC rack.
• Verify rack and system compatibility before installation.
• Switch off power before inserting or removing the module.
• Confirm field signal compatibility.
• Verify the wiring for each analog input.
• Use appropriate shielded instrumentation cable where required.
• Separate analog signal wiring from high-voltage power cables.
• Avoid routing analog cables alongside high-current motor wiring.
• Ensure proper grounding practices.
• Check terminal connections carefully.
• Configure the module according to the system requirements.
• Verify input values during commissioning.
• Compare PLC readings against calibrated field instruments.
• Check for abnormal signal noise.
• Confirm HMI values after the PLC program is running.

Analog signal wiring requires particular attention because low-level analog signals can be affected by electrical interference.

Sources of interference may include:

• Variable speed drives
• Large motors
• Contactors
• Switching power supplies
• High-current cables
• Electromagnetic equipment

Using suitable cable routing, shielding, grounding, and separation practices can help minimize unwanted interference.

During commissioning, the engineering team should compare the value reported by the PLC with the expected field measurement.

If the PLC value is incorrect, troubleshooting should begin by checking the field instrument, wiring, signal type, module installation, configuration, and PLC scaling.

Compatible System Components

The IC697ALG321 is designed for use within GE Series 90-70 PLC systems and can operate alongside other components of the control architecture.

Typical associated components include:

• GE Series 90-70 PLC CPU
• Series 90-70 PLC rack
• GE PLC power supply
• Analog input devices
• Analog transmitters
• Temperature transmitters
• Pressure transmitters
• Flow transmitters
• Level transmitters
• Signal conditioners
• HMI systems
• PLC communication modules
• Remote I/O components
• Industrial network equipment
• Programming terminals
• Industrial control cabinets

A simplified architecture can be represented as:

Field Instrument → IC697ALG321 → Series 90-70 CPU → HMI / SCADA / Control System

The field instrument generates the analog signal.

The IC697ALG321 acquires and converts the signal.

The PLC CPU processes the resulting data.

The control system can then use the information for monitoring, control, alarms, historical recording, and operator display.

Recommended Alternative Models

Depending on the existing PLC architecture, signal requirements, and application, the following modules may be considered as alternatives or related options:

Alternative modules should not be selected solely by physical appearance or channel count.

Before replacing an IC697ALG321, engineers should verify:

• Input signal type
• Number of channels
• Input voltage/current range
• Resolution
• Accuracy
• Isolation requirements
• Wiring configuration
• Rack compatibility
• PLC CPU compatibility
• Software configuration
• Environmental requirements

A module with a similar physical size may have completely different electrical characteristics.

Key Advantages

• Designed for GE Series 90-70 PLC systems
• Analog signal acquisition
• Converts field analog information into PLC data
• Suitable for industrial process monitoring
• Supports integration with field instrumentation
• Useful for temperature monitoring
• Useful for pressure monitoring
• Useful for flow measurement
• Useful for level measurement
• Supports continuous process-variable monitoring
• Suitable for PLC-based control systems
• Compact module design
• Dimensions of 138 × 67 × 25 mm
• Weight of approximately 0.33 kg
• Suitable for industrial automation
• Can be integrated with HMI and SCADA architectures
• Useful for OEM and system-integrator applications
• Suitable for maintenance and replacement projects

Technical FAQs

What is the GE IC697ALG321?

The GE IC697ALG321 is an Analog Input Module designed for the GE Fanuc Series 90-70 PLC family.

What does the IC697ALG321 do?

It provides an interface for acquiring compatible analog signals from industrial field instruments and making the resulting process data available to the PLC.

What types of applications use an analog input module?

Analog input modules are commonly used for monitoring continuously changing variables such as temperature, pressure, flow, level, and other industrial process measurements.

What are the dimensions of the IC697ALG321?

The specified dimensions are 138 × 67 × 25 mm.

How much does the IC697ALG321 weigh?

The specified product weight is approximately 0.33 kg.

Is the IC697ALG321 a digital input module?

No. The IC697ALG321 is an analog input module, intended for continuously varying electrical signals rather than simple ON/OFF signals.

Can the IC697ALG321 be used with a Series 90-70 PLC?

Yes. The module is designed as part of the GE Series 90-70 PLC architecture.

What field devices can be connected to an analog input system?

Depending on the module’s supported electrical specifications, typical field devices can include temperature transmitters, pressure transmitters, flow transmitters, level transmitters, and other analog instrumentation.

Why is signal shielding important?

Analog signals can be relatively sensitive to electrical interference. Proper shielding, grounding, cable routing, and separation from high-power equipment can help maintain measurement stability.

Can the IC697ALG321 be used for closed-loop control?

Analog input data can be used by the PLC as part of closed-loop control applications when the complete system is appropriately configured.

What should be checked before replacing the IC697ALG321?

The replacement should be checked for PLC rack compatibility, signal type, channel configuration, electrical range, resolution, accuracy, isolation, wiring requirements, software compatibility, and environmental conditions.

Conclusion

The GE IC697ALG321 Analog Input Module is an important signal-acquisition component for GE Fanuc Series 90-70 PLC systems. It provides the interface required to bring compatible analog field measurements into the PLC control architecture.

By converting continuously varying analog signals into digital information that can be processed by the PLC, the IC697ALG321 enables industrial systems to monitor important process variables such as temperature, pressure, flow, level, and other instrumentation signals.

With specified dimensions of 138 × 67 × 25 mm and a weight of approximately 0.33 kg, the module provides a compact solution for Series 90-70 PLC installations.

When integrated with a Series 90-70 CPU, PLC rack, power supply, field transmitters, HMI, SCADA system, and other automation components, the IC697ALG321 can form an effective analog data-acquisition layer for industrial control and monitoring applications.

For system integrators and maintenance engineers, correct signal compatibility, wiring, grounding, configuration, and calibration should be verified before installation or replacement to ensure reliable analog measurement and stable PLC operation.
