Product Overview

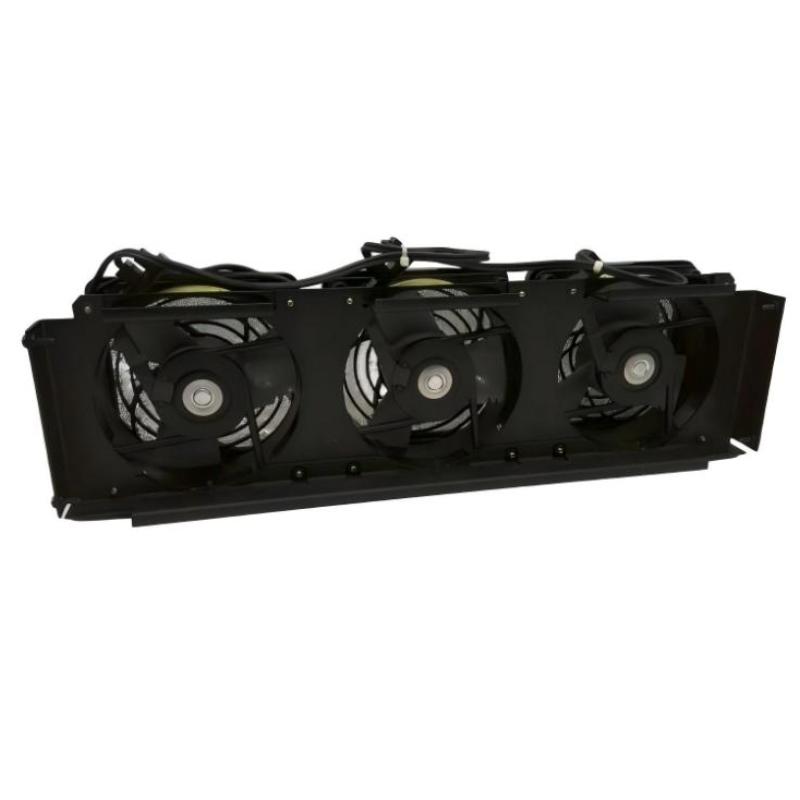

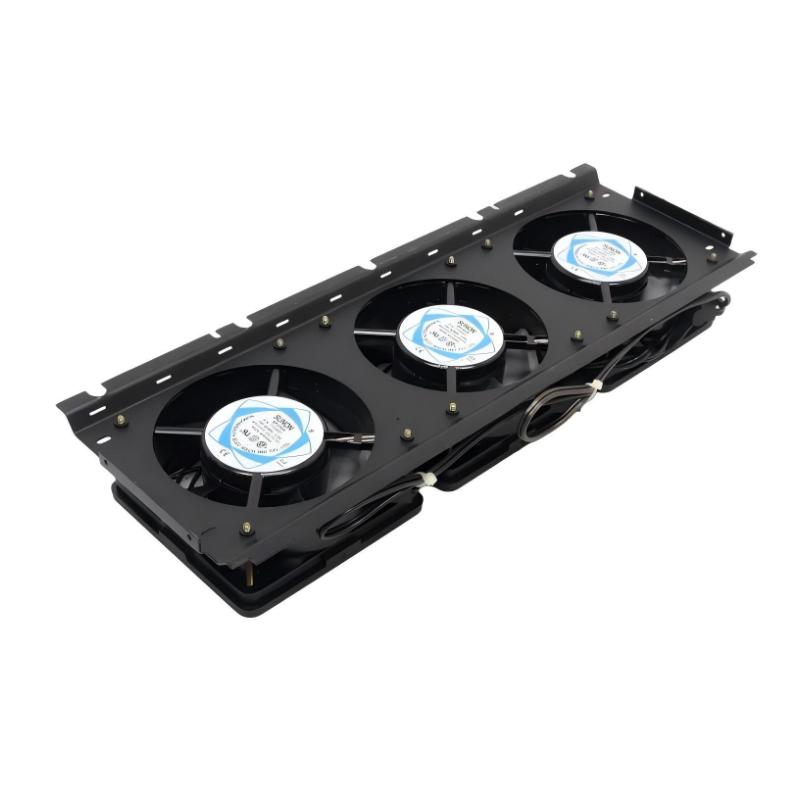

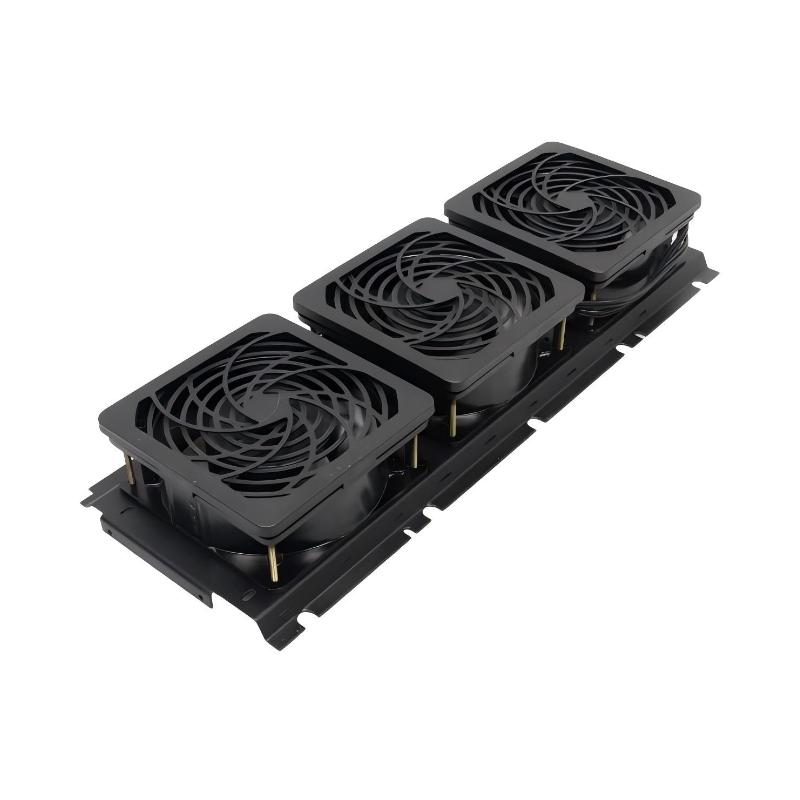

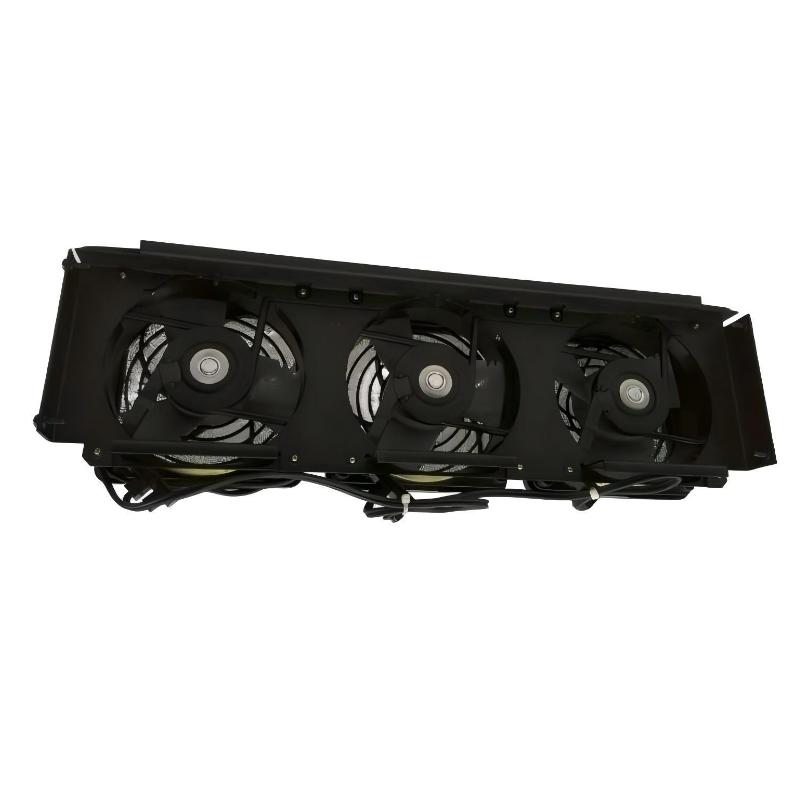

The GE IC697ACC721 Fan Assembly is a cooling and thermal-management component designed for compatible GE industrial automation and programmable controller equipment. Its primary function is to provide forced-air circulation within the control-system enclosure, helping remove heat generated by CPUs, power supplies, communication modules, I/O modules, and other electronic components.
Effective thermal management is essential for industrial PLC systems because electronic components operate continuously and may generate substantial heat under high processing loads. Excessive temperature can accelerate component aging, increase communication errors, trigger thermal protection, and eventually cause unexpected controller shutdowns.
The IC697ACC721 provides a dedicated mechanical cooling solution for compatible GE control equipment. The supplied dimensions are 331 × 150 × 60 mm, with a listed weight of 1.36 kg.
Because fan assemblies are mechanically and electrically dependent on the equipment in which they are installed, the exact mounting location, power connection, airflow direction, and control method should be verified against the host system before installation or replacement.
Product Identification
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC697ACC721 |
| Product Type | Fan Assembly |
| Product Category | Industrial PLC Cooling Component |
| Primary Function | Forced-Air Cooling |
| Dimensions | 331 × 150 × 60 mm |
| Weight | 1.36 kg |
| Installation | Compatible GE Control Equipment |
| Application | PLC / Industrial Automation |
| Maintenance | Fan and Airflow Inspection |
Technical Specifications
| Technical Item | Specification |
|---|---|
| Brand | GE |
| Model Number | IC697ACC721 |
| Product Type | Fan Assembly |
| Function | Forced-Air Cooling |
| Cooling Method | Mechanical Air Circulation |
| Dimensions | 331 × 150 × 60 mm |
| Weight | 1.36 kg |
| Installation Type | Equipment-Mounted |
| Application | Industrial Control Cabinet |
| Maintenance Requirement | Periodic Fan Inspection |
| Service Consideration | Airflow and Mechanical Condition |
Cooling Function in Industrial Automation
Industrial PLC equipment produces heat during normal operation. The fan assembly helps transfer this heat away from electronic components and toward the enclosure ventilation path.
A simplified thermal-management system can be represented as:
PLC / Power Supply / I/O Modules
↓
Heat Generation
↓
IC697ACC721 Fan Assembly
↓
Forced-Air Circulation
↓
Cabinet Heat Removal
↓
Stable Operating Temperature
Maintaining suitable internal temperature is important for controller reliability and long-term component life.
Main Functions
Forced-Air Circulation
Moves air through the equipment enclosure to reduce localized heat accumulation.
Thermal Management
Helps maintain suitable operating temperatures for PLC and automation hardware.
Hot-Spot Reduction
Improves air circulation around heat-generating components and reduces localized temperature buildup.
System Reliability
Proper cooling helps reduce temperature-related faults and premature electronic component degradation.
Typical Industrial Applications
The GE IC697ACC721 may be used in compatible industrial control systems where active cooling is required.
Manufacturing
- PLC control cabinets
- Production lines
- Automated machinery
- Robotic systems
Process Industries
- Continuous process control
- Instrumentation systems
- Pump control
- Valve control
Power Systems
- Generator control
- Plant automation
- Electrical monitoring
Water and Wastewater
- Pump stations
- Treatment systems
- SCADA equipment
Large Industrial Control Cabinets
- High-density PLC installations
- Communication equipment
- Power electronics
- Distributed automation systems
Installation Guide
1. Verify Compatibility
Before installing the IC697ACC721, verify:
- Host equipment model
- Fan assembly compatibility
- Mounting arrangement
- Electrical connection
- Airflow direction
- Available cabinet clearance
Do not select a replacement fan based only on dimensions.
2. Shut Down the Equipment
Fan replacement involves both mechanical and electrical work.
Before starting:
- Stop the controlled process.
- Shut down the PLC system according to plant procedures.
- Disconnect applicable power sources.
- Follow lockout/tagout requirements.
- Verify that the equipment is safe to access.
3. Allow Equipment to Cool
After shutdown, allow the enclosure and internal components sufficient time to cool.
Do not immediately handle hot components following high-load operation.
4. Inspect the Existing Fan Assembly
Check for:
- Dust accumulation
- Broken fan blades
- Loose mounting hardware
- Damaged wiring
- Bearing noise
- Excessive vibration
- Airflow obstruction
If the fan is physically damaged, replace it rather than attempting to operate it in that condition.
5. Check Airflow Direction
Before removing the existing assembly, identify the direction of airflow.
Incorrect installation can result in:
- Reduced cooling
- Hot spots
- Poor cabinet ventilation
- Higher operating temperatures
Mark the original airflow direction if necessary.
6. Remove the Existing Fan Assembly
Carefully disconnect the electrical connection.
Then remove the mounting hardware while supporting the fan assembly.
Avoid damaging:
- Power cables
- Connectors
- Mounting brackets
- Nearby PLC modules
7. Install the IC697ACC721
Position the replacement fan assembly according to the original mounting arrangement.
The supplied dimensions are:
331 × 150 × 60 mm
The supplied weight is:
1.36 kg
Secure the assembly firmly without over-tightening mounting hardware.
8. Reconnect the Electrical Supply
Reconnect the fan according to the original wiring arrangement.
Verify:
- Correct connector
- Correct polarity where applicable
- Secure connection
- No exposed conductor
- No cable interference with the fan
9. Inspect the Fan Area
Before restoring power, verify:
- Fan blades can rotate freely
- No tools remain inside the cabinet
- Cables are secured
- Air passages are unobstructed
- Mounting hardware is secure
10. Restore Power
Restore power according to the plant procedure.
Observe the fan immediately after startup.
Verify:
- Fan rotates correctly
- No abnormal noise
- No excessive vibration
- Airflow is present
- No thermal alarms occur
Commissioning Verification
After installation, verify:
Mechanical Operation
The fan should rotate smoothly without unusual vibration.
Airflow
Confirm that air moves in the intended direction.
Electrical Operation
Verify that the fan receives the required power.
Temperature
Monitor equipment temperature after returning the system to normal load.
Controller Operation
Confirm that the PLC and connected modules operate normally.
Troubleshooting Guide
Fan Does Not Start
Possible causes include:
- No power
- Loose connector
- Incorrect wiring
- Failed fan motor
- Control circuit fault
Check the electrical connection before replacing the complete fan assembly.
Fan Runs Intermittently
Possible causes:
- Loose electrical connection
- Worn motor
- Bearing degradation
- Thermal protection activation
- Power fluctuation
Monitor fan operation during different system load conditions.
Excessive Fan Noise
Possible causes include:
- Worn bearings
- Damaged blades
- Foreign material
- Loose mounting hardware
- Mechanical imbalance
Inspect the fan assembly and mounting structure.
Excessive Vibration
Possible causes:
- Fan imbalance
- Damaged blades
- Loose mounting
- Bearing wear
A vibrating fan should be inspected promptly because excessive vibration can damage both the fan and surrounding equipment.
Airflow Is Weak
Possible causes include:
- Dirty fan
- Blocked ventilation path
- Incorrect airflow direction
- Damaged fan blades
- Reduced fan speed
Inspect both the fan and the cabinet ventilation path.
PLC Temperature Is Too High
Possible causes:
- Fan failure
- Blocked air passages
- Dirty filters
- Excessive cabinet temperature
- Overloaded equipment
- Insufficient enclosure ventilation
Check the complete thermal-management system rather than replacing the fan alone.
Fan Runs but Equipment Still Overheats
Possible causes include:
- Insufficient airflow
- Incorrect fan orientation
- Blocked ventilation
- Excessive heat generation
- Cabinet cooling problem
Verify actual airflow rather than assuming that fan rotation means adequate cooling.
Fan Stops After Several Minutes
Possible causes include:
- Motor overheating
- Thermal protection
- Power supply instability
- Mechanical obstruction
- Fan motor degradation
Monitor the electrical supply and fan temperature during operation.
Preventive Maintenance
Monthly Inspection
Check:
- Fan operation
- Noise
- Vibration
- Airflow
- Dust accumulation
Quarterly Inspection
Inspect:
- Fan blades
- Mounting hardware
- Electrical connections
- Ventilation paths
- Cabinet filters
Annual Maintenance
Perform:
- Detailed fan inspection
- Cabinet cleaning
- Airflow verification
- Electrical connection inspection
- Thermal performance check
Replace the fan assembly if its condition indicates significant wear.
Fan Maintenance Checklist
| Inspection Item | Status |
|---|---|
| Fan Housing Inspected | ✓ |
| Fan Blades Checked | ✓ |
| Electrical Connector Checked | ✓ |
| Mounting Hardware Verified | ✓ |
| Airflow Direction Verified | ✓ |
| Fan Rotation Checked | ✓ |
| Noise Level Checked | ✓ |
| Vibration Checked | ✓ |
| Cabinet Ventilation Inspected | ✓ |
| Equipment Temperature Verified | ✓ |
Replacement Considerations
When replacing the GE IC697ACC721, technicians should verify the complete mechanical and electrical requirements.
| Check Item | Reason |
|---|---|
| Model Number | Confirms correct component |
| Dimensions | Ensures physical fit |
| Mounting Arrangement | Ensures secure installation |
| Power Requirements | Prevents electrical mismatch |
| Connector | Ensures correct electrical interface |
| Airflow Direction | Maintains correct cooling |
| Fan Capacity | Ensures sufficient cooling |
| Cabinet Clearance | Prevents airflow obstruction |
Compatible System Components
The fan assembly works as part of a complete industrial control system.
| Component | Function |
|---|---|
| PLC CPU | Control Processing |
| Power Supply | System Power |
| I/O Modules | Field Signal Processing |
| Communication Modules | Network Communication |
| Rack / Backplane | Module Interconnection |
| Fan Assembly | Forced-Air Cooling |
| Cabinet Ventilation | Heat Removal |
| Air Filter | Contaminant Protection |
The exact compatibility of the IC697ACC721 should be confirmed against the host GE equipment.
Key Advantages
Active Cooling
Provides forced-air circulation for industrial automation equipment.
Thermal Protection
Helps reduce the risk of temperature-related PLC faults.
Large Coverage Area
The supplied dimensions of 331 × 150 × 60 mm provide a substantial mechanical assembly suitable for dedicated equipment cooling applications.
Industrial Application
Designed for use within demanding control-system environments.
Maintainability
The fan assembly can be inspected, cleaned, and replaced as part of preventive maintenance.
Frequently Asked Questions
What is the GE IC697ACC721?
The GE IC697ACC721 is a Fan Assembly used to provide forced-air cooling for compatible GE industrial automation equipment.
What are its dimensions?
The supplied dimensions are:
331 × 150 × 60 mm
What is its weight?
The supplied weight is:
1.36 kg
Why is the fan important in a PLC system?
Electronic components generate heat during operation. Forced-air circulation helps remove this heat and maintain suitable operating temperatures.
What are common symptoms of a failing fan?
Typical signs include:
- Fan not rotating
- Intermittent operation
- Excessive noise
- Excessive vibration
- Reduced airflow
- Increased equipment temperature
Can a fan be replaced while the PLC is operating?
Fan replacement should normally be performed according to the host equipment’s approved maintenance procedure. Unless the equipment specifically supports a safe live replacement procedure, power should be isolated before servicing.
What should be checked if the PLC overheats?
Inspect the fan, airflow direction, ventilation openings, cabinet filters, ambient temperature, and overall heat load.
How often should the fan be inspected?
A practical preventive-maintenance program includes routine visual and operational inspections, with more detailed inspection performed periodically according to the equipment operating environment and maintenance schedule.
Installation Checklist
| Item | Status |
|---|---|
| Correct IC697ACC721 Identified | ✓ |
| Host Equipment Verified | ✓ |
| Power Isolated | ✓ |
| Existing Fan Inspected | ✓ |
| Airflow Direction Recorded | ✓ |
| Fan Removed Safely | ✓ |
| Replacement Fan Installed | ✓ |
| Electrical Connection Secured | ✓ |
| Mounting Hardware Tightened | ✓ |
| Fan Rotation Verified | ✓ |
| Airflow Verified | ✓ |
| Equipment Temperature Checked | ✓ |
Conclusion
The GE IC697ACC721 Fan Assembly is an important thermal-management component for compatible GE industrial automation systems. By providing forced-air circulation, it helps remove heat generated by PLC CPUs, power supplies, communication modules, and other electronic equipment.
The supplied dimensions of 331 × 150 × 60 mm and weight of 1.36 kg should be considered when planning replacement and cabinet installation. However, mechanical dimensions are only part of the compatibility check; technicians should also verify the mounting arrangement, electrical connection, airflow direction, and cooling requirements of the host equipment.
During troubleshooting, symptoms such as excessive temperature, abnormal noise, weak airflow, intermittent operation, and fan failure should be investigated promptly. Preventive inspection and regular cabinet cleaning can help identify fan degradation before it results in a controller thermal fault.
When correctly installed and maintained, the GE IC697ACC721 helps maintain stable operating temperatures and supports reliable long-term operation of industrial PLC and automation equipment.
