Product Overview

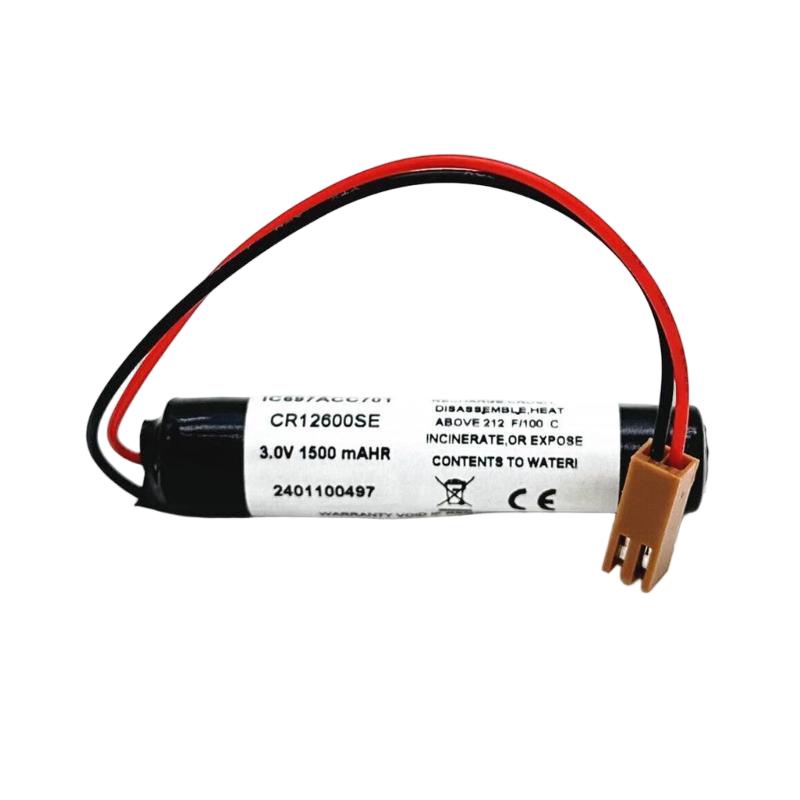

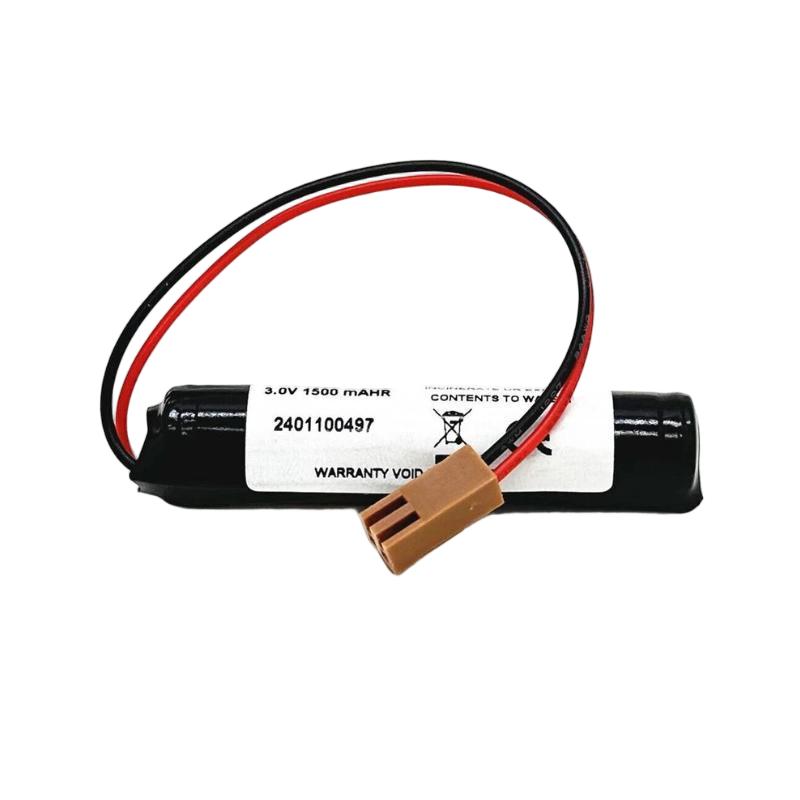

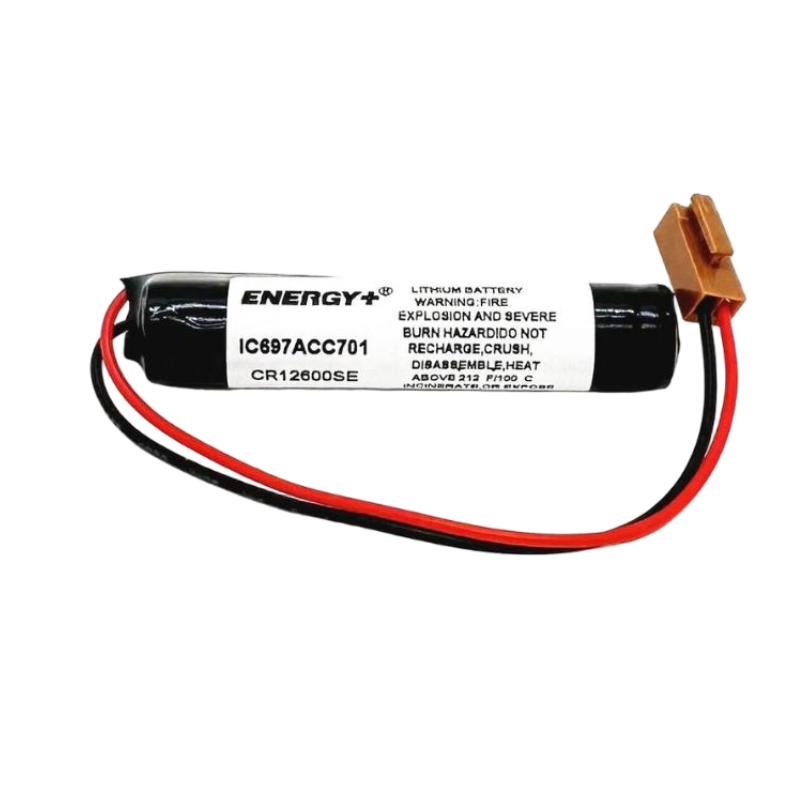

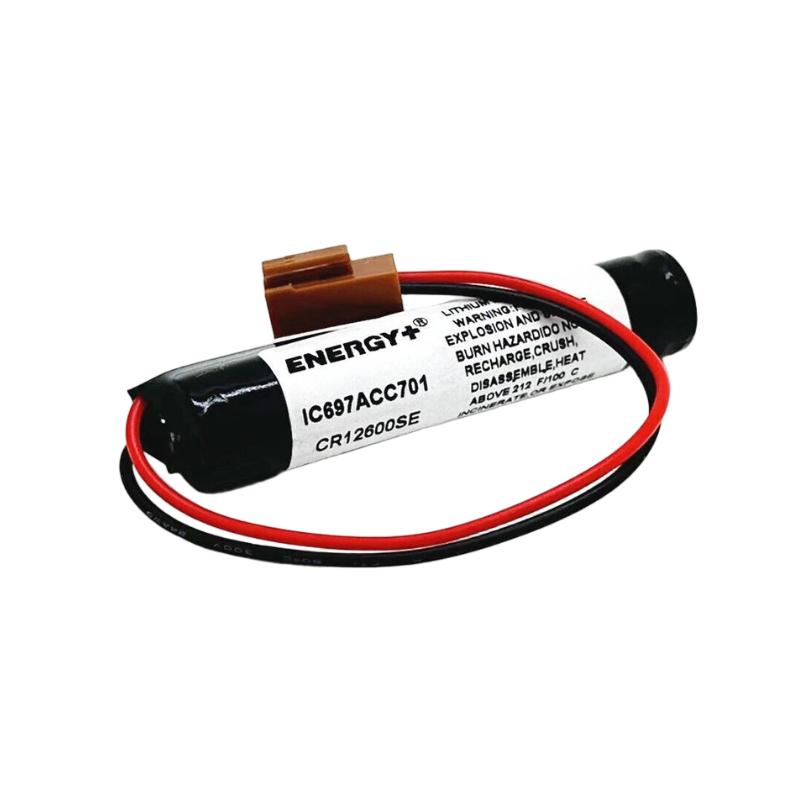

The GE IC697ACC701 Battery is a replacement battery component intended for use with compatible GE industrial automation and programmable controller systems. In a PLC control system, the backup battery provides a stable energy source for retaining critical memory or other battery-backed system information when the primary system power is removed.
Battery-backed memory is particularly important in industrial controllers because loss of retained information can affect controller configuration, application data, program retention, or system startup behavior depending on the specific hardware configuration.
The GE IC697ACC701 has a compact physical format, with supplied dimensions of 50 × 20 × 20 mm and a listed weight of 0.045 kg. Its small size allows it to be integrated into control equipment without occupying significant cabinet or controller space.
Because battery specifications and replacement procedures can vary between controller configurations, the battery should always be matched to the applicable GE control-system hardware and replaced according to the equipment maintenance procedure.
Product Identification
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC697ACC701 |
| Product Type | Battery |
| Product Category | PLC Backup Battery |
| Primary Function | Memory / System Backup Power |
| Dimensions | 50 × 20 × 20 mm |
| Weight | 0.045 kg |
| Installation | Compatible GE Control Equipment |
| Application | Industrial Automation / PLC Systems |
| Maintenance | Battery Condition and Replacement Inspection |
Technical Specifications
| Technical Item | Specification |
|---|---|
| Brand | GE |
| Model Number | IC697ACC701 |
| Product Type | Backup Battery |
| Function | Retention of Battery-Backed Information |
| Dimensions | 50 × 20 × 20 mm |
| Weight | 0.045 kg |
| Installation Method | Internal / Dedicated Battery Compartment |
| Application | Industrial PLC Systems |
| Maintenance Type | Periodic Battery Replacement |
| Replacement Requirement | Compatible Battery Required |
Battery Function in a PLC System
A PLC system normally depends on a primary power source to operate the CPU and connected modules. When system power is removed, certain information may require backup power depending on the controller design.
The battery provides backup energy to supported memory or retention circuitry.
A simplified architecture is:
Primary PLC Power
↓
PLC CPU
↓
Battery-Backed Memory
↑
IC697ACC701 Backup Battery
When the main power supply is unavailable, the backup battery can maintain the required battery-backed functions according to the controller’s design.
Main Functions
Memory Retention
Provides backup power for supported battery-backed memory functions.
Power-Off Data Protection
Helps preserve required retained information during periods when the main controller power is unavailable.
Controller Availability
A properly maintained backup battery can reduce the risk of memory-related problems following extended power interruptions.
Preventive Maintenance
The battery is a serviceable component that can be replaced as part of scheduled PLC maintenance.
Typical Applications
The GE IC697ACC701 may be used in compatible GE industrial control systems in applications such as:
Manufacturing Automation
- Production lines
- Packaging machinery
- Material handling
- Machine control
Process Control
- Process monitoring
- Pump control
- Valve control
- Instrumentation
Power Industry
- Generator control
- Auxiliary systems
- Plant monitoring
Water Treatment
- Pump stations
- Water processing
- Remote control systems
Industrial Equipment
- PLC control panels
- Automated machinery
- Factory control systems
Installation Guide
1. Confirm Battery Compatibility
Before replacing the battery, verify:
- Existing battery model
- Controller model
- Battery connector
- Polarity
- Installation location
- Required retention function
Do not substitute an unknown battery simply because its dimensions appear similar.
2. Review the Controller Maintenance Procedure
Before installation, identify the applicable maintenance procedure for the GE controller.
Important considerations include:
- Whether power must remain applied during replacement
- Whether the controller supports battery replacement under power
- Memory-retention requirements
- Battery polarity
- Connector orientation
The exact replacement procedure depends on the host equipment.
3. Back Up Controller Information
Before performing maintenance, where applicable:
- Back up the PLC program.
- Record controller configuration.
- Record diagnostic information.
- Confirm the latest application backup is available.
This provides additional protection against unexpected memory loss.
4. Inspect the Existing Battery
Look for:
- Leakage
- Corrosion
- Damaged insulation
- Broken connector
- Physical deformation
- Loose wiring
If the existing battery shows leakage or physical damage, follow the appropriate hazardous-material and equipment maintenance procedures.
5. Observe Polarity
Before disconnecting the battery, identify the positive and negative connections.
Incorrect polarity can cause:
- Battery failure
- Controller malfunction
- Electrical damage
Always follow the controller’s wiring identification.
6. Remove the Existing Battery
If the controller procedure permits battery replacement:
- Prepare the replacement battery.
- Confirm the correct model.
- Verify polarity.
- Disconnect the old battery according to the maintenance procedure.
- Remove it carefully.
Do not pull directly on wires if a connector is provided.
7. Install the IC697ACC701
Install the replacement battery into the designated battery compartment or connector.
Verify:
- Correct orientation
- Correct polarity
- Secure connector
- Proper mechanical placement
- No cable strain
The supplied dimensions are:
50 × 20 × 20 mm
The supplied weight is:
0.045 kg
8. Verify Battery Connection
After installation inspect the connection carefully.
Confirm:
- Connector fully inserted
- Correct polarity
- No exposed conductor
- No damaged insulation
- Battery securely positioned
9. Clear Battery Diagnostics if Required
Some controller systems may generate a low-battery or battery replacement diagnostic.
After installing a new battery, check the controller diagnostic status and follow the applicable reset or acknowledgment procedure.
10. Verify Controller Operation
After replacement confirm:
- PLC starts normally
- Program remains intact
- Retained information is available
- Battery diagnostic is cleared
- Controller status is normal
Commissioning Checklist
| Item | Verification |
|---|---|
| Correct Battery Model | Confirmed |
| Controller Compatibility | Confirmed |
| Program Backup | Completed |
| Polarity | Verified |
| Battery Connector | Secure |
| Battery Installed | Confirmed |
| Controller Status | Normal |
| Battery Alarm | Cleared |
| Retained Data | Verified |
Troubleshooting Guide
Low Battery Alarm
Possible causes include:
- Battery nearing end of service life
- Poor battery connection
- Battery degradation
- Battery monitoring fault
Replace the battery with a compatible unit according to the controller maintenance procedure.
Battery Not Detected
Possible causes:
- Loose connector
- Incorrect battery installation
- Incorrect polarity
- Damaged battery
- Controller battery circuit fault
Inspect the battery connection before replacing the controller.
Retained Data Lost
Possible causes include:
- Completely discharged battery
- Battery disconnected for too long
- Memory retention problem
- Controller hardware fault
Restore the controller program and configuration from a verified backup where necessary.
PLC Will Not Start Normally After Battery Replacement
Possible causes:
- Incorrect battery connection
- Controller configuration problem
- Memory corruption
- Existing hardware fault
Check controller diagnostics and verify the application program.
Battery Discharges Too Quickly
Possible causes:
- Incorrect battery type
- Aging battery
- Excessive standby current
- Controller battery circuit problem
- Environmental conditions
If a new compatible battery repeatedly discharges unusually quickly, investigate the host controller rather than repeatedly replacing batteries.
Battery Leakage or Physical Damage
If the battery shows:
- Leakage
- Swelling
- Corrosion
- Cracked casing
- Damaged insulation
Do not continue normal handling. Isolate the equipment as appropriate and follow the applicable battery handling and disposal procedure.
Preventive Maintenance
Routine Inspection
Inspect the battery condition during scheduled PLC maintenance.
Check:
- Battery age
- Diagnostic status
- Connector condition
- Physical appearance
- Controller battery alarm
Scheduled Replacement
Do not wait for a complete battery failure when the controller manufacturer specifies a preventive replacement interval.
Replacing the battery proactively reduces the risk of losing retained information.
Environmental Inspection
Avoid excessive:
- Heat
- Humidity
- Chemical exposure
- Vibration
Environmental conditions can affect battery service life.
Battery Maintenance Checklist
| Inspection Item | Status |
|---|---|
| Battery Model Verified | ✓ |
| Controller Compatibility Confirmed | ✓ |
| Battery Condition Checked | ✓ |
| Connector Inspected | ✓ |
| Polarity Verified | ✓ |
| Battery Installed Correctly | ✓ |
| Low-Battery Alarm Checked | ✓ |
| PLC Program Verified | ✓ |
| Retained Data Verified | ✓ |
| Old Battery Handled Properly | ✓ |
Compatible System Components
The IC697ACC701 operates as part of a larger GE industrial control architecture.
| Component | Function |
|---|---|
| PLC CPU | Executes Control Program |
| Power Supply | Provides Primary System Power |
| Memory System | Stores Controller Information |
| I/O Modules | Interfaces with Field Devices |
| Terminal Blocks | Provides Wiring Connections |
| Communication Modules | Provides Network Connectivity |
| Programming Workstation | Controller Configuration and Backup |
The exact compatibility of the battery should always be confirmed against the host controller.
Key Advantages
Compact Design
The supplied dimensions of 50 × 20 × 20 mm allow installation in space-constrained controller assemblies.
Lightweight Construction
With a listed weight of 0.045 kg, the battery is easy to handle during maintenance.
Memory Backup Support
Provides backup energy for supported battery-backed controller functions.
Preventive Maintenance Friendly
The battery can be incorporated into scheduled PLC maintenance procedures.
System Data Protection
A properly maintained backup battery helps reduce the risk associated with loss of retained controller information during power interruptions.
Frequently Asked Questions
What is the GE IC697ACC701?
The GE IC697ACC701 is a backup battery designed for use with compatible GE industrial automation and PLC equipment.
What are its dimensions?
The supplied dimensions are:
50 × 20 × 20 mm
What is its weight?
The supplied weight is:
0.045 kg
What does the battery do in a PLC?
It provides backup energy for supported battery-backed memory or system retention functions when the main controller power is unavailable.
Why should a PLC battery be replaced periodically?
Rechargeable or non-rechargeable backup batteries can gradually lose capacity. A depleted battery may result in loss of retained information during a power interruption.
Can I replace the battery with any battery of the same size?
No. Physical dimensions alone are not sufficient. The replacement battery must have the correct electrical characteristics, connector, polarity, and compatibility with the controller.
What happens if the battery is completely discharged?
Depending on the controller architecture, retained information may be lost when the main power is removed. A verified PLC program and configuration backup should therefore be maintained.
Should the PLC be powered during battery replacement?
The correct procedure depends on the host controller. Some systems have specific battery replacement procedures designed to preserve memory, while others require power isolation. Always follow the applicable controller maintenance procedure.
What should I do if a new battery quickly generates another low-battery alarm?
Verify the battery installation and compatibility first. If the problem continues with a known-good battery, inspect the controller’s battery monitoring and retention circuitry.
Installation Checklist
| Item | Status |
|---|---|
| Correct IC697ACC701 Identified | ✓ |
| Host Controller Verified | ✓ |
| Application Backup Completed | ✓ |
| Battery Polarity Checked | ✓ |
| Existing Battery Inspected | ✓ |
| Replacement Battery Prepared | ✓ |
| Battery Installed | ✓ |
| Connector Secured | ✓ |
| Controller Diagnostics Checked | ✓ |
| Program Verified | ✓ |
| Retained Data Verified | ✓ |
| Maintenance Completed | ✓ |
Conclusion
The GE IC697ACC701 Battery is a compact maintenance component intended to provide backup power for supported battery-backed functions in compatible GE industrial automation equipment. With supplied dimensions of 50 × 20 × 20 mm and a weight of 0.045 kg, it can be installed within compact controller assemblies without significant additional space requirements.
The condition of a PLC backup battery should not be overlooked during preventive maintenance. A weak or depleted battery can create a significant risk if the controller experiences an unexpected power interruption and retained information depends on battery support.
For reliable operation, technicians should verify the exact host-controller compatibility, battery polarity, connector condition, and replacement procedure before installation. Maintaining a current PLC program and configuration backup provides an additional layer of protection.
When properly installed and maintained, the IC697ACC701 helps support dependable memory retention and improves the overall maintenance reliability of compatible GE industrial control systems.
