Product Overview

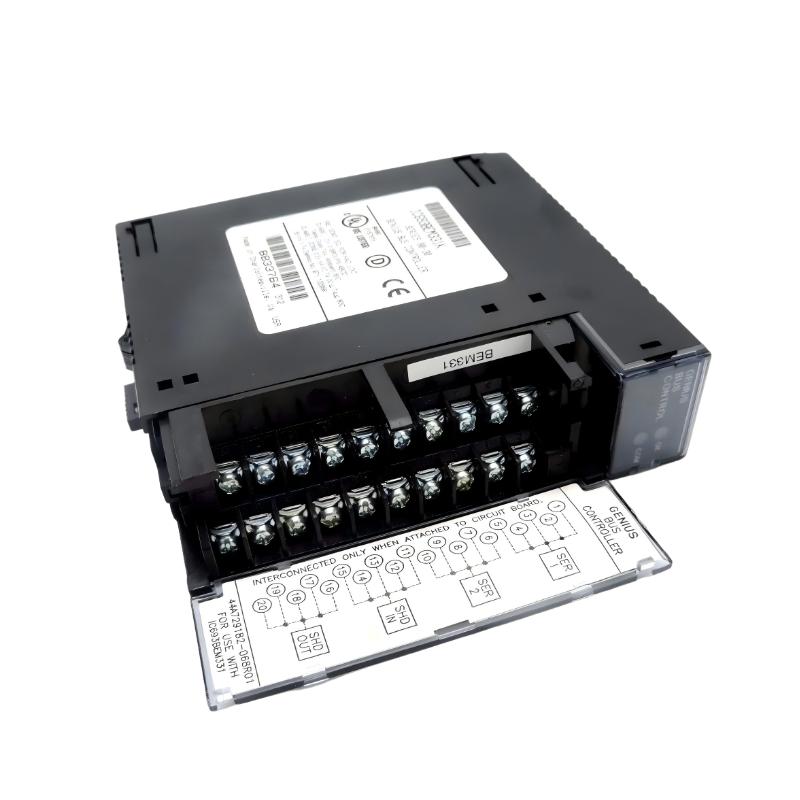

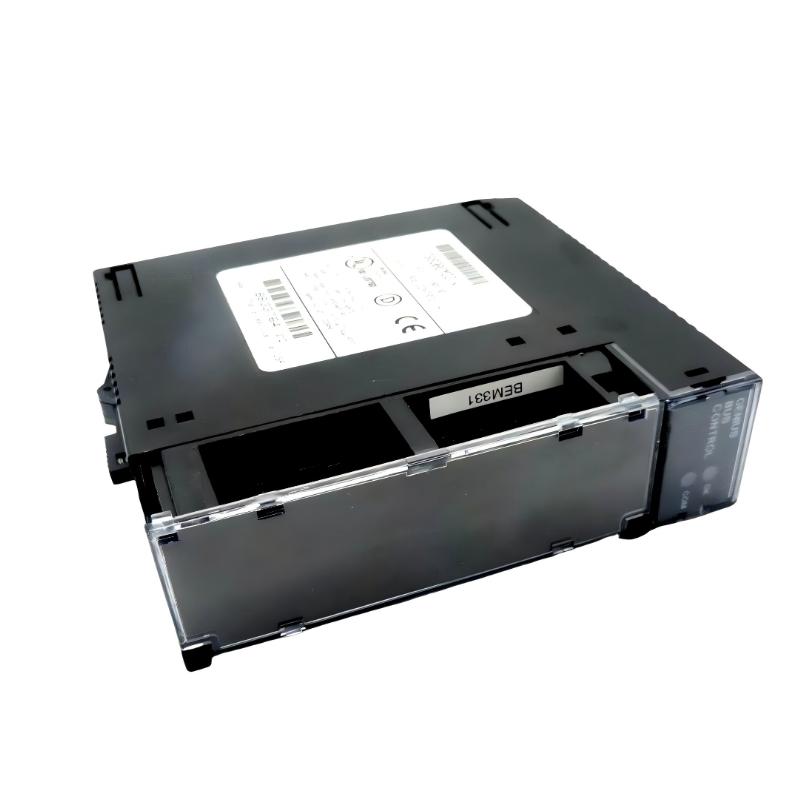

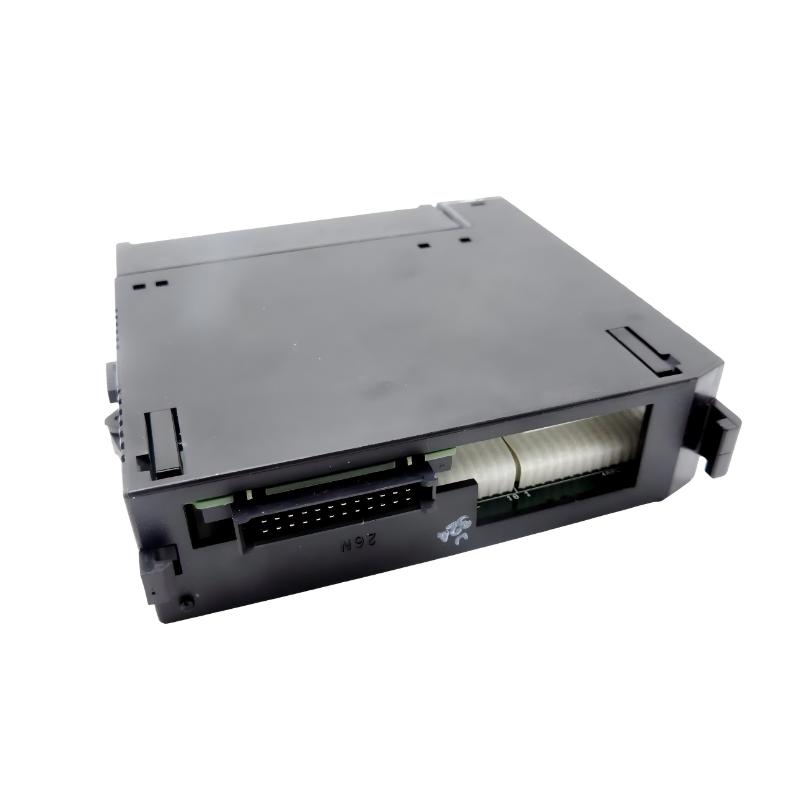

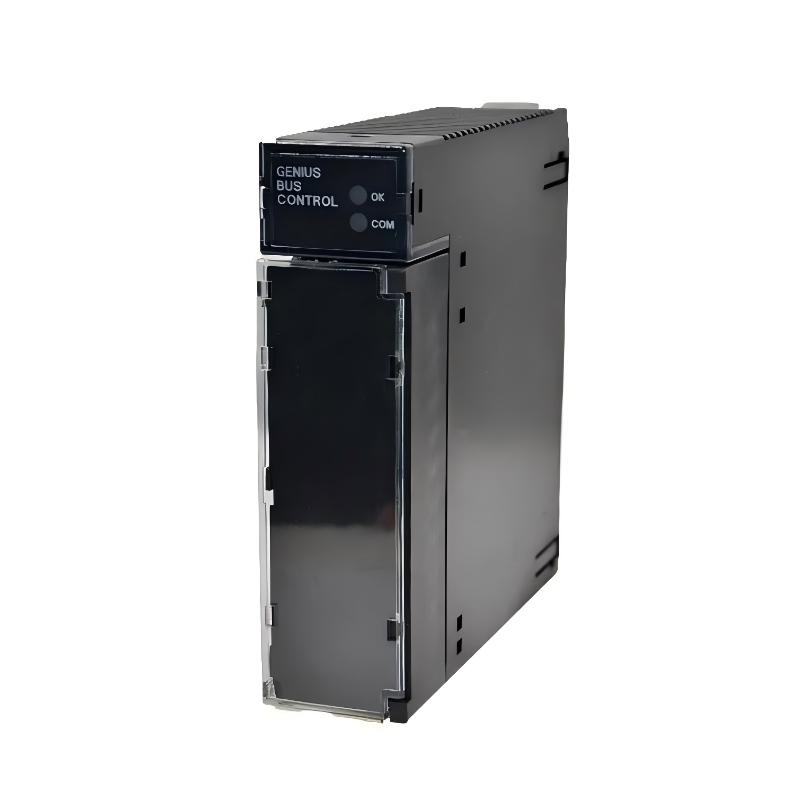

The GE IC696BEM331K NIUs Bus Controller is a communication interface module developed for the GE PACSystems RX3i platform. It serves as a Network Interface Unit (NIU) Bus Controller, enabling reliable communication between the local controller rack and distributed I/O devices over the NIUs bus network. The module plays a critical role in industrial automation systems by ensuring deterministic data exchange between controllers and remote field equipment.
Designed for demanding industrial environments, the IC696BEM331K supports high-speed data transmission, efficient remote I/O management, and stable system expansion. It is commonly used in manufacturing plants, process industries, power generation, water treatment, and other applications where reliable distributed control is essential.
With compact dimensions of 152 × 35 × 127 mm and a weight of 0.4 kg, the module is suitable for installation in standard RX3i control cabinets while minimizing panel space requirements.
Product Identification
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Product Series | PACSystems RX3i |
| Model | IC696BEM331K |
| Product Type | NIUs Bus Controller |
| Primary Function | Distributed I/O Network Communication |
| Installation | RX3i Rack |
| Communication Type | NIUs Bus |
| Dimensions | 152 × 35 × 127 mm |
| Weight | 0.4 kg |
| Mounting Method | Rack Mounted |
| Typical Application | Industrial Automation Systems |
Technical Specifications
| Technical Item | Specification |
|---|---|
| Brand | GE |
| Series | PACSystems RX3i |
| Model Number | IC696BEM331K |
| Product Category | NIUs Bus Controller |
| Communication Function | Remote Bus Communication |
| Installation Position | RX3i Rack |
| Dimensions | 152 × 35 × 127 mm |
| Weight | 0.4 kg |
| Cooling Method | Passive Cooling |
| Protection | Industrial Electrical Protection |
| Maintenance | Periodic Communication Inspection |
Working Principle
The IC696BEM331K acts as the communication gateway between the RX3i controller and distributed NIU devices. It exchanges control commands, process data, and diagnostic information across the bus network, allowing centralized control of remote I/O equipment.
A simplified communication architecture is shown below:
RX3i CPU
↓
IC696BEM331K NIUs Bus Controller
↓
NIUs Bus Network
↓
Remote NIU Station
↓
Digital / Analog I/O Modules
↓
Field Sensors and Actuators
This architecture enables centralized control while reducing wiring complexity and improving system scalability.
Main Functions
Distributed I/O Communication
Provides reliable communication between the controller and remote NIU stations.
High-Speed Data Exchange
Transfers process data, control commands, and diagnostic information with low latency.
Remote System Expansion
Allows additional remote I/O stations to be integrated into the automation system without extensive local wiring.
Network Diagnostics
Supports communication monitoring and fault detection to improve system availability.
Typical Industrial Applications
The GE IC696BEM331K is widely used in distributed automation systems, including:
Manufacturing
- Production lines
- Robotic assembly
- Packaging equipment
- Conveyor systems
Power Generation
- Turbine auxiliary control
- Generator monitoring
- Balance-of-plant automation
Oil & Gas
- Pipeline monitoring
- Compressor stations
- Remote process control
Water & Wastewater
- Pump stations
- Water treatment facilities
- Remote instrumentation
Chemical Processing
- Distributed process control
- Batch automation
- Process monitoring
Installation Guide
1. Verify Compatibility
Before installation, verify:
- RX3i rack compatibility
- CPU configuration
- Firmware compatibility
- Network topology
- NIU station configuration
Install the module only in compatible RX3i systems.
2. Isolate Power
Before installing or removing the module:
- Shut down the PLC.
- Disconnect electrical power.
- Follow lockout/tagout procedures.
- Verify that the system is de-energized.
3. Inspect the Rack
Check the rack for:
- Damaged connectors
- Bent backplane pins
- Loose hardware
- Dust accumulation
- Moisture
Repair any defects before installation.
4. Inspect the Module
Before installation inspect:
- Housing
- Connector
- Mounting guides
- Identification label
- Communication ports
Do not install a damaged module.
5. Install the Module
Align the module with the designated slot.
Carefully slide the module into the rack until fully seated.
Verify:
- Connector engagement
- Proper alignment
- Secure locking
Avoid applying excessive force.
6. Connect the Network
Connect the NIUs bus cable according to the system wiring documentation.
Verify:
- Correct cable routing
- Connector security
- Proper shielding
- Grounding
- Network termination where required
7. Restore Power
After installation:
- Verify wiring.
- Check module seating.
- Restore power.
- Observe status indicators.
8. Verify Communication
After startup confirm:
- CPU initializes normally.
- Bus controller LEDs indicate normal operation.
- Remote NIU stations are detected.
- I/O communication is established.
- No communication alarms are present.
Commissioning Checklist
Verify the following after installation:
- Module securely installed
- Network cable connected
- Status LEDs normal
- Remote stations online
- I/O data updating correctly
- Diagnostics clear
- Stable network communication
Troubleshooting Guide
Module Power LED Off
Possible causes include:
- No backplane power
- Loose installation
- Rack power issue
- Internal module fault
Verify rack power before replacing the module.
Communication Failure
Possible causes:
- Damaged bus cable
- Incorrect wiring
- Network termination fault
- Loose connector
- Module configuration error
Inspect the complete communication network.
Remote I/O Offline
Possible causes include:
- Bus cable interruption
- Remote station power failure
- Incorrect addressing
- Communication timeout
Verify the status of each remote station.
Intermittent Communication
Possible causes:
- Loose connectors
- Electrical interference
- Damaged cable
- Poor grounding
Inspect cable routing and grounding.
Bus Error Alarm
Possible causes include:
- Configuration mismatch
- Address conflict
- Network overload
- Faulty communication hardware
Review controller diagnostics before replacing hardware.
CPU Communication Fault
Possible causes:
- Bus controller fault
- Firmware incompatibility
- Backplane connection issue
- CPU configuration error
Verify firmware versions and system configuration.
Preventive Maintenance
Monthly Inspection
Inspect:
- LED indicators
- Module seating
- Communication cables
- Cabinet cleanliness
Quarterly Inspection
Verify:
- Cable shielding
- Grounding
- Connector security
- Rack condition
Annual Maintenance
Perform:
- Complete cabinet cleaning
- Communication testing
- Firmware verification
- Diagnostic review
- Cable integrity inspection
Maintenance Checklist
| Inspection Item | Status |
|---|---|
| Module Housing Inspected | ✓ |
| Rack Connector Checked | ✓ |
| Bus Cable Verified | ✓ |
| Grounding Inspected | ✓ |
| Module Fully Seated | ✓ |
| Remote Stations Online | ✓ |
| Communication Stable | ✓ |
| Diagnostics Clear | ✓ |
Compatible RX3i Components
The IC696BEM331K is designed to operate with compatible RX3i hardware and distributed I/O systems.
| Component | Function |
|---|---|
| RX3i CPU Module | Central Controller |
| Universal Backplane | Module Interconnection |
| Power Supply Module | Rack Power Distribution |
| Ethernet Communication Module | Network Communication |
| Digital I/O Modules | Field Signal Processing |
| Analog I/O Modules | Process Measurement and Control |
| Remote NIU Stations | Distributed I/O Expansion |
| Engineering Workstation | Configuration and Diagnostics |
Compatibility depends on the complete system architecture and firmware versions.
Key Advantages
Reliable Distributed Communication
Provides dependable communication between the controller and remote NIU stations.
Compact Design
The module dimensions of 152 × 35 × 127 mm allow efficient installation within industrial control cabinets.
Lightweight Construction
With a weight of 0.4 kg, installation and maintenance are straightforward.
Flexible System Expansion
Supports distributed I/O architectures that reduce field wiring and simplify future system expansion.
Industrial Reliability
Designed for continuous operation in demanding industrial automation environments.
Frequently Asked Questions
What is the GE IC696BEM331K?
The IC696BEM331K is a NIUs Bus Controller used to manage communication between an RX3i controller and distributed NIU-based remote I/O systems.
What are its dimensions?
The module measures:
152 × 35 × 127 mm
What is its weight?
The supplied weight is:
0.4 kg
What is the primary function of this module?
Its primary function is to exchange process data and control information between the local RX3i controller and remote NIU stations.
Can it be installed while the PLC is powered?
No. Always isolate system power before installing or removing the module.
What are common causes of communication faults?
Typical causes include:
- Damaged communication cables
- Incorrect wiring
- Loose connectors
- Address conflicts
- Configuration errors
- Remote station power failures
How can communication reliability be improved?
Regularly inspect network cables, maintain proper grounding, verify connector integrity, and periodically review controller diagnostics.
What should be checked before replacing the module?
Verify rack power, communication wiring, CPU diagnostics, remote station status, and system configuration before replacing the bus controller.
Installation Checklist
| Item | Status |
|---|---|
| Correct Module Verified | ✓ |
| Rack Compatibility Confirmed | ✓ |
| Power Isolated | ✓ |
| Module Inspected | ✓ |
| Module Installed | ✓ |
| Network Cable Connected | ✓ |
| Grounding Verified | ✓ |
| Power Restored | ✓ |
| Remote Stations Online | ✓ |
| Communication Verified | ✓ |
| Diagnostics Normal | ✓ |
| Final Functional Test Completed | ✓ |
Conclusion
The GE IC696BEM331K NIUs Bus Controller is an essential communication module for distributed RX3i automation systems, enabling reliable data exchange between the central controller and remote NIU stations. With compact dimensions of 152 × 35 × 127 mm and a weight of 0.4 kg, it offers efficient installation while supporting high-performance industrial networking.
Correct installation, proper network wiring, secure grounding, and routine preventive maintenance are key to maintaining long-term communication reliability. During troubleshooting, technicians should inspect the communication network, remote station status, controller diagnostics, and module installation before replacing hardware.
When integrated into a properly configured PACSystems RX3i system, the IC696BEM331K provides stable, efficient, and scalable distributed I/O communication for manufacturing, energy, water treatment, process industries, and other demanding industrial automation applications.
