Product Overview

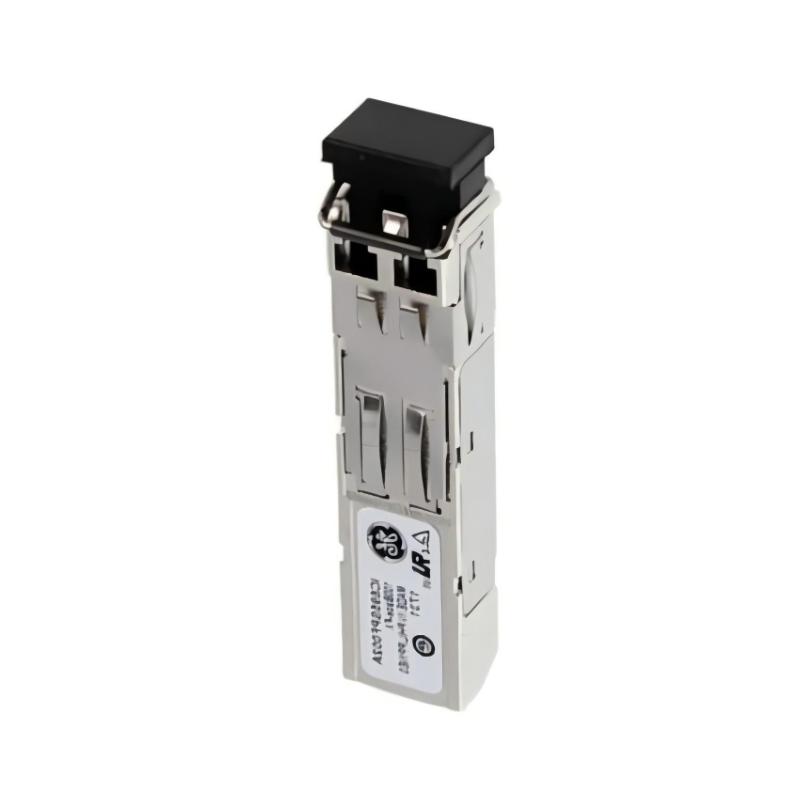

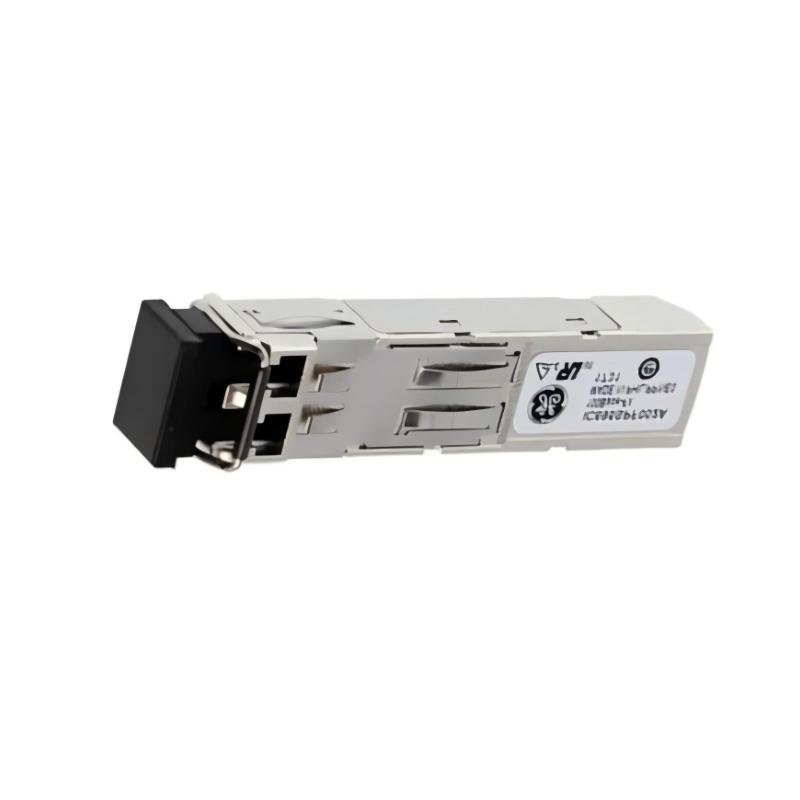

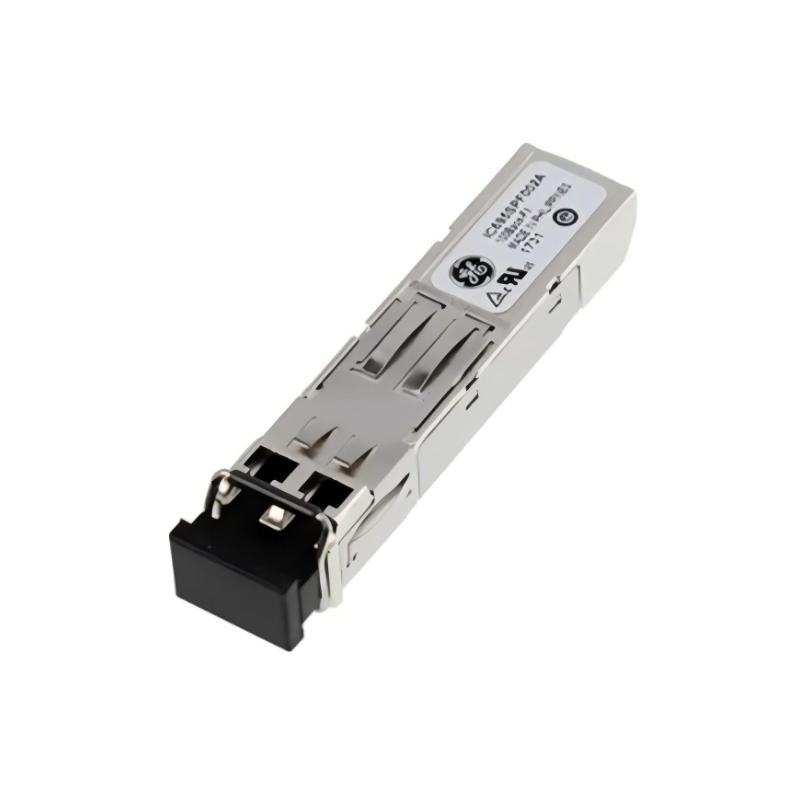

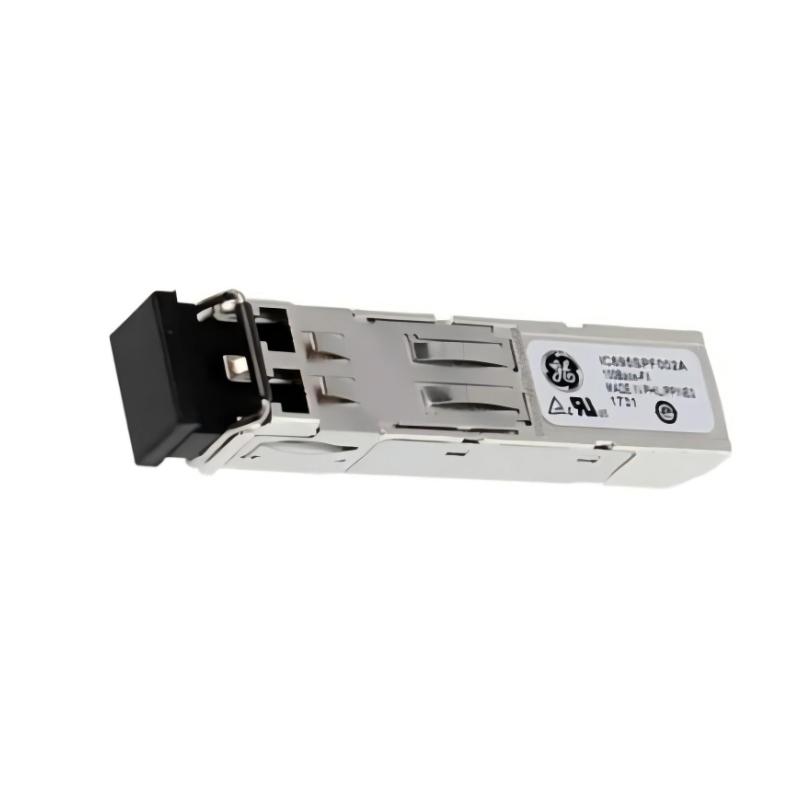

The GE IC695SPF550 Compact Pluggable Transceiver is a high-performance fiber-optic communication module developed for the GE PACSystems RX3i automation platform. It provides a compact optical interface for compatible Ethernet communication modules, enabling reliable, high-speed data transmission across industrial fiber-optic networks.
The IC695SPF550 converts electrical Ethernet signals into optical signals for transmission through fiber-optic cables and converts received optical signals back into electrical signals. This technology enables industrial automation systems to achieve stable communication over long distances while maintaining excellent immunity to electromagnetic interference (EMI), radio frequency interference (RFI), and electrical noise commonly found in manufacturing facilities.
Measuring 69 × 13 × 8 mm and weighing only 0.08 kg, the IC695SPF550 features a compact plug-in design that simplifies installation, replacement, and maintenance without requiring replacement of the host communication module.
Product Identification
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Product Series | PACSystems RX3i |
| Model | IC695SPF550 |
| Product Type | Compact Pluggable Transceiver |
| Communication Medium | Fiber Optic |
| Primary Function | Optical Ethernet Communication |
| Installation | Compatible RX3i Ethernet Communication Module |
| Dimensions | 69 × 13 × 8 mm |
| Weight | 0.08 kg |
| Mounting Type | Plug-In |
| Typical Application | Industrial Ethernet Networks |
Technical Specifications
| Technical Item | Specification |
|---|---|
| Brand | GE |
| Series | PACSystems RX3i |
| Model Number | IC695SPF550 |
| Product Category | Compact Pluggable Transceiver |
| Communication Technology | Fiber-Optic Ethernet |
| Installation Method | Plug-In Module |
| Host Equipment | Compatible RX3i Communication Modules |
| Dimensions | 69 × 13 × 8 mm |
| Weight | 0.08 kg |
| Cooling | Passive Cooling |
| Operating Environment | Industrial Automation Systems |
| Maintenance | Periodic Optical Connector Inspection |
Working Principle
The IC695SPF550 acts as the optical interface between an RX3i Ethernet communication module and a fiber-optic communication network.
It converts electrical Ethernet signals into optical signals for transmission through optical fibers. Incoming optical signals are then converted back into electrical signals before being processed by the communication module.
The communication process is illustrated below:
RX3i CPU
↓
Ethernet Communication Module
↓
IC695SPF550 Compact Pluggable Transceiver
↓
Fiber-Optic Cable
↓
Industrial Ethernet Switch
↓
Remote PLC / HMI / SCADA / Remote I/O
Fiber-optic communication significantly reduces the effects of electrical interference and supports stable data transmission across extended distances.
Main Functions
Optical Signal Conversion
Converts electrical Ethernet data into optical signals and vice versa.
Industrial Ethernet Communication
Provides a reliable optical communication interface for industrial control systems.
Long-Distance Data Transmission
Supports communication over fiber-optic infrastructure where copper Ethernet limitations may exist.
EMI Immunity
Fiber communication is naturally resistant to electromagnetic and radio-frequency interference.
Typical Industrial Applications
The GE IC695SPF550 is widely deployed in industrial automation systems requiring high communication reliability.
Manufacturing
- PLC networking
- Production automation
- Packaging systems
- Robotic manufacturing
Power Generation
- Turbine control
- Plant automation
- Generator monitoring
Oil & Gas
- Pipeline communication
- Compressor stations
- Distributed control systems
Water & Wastewater
- Remote pumping stations
- Treatment facilities
- SCADA communication
Transportation
- Railway automation
- Traffic management
- Tunnel control systems
Installation Guide
1. Verify Compatibility
Before installation verify:
- Communication module model
- Supported transceiver type
- Fiber connector compatibility
- Network architecture
- Fiber cable specifications
Only install the IC695SPF550 in communication modules designed to support compact pluggable transceivers.
2. Prepare the Equipment
Before installation:
- Follow plant safety procedures.
- Disconnect equipment power if required.
- Use ESD protection.
- Handle the module carefully.
- Keep protective dust caps installed until connection.
3. Inspect the Transceiver
Before installation inspect:
- Housing
- Connector
- Retaining latch
- Optical interface
- Label
Do not install a damaged transceiver.
4. Inspect the Communication Module
Verify that the host module is:
- Clean
- Undamaged
- Free of foreign material
- Mechanically secure
Inspect the transceiver slot before installation.
5. Install the Transceiver
Align the IC695SPF550 with the transceiver slot.
Insert the module carefully until the locking mechanism engages.
Confirm:
- Proper seating
- Correct orientation
- Secure mechanical engagement
Avoid excessive insertion force.
6. Connect the Fiber Cable
Remove protective caps immediately before connecting the fiber.
Inspect:
- Connector cleanliness
- Fiber polarity
- Cable integrity
- Connector locking
Never touch the optical end faces.
7. Restore Power
After installation:
- Verify all connections.
- Restore power.
- Observe communication indicators.
- Confirm network initialization.
8. Verify Network Operation
Confirm:
- Link indicators illuminate
- Network communication is established
- Controller diagnostics show normal operation
- Remote devices communicate successfully
Commissioning Checklist
Verify the following after installation:
- Transceiver fully inserted
- Fiber securely connected
- Optical connectors clean
- Link LEDs active
- Stable network communication
- Controller diagnostics normal
Troubleshooting Guide
Link Indicator Off
Possible causes include:
- Disconnected fiber
- Incorrect fiber polarity
- Dirty optical connector
- Unsupported transceiver
- Failed transceiver
Check physical connections before replacing the module.
Communication Interruption
Possible causes:
- Loose fiber connector
- Damaged optical cable
- Excessive fiber bending
- Connector contamination
Inspect the complete communication path.
Network Timeout
Possible causes include:
- Incorrect network configuration
- Fiber attenuation
- Switch configuration issues
- Communication module fault
Verify network settings and hardware connections.
High Error Rate
Possible causes:
- Dirty connectors
- Damaged fiber
- Excessive optical loss
- Poor connector alignment
Clean optical connectors using approved fiber-cleaning tools.
Transceiver Not Detected
Possible causes include:
- Improper installation
- Unsupported communication module
- Defective transceiver
- Damaged host slot
Remove and reinstall the module after confirming compatibility.
Communication Module Alarm
Possible causes:
- Optical signal loss
- Unsupported transceiver
- Hardware fault
- Network interruption
Review controller diagnostics before replacing equipment.
Preventive Maintenance
Monthly Inspection
Inspect:
- Fiber cables
- Connector condition
- Link indicators
- Dust caps
- Cable routing
Quarterly Inspection
Verify:
- Connector cleanliness
- Fiber bend radius
- Mechanical retention
- Cable strain relief
Annual Maintenance
Perform:
- Optical connector cleaning
- Fiber integrity testing
- Communication diagnostics
- Network performance verification
Maintenance Checklist
| Inspection Item | Status |
|---|---|
| Housing Inspected | ✓ |
| Optical Ports Clean | ✓ |
| Fiber Cable Verified | ✓ |
| Connector Locked | ✓ |
| Link LED Normal | ✓ |
| Communication Stable | ✓ |
| Diagnostics Clear | ✓ |
| Cable Routing Verified | ✓ |
Compatible RX3i Components
The IC695SPF550 is designed for use with compatible GE PACSystems RX3i communication hardware.
| Component | Function |
|---|---|
| RX3i CPU | System Controller |
| RX3i Ethernet Communication Module | Network Interface |
| Fiber-Optic Cable | Optical Transmission |
| Industrial Ethernet Switch | Network Infrastructure |
| Remote I/O Station | Distributed Automation |
| HMI | Operator Interface |
| SCADA System | Supervisory Monitoring |
| Engineering Workstation | System Configuration |
Actual compatibility depends on the installed communication module and overall system configuration.
Key Advantages
Reliable Fiber Communication
Supports stable industrial Ethernet communication through fiber-optic technology.
Compact Form Factor
With dimensions of 69 × 13 × 8 mm, the module occupies minimal installation space.
Lightweight Design
Weighing only 0.08 kg, the transceiver is easy to install, replace, and transport.
Excellent Noise Immunity
Fiber-optic communication is resistant to EMI and RFI, improving network reliability in harsh industrial environments.
Simplified Maintenance
The plug-in design enables convenient replacement without replacing the complete communication module.
Frequently Asked Questions
What is the GE IC695SPF550?
The IC695SPF550 is a Compact Pluggable Transceiver used to provide fiber-optic Ethernet communication for compatible GE PACSystems RX3i communication modules.
What are the module dimensions?
The supplied dimensions are:
69 × 13 × 8 mm
What is the module weight?
The supplied weight is:
0.08 kg
What is its primary purpose?
The transceiver converts electrical Ethernet signals into optical signals and converts received optical signals back into electrical signals for fiber-optic communication.
Can it be installed in any Ethernet module?
No. It should only be used with communication modules specifically designed to support compatible compact pluggable transceivers.
What commonly causes communication failure?
Typical causes include:
- Dirty fiber connectors
- Loose fiber connections
- Incorrect cable polarity
- Damaged fiber cables
- Unsupported transceivers
Why are optical connectors important?
Even small amounts of dust or contamination can significantly reduce optical signal quality and communication reliability.
How should the transceiver be maintained?
Inspect connectors regularly, keep dust caps installed when not connected, avoid excessive cable bending, and clean optical interfaces using approved fiber-optic cleaning tools.
Installation Checklist
| Item | Status |
|---|---|
| Correct Transceiver Verified | ✓ |
| Compatible Host Module Confirmed | ✓ |
| ESD Protection Used | ✓ |
| Transceiver Inspected | ✓ |
| Host Slot Inspected | ✓ |
| Module Installed | ✓ |
| Fiber Connected | ✓ |
| Link LEDs Verified | ✓ |
| Communication Established | ✓ |
| Diagnostics Normal | ✓ |
| Final Functional Test Completed | ✓ |
Conclusion
The GE IC695SPF550 Compact Pluggable Transceiver is an essential communication accessory for compatible GE PACSystems RX3i Ethernet modules, providing reliable fiber-optic connectivity for industrial automation networks. Its compact dimensions of 69 × 13 × 8 mm and lightweight construction of 0.08 kg make it easy to install while supporting high-performance optical communication.
Proper installation, careful handling, clean optical connectors, and routine preventive maintenance are essential to ensure dependable network operation. During troubleshooting, technicians should first inspect fiber cables, connector cleanliness, communication-module compatibility, and network configuration before replacing the transceiver.
When correctly installed and maintained, the IC695SPF550 delivers stable, interference-resistant fiber-optic communication for demanding applications in manufacturing, process control, utilities, transportation, and other industrial automation environments.
