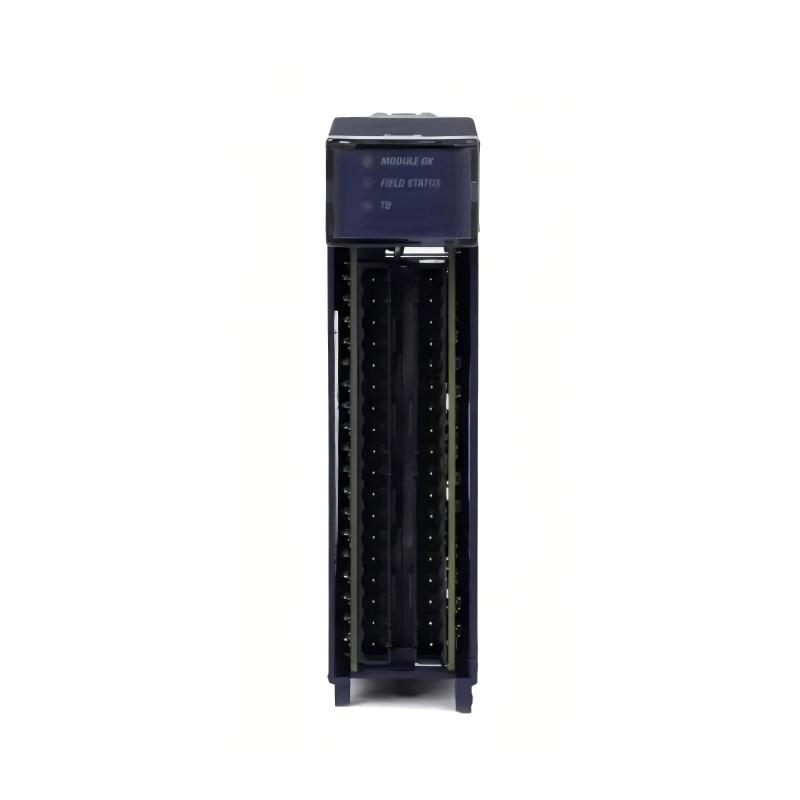

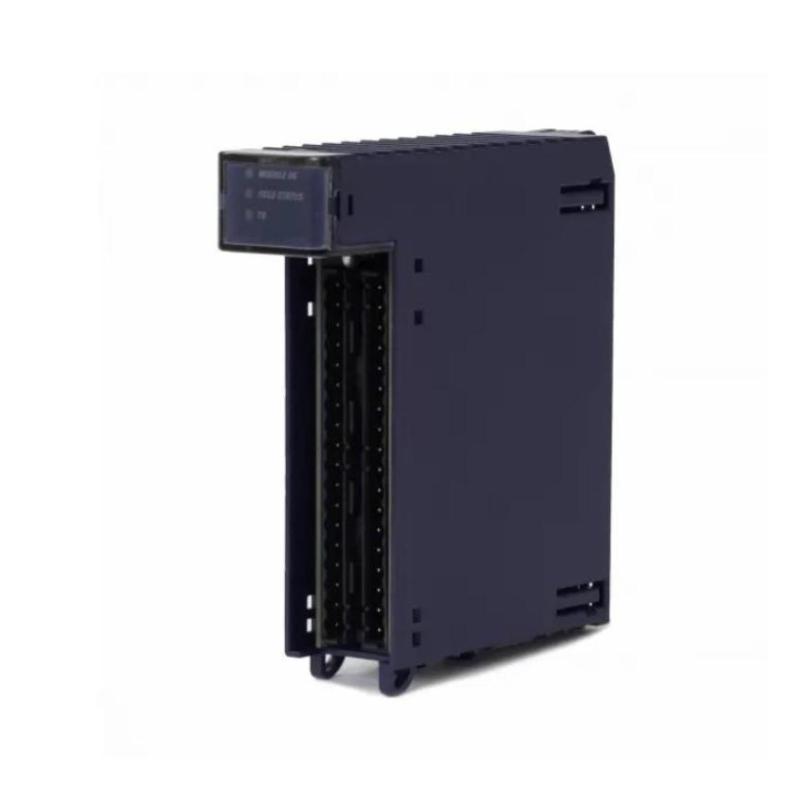

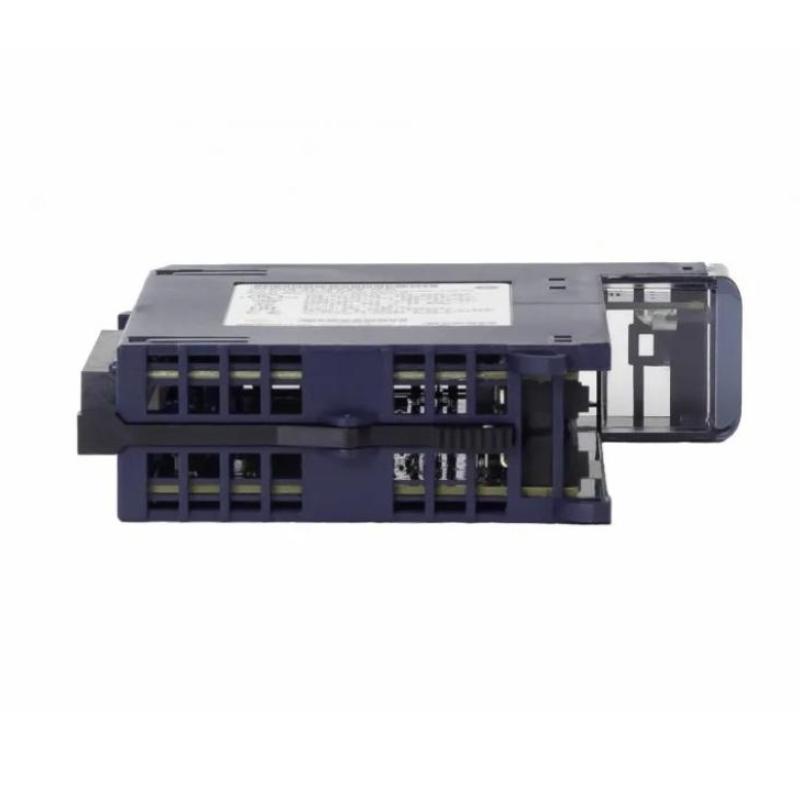

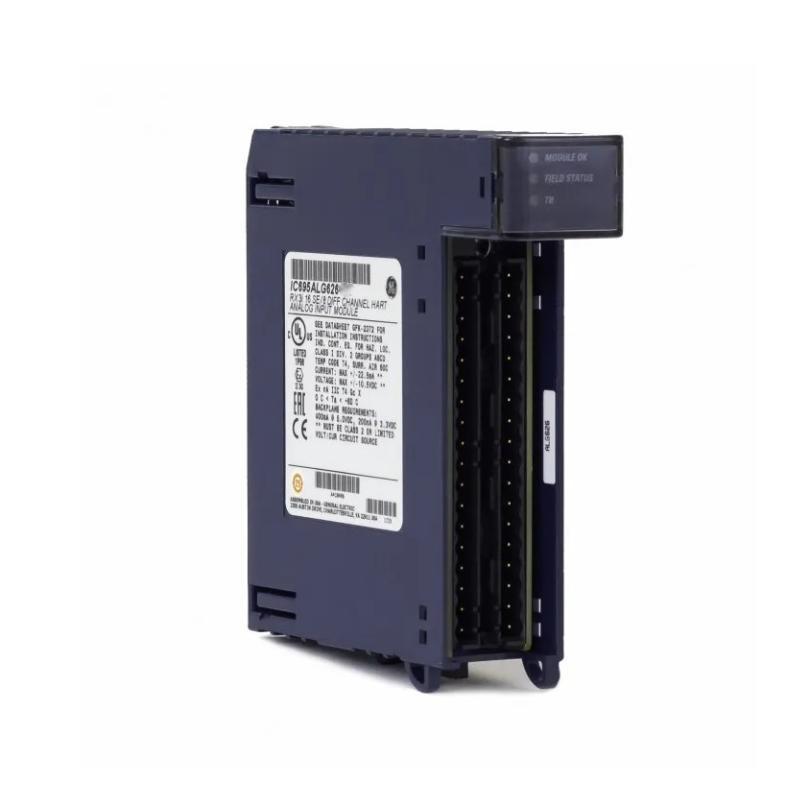

Product Overview The GE IC695ALG626 is an RX3i Analog Input Module designed for high-performance industrial automation and process control applications. As part of the PACSystems RX3i platform, the modu……
GE IC695ALG626 RX3i Analog Input Module
  • GE
  • IC695ALG626
  • RX3i Analog Input Module
  • USA
  • 145 x 34 x 140 mm
  • 0.227 kg
  • Xiamen, China
  • New & In Stock
  • T/T, PayPal, Western Union
  • 1 Year
  • 1-3 Working Days
  • DHL, UPS, TNT, FedEx and EMS.
  • 24-Hour Service
  • COO
  • 5

Our advantage

GE IC695ALG626 RX3i Analog Input Module

Global Logistics

We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.

GE IC695ALG626 RX3i Analog Input Module

Brand new and original

Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.

GE IC695ALG626 RX3i Analog Input Module

24-hour service

We provide 7*24 hours service to our customers. We will be there whenever you need us.

GE IC695ALG626 RX3i Analog Input Module

Price advantage

All our products are priced very favorably because we have our own warehouse and supply.


Company Information
E-mail [email protected]
Mobile +8615980777398
Whatsapp +8615980777398
WeChat 15980777398

Product Overview

The GE IC695ALG626 is an RX3i Analog Input Module designed for high-performance industrial automation and process control applications. As part of the PACSystems RX3i platform, the module converts analog signals from field instruments into high-resolution digital data for processing by the RX3i CPU. It is widely used in applications requiring precise measurement of process variables such as pressure, temperature, flow, level, and other analog signals.

The module integrates seamlessly with GE RX3i PLC systems, providing dependable signal acquisition, comprehensive diagnostics, and high immunity to industrial electrical noise. Its compact design, measuring 145 × 34 × 140 mm with a weight of approximately 0.227 kg, allows high-density installation within RX3i control cabinets while simplifying maintenance and future system expansion.

Designed for continuous industrial operation, the IC695ALG626 delivers stable measurement accuracy, excellent long-term reliability, and compatibility with demanding industrial environments including manufacturing, power generation, water treatment, oil & gas, mining, and chemical processing.


Product Identification

Parameter Specification
Manufacturer GE
Product Series PACSystems RX3i
Model IC695ALG626
Product Type Analog Input Module
System Platform RX3i PLC
Function Analog Signal Acquisition
Installation RX3i Universal Backplane
Dimensions 145 × 34 × 140 mm
Weight 0.227 kg
Mounting RX3i Rack
Cooling Method Natural Convection
Application Industrial Automation

Technical Specifications

Technical Item Specification
Product Family PACSystems RX3i
Module Category Analog Input Module
Installation Platform RX3i Universal Rack
Signal Conversion Analog to Digital
Mechanical Width 34 mm
Height 145 mm
Depth 140 mm
Weight Approximately 0.227 kg
Communication RX3i Backplane Bus
Isolation Industrial Grade
Diagnostic Features Module and Channel Diagnostics
Operating Mode Continuous Industrial Operation

Main Functions

The IC695ALG626 receives analog electrical signals generated by field devices and converts them into digital process values for the PLC.

Typical connected devices include:

  • Pressure transmitters
  • Temperature transmitters
  • Flow meters
  • Level transmitters
  • Position sensors
  • Process analyzers
  • Industrial instrumentation
  • Monitoring equipment

Signal flow:

Field Instrument

Analog Signal

IC695ALG626

RX3i Backplane

RX3i CPU

PLC Program

HMI / SCADA

Industrial Process


Working Principle

The module continuously samples analog electrical signals from connected field instruments.

The conversion sequence includes:

  1. Field instrument measures the process variable.
  2. Transmitter generates an analog electrical signal.
  3. The analog input channel receives the signal.
  4. Internal A/D conversion converts the analog value into digital data.
  5. The RX3i CPU reads the converted value.
  6. PLC software applies engineering scaling.
  7. Process values become available for monitoring, alarming, and control.

Accurate measurement depends on proper wiring, configuration, grounding, and signal integrity.


Typical Industrial Applications

The IC695ALG626 is widely used in:

  • Power generation
  • Water treatment
  • Oil & Gas
  • Chemical processing
  • Pharmaceutical manufacturing
  • Food & Beverage
  • Steel production
  • Mining
  • Cement plants
  • Pulp & Paper
  • Marine automation
  • General factory automation

Installation Guide

1. Verify Product Identification

Confirm the module model:

GE IC695ALG626

Verify that the installed module matches the PLC hardware configuration.


2. Confirm System Compatibility

Verify compatibility with:

  • RX3i Universal Backplane
  • RX3i CPU
  • RX3i Power Supply
  • Engineering software
  • PLC project configuration

3. Inspect the Module

Before installation inspect:

  • Housing
  • Connector
  • Backplane contacts
  • Module label
  • Terminal connections
  • Mechanical condition

Do not install a physically damaged module.


4. Prepare Installation Space

Module dimensions:

  • Height: 145 mm
  • Width: 34 mm
  • Depth: 140 mm

Allow sufficient space for:

  • Ventilation
  • Wiring
  • Future maintenance
  • Module replacement

5. Verify Power Isolation

Before installation:

  • Stop the PLC system.
  • Remove control power.
  • Lock out electrical sources.
  • Verify zero voltage.

6. Install the Module

Insert the module into the correct RX3i rack slot.

Confirm:

  • Proper alignment
  • Complete insertion
  • Secure locking
  • Correct slot assignment

7. Connect Field Wiring

Connect analog field devices according to the approved wiring diagram.

Verify:

  • Terminal identification
  • Signal polarity
  • Shield termination
  • Cable routing
  • Channel assignment

Separate analog cables from high-voltage or motor power wiring.


8. Grounding

Inspect:

  • Cabinet grounding
  • Shield grounding
  • Signal reference
  • Protective earth

Proper grounding minimizes electrical interference and improves measurement stability.


9. Configure the Module

Using the engineering software:

  • Add the IC695ALG626 to the hardware configuration.
  • Configure input channels.
  • Select signal ranges.
  • Set engineering units.
  • Configure diagnostics and alarms.

10. Power Up and Test

Restore system power and verify:

  • Module status LEDs
  • CPU communication
  • Analog values
  • Diagnostic messages
  • HMI indications

Commissioning Procedure

Step 1

Download the hardware configuration.


Step 2

Verify module recognition by the RX3i CPU.


Step 3

Confirm communication status.


Step 4

Compare analog readings with calibrated field instruments.


Step 5

Verify engineering scaling and alarm limits.


Step 6

Perform operational testing under normal process conditions.


Troubleshooting Guide

Fault 1 — Module Not Recognized

Possible causes:

  • Incorrect rack slot
  • Improper insertion
  • Hardware configuration mismatch
  • Power supply issue
  • Backplane communication failure

Fault 2 — No Analog Input Signal

Possible causes:

  • Open circuit
  • Broken field wiring
  • Failed transmitter
  • Incorrect configuration
  • No transmitter power

Fault 3 — Analog Reading Too High

Inspect:

  • Input range
  • Signal polarity
  • Scaling parameters
  • Transmitter calibration
  • Wiring

Fault 4 — Analog Reading Too Low

Possible causes:

  • Low transmitter output
  • Loose wiring
  • Incorrect scaling
  • Sensor degradation

Fault 5 — Unstable Analog Values

Possible causes:

  • Electrical noise
  • Poor grounding
  • Damaged shield
  • Loose terminals
  • Nearby variable frequency drives

Fault 6 — Multiple Channel Failure

Inspect:

  • Common power supply
  • Rack power
  • Backplane communication
  • PLC diagnostics
  • Hardware configuration

Fault 7 — Single Channel Failure

Check:

  • Field device
  • Wiring
  • Terminal connections
  • Channel configuration
  • Module diagnostics

Fault 8 — Incorrect HMI Display

Possible causes:

  • Incorrect PLC scaling
  • Wrong engineering units
  • HMI tag error
  • PLC programming issue

Fault 9 — Communication Error

Inspect:

  • RX3i CPU
  • Rack backplane
  • Power supply
  • Module seating
  • PLC diagnostics

Fault 10 — Intermittent Signal

Possible causes:

  • Loose connector
  • Moisture
  • Vibration
  • Damaged cable
  • Electromagnetic interference

Diagnostic Workflow

Recommended troubleshooting sequence:

Field Instrument

Signal Wiring

IC695ALG626

RX3i Backplane

RX3i CPU

PLC Program

HMI / SCADA

Industrial Process

This structured approach helps isolate faults efficiently while minimizing unnecessary module replacement.


Preventive Maintenance

Routine inspections should include:

Mechanical Inspection

  • Housing
  • Connector
  • Module locking
  • Rack installation

Wiring Inspection

  • Terminal tightness
  • Cable insulation
  • Shield continuity
  • Wire identification

Electrical Inspection

  • Power supply
  • Grounding
  • Shielding
  • Cabinet ventilation

Software Inspection

  • Hardware configuration
  • Diagnostic logs
  • Alarm history
  • Scaling parameters

Environmental Inspection

  • Temperature
  • Humidity
  • Dust accumulation
  • Cabinet cleanliness
  • Airflow

Preventive Maintenance Checklist

Inspection Item Recommended Action
Module Housing Visual inspection
Connector Inspect contacts
Wiring Tighten terminals
Grounding Verify continuity
Shielding Inspect cable shields
Diagnostics Review module alarms
PLC Backup Archive project
Cabinet Clean and inspect ventilation

Replacement Procedure

  1. Record the module slot location.
  2. Back up the PLC project.
  3. Remove system power.
  4. Disconnect field wiring.
  5. Remove the old module.
  6. Inspect the rack connector.
  7. Install the replacement IC695ALG626.
  8. Reconnect field wiring.
  9. Restore hardware configuration.
  10. Apply power.
  11. Verify communication.
  12. Check analog values.
  13. Test alarms and HMI displays.
  14. Return the system to normal operation.

Advantages

  • High-performance analog signal acquisition
  • Compact RX3i module design
  • Stable and accurate measurements
  • Reliable industrial communication
  • Comprehensive diagnostics
  • Easy integration with RX3i PLC systems
  • High resistance to industrial electrical noise
  • Simple installation and maintenance
  • Long operational service life
  • Suitable for critical industrial applications

Frequently Asked Questions

What is the GE IC695ALG626?

The GE IC695ALG626 is an RX3i Analog Input Module used to convert analog signals from industrial field devices into digital data for PACSystems RX3i PLC controllers.

What are the dimensions?

145 × 34 × 140 mm

What is the weight?

Approximately 0.227 kg.

Which PLC platform supports this module?

It is designed for the GE PACSystems RX3i platform.

What is its primary function?

The module acquires analog process signals from field instruments for monitoring, control, and automation applications.

Why are analog readings unstable?

Common causes include poor grounding, electrical interference, damaged signal wiring, loose terminals, incorrect configuration, or transmitter faults.

Why is the module not recognized?

Check module seating, rack compatibility, power supply status, hardware configuration, and backplane communication.

What should be inspected before replacing the module?

Verify field devices, wiring, transmitter power, hardware configuration, rack communication, and diagnostic information before determining that the module requires replacement.


Conclusion

The GE IC695ALG626 RX3i Analog Input Module provides dependable analog signal acquisition for demanding industrial automation systems. Its compact dimensions of 145 × 34 × 140 mm and lightweight 0.227 kg construction make it suitable for high-density RX3i control cabinets while delivering reliable long-term performance.

Proper installation, correct field wiring, accurate hardware configuration, and regular preventive maintenance are essential for ensuring measurement accuracy and system reliability. During troubleshooting, engineers should follow a systematic diagnostic process—from the field instrument through the module, PLC, and HMI—to quickly identify the root cause of faults and minimize unnecessary downtime.
