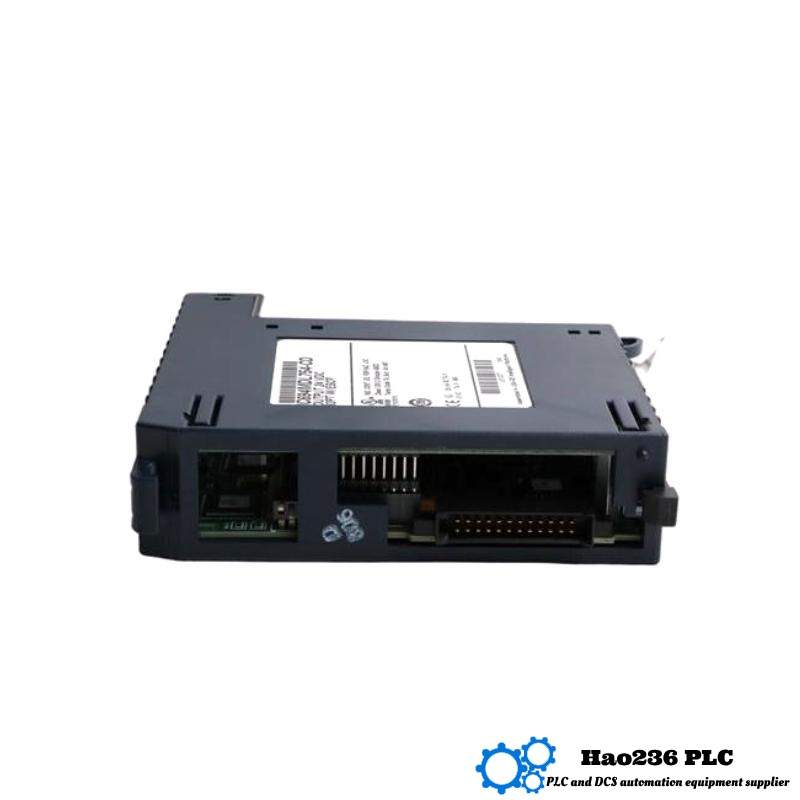

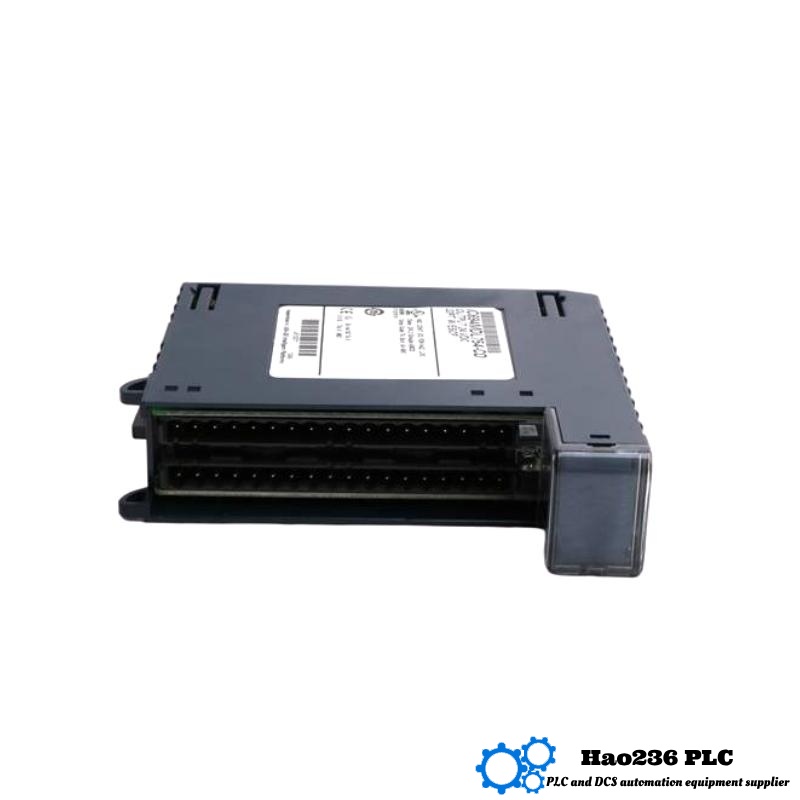

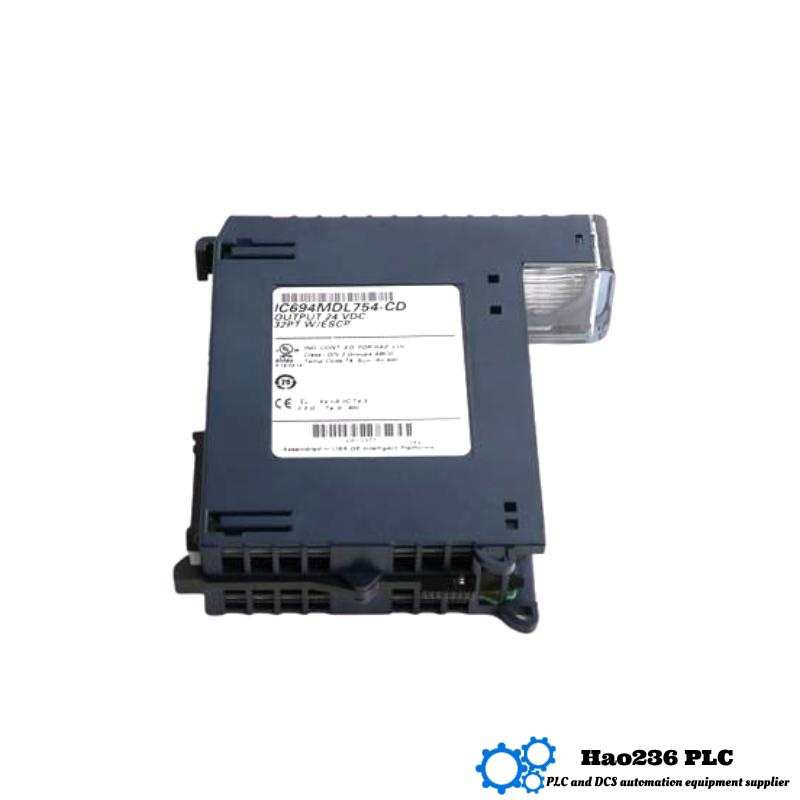

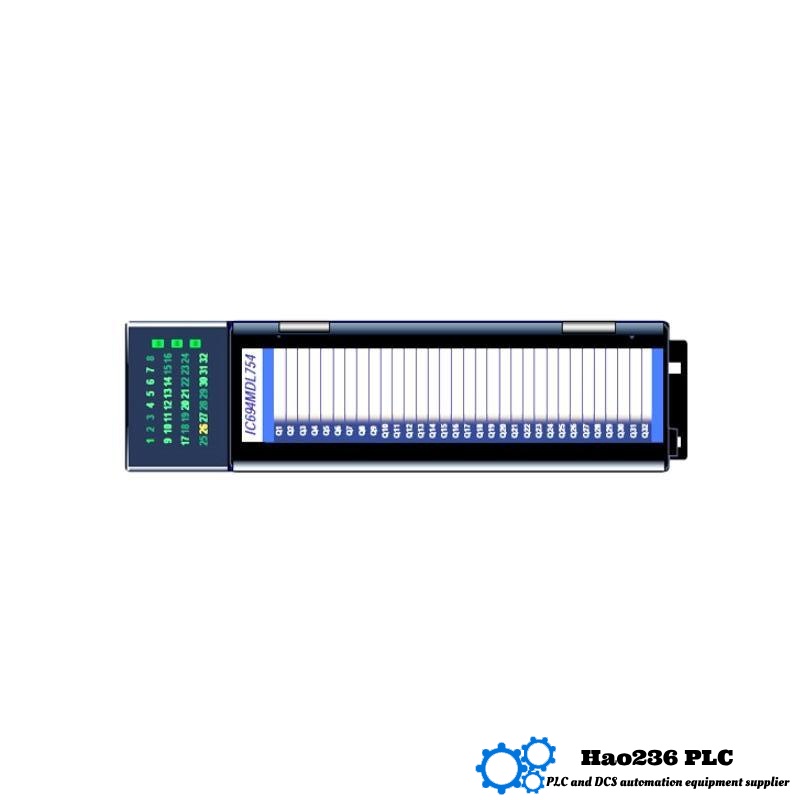

GE IC694MDL754 Voltage Output Module
Product Introduction
The GE IC694MDL754 is a high-performance voltage output module designed for use in GE’s RX3i PACSystems series. This module offers 8 channels of voltage output, enabling precise control of actuators, valves, and other devices requiring voltage signals. It provides a reliable and accurate output range of 0-10 V DC, making it suitable for various industrial applications where precise voltage control is essential.
The IC694MDL754 module is known for its high resolution, isolation, and fast response times, making it a perfect fit for systems requiring accurate signal conversion and real-time control. Designed for industrial automation, the module is ideal for use in control systems within industries like chemical processing, manufacturing, energy management, and automated machinery.
The module’s robust design and seamless integration with the RX3i platform ensure smooth operations in harsh industrial environments. It offers an intuitive installation process and is mounted via the DIN rail for easy integration.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | IC694MDL754 |
| Series | RX3i PACSystems |
| Input Channels | 8 channels of voltage output |
| Output Range | 0-10 V DC |
| Resolution | 12-bit |
| Output Current per Channel | 5 mA |
| Power Supply | 24 V DC |
| Dimensions (mm) | 34 x 145 x 140 |
| Weight | 0.381 kg |
| Mounting | DIN rail |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 |
| Communication Protocol | Modbus/RTU |
Product Applications
The GE IC694MDL754 voltage output module is used across a variety of industrial control systems, including:
-
Process control systems for chemical and pharmaceutical industries
-
Automated manufacturing systems, controlling machinery and production lines
-
Energy management systems requiring precise voltage control for monitoring and regulation
-
HVAC control systems, adjusting the output to control heating, ventilation, and air conditioning equipment
-
Water treatment facilities where precise voltage output is essential for equipment control
Product Advantages
-
High Precision Output: The IC694MDL754 offers 12-bit resolution, ensuring precise voltage output control for industrial applications.
-
Multiple Channels: With 8 output channels, this module allows for flexible integration in control systems with multiple output requirements.
-
Fast Response Time: The module offers quick update rates to ensure real-time system control, reducing lag in dynamic systems.
-
Industrial Reliability: Built for harsh industrial environments, it has an operating temperature range of 0°C to +60°C and is equipped with IP20 protection.
-
Easy Installation: It is designed for DIN rail mounting, making it simple to integrate into existing control panels and systems.
-
Flexible Power Supply: Operating on a 24 V DC power supply, the module ensures efficiency and reliability in industrial applications.
-
Seamless Integration with RX3i Platform: As part of the RX3i PACSystems series, the IC694MDL754 integrates smoothly with other GE automation components for a unified control system.
Brand: GE
GE (General Electric) is a global leader in energy management and industrial automation. The GE RX3i PACSystems series represents the forefront of programmable automation, providing high-performance, flexible, and scalable solutions for a wide range of industries. GE’s products are known for their reliability, innovative design, and seamless integration, offering customers state-of-the-art automation systems that deliver performance, efficiency, and sustainability.
Related Models (RX3i Series)
| Model Number | Description | Input Channels | Output Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC694MDL740 | Voltage Output Module | 8 | Voltage (0-10V) | 34 x 145 x 140 | 0.249 |
| IC694MDL730 | Voltage Output Module | 4 | Voltage (0-10V) | 34 x 145 x 140 | 0.250 |
| IC694MDL750 | Voltage Output Module | 8 | Voltage (0-10V) | 34 x 145 x 140 | 0.255 |
| IC694MDL780 | Digital Output Module | 16 | Digital | 34 x 145 x 140 | 0.300 |
| IC694MDL760 | Voltage Output Module | 4 | Voltage (0-10V) | 34 x 145 x 140 | 0.245 |
Popular Models from GE
| Model Number | Description | Type | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC695CMM002 | Ethernet Communication Module | Communication | 1 port | 50 x 180 x 140 | 0.340 |
| IC695ETM001 | Ethernet Interface Module | Communication | 1 port | 50 x 180 x 140 | 0.350 |
| IC695ALG600 | High-Density Analog Input Module | Analog Input | 16 | 34 x 145 x 140 | 0.300 |
| IC695PSU140 | Power Supply Module | Power Supply | – | 50 x 180 x 140 | 0.500 |
| IC695CPU320 | Central Processing Unit | CPU Module | – | 50 x 180 x 140 | 0.550 |
FAQ for GE IC694MDL754
Q1: What types of outputs can the IC694MDL754 provide?
A1: The module provides voltage output in the range of 0-10 VDC.
Q2: How many output channels does the IC694MDL754 have?
A2: The module has 8 output channels.
Q3: What is the resolution of the output voltage?
A3: The module provides 12-bit resolution for high-precision voltage control.
Q4: What is the power supply requirement for the IC694MDL754?
A4: The module requires a 24 V DC power supply.
Q5: Can the IC694MDL754 handle current outputs?
A5: No, this module is specifically designed for voltage output only.
Q6: Is the IC694MDL754 module compatible with other GE PLC systems?
A6: It is designed for use with the GE RX3i PACSystems but may be compatible with other GE PLCs with the proper configuration.
Q7: What is the operating temperature range of the module?
A7: The IC694MDL754 operates within the temperature range of 0°C to +60°C.
Q8: How is the module mounted?
A8: The IC694MDL754 is mounted on a DIN rail, allowing for easy installation.
Q9: What is the weight of the module?
A9: The module weighs 0.381 kg.
Q10: What communication protocol does the IC694MDL754 use?
A10: The module supports the Modbus/RTU communication protocol.
