Product Overview

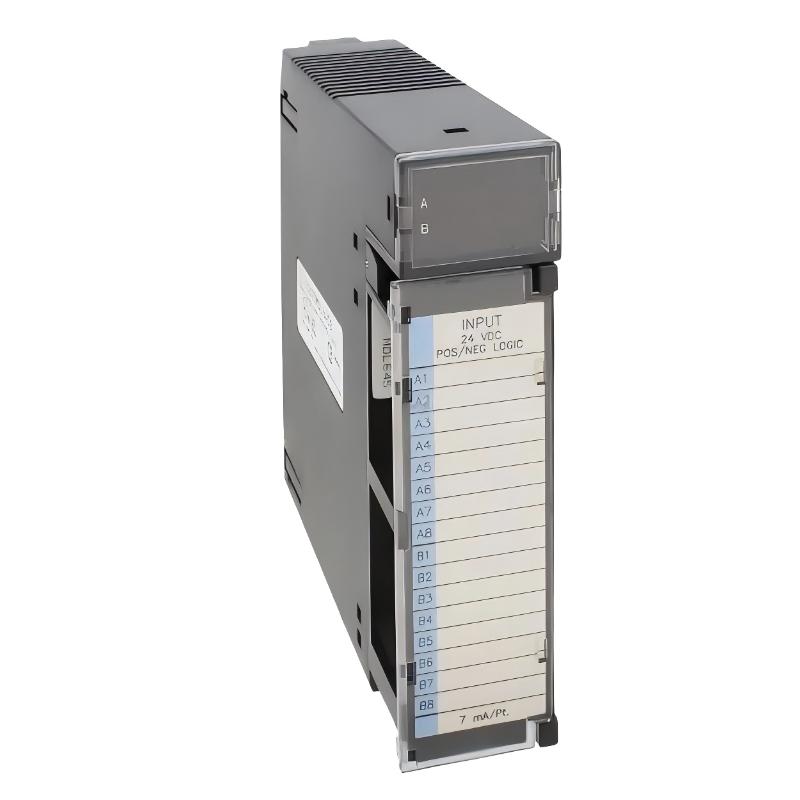

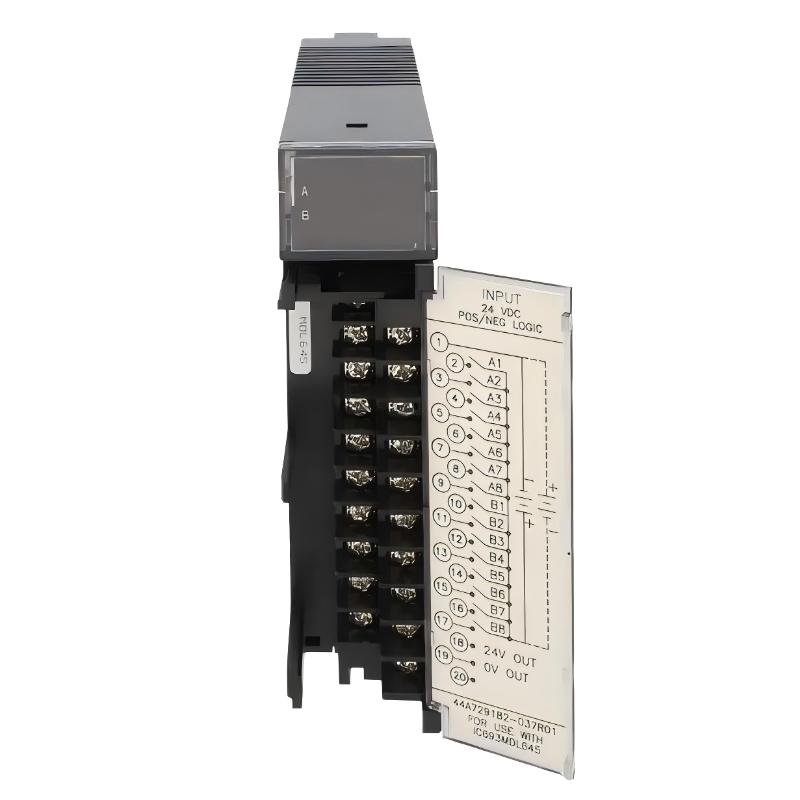

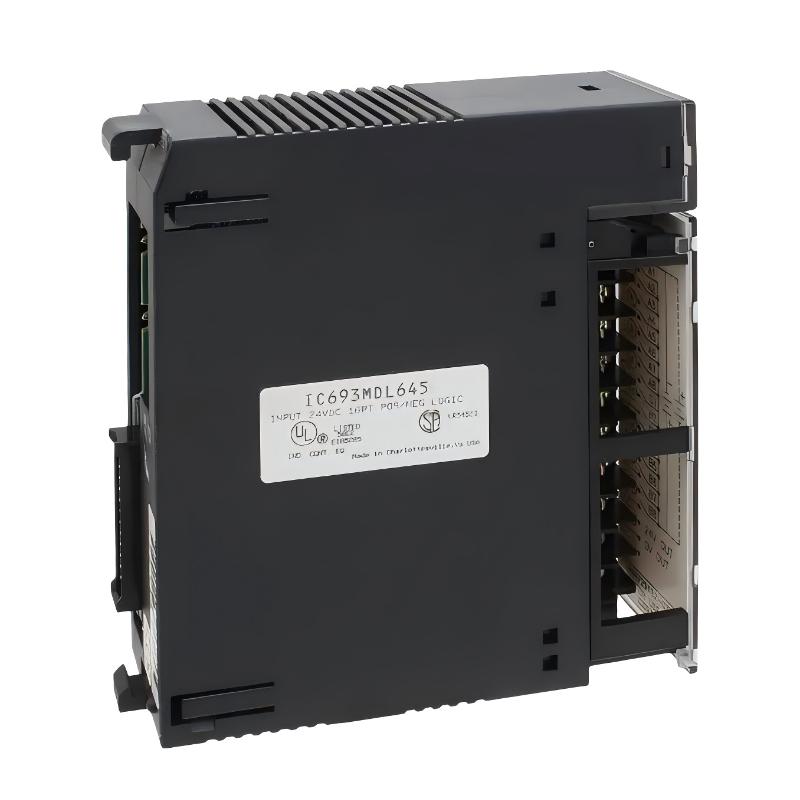

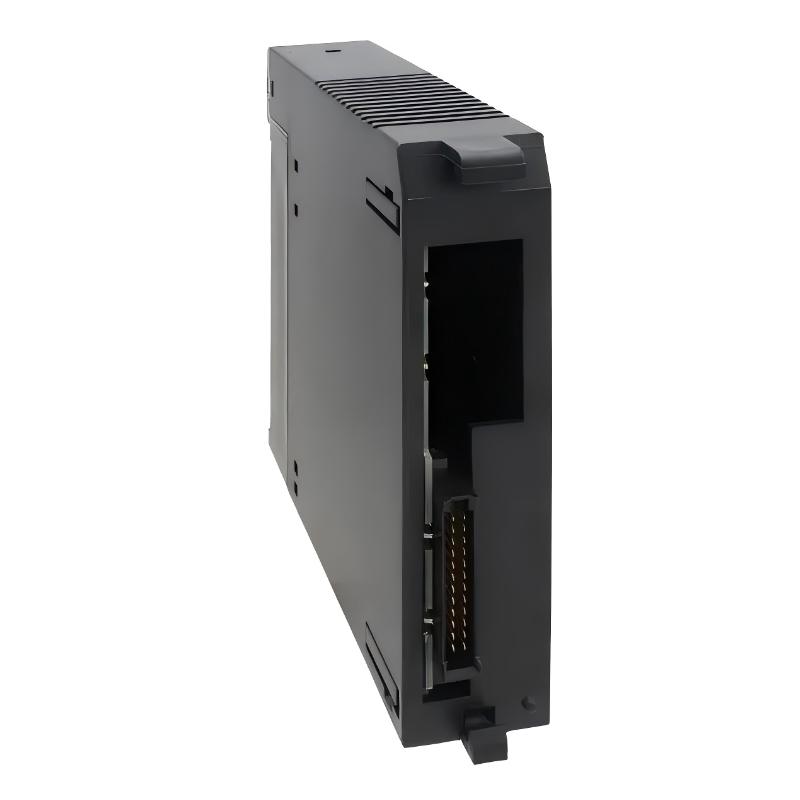

The GE IC694MDL645CA PACSystems RX3i Discrete Input Module is a digital input module used in GE PACSystems RX3i automation systems for collecting ON/OFF status signals from field devices and transferring them to the PLC CPU for processing.
As a discrete input component, the IC694MDL645CA provides the connection between external devices and the control program. It receives switching signals from sensors, limit switches, push buttons, proximity switches, and other digital field equipment, allowing the PLC system to monitor machine conditions and operating states.
Unlike analog input modules that process continuously changing values, discrete input modules focus on binary signal detection, such as start/stop commands, equipment status feedback, and safety-related switching signals.
The module integrates into the PACSystems RX3i modular architecture and works together with CPUs, output modules, communication modules, and field devices to create a complete industrial control system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC694MDL645CA |
| Product Family | PACSystems RX3i |
| Product Type | Discrete Input Module |
| Module Function | Digital Signal Acquisition |
| Signal Type | Discrete Input |
| System Application | PLC Automation Control |
| Installation | PACSystems RX3i Rack System |
| Dimensions | 145 × 34 × 140 mm |
| Weight | 0.159 kg |
Product Features
The GE IC694MDL645CA PACSystems RX3i Discrete Input Module provides digital signal collection capability for industrial automation systems.
Key characteristics include:
- GE PACSystems RX3i discrete input module
- Model IC694MDL645CA
- Designed for digital field signal acquisition
- Collects ON/OFF status information from external devices
- Integrates with PACSystems RX3i PLC platforms
- Supports modular control system expansion
- Connects field sensors with PLC application logic
- Suitable for machine and process automation
- Supports replacement and maintenance of existing systems
- Designed for industrial control applications
The module should be selected according to field device type, input requirements, wiring configuration, and the overall RX3i system design.
Working Principle
The IC694MDL645CA operates by receiving discrete electrical signals from field devices and transferring their status information to the PLC CPU.
A simplified signal path is:
Field Device → Discrete Input Module → PLC CPU → Control Program
When an external device changes state, such as a sensor detecting an object or a switch being activated, the input module detects the electrical condition and converts it into a PLC-readable status signal.
The CPU then processes the input information according to the programmed logic to perform actions such as machine sequencing, equipment monitoring, alarms, and interlocking functions.
The module acts as the interface between physical switching devices and the PLC control application.
Role in PACSystems RX3i Control Architecture
The IC694MDL645CA operates within the field signal acquisition layer of the GE PACSystems RX3i automation architecture.
A typical control structure can be represented as:
Field Sensors / Switches → Discrete Input Module → RX3i CPU → Output Modules → Controlled Equipment
| System Layer | Typical Function |
|---|---|
| Field Sensors | Provide machine status signals |
| Discrete Input Module | Collects digital input information |
| RX3i CPU | Executes PLC control logic |
| Output Modules | Control external actuators |
| Communication Modules | Exchange system data |
| Engineering Software | Configure and maintain PLC systems |
The module does not execute application programs but provides the digital input information required by the CPU.
Industrial Applications
The GE IC694MDL645CA PACSystems RX3i Discrete Input Module is suitable for industrial applications requiring reliable digital signal monitoring.
| Application | Typical Use |
|---|---|
| Machine Automation | Monitoring switches and sensors |
| Manufacturing Lines | Collecting equipment status signals |
| Packaging Systems | Receiving control feedback |
| Material Handling | Monitoring position and movement signals |
| Process Equipment | Detecting operating conditions |
| Factory Automation | Expanding PLC input capacity |
| Production Systems | Integrating field devices |
| Legacy PLC Upgrades | Maintaining RX3i control systems |
The actual application depends on connected field devices and the automation system configuration.
Installation and Maintenance
Proper wiring and configuration are important for maintaining reliable digital signal acquisition.
Recommended maintenance checks include:
- Confirm the correct IC694MDL645CA model.
- Verify compatibility with the PACSystems RX3i rack.
- Check module installation position.
- Confirm PLC hardware configuration.
- Inspect field wiring connections.
- Verify input device operation.
- Check terminal conditions.
- Monitor PLC diagnostic information.
- Inspect connectors for damage.
- Confirm stable system power conditions.
- Record module replacement information.
- Test input response after installation.
If input signals are missing or unstable, troubleshooting should include field devices, wiring, terminals, module configuration, and PLC program logic.
Related Components
The IC694MDL645CA works together with other GE PACSystems RX3i automation components.
| Component | Function |
|---|---|
| GE PACSystems RX3i CPU | Executes PLC control programs |
| Discrete Input Modules | Acquire digital field signals |
| Discrete Output Modules | Control external devices |
| Analog Input Modules | Collect process measurement signals |
| Communication Modules | Provide network connectivity |
| Power Supply Modules | Provide rack operating power |
| Engineering Software | Configure PLC hardware |
| Field Sensors and Switches | Provide machine status information |
Together, these components form a complete PLC-based industrial automation system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| GE IC694MDL645CA | PACSystems RX3i Discrete Input Module | Digital signal acquisition |
| GE IC694MDL645 | RX3i Discrete Input Module | PLC field input applications |
| GE IC694MDL640 | RX3i Discrete Input Module | Industrial digital monitoring |
| GE IC694MDL655 | RX3i Discrete Input Module | Machine status acquisition |
| GE PACSystems RX3i Output Modules | Digital Output Hardware | Actuator control |
| GE RX3i Analog Modules | Analog Signal Modules | Process measurement |
Selection should be based on input requirements, field wiring conditions, voltage specifications, and existing RX3i system configuration.
Key Advantages
- GE PACSystems RX3i automation component
- Provides digital field signal acquisition
- Integrates with GE PLC control systems
- Supports machine status monitoring
- Connects field devices with PLC logic
- Suitable for modular automation expansion
- Supports existing RX3i installations
- Simplifies digital input management
- Suitable for industrial control applications
- Supports long-term automation maintenance
Technical FAQs
How is the IC694MDL645CA used in a PACSystems RX3i system?
The module is used to collect discrete signals from field devices and transfer equipment status information to the RX3i CPU for control logic processing.
What types of field devices are commonly connected to this input module?
Typical connected devices include limit switches, proximity sensors, push buttons, contact signals, and other digital status devices.
What causes a discrete input point to appear inactive in the PLC program?
Possible causes include incorrect wiring, faulty field devices, configuration errors, terminal connection issues, or problems with the input channel itself.
Why are discrete input modules important in automated machinery?
They provide the PLC with real-time machine status information, allowing the control program to perform sequencing, interlocking, monitoring, and safety-related operations.
