Product Overview

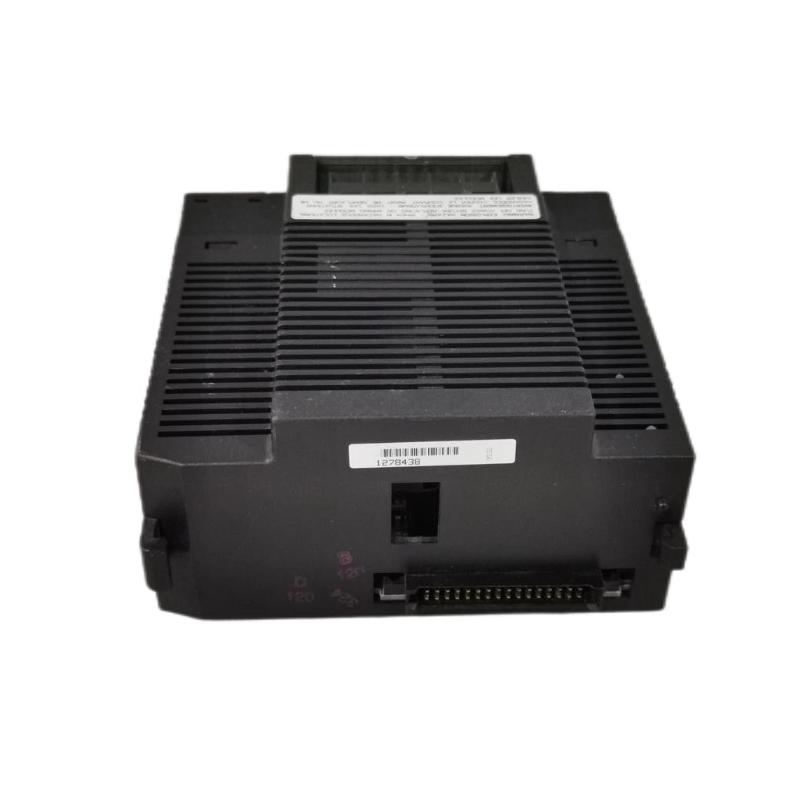

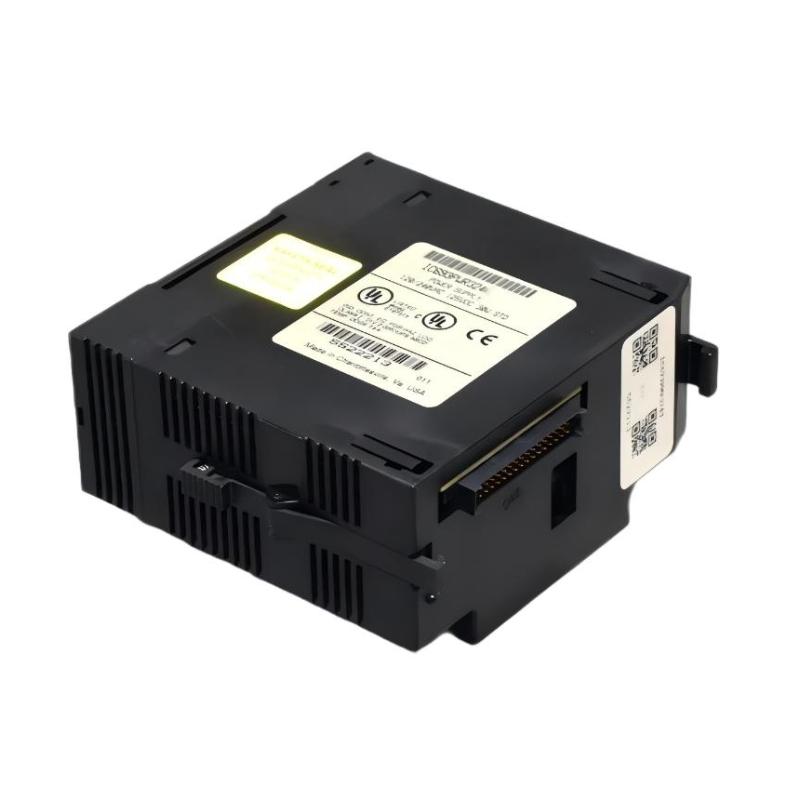

The GE IC693PWR324 Power Supply is a universal AC/DC power supply module designed for GE Series 90-30 PLC systems. It provides stable and regulated power to the PLC backplane and connected modules, supporting reliable system operation in a wide range of industrial environments.
This model features auto-ranging input capability, allowing it to operate with both AC and DC power sources, making it highly flexible for different installation conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693PWR324 |
| Product Type | Power Supply Module |
| System Compatibility | GE Series 90-30 PLC |
| Input Voltage | 120/240 VAC or 125 VDC |
| Input Voltage Range | 85–264 VAC / 100–300 VDC |
| Output Power | 30 W total |
| Output Voltages | +5 VDC, +24 VDC (Isolated), +24 VDC (Relay) |
| Output Capacity | Multi-channel regulated outputs |
| Inrush Current | 4 A max |
| Input Power | 90 VA (AC) / 50 W (DC) |
| Communication Port | RS-485 service port |
| Status Indicators | LED indicators (PWR, OK, RUN, BATT) |
| Mounting Type | Rack-mounted (leftmost slot) |
| Material | Industrial-grade electronic module |
| Dimensions | 129 × 52 × 117 mm |
| Weight | 0.5 kg |
| Operating Temperature | 0°C to 60°C |
Function and Working Principle
The IC693PWR324 functions as the primary power source for PLC systems.
Its working process includes:
- Accepting AC or DC input power with auto-ranging capability
- Converting input power into regulated DC outputs
- Supplying +5VDC for logic circuits on the backplane
- Providing +24VDC for relay outputs and field devices
- Delivering isolated +24VDC for input modules and external use
- Monitoring system status via LED indicators
This ensures stable and continuous operation of all PLC components.
Role in Industrial Control Systems
Within GE Series 90-30 PLC systems, the IC693PWR324 provides:
- Centralized power supply for CPU and I/O modules
- Stable voltage regulation for system reliability
- Flexible input compatibility (AC/DC environments)
- Protection against electrical faults and overloads
- Support for continuous industrial operation
Industrial Applications
The GE IC693PWR324 is widely used in:
- Industrial automation systems
- Manufacturing and assembly lines
- Process control industries
- Energy and utility systems
- Material handling and logistics systems
- Infrastructure control systems
Installation and System Integration
Recommended installation practices include:
- Installing in the leftmost slot of the PLC baseplate
- Connecting to appropriate AC or DC power source
- Ensuring proper grounding and wiring
- Verifying system load does not exceed 30W capacity
- Monitoring LED indicators for system status
Compatible System Components
The IC693PWR324 typically works with:
- GE Series 90-30 CPU modules
- Digital and analog I/O modules
- Communication modules
- Expansion base units
- Field devices such as sensors and actuators
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC693PWR324 | Power Supply | AC/DC universal input | Flexible power environments |
| IC693PWR322 | Power Supply | 24/48V DC input | DC-powered systems |
| IC693PWR321 | Power Supply | AC input version | Standard AC systems |
| IC693PWR330 | Power Supply | Higher capacity | Large systems |
| IC693PWR331 | Power Supply | Enhanced output | High-load applications |
Key Advantages
- Supports both AC and DC input power
- Auto-ranging input for flexible installation
- Provides multiple regulated outputs
- Reliable and stable power delivery
- Built-in diagnostic indicators
- Suitable for diverse industrial environments
Technical FAQs
What is the main function of IC693PWR324?
It supplies regulated power to PLC systems and connected modules.
What input types does it support?
It supports both AC and DC input power.
Where is it installed?
In the leftmost slot of the Series 90-30 baseplate.
What outputs does it provide?
+5VDC, isolated +24VDC, and relay +24VDC outputs.
Conclusion
The GE IC693PWR324 Power Supply is a versatile and reliable power solution for GE Series 90-30 PLC systems. With its universal AC/DC input capability, stable output performance, and robust industrial design, it is well-suited for a wide range of automation and control applications.
