Product Overview

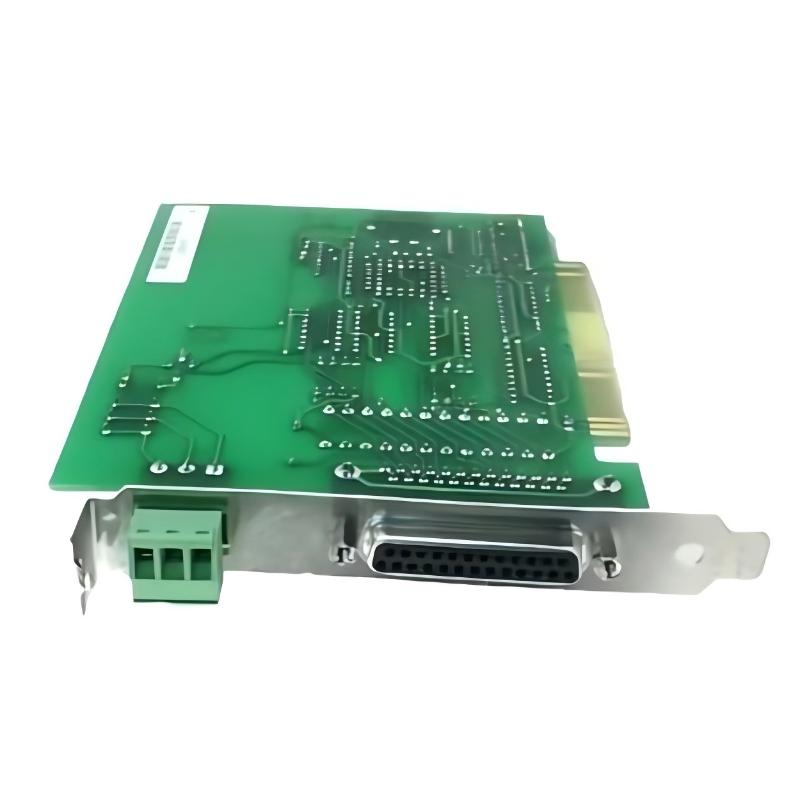

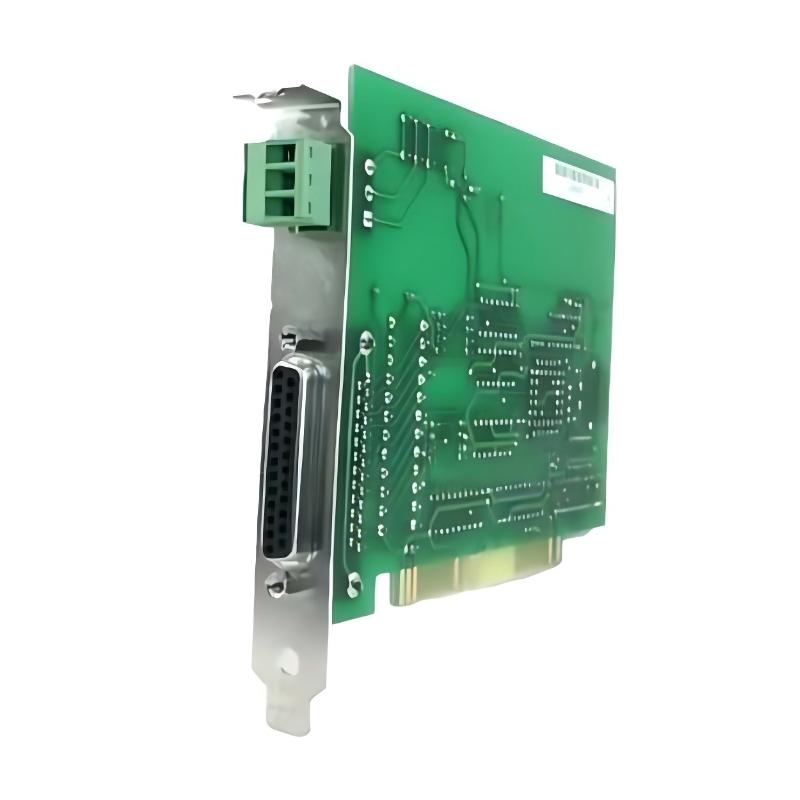

The GE IC693PIF301 Interface Card is a specialized PC Interface (PCIF) module designed for GE Series 90-30 PLC systems. It enables direct communication between a personal computer and PLC I/O racks, allowing high-speed data exchange and control without relying solely on a traditional PLC CPU.
This module is ideal for applications where a PC is used for control logic, monitoring, or data processing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693PIF301 |
| Product Type | Interface Card (PC Interface Module) |
| System Compatibility | GE Series 90-30 PLC |
| Interface Type | PC/AT (ISA bus) |
| Function | Direct PC-to-I/O communication |
| Communication Method | High-speed backplane interface |
| Connector Type | 25-pin interface |
| Supported Systems | Multiple I/O racks |
| Data Handling | Real-time I/O data exchange |
| Mounting Type | Installed in PC ISA slot |
| Material | Industrial-grade electronic module |
| Dimensions | 117 × 33 × 110 mm |
| Weight | 0.25 kg |
| Operating Environment | Industrial automation systems |
Function and Working Principle
The IC693PIF301 operates as a direct communication bridge between a PC and PLC I/O system.
Its working process includes:
- Installed into a PC ISA slot
- Connected to Series 90-30 I/O racks via interface cable
- Allows the PC to read input signals directly from field devices
- Enables the PC to send output commands to actuators
- Executes control logic within PC-based software
This allows the PC to function similarly to a PLC controller.
Role in Industrial Control Systems
Within automation systems, the IC693PIF301 provides:
- Direct PC-based control of PLC I/O
- Replacement or extension of PLC CPU functionality
- High-speed real-time data communication
- Flexible integration with custom control software
- Hybrid PLC-PC system architecture
Industrial Applications
The IC693PIF301 is commonly used in:
- PC-based automation systems
- Data acquisition systems
- Industrial testing platforms
- SCADA and HMI integration
- Custom control system development
- Legacy system upgrades
Installation and System Integration
Recommended installation practices include:
- Installing the module in a compatible ISA slot PC
- Connecting to PLC I/O racks via proper interface cable
- Configuring communication parameters through software
- Ensuring stable grounding and signal integrity
- Verifying compatibility with system configuration
Compatible System Components
The IC693PIF301 typically works with:
- GE Series 90-30 I/O modules
- Expansion base units
- Industrial PCs (ISA-compatible)
- SCADA and control software
- Field devices such as sensors and actuators
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC693PIF301 | Interface Card | ISA-based PC interface | Legacy PC control systems |
| IC693PIF350 | Interface Card | PCI-based interface | Modern PC integration |
| IC693CMM321 | Communication Module | Serial/Ethernet communication | Network expansion |
| IC693NIU004 | Ethernet NIU | Ethernet communication | Distributed systems |
| IC693CPU364 | CPU Module | PLC processor | Standard control systems |
Key Advantages
- Enables direct PC-to-I/O communication
- Supports real-time control and monitoring
- Eliminates need for dedicated PLC CPU in some systems
- Flexible integration with custom software
- Suitable for hybrid and legacy systems
- Reliable industrial-grade performance
Technical FAQs
What is the main function of IC693PIF301?
It allows a PC to directly control and monitor PLC I/O systems.
Does it require a PLC CPU?
No, it can operate with PC-based control logic.
What interface does it use?
It uses a PC/AT (ISA) interface.
Where is it typically used?
In legacy or custom automation systems requiring PC-based control.
Conclusion
The GE IC693PIF301 Interface Card provides a flexible solution for integrating PC-based control with GE Series 90-30 PLC I/O systems. It enables real-time data exchange and control without relying entirely on a PLC CPU, making it ideal for specialized industrial applications and legacy system integration.
