Product Overview

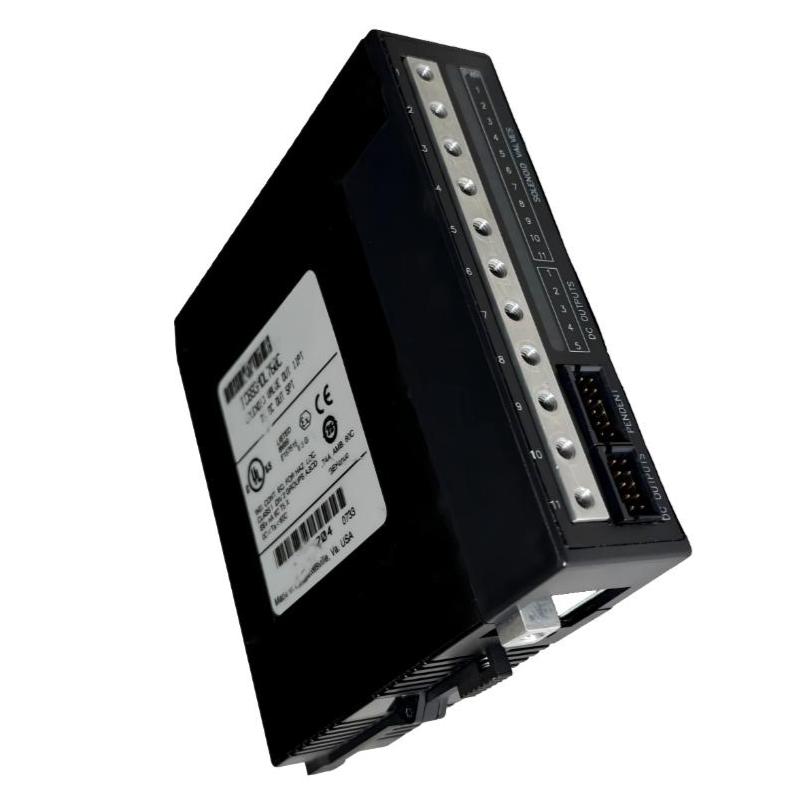

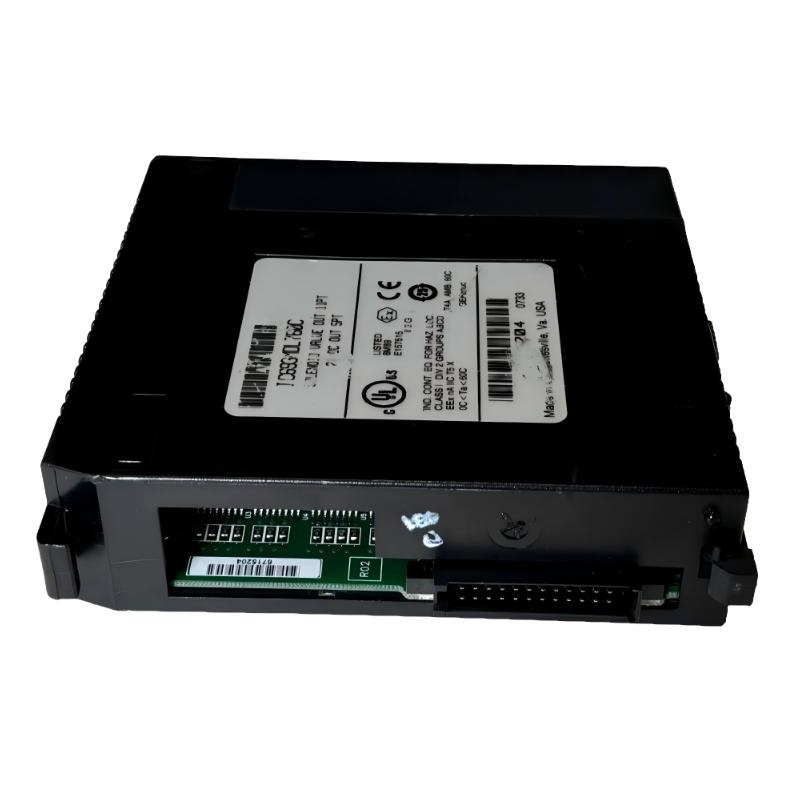

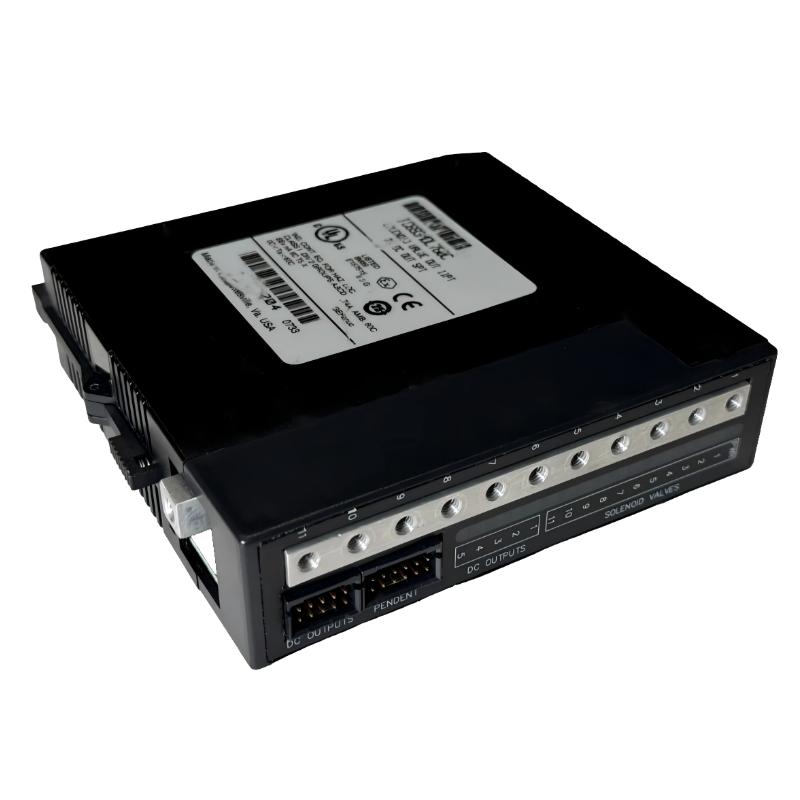

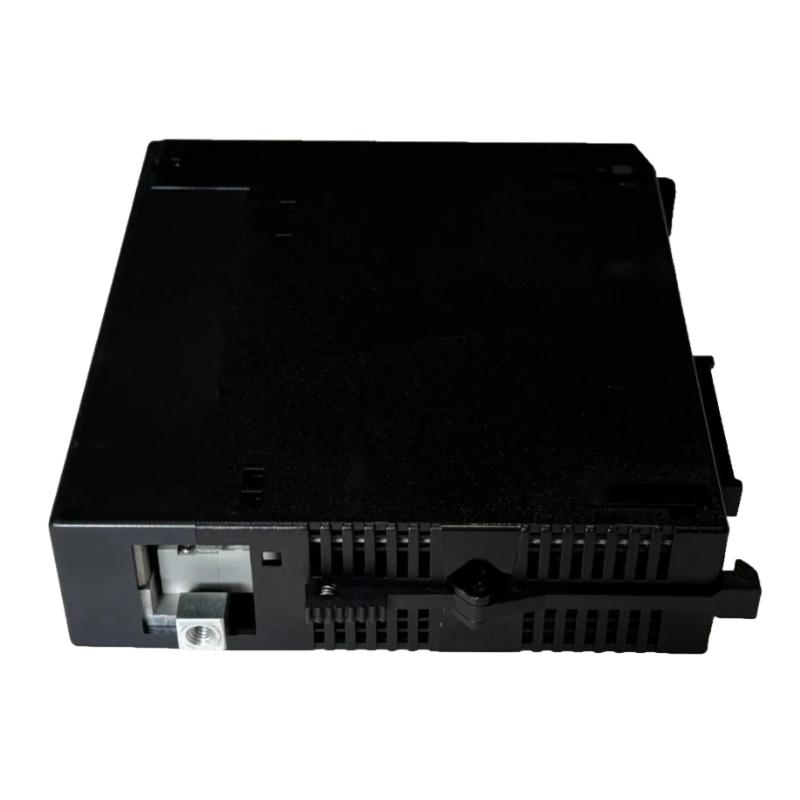

The GE IC693MDL760B Series 90-30 Solenoid Module is an output module used in GE Series 90-30 PLC systems for controlling solenoid-operated field devices. It belongs on the actuator side of the PLC system, where programmed control decisions are converted into electrical commands for external devices.

Solenoids are commonly found in pneumatic and hydraulic equipment. A PLC may need to energize a solenoid to extend a cylinder, retract an actuator, shift a directional valve, release a mechanism, or initiate another machine movement. The IC693MDL760B forms part of the electrical interface used for these actions.

A typical application can be represented as:

Series 90-30 CPU → IC693MDL760B → Field Wiring → Solenoid → Pneumatic / Hydraulic Actuator

Consider an automated assembly machine. Once a workpiece is confirmed in position, the PLC can issue an output command to the solenoid. The solenoid changes the state of the associated pneumatic valve, which then directs compressed air to the cylinder. The cylinder performs the mechanical movement required by the sequence.

The module can therefore be found in applications involving pneumatic cylinders, hydraulic control valves, machine actuators, material-handling mechanisms, clamping systems, and automated production equipment.

When diagnosing a solenoid-control problem, the complete circuit should be considered. A PLC output condition alone does not confirm that the solenoid has received the required electrical command or that the actuator can physically move.

Technical Specifications

Product Features

• GE Series 90-30 Solenoid Module
• Model IC693MDL760B
• Used for discrete solenoid-control applications
• Interfaces PLC output logic with field actuators
• Suitable for pneumatic control circuits
• Applicable to hydraulic valve-control applications
• Supports machine sequence operations
• Useful for cylinder extension and retraction control
• Suitable for clamping and positioning mechanisms
• Applicable to industrial machine-control systems
• Useful for Series 90-30 maintenance and replacement

Working Principle

The IC693MDL760B sits between the Series 90-30 PLC logic and the electrical circuit controlling the solenoid.

The practical sequence is:

PLC Command → IC693MDL760B → Solenoid Circuit → Valve → Actuator Movement

When the PLC program reaches a step requiring a physical action, the associated output is commanded. The output module transfers the electrical control state to the connected solenoid circuit.

In a pneumatic machine, the sequence may look like:

Part Detected → PLC Sequence Condition Satisfied → Output Energized → Solenoid Operates → Directional Valve Changes State → Cylinder Extends

A retract operation may use the opposite solenoid or another configured output:

Retract Command → Output State Changes → Valve Shifts → Airflow Changes → Cylinder Retracts

The mechanical response depends on the connected valve, actuator, air or hydraulic supply, and machine configuration. The IC693MDL760B handles the PLC-side output function rather than the complete pneumatic or hydraulic process.

Solenoid Control in Machine Automation

Solenoid outputs are often tied directly to specific machine movements.

The PLC program determines when each output should operate based on sensors, timers, sequence conditions, and machine logic.

Role in a Series 90-30 Control Architecture

The IC693MDL760B forms part of the output section of a Series 90-30 PLC system.

Sensors → Series 90-30 CPU → IC693MDL760B → Solenoid Circuit → Actuator → Machine

A feedback input is often used alongside the output so the PLC can confirm that the commanded actuator movement actually occurred.

Actuator Feedback and Sequence Verification

A solenoid command does not necessarily mean that the actuator has reached its intended position.

For example:

PLC → IC693MDL760B → Solenoid → Pneumatic Valve → Cylinder

can be paired with:

Cylinder Position Sensor → Discrete Input → PLC

This creates a closed control sequence.

The PLC sends the command, then waits for the appropriate position feedback. If the feedback does not arrive within the expected sequence conditions, the program can stop the sequence, generate an alarm, or require operator intervention depending on the application.

This arrangement is particularly useful for detecting:

• Cylinder movement failure
• Solenoid circuit faults
• Loss of pneumatic or hydraulic pressure
• Mechanical obstruction
• Incorrect actuator position
• Damaged position sensors
• Sequence timing problems

Industrial Applications

Installation and Maintenance

Solenoid-control circuits should be checked as a complete electrical and mechanical chain during maintenance.

• Confirm the complete IC693MDL760B model.
• Verify its Series 90-30 rack position.
• Record output-channel assignments.
• Identify the solenoid connected to each channel.
• Document field wiring before removal.
• Inspect terminal connections.
• Check output-side conductors.
• Inspect the solenoid and associated valve.
• Verify the pneumatic or hydraulic supply.
• Check actuator mechanical movement.
• Inspect position switches or sensors.
• Review the PLC output configuration.
• Follow the approved electrical and equipment isolation procedure.
• Install the replacement module.
• Restore field connections.
• Check PLC and module status.
• Test the relevant output channel.
• Confirm solenoid operation.
• Verify actuator movement.
• Check position feedback.
• Test the associated machine sequence.
• Record the maintenance results.

If the PLC output changes state but the actuator does not move, the troubleshooting path should continue beyond the module:

IC693MDL760B → Wiring → Solenoid → Valve → Fluid Supply → Actuator → Position Feedback

Compatible System Components

Recommended Related Models

Key Advantages

• GE Series 90-30 Solenoid Module.
• Model IC693MDL760B.
• Suitable for solenoid-operated field devices.
• Interfaces PLC logic with pneumatic and hydraulic circuits.
• Supports cylinder and actuator control.
• Applicable to machine sequencing.
• Useful for valve and mechanism actuation.
• Can be paired with position feedback inputs.
• Suitable for Series 90-30 maintenance and replacement.

Technical FAQs

What is the IC693MDL760B typically connected to?

The module is associated with solenoid-control circuits used for pneumatic or hydraulic equipment. Depending on the machine design, the connected device may operate a directional valve, cylinder, clamp, actuator, or another mechanism requiring a discrete electrical command.

Why can a solenoid fail to move even when the PLC output is active?

An active PLC output does not eliminate problems elsewhere in the circuit. The field wiring, terminals, solenoid, valve mechanism, pneumatic or hydraulic supply, and mechanical actuator should all be checked. A position sensor can also help determine whether the commanded movement actually occurred.

How can actuator feedback improve troubleshooting?

A position input gives the PLC information about the physical result of the solenoid command. If the output changes but the expected position input never changes, engineers have a much narrower fault area to investigate, including the solenoid, valve, fluid supply, actuator, and feedback device.

What should be recorded before replacing an IC693MDL760B?

The module position, output-channel assignments, connected solenoids, field wiring, terminal arrangement, and relevant PLC logic should be documented. After replacement, the output command, solenoid response, actuator movement, and associated feedback should be tested.
