Product Overview

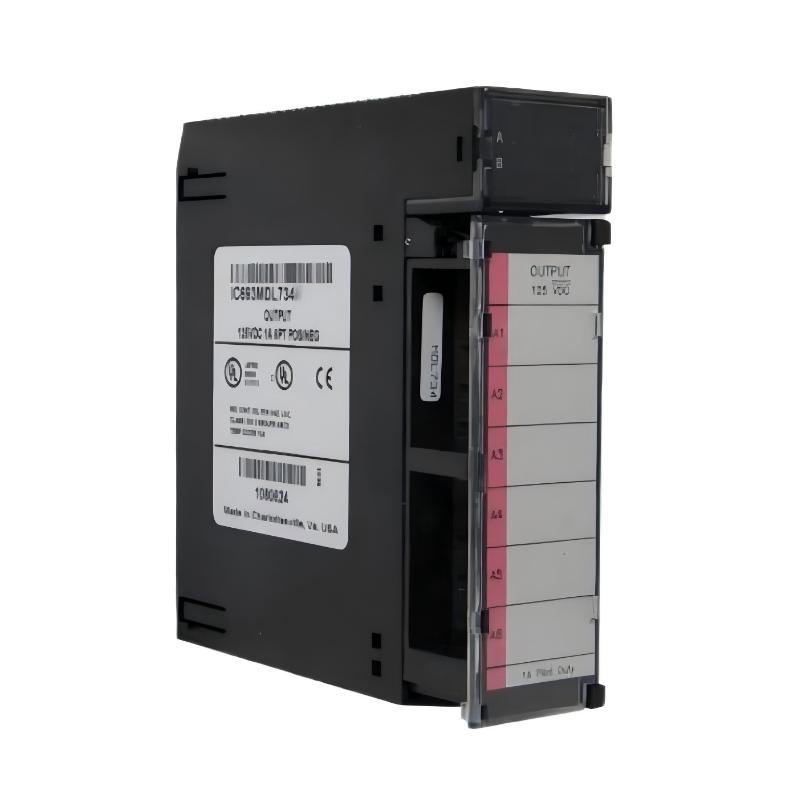

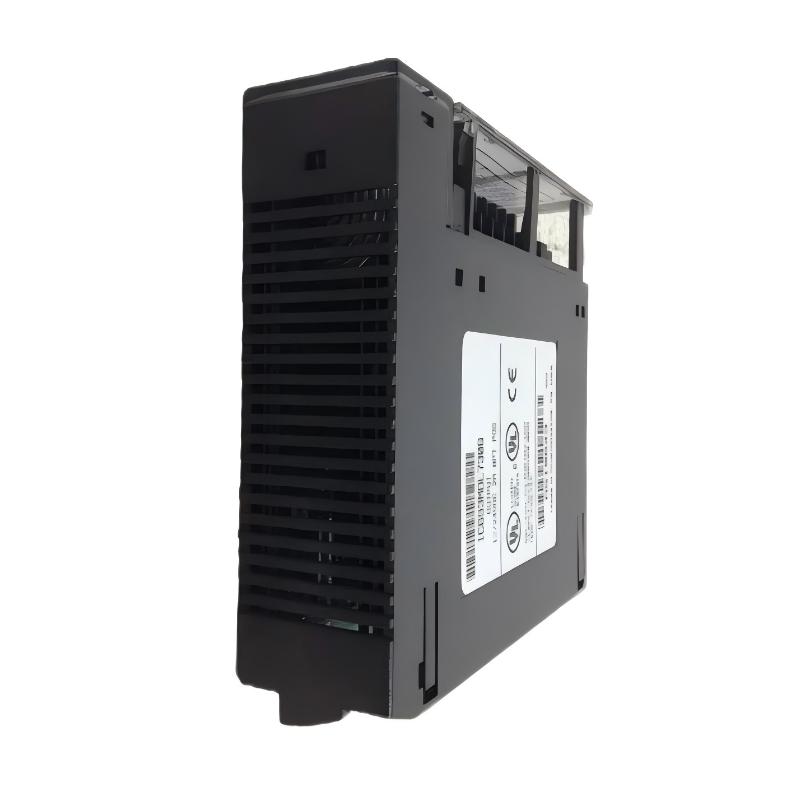

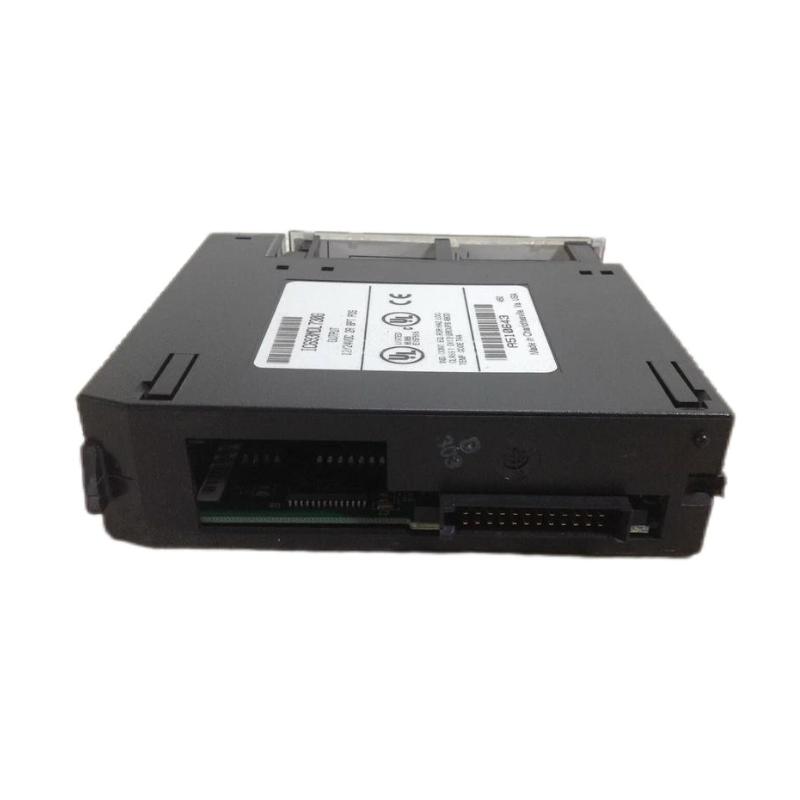

The GE IC693MDL734 Positive/Negative Logic Output Module is a DC digital output module designed for GE Series 90-30 PLC systems. It is used to control external field devices such as solenoids, relays, motor starters, and indicator lamps.
This module supports both positive (sourcing) and negative (sinking) logic output modes, making it highly flexible for different industrial wiring standards and load configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693MDL734 |
| Product Type | Positive/Negative Logic Output Module |
| System Compatibility | GE Series 90-30 PLC |
| Slot Requirement | 1 slot |
| Output Type | DC digital output |
| Logic Type | Positive / Negative logic support |
| Number of Outputs | 6 channels |
| Output Isolation | Individual isolated outputs |
| Rated Voltage | 125 VDC |
| Output Voltage Range | 10.8 – 150 VDC |
| Output Current | 1 A per point |
| Response Time | ~5–7 ms |
| Leakage Current | ≤ 1 mA (off-state) |
| Inrush Current | High inrush capability (~15 A short duration) |
| Isolation Voltage | Up to 1500 V field-to-backplane |
| Indicators | LED status per output channel |
| Protection | External fuse recommended |
| Communication | PLC backplane communication |
| Mounting Type | Rack-mounted |
| Material | Industrial-grade electronic module |
| Dimensions | 150 × 100 × 70 mm |
| Weight | 0.4 kg |
| Operating Environment | Industrial automation systems |
| Temperature Range | 0°C to 60°C |
Function and Working Principle
The IC693MDL734 operates as a 6-point DC output switching module.
Its working principle includes:
- Receiving control signals from the PLC CPU
- Switching DC field loads (ON/OFF control)
- Operating in either sourcing or sinking mode depending on wiring configuration
- Providing isolated output channels for independent load control
- Allowing current to flow through external devices such as relays, solenoids, and indicators
Each output channel is electrically isolated, improving safety and reducing interference between circuits.
Role in Industrial Control Systems
Within GE Series 90-30 PLC architectures, the IC693MDL734 performs critical output control functions:
- Drives field actuators and control devices
- Supports both sourcing and sinking load configurations
- Ensures electrical isolation between PLC logic and field circuits
- Provides reliable switching for high-voltage DC loads
- Enables flexible system integration across different industrial setups
Industrial Applications
The GE IC693MDL734 is widely used in:
- Industrial automation systems
- Manufacturing production lines
- Motor control systems
- Conveyor and material handling systems
- Solenoid valve control systems
- Alarm and indicator systems
Installation and System Integration
Recommended installation practices include:
- Installing in GE Series 90-30 PLC racks
- Using external DC power supply for field loads
- Wiring each output channel according to sourcing or sinking mode
- Applying external fusing for load protection
- Ensuring correct grounding and shielding for stability
Proper installation ensures safe operation and long-term reliability.
Compatible System Components
The IC693MDL734 typically works with:
- GE Series 90-30 CPU modules (IC693CPU series)
- Digital input modules
- Power supply modules
- Relays, solenoids, and actuators
- Industrial control panels
- Alarm and monitoring devices
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC693MDL734 | Output Module | 6-point dual logic DC output | Flexible control systems |
| IC693MDL732 | Output Module | Positive logic output | Standard sourcing control |
| IC693MDL731 | Output Module | Negative logic output | Sinking applications |
| IC693MDL740 | Output Module | Relay output module | High-flexibility switching |
| IC693CPU364 | CPU Module | High-speed processing | Complex automation systems |
Key Advantages
- Supports both positive and negative logic output modes
- High-voltage DC output capability (up to 125 VDC)
- 1A per point output driving strength
- Fully isolated output channels
- Fast switching response (~5–7 ms)
- Suitable for inductive and resistive industrial loads
Technical FAQs
What is the main function of IC693MDL734?
It controls external DC devices by switching output signals from the PLC.
How many outputs does it have?
It provides 6 isolated output channels.
What type of logic does it support?
It supports both sourcing (positive) and sinking (negative) logic.
What devices can it control?
It can control relays, solenoids, motors, and indicator lamps.
Conclusion
The GE IC693MDL734 Positive/Negative Logic Output Module is a flexible and high-performance DC output solution for GE Series 90-30 PLC systems. With dual-logic support, isolated outputs, and strong load-driving capability, it is well suited for demanding industrial automation applications requiring reliable and adaptable output control.
