Product Overview

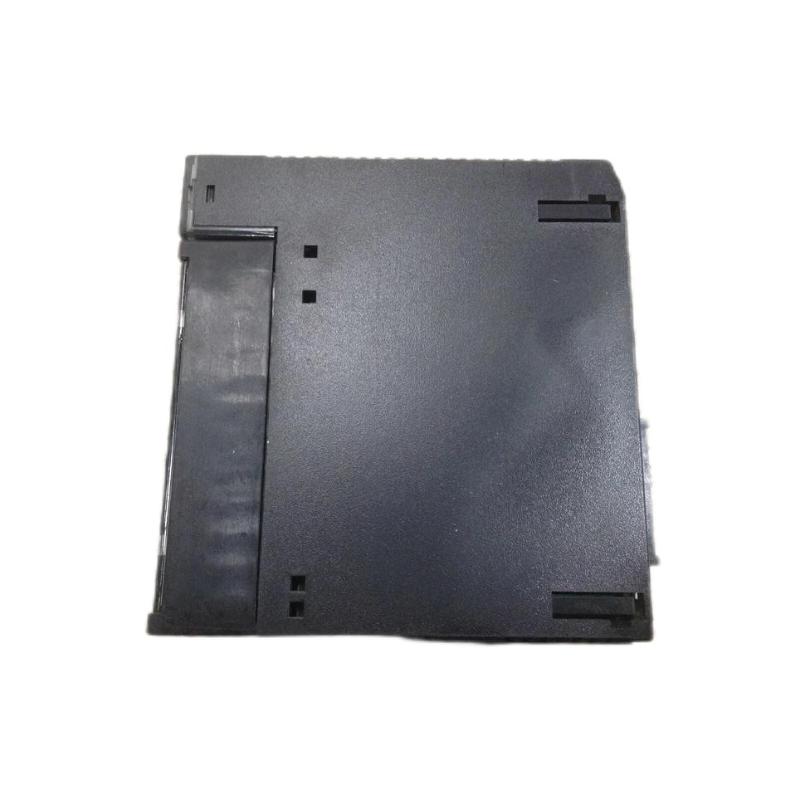

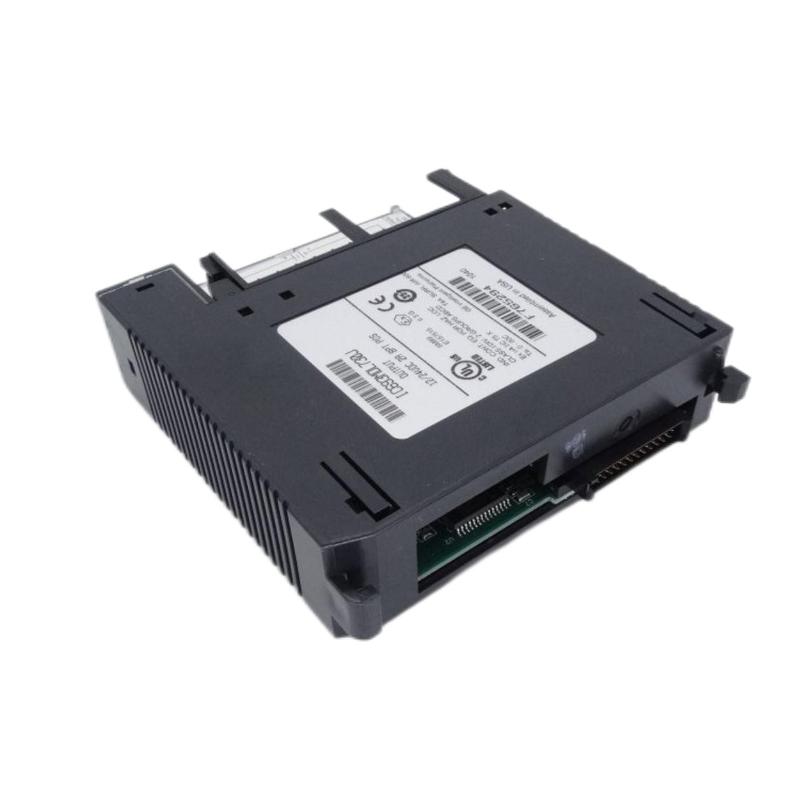

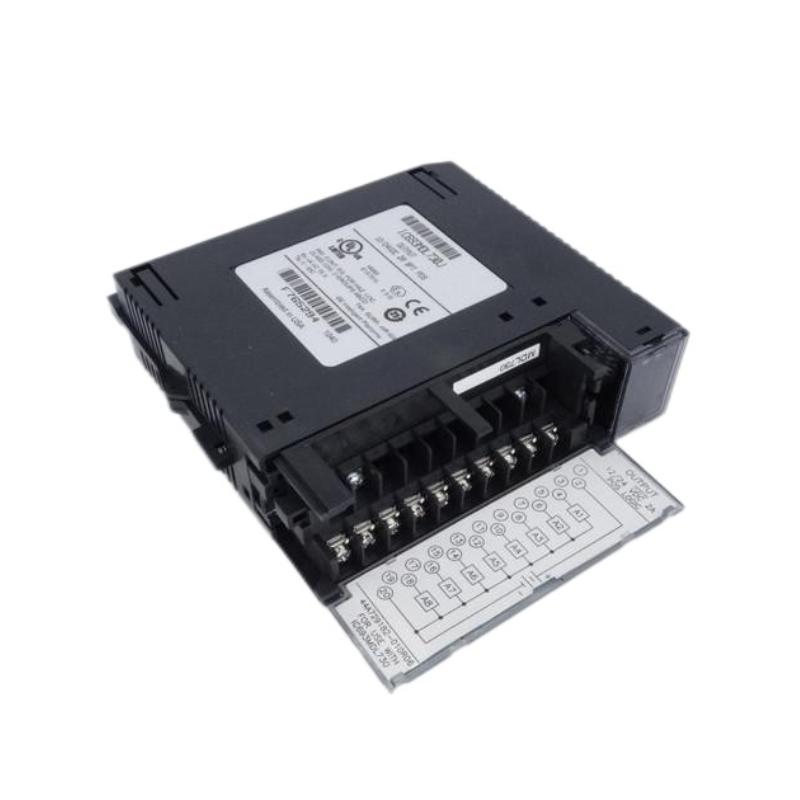

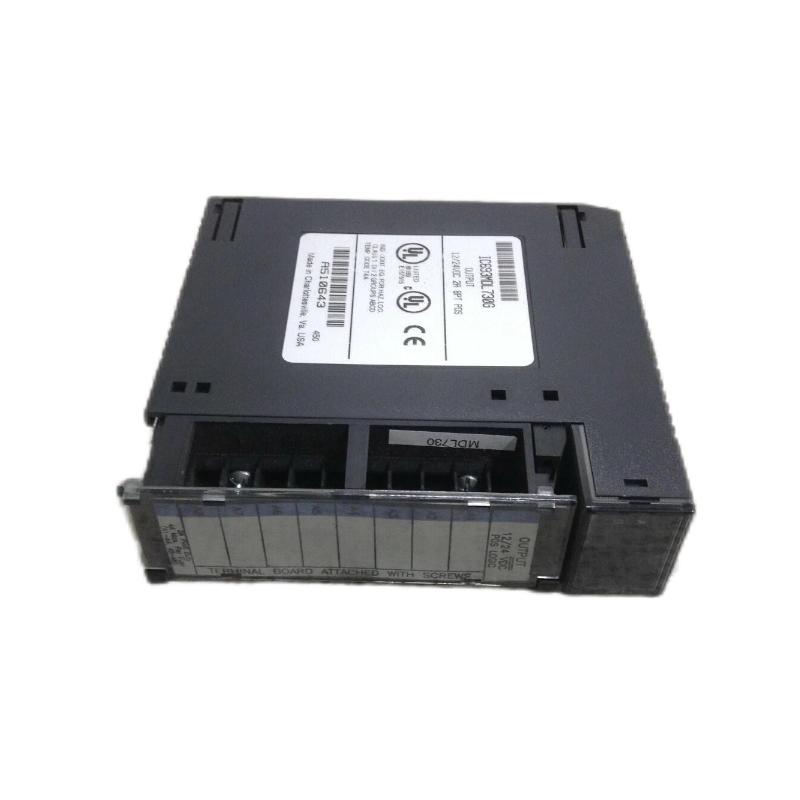

The GE IC693MDL730 Positive/Negative Logic Input Module is a versatile DC digital input module designed for the GE Series 90-30 PLC systems. It enables the integration of field signals from various industrial devices, such as sensors, switches, and proximity detectors, into the PLC system for real-time data processing and control.
This module supports both positive (sourcing) and negative (sinking) logic types, providing flexibility in wiring configurations across diverse industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693MDL730 |
| Product Type | Positive/Negative Logic Input Module |
| System Compatibility | GE Series 90-30 PLC |
| Slot Requirement | 1 slot |
| Input Type | DC digital input |
| Logic Type | Positive / Negative logic support |
| Number of Inputs | 16 channels |
| Input Grouping | 2 groups (8 inputs per group) |
| Rated Voltage | 24 VDC |
| Input Voltage Range | 19.2–28.8 VDC |
| On-State Voltage | ≥ 15 VDC |
| Off-State Voltage | ≤ 5 VDC |
| Input Current | ~7 mA per channel |
| Response Time | ~10 ms typical |
| Isolation | 1500 V field-to-backplane isolation |
| Indicators | LED status per input channel |
| Communication | PLC backplane communication |
| Mounting Type | Rack-mounted |
| Material | Industrial-grade electronic module |
| Dimensions | 150 × 100 × 70 mm |
| Weight | 0.4 kg |
| Operating Environment | Industrial automation systems |
| Temperature Range | 0°C to 60°C |
Function and Working Principle
The IC693MDL730 works as a DC digital input acquisition module, providing input signal monitoring and conversion for PLC systems. It functions by:
- Receiving DC input signals from devices such as sensors, pushbuttons, and switches
- Supporting both sourcing and sinking logic types
- Converting the electrical signals into digital data that can be processed by the PLC
- Sending real-time input status to the PLC’s central processing unit via backplane communication
- Offering electrical isolation to protect control systems from field device electrical noise
This ensures accurate and safe signal acquisition, even in electrically challenging industrial environments.
Role in Industrial Control Systems
In GE Series 90-30 PLC architectures, the IC693MDL730 is integral in:
- Collecting digital input signals from field devices
- Ensuring flexible wiring compatibility by supporting dual logic types (positive/negative)
- Protecting the PLC system by providing electrical isolation between field signals and the control system
- Converting analog and discrete signals to usable digital data for the PLC’s automation process
- Improving overall system reliability and performance by providing robust signal detection
Industrial Applications
The IC693MDL730 is commonly used in industrial environments such as:
- Industrial automation systems
- Manufacturing and production lines
- Machine control systems
- Process monitoring systems
- Power generation and utility control systems
- Material handling and assembly line systems
It is ideal for environments requiring reliable and flexible DC input acquisition.
Installation and System Integration
For optimal performance, installation should be carried out following these guidelines:
- Installed in GE Series 90-30 PLC racks
- Properly configure input logic type before field wiring (sourcing or sinking)
- Ensure that field devices are compatible with the rated voltage (24 VDC systems)
- Verify grounding and shielding for accurate signal transmission
- Check input wiring to match the specified number of inputs (16 channels)
Proper installation ensures that the module functions at full capacity, providing efficient input signal conversion.
Compatible System Components
The IC693MDL730 typically integrates with the following components:
- GE Series 90-30 CPU modules (IC693CPU series)
- GE digital and analog output modules
- Industrial power supply modules
- Sensors and switches
- Control panels and automation systems
These components work together to create a seamless and flexible automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC693MDL730 | Input Module | 16-point dual logic DC input | Versatile automation systems |
| IC693MDL741 | Input Module | 16-point AC input | General industrial automation |
| IC693MDL730 | Input Module | Positive/Negative logic | High-density systems |
| IC693MDL632 | Input Module | High-voltage logic input | Industrial control applications |
| IC693MDL645 | Input Module | 32-channel digital input | High-density systems |
Key Advantages
- Supports both positive and negative logic input configurations
- Provides high-speed, accurate DC signal acquisition
- Offers electrical isolation to protect control systems
- Suitable for industrial environments with mixed wiring standards
- Includes LED indicators for easy diagnostics and monitoring
- Reliable and stable for continuous industrial use
Technical FAQs
What is the main function of IC693MDL730?
It serves to collect and convert DC input signals into digital data for the PLC system.
What makes this module flexible?
It supports both sourcing and sinking logic configurations.
How many input channels does it have?
It provides 16 input channels for digital signal acquisition.
What is the typical response time of this module?
Its typical response time is around 10 ms.
Conclusion
The GE IC693MDL730 Positive/Negative Logic Input Module is an excellent choice for industrial automation applications requiring flexible and reliable DC input signal acquisition. With dual-logic support, high-density input design, and electrical isolation, this module ensures optimal performance in various industrial control systems.
For engineers and system integrators, the IC693MDL730 is a vital component that enhances automation processes by providing real-time signal conversion and improving system reliability.
