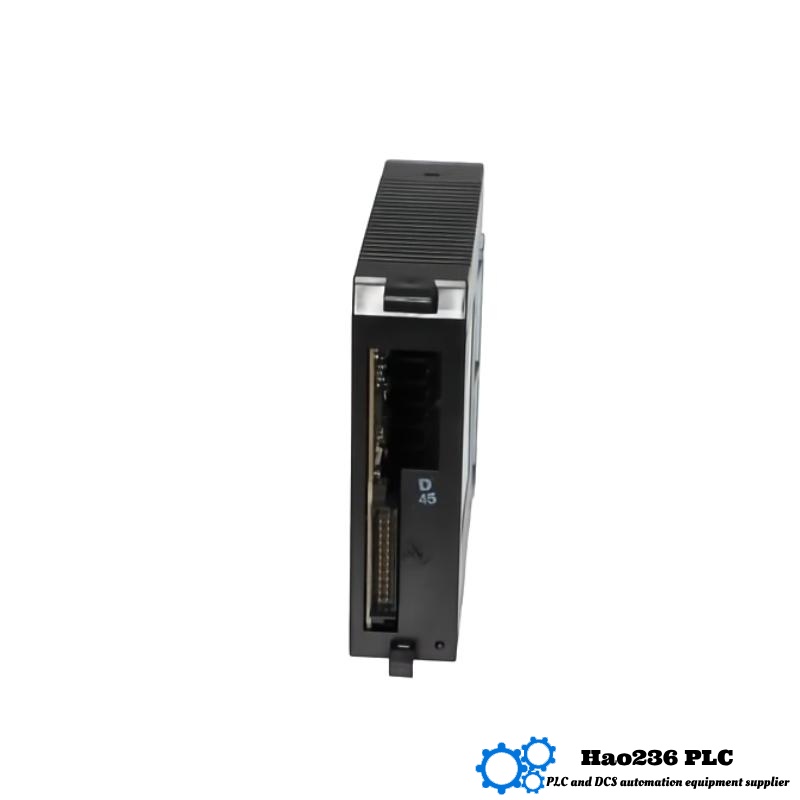

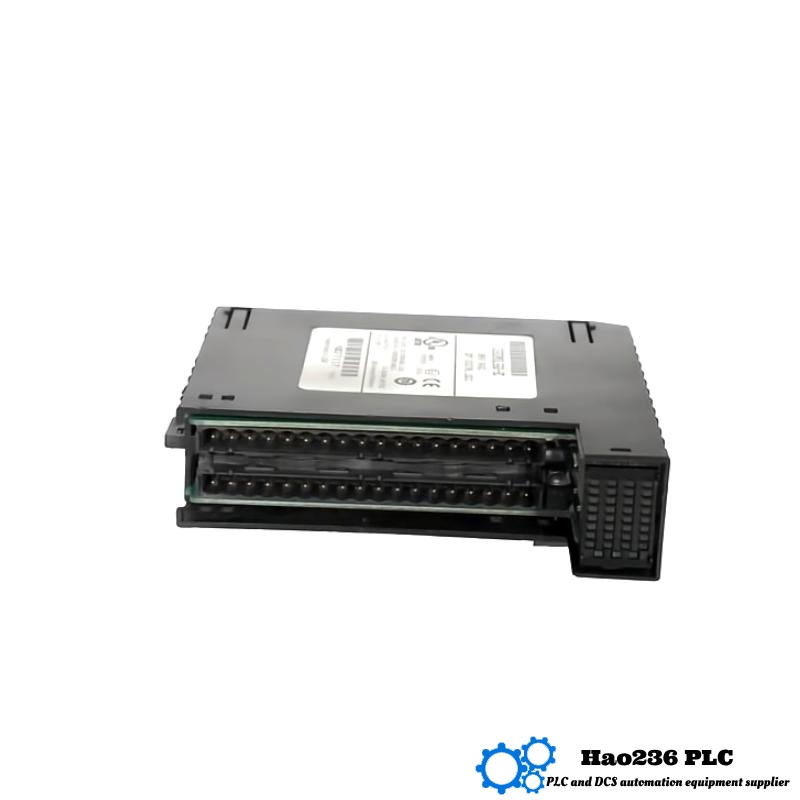

GE IC693MDL660 Positive/Negative Logic Input Module
Product Introduction
The GE IC693MDL660 is a positive/negative logic input module designed for use in the GE 90-30 PLC system. This module provides 16 discrete input channels, offering users the flexibility to configure it for positive logic (sinking) or negative logic (sourcing), depending on the requirements of the field devices being connected. The IC693MDL660 operates with a 24 VDC input voltage, making it compatible with a wide range of industrial input devices such as sensors, switches, and relays.
The module is engineered for use in industrial control systems that demand high-speed, reliable data input. It is designed to meet the needs of demanding industrial environments, ensuring robust performance under harsh conditions. The IC693MDL660 is a key component of the GE 90-30 series, known for its versatility, ease of integration, and ability to handle high-density input signals from a variety of field devices.
Applications
The GE IC693MDL660 module is ideal for use in various industries, including:
-
Automated Manufacturing: Integrating signals from equipment like robotic arms, conveyor systems, and automated assembly lines.
-
Process Control: Collecting signals from temperature, pressure, and flow sensors in control systems for manufacturing processes.
-
Machine Control: Monitoring input signals from machinery such as pumps, valves, and actuators.
-
Building Automation: Connecting to devices like lighting systems, HVAC controllers, and security sensors for smart building systems.
-
Energy Management: Integrating with energy meters and control systems for real-time monitoring of electrical consumption.
The flexibility of this module allows it to be used across a wide range of applications, from industrial automation to process control and energy management.
Advantages
-
Versatile Input Configuration: The module can be configured for both positive and negative logic operation, providing compatibility with a variety of industrial devices.
-
High Input Density: With 16 discrete inputs, the IC693MDL660 provides high input density in a compact form factor, saving valuable space in control systems.
-
Fast Response Time: The module features a 1ms response time, allowing for quick detection and processing of input signals.
-
Industrial Reliability: Designed to perform reliably in harsh environments, it ensures long-term durability in demanding industrial settings.
-
Compact and Lightweight: With its small size (128 x 55 x 105 mm) and light weight (0.281 kg), the module is easy to install and does not require much space in your PLC system.
-
Seamless Integration: As part of the GE 90-30 series, the module integrates easily into existing GE PLC racks, ensuring smooth system upgrades or replacements.
Brand Information
-
Brand: GE Fanuc (now part of Emerson)
-
Series: GE 90-30 Series
-
Module Type: Positive/Negative Logic Input Module
-
Input Voltage: 24 VDC
-
Certification: UL, CE, CSA
-
Operating Temperature Range: -20°C to +60°C
-
Target Applications: Industrial automation, process control, machine control, building automation, and energy management.
Parameters (GE IC693MDL660)
| Parameter | Value |
|---|---|
| Module Type | Positive/Negative Logic Input Module |
| Dimensions (WxHxD) | 128 x 55 x 105 mm |
| Weight | 0.281 kg |
| Input Voltage | 24 VDC |
| Input Type | 16 Discrete Inputs |
| Input Configuration | Sinking or Sourcing |
| Operating Temperature Range | -20°C to +60°C |
| Mounting | Rack-mountable (90-30 Series) |
| Input Current | 5-10 mA per input |
| Response Time | 1ms |
| Certification | UL, CE, CSA |
Recommended Models
5 Models from the Same Series or Related:
| Model | Type | Dimensions (WxHxD) | Weight | Input Type | Input Voltage |
|---|---|---|---|---|---|
| IC693MDL654 | Discrete Input Module | 142 x 30 x 130 mm | 0.58 kg | 16 Inputs, Positive Logic | 24 VDC |
| IC693MDL653 | Discrete Input Module | 142 x 30 x 130 mm | 0.58 kg | 16 Inputs, Negative Logic | 24 VDC |
| IC693MDL652 | Discrete Input Module | 142 x 30 x 130 mm | 0.56 kg | 16 Inputs, Negative Logic | 24 VDC |
| IC693MDL641 | Discrete Input Module | 142 x 30 x 130 mm | 0.58 kg | 8 Inputs, Positive Logic | 24 VDC |
| IC693MDL650 | Discrete Input Module | 142 x 30 x 130 mm | 0.57 kg | 16 Inputs, Sinking | 24 VDC |
5 Popular GE Models
| Model | Type | Dimensions (WxHxD) | Weight | Input Type | Input Voltage |
|---|---|---|---|---|---|
| IC693MDL756 | Discrete Output Module | 142 x 30 x 130 mm | 0.62 kg | 16 Outputs, Sinking | 24 VDC |
| IC693MDL740 | Discrete Output Module | 142 x 30 x 130 mm | 0.61 kg | 8 Outputs, Sourcing | 24 VDC |
| IC693MDL755 | Discrete Output Module | 142 x 30 x 130 mm | 0.63 kg | 16 Outputs, Sourcing | 24 VDC |
| IC693PSA350 | Power Supply | 142 x 30 x 130 mm | 1.2 kg | – | 120/240 VAC |
| IC693CPU363 | PLC CPU Module | 142 x 30 x 130 mm | 1.8 kg | – | 24 VDC |
FAQ (Frequently Asked Questions)
Q1: What is the GE IC693MDL660 module used for?
A1: The GE IC693MDL660 module is a positive/negative logic input module used in GE 90-30 PLC systems to interface with field devices such as sensors, switches, and relays, providing digital inputs to the PLC.
Q2: What voltage does the IC693MDL660 module operate on?
A2: The module operates on a 24 VDC input signal, which is standard for many industrial automation devices.
Q3: How many inputs does the IC693MDL660 module have?
A3: The IC693MDL660 module offers 16 discrete inputs that can be configured for either positive logic (sinking) or negative logic (sourcing).
Q4: What is the operating temperature range of the IC693MDL660 module?
A4: The IC693MDL660 module operates in the temperature range of -20°C to +60°C, making it suitable for a wide range of industrial applications.
Q5: Can the module be configured for both positive and negative logic?
A5: Yes, the IC693MDL660 module supports both positive logic (sinking) and negative logic (sourcing) configurations, offering flexibility in connecting to different types of input devices.
Q6: What is the response time of the IC693MDL660 module?
A6: The module has a response time of 1ms, which ensures rapid input signal processing for high-speed applications.
Q7: Is the IC693MDL660 module UL certified?
A7: Yes, the IC693MDL660 module is certified by UL, CE, and CSA, ensuring it meets global standards for safety and performance.
Q8: How is the IC693MDL660 module mounted?
A8: The module is designed for rack mounting as part of the GE 90-30 PLC system, making it easy to integrate into existing systems.
Q9: What is the weight of the IC693MDL660 module?
A9: The module weighs approximately 0.281 kg, making it lightweight and easy to install in a PLC rack.
Q10: What type of devices can the IC693MDL660 module interface with?
A10: The module can interface with a variety of devices, including sensors, switches, push buttons, and relays, providing input signals to the PLC.
