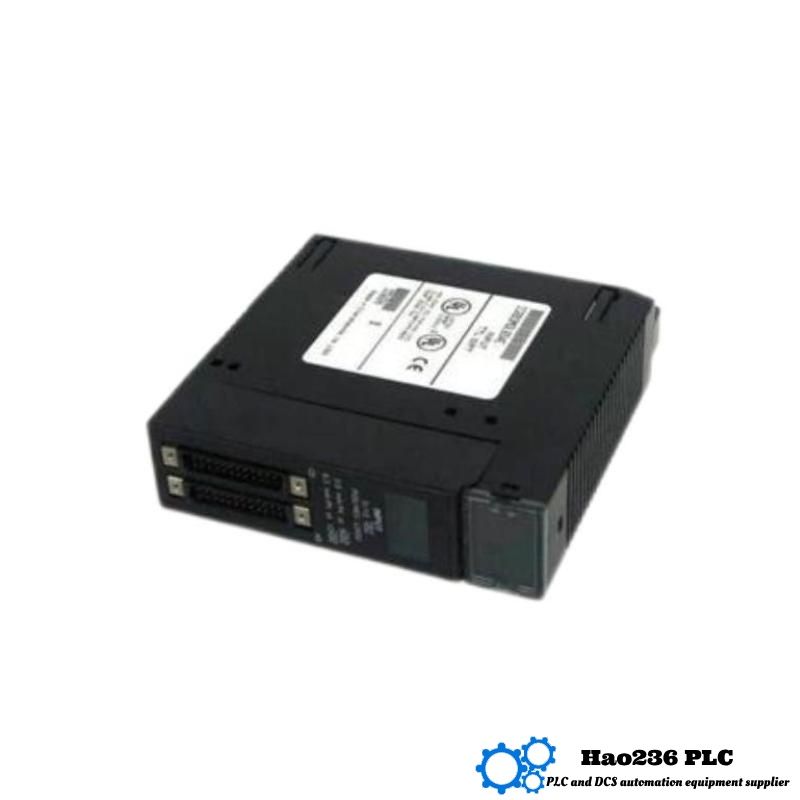

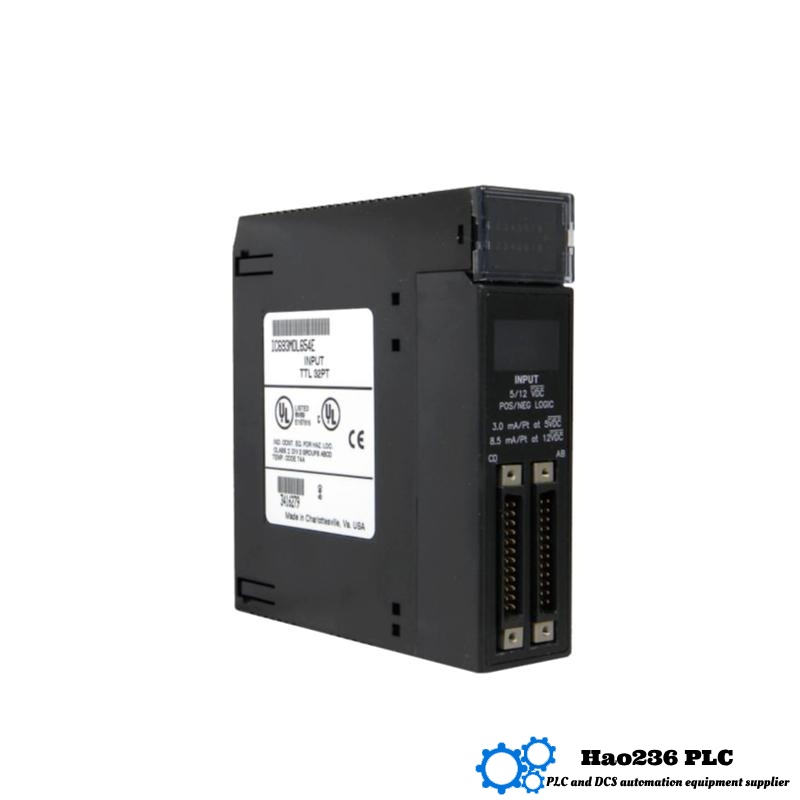

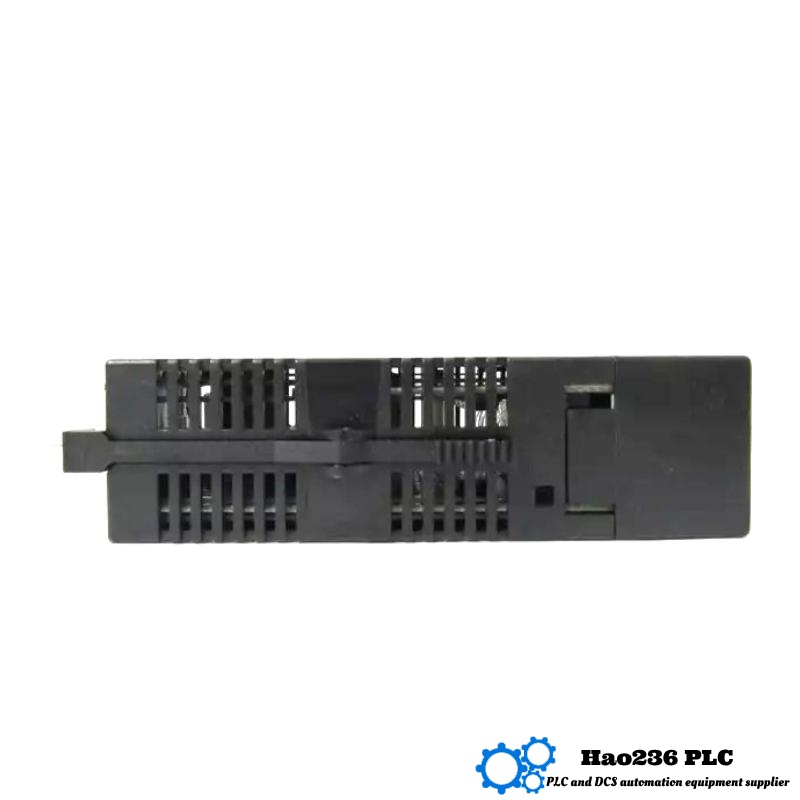

GE IC693MDL654 Positive/Negative Logic Input Module
Product Introduction
The GE IC693MDL654 is a positive/negative logic input module designed for use in the GE Fanuc 90-30 Series programmable logic controllers (PLCs). This module provides 16 discrete inputs that can be configured for either positive logic (sinking) or negative logic (sourcing) operation. The IC693MDL654 is particularly useful in industrial automation applications where flexibility in handling different types of input devices (such as sensors, switches, and relays) is essential.
The module is designed to operate reliably in harsh environments, offering flexibility and scalability for various control systems. The IC693MDL654 module is capable of accepting 24 VDC signals and features an input voltage range that is compatible with a wide range of devices.
This module is often used in industrial automation systems, including manufacturing lines, control systems, and process control environments, where reliable signal acquisition and control are critical.
Applications
The GE IC693MDL654 module is ideal for applications in industrial control and automation systems, particularly in areas where discrete digital inputs from sensors or switches need to be managed. Common applications include:
-
Automated Manufacturing: Integration of sensors and devices in automated production lines.
-
Process Control: Monitoring input signals from pressure switches, temperature sensors, and other field devices.
-
Material Handling: Managing input devices in conveyor systems and other material handling equipment.
-
Machine Control: Collecting signals from various machine states to ensure accurate operation.
-
Energy Management: Managing input signals from energy meters, control switches, and other devices in energy management systems.
Advantages
-
Flexible Logic Configuration: The IC693MDL654 offers the ability to configure input signals for either positive or negative logic, providing flexibility in handling a variety of input devices.
-
High Input Density: The module provides 16 discrete inputs, making it ideal for systems with high I/O requirements.
-
Rugged Design: Built for industrial environments, the module is designed to withstand the stresses of harsh operating conditions.
-
Wide Input Voltage Range: It accepts a 24 VDC input signal, allowing it to interface with many commonly used industrial devices.
-
Compact Size: With its compact dimensions, the module is easy to install and integrate into control panels with limited space.
-
High Reliability: The module ensures dependable operation, making it suitable for critical industrial applications where downtime is costly.
Brand Information
-
Brand: GE Fanuc (now part of Emerson)
-
Product Type: Discrete Input Module
-
Series: GE 90-30 Series
-
Application: Industrial automation and control systems
-
Certification: CE, UL, CSA
-
Functionality: Input module for discrete sensors and switches
Parameters (GE IC693MDL654)
| Parameter | Value |
|---|---|
| Module Type | Positive/Negative Logic Input Module |
| Dimensions (WxHxD) | 142 x 30 x 130 mm |
| Weight | 0.58 kg |
| Input Voltage | 24 VDC |
| Input Type | 16 Discrete Inputs |
| Input Configuration | Sinking or Sourcing |
| Operating Temperature Range | -20°C to +60°C |
| Mounting | Rack-mountable (90-30 Series) |
| Input Current | 5-10 mA per input |
| Response Time | 1ms |
| Certification | UL, CE, CSA |
Recommended Models
5 Models from the Same Series or Related:
| Model | Type | Dimensions (WxHxD) | Weight | Input Type | Input Voltage |
|---|---|---|---|---|---|
| IC693MDL653 | Discrete Input Module | 142 x 30 x 130 mm | 0.58 kg | 16 Inputs, Positive Logic | 24 VDC |
| IC693MDL652 | Discrete Input Module | 142 x 30 x 130 mm | 0.56 kg | 16 Inputs, Negative Logic | 24 VDC |
| IC693MDL641 | Discrete Input Module | 142 x 30 x 130 mm | 0.58 kg | 8 Inputs, Positive Logic | 24 VDC |
| IC693MDL650 | Discrete Input Module | 142 x 30 x 130 mm | 0.57 kg | 16 Inputs, Sinking | 24 VDC |
| IC693MDL651 | Discrete Input Module | 142 x 30 x 130 mm | 0.59 kg | 8 Inputs, Sourcing | 24 VDC |
5 Popular GE Models
| Model | Type | Dimensions (WxHxD) | Weight | Input Type | Input Voltage |
|---|---|---|---|---|---|
| IC693MDL756 | Discrete Output Module | 142 x 30 x 130 mm | 0.62 kg | 16 Outputs, Sinking | 24 VDC |
| IC693MDL740 | Discrete Output Module | 142 x 30 x 130 mm | 0.61 kg | 8 Outputs, Sourcing | 24 VDC |
| IC693MDL755 | Discrete Output Module | 142 x 30 x 130 mm | 0.63 kg | 16 Outputs, Sourcing | 24 VDC |
| IC693PSA350 | Power Supply | 142 x 30 x 130 mm | 1.2 kg | – | 120/240 VAC |
| IC693CPU363 | PLC CPU Module | 142 x 30 x 130 mm | 1.8 kg | – | 24 VDC |
FAQ (Frequently Asked Questions)
Q1: What is the GE IC693MDL654 module used for?
A1: The IC693MDL654 is a discrete input module used in GE 90-30 PLC systems to handle positive and negative logic signals from devices like sensors and switches.
Q2: What is the input voltage for the IC693MDL654 module?
A2: The module accepts 24 VDC input voltage, which is standard for many industrial automation devices.
Q3: How many inputs does the IC693MDL654 module have?
A3: The module has 16 discrete inputs, which can be configured for either positive or negative logic.
Q4: What is the operating temperature range for this module?
A4: The IC693MDL654 module can operate in environments with temperatures ranging from -20°C to +60°C.
Q5: Can the IC693MDL654 module be used in both positive and negative logic configurations?
A5: Yes, the module supports both positive logic (sinking) and negative logic (sourcing) input configurations.
Q6: What is the response time of the IC693MDL654 module?
A6: The response time for the IC693MDL654 module is 1 millisecond, providing fast signal acquisition.
Q7: Is the IC693MDL654 module UL certified?
A7: Yes, the IC693MDL654 module is certified by UL, CE, and CSA, ensuring it meets international safety standards.
Q8: How is the IC693MDL654 module mounted?
A8: The module is designed to be mounted on a rack as part of the GE 90-30 PLC system.
Q9: What is the weight of the IC693MDL654 module?
A9: The IC693MDL654 module weighs 0.58 kg, making it compact and lightweight.
Q10: Does the IC693MDL654 module support high-speed inputs?
A10: Yes, the module supports high-speed input signals, with a response time of just 1 ms.
