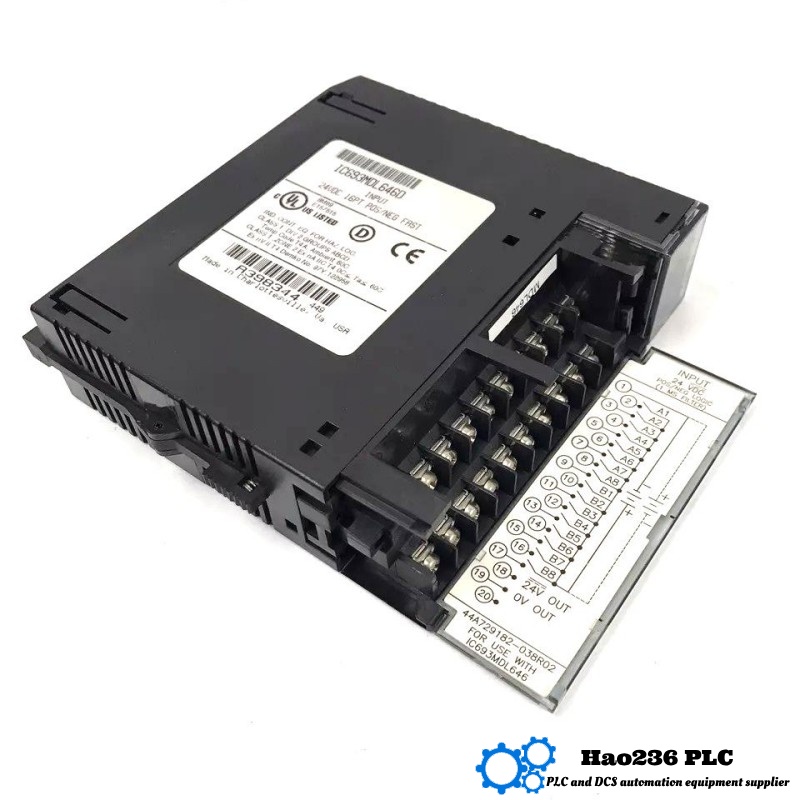

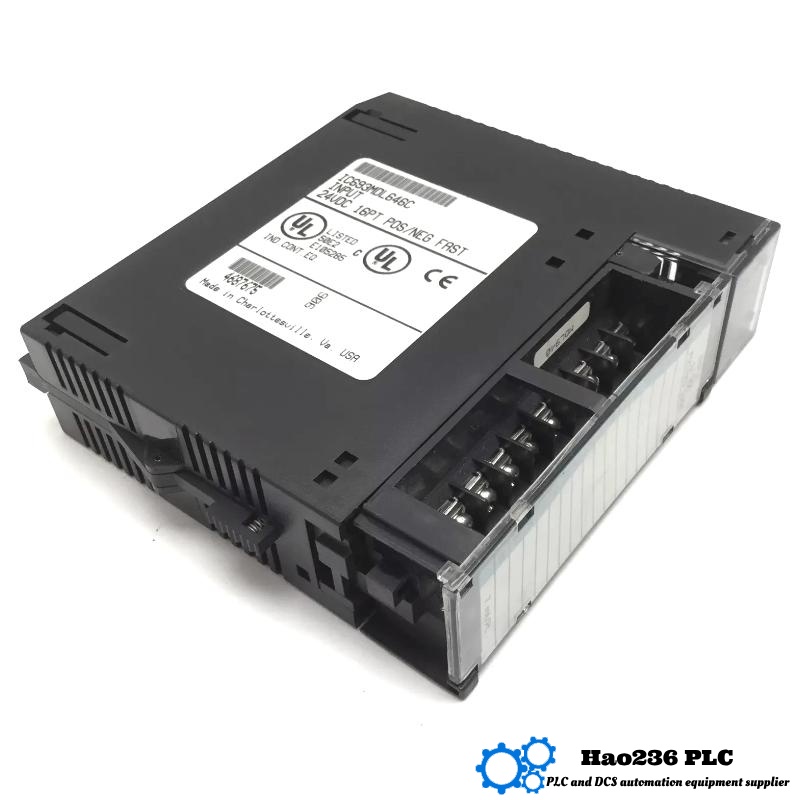

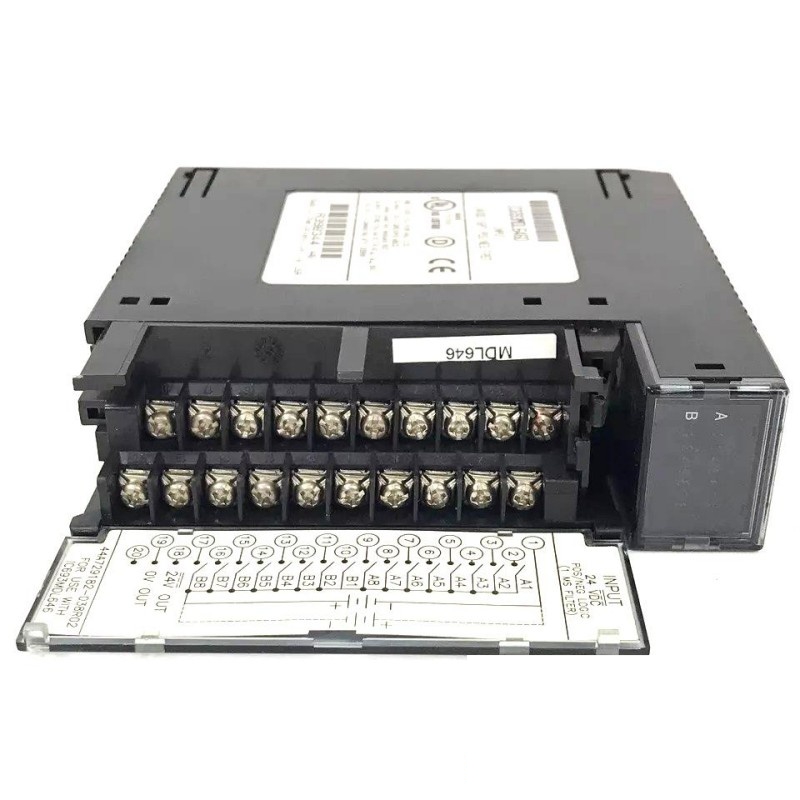

GE IC693MDL646 Positive/Negative Logic Input Module
Product Introduction
The GE IC693MDL646 is a versatile digital input module designed for the GE 90-30 Series Programmable Logic Controllers (PLCs). This module supports both sinking (negative) and sourcing (positive) logic inputs, providing broad compatibility with various input devices and sensors. It features 16 digital input channels and delivers reliable signal acquisition for industrial automation processes.
Manufactured with high-quality components, the IC693MDL646 ensures stable and noise-resistant performance in demanding environments. Its compact form factor enables easy installation in limited space control panels while maintaining excellent functionality. The module is an ideal choice for enhancing system flexibility and expanding the input capacity of the GE 90-30 PLC platform.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | IC693MDL646 |
| Module Type | Digital Input Module |
| Input Logic | Positive (sourcing) / Negative (sinking) |
| Input Channels | 16 channels |
| Input Voltage Range | 24V DC nominal |
| Input Current | 4.5 mA per channel |
| Isolation | Optical isolation |
| Dimensions (L × W × H) | 142 × 30 × 130 mm |
| Weight | 0.42 kg |
| Operating Temperature | 0°C to 60°C |
| Mounting | DIN rail or rack mount |
| Series | GE 90-30 Series |
Product Applications
The IC693MDL646 module is used in a wide range of industrial applications including:
-
Factory automation systems for monitoring switches, sensors, and control inputs
-
Process control environments requiring flexible input logic configurations
-
Packaging and material handling systems that require precise input signal monitoring
-
Manufacturing equipment status monitoring
-
Building automation for digital input detection and control
Product Advantages
-
Dual Logic Support: Handles both sinking and sourcing input devices, enhancing flexibility and compatibility with diverse industrial equipment.
-
High Channel Count: Offers 16 input channels in a single compact module, allowing extensive digital input monitoring.
-
Electrical Isolation: Optical isolation provides noise immunity and protects the PLC system from voltage spikes and surges.
-
Compact Design: Small size (142 × 30 × 130 mm) and lightweight (0.42 kg) make it easy to integrate into control panels with limited space.
-
Reliable Performance: Engineered for stable operation in harsh industrial environments with high resistance to electrical noise.
-
Seamless GE 90-30 Integration: Designed to work flawlessly with GE 90-30 PLC series for ease of installation and system expansion.
Brand Information
General Electric (GE) is an internationally recognized leader in industrial automation solutions, known for producing reliable and durable programmable logic controllers and related modules. The GE 90-30 series represents a longstanding product line respected for its performance, ease of integration, and adaptability in various industrial sectors.
Related Models in the GE 90-30 Series
| Model Number | Description | Input/Output | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC693MDL646 | Positive/Negative Logic Input | Input | 16 | 142 × 30 × 130 | 0.42 |
| IC693MDL645 | Positive/Negative Logic Input | Input | 16 | 142 × 30 × 130 | 0.42 |
| IC693MDL640 | Digital Input Module | Input | 16 | 142 × 30 × 130 | 0.40 |
| IC693MDL645F | Fast Response Input Module | Input | 16 | 142 × 30 × 130 | 0.42 |
| IC693MDL740 | 24V DC Output Module | Output | 4 | 142 × 30 × 130 | 0.36 |
Popular GE Automation Models
| Model Number | Description | Channels | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC693CPU362 | 90-30 Series CPU Module | N/A | CPU | 142 × 76 × 152 | 0.8 |
| IC693ALG220 | Analog Input Module | 8 | Analog Input | 142 × 30 × 130 | 0.3 |
| IC693MDL940 | 24V DC Output Module | 8 | Digital Output | 142 × 30 × 130 | 0.35 |
| IC693APU300 | Programming Unit | N/A | Programming Tool | 216 × 127 × 64 | 1.2 |
| IC693PWR330 | Power Supply Module | N/A | Power Supply | 142 × 30 × 130 | 0.9 |
Frequently Asked Questions (FAQs)
Q1: What type of logic inputs does the IC693MDL646 support?
A1: It supports both positive (sourcing) and negative (sinking) logic inputs.
Q2: How many input channels are available on this module?
A2: The module has 16 digital input channels.
Q3: What is the nominal input voltage required?
A3: The nominal input voltage is 24V DC.
Q4: Is this module compatible with the GE 90-30 PLC series?
A4: Yes, it is fully compatible with the GE 90-30 Series.
Q5: What are the physical dimensions and weight of the IC693MDL646?
A5: The dimensions are 142 × 30 × 130 mm and the weight is 0.42 kg.
Q6: Does the module provide electrical isolation?
A6: Yes, it uses optical isolation for noise immunity and protection.
Q7: Can this module be mounted on DIN rails?
A7: Yes, it supports both DIN rail and rack mounting.
Q8: What industrial environments is this module suitable for?
A8: It is suitable for manufacturing, process control, material handling, and building automation.
Q9: What is the operating temperature range?
A9: It operates reliably from 0°C to 60°C.
Q10: How does the module protect against electrical noise?
A10: The optical isolation and rugged design ensure excellent noise immunity.
