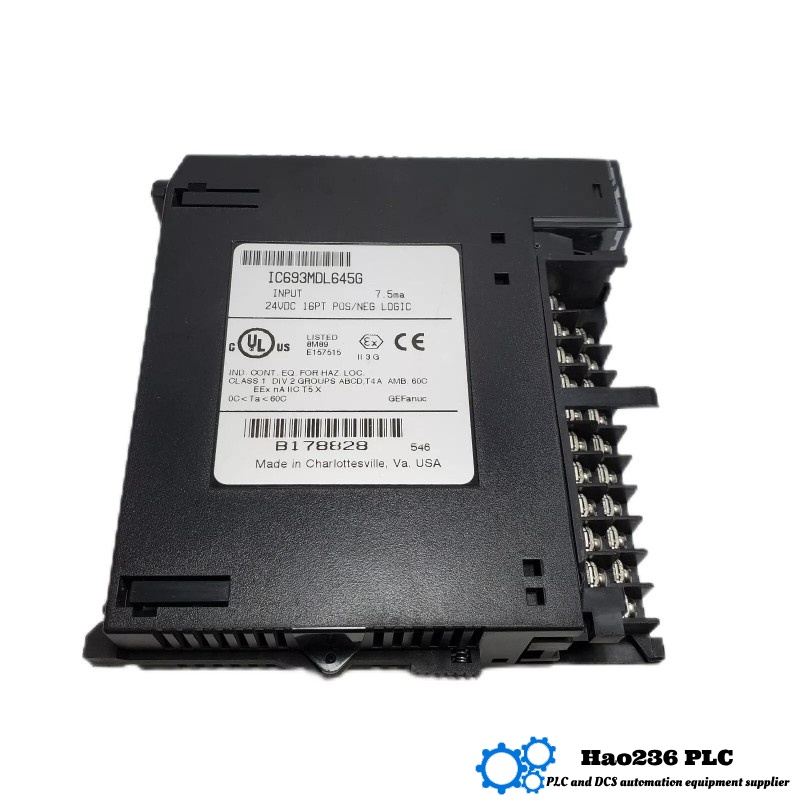

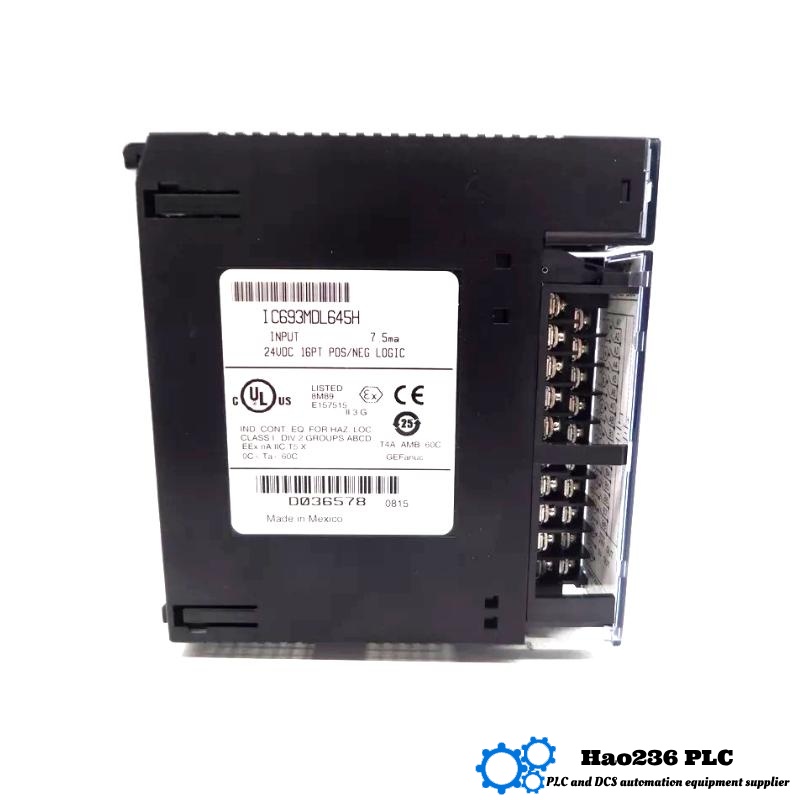

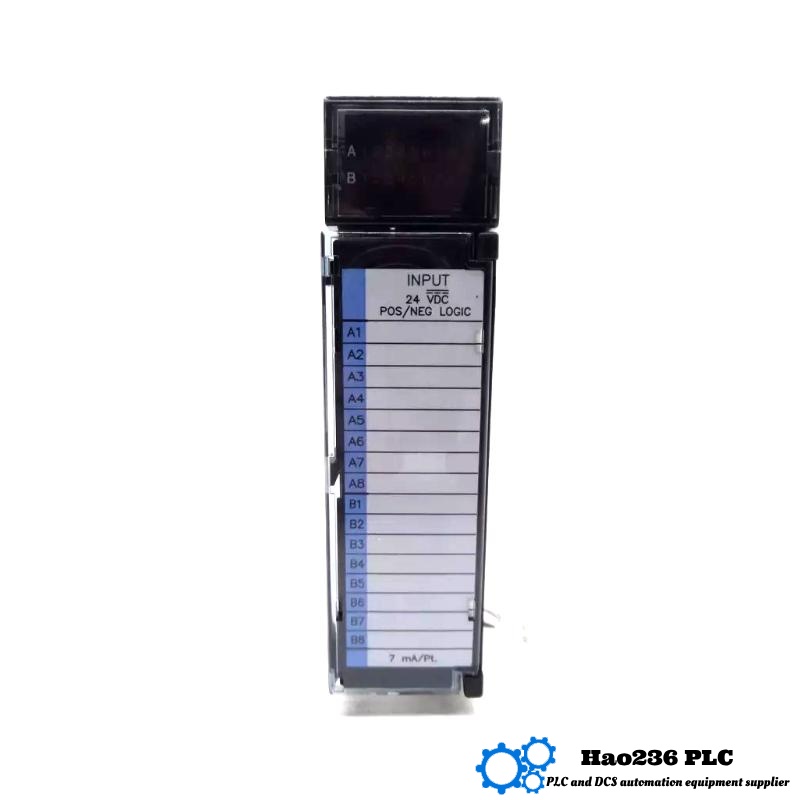

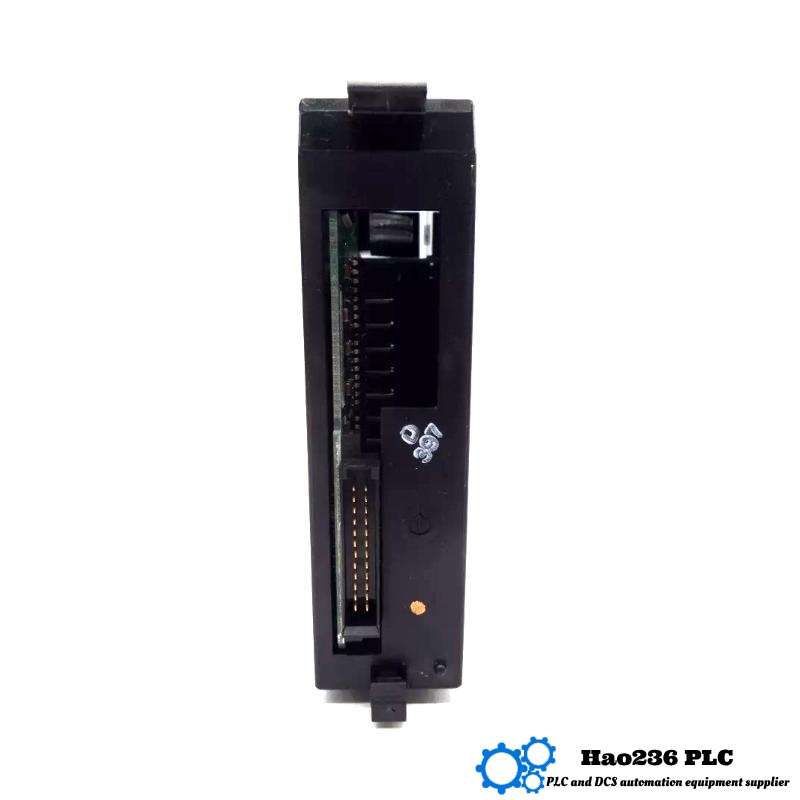

GE IC693MDL645 Positive/Negative Logic Input Module
Product Introduction
The GE IC693MDL645 is a versatile digital input module designed for the GE 90-30 Series Programmable Logic Controllers (PLCs). This module supports both positive and negative logic input signals, making it highly adaptable for diverse industrial applications. With 16 input channels, it provides efficient and reliable signal acquisition from various sensors and switches. The module is engineered for robust performance in harsh industrial environments, offering excellent noise immunity and stable operation.
Its design ensures easy integration within the GE 90-30 PLC ecosystem, enabling system expansion and enhancing control capabilities. The IC693MDL645 is widely used for monitoring and control tasks in manufacturing, automation, and process industries.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | IC693MDL645 |
| Module Type | Digital Input Module |
| Input Logic | Positive/Negative |
| Input Channels | 16 channels |
| Input Voltage Range | 24V DC nominal |
| Input Current | 4.5 mA per channel |
| Isolation | Optical isolation |
| Dimensions (L × W × H) | 142 × 30 × 130 mm |
| Weight | 0.42 kg |
| Operating Temperature | 0°C to 60°C |
| Mounting | DIN rail or rack mount |
| Series | GE 90-30 Series |
Product Applications
The IC693MDL645 module is commonly applied in:
-
Industrial automation for signal acquisition from various sensors and switches
-
Manufacturing lines for monitoring machine status and inputs
-
Process control systems where dual logic input compatibility is required
-
Material handling systems for feedback from conveyors and detectors
-
Building automation systems for digital input monitoring
Product Advantages
-
Dual Logic Support: Accepts both positive and negative logic inputs, providing greater flexibility in system design and compatibility.
-
High Channel Density: 16 digital inputs allow extensive monitoring capability from a single module.
-
Robust Isolation: Optical isolation ensures electrical noise immunity and protection for sensitive PLC components.
-
Compact and Lightweight: Measures 142 × 30 × 130 mm and weighs only 0.42 kg, saving valuable panel space.
-
Seamless GE 90-30 Integration: Designed specifically for GE 90-30 Series, ensuring plug-and-play compatibility.
-
Reliable Industrial Performance: Suitable for harsh environments with stable operation and resistance to common electrical disturbances.
Brand Information
General Electric (GE) is a global leader in industrial automation and control solutions. The 90-30 Series PLCs and modules represent a legacy of high-quality, reliable control hardware used extensively in manufacturing, process, and infrastructure industries. GE products are known for their robustness, versatility, and long service life.
Related Models in the GE 90-30 Series
| Model Number | Description | Input/Output | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC693MDL645 | Positive/Negative Logic Input | Input | 16 | 142 × 30 × 130 | 0.42 |
| IC693MDL640 | Digital Input Module | Input | 16 | 142 × 30 × 130 | 0.40 |
| IC693MDL645F | Fast Response Input Module | Input | 16 | 142 × 30 × 130 | 0.42 |
| IC693MDL646 | Sinking/Sourcing Input Module | Input | 16 | 142 × 30 × 130 | 0.43 |
| IC693MDL740 | 24V DC Output Module | Output | 4 | 142 × 30 × 130 | 0.36 |
Popular GE Automation Models
| Model Number | Description | Channels | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC693CPU362 | 90-30 Series CPU Module | N/A | CPU | 142 × 76 × 152 | 0.8 |
| IC693ALG220 | Analog Input Module | 8 | Analog Input | 142 × 30 × 130 | 0.3 |
| IC693MDL940 | 24V DC Output Module | 8 | Digital Output | 142 × 30 × 130 | 0.35 |
| IC693APU300 | Programming Unit | N/A | Programming Tool | 216 × 127 × 64 | 1.2 |
| IC693PWR330 | Power Supply Module | N/A | Power Supply | 142 × 30 × 130 | 0.9 |
Frequently Asked Questions (FAQs)
Q1: What type of input logic does the IC693MDL645 support?
A1: It supports both positive and negative logic inputs, allowing for flexible connection options.
Q2: How many input channels does this module provide?
A2: The module provides 16 digital input channels.
Q3: What is the nominal input voltage for this module?
A3: The nominal input voltage is 24V DC.
Q4: Is the IC693MDL645 compatible with all GE 90-30 PLC models?
A4: Yes, it is designed to be fully compatible with the GE 90-30 Series.
Q5: What are the physical dimensions and weight of this module?
A5: It measures 142 × 30 × 130 mm and weighs approximately 0.42 kg.
Q6: Does this module provide electrical isolation?
A6: Yes, it features optical isolation on its inputs for noise immunity and protection.
Q7: What is the typical operating temperature range for this module?
A7: It operates reliably between 0°C and 60°C.
Q8: Can this module be mounted on a DIN rail?
A8: Yes, it supports both DIN rail and rack mounting options.
Q9: What industries commonly use the IC693MDL645?
A9: It is widely used in manufacturing, process control, material handling, and building automation.
Q10: How does the module handle signal noise in industrial environments?
A10: Optical isolation and robust design provide excellent noise immunity, ensuring signal integrity.
