Product Overview

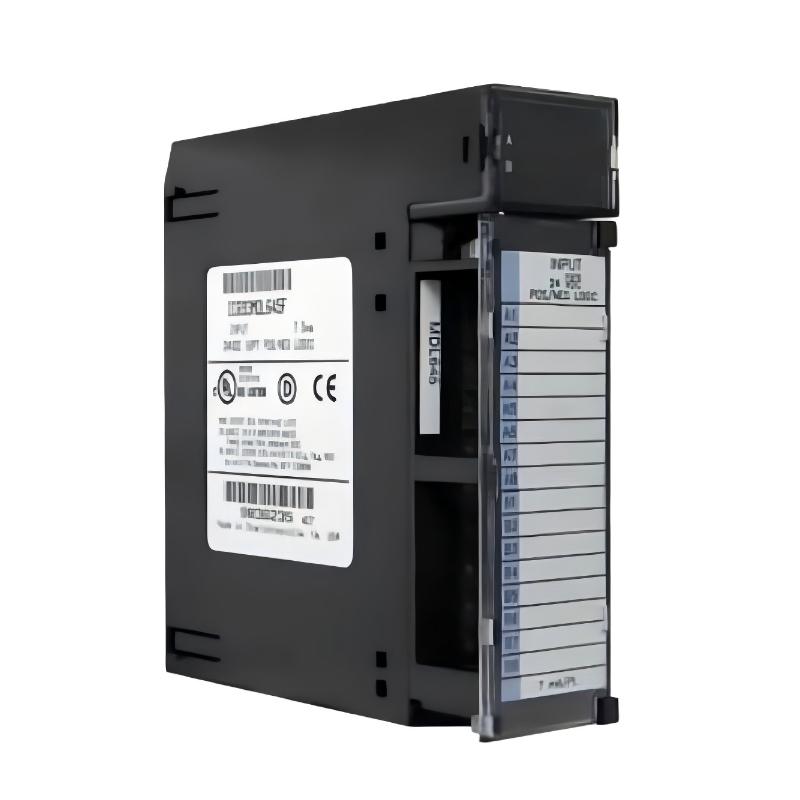

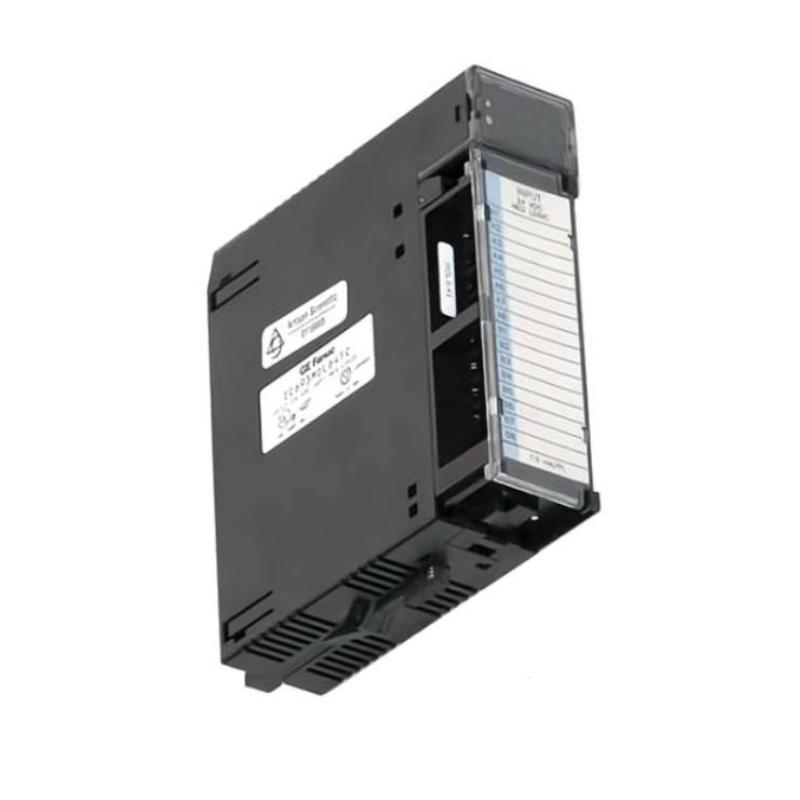

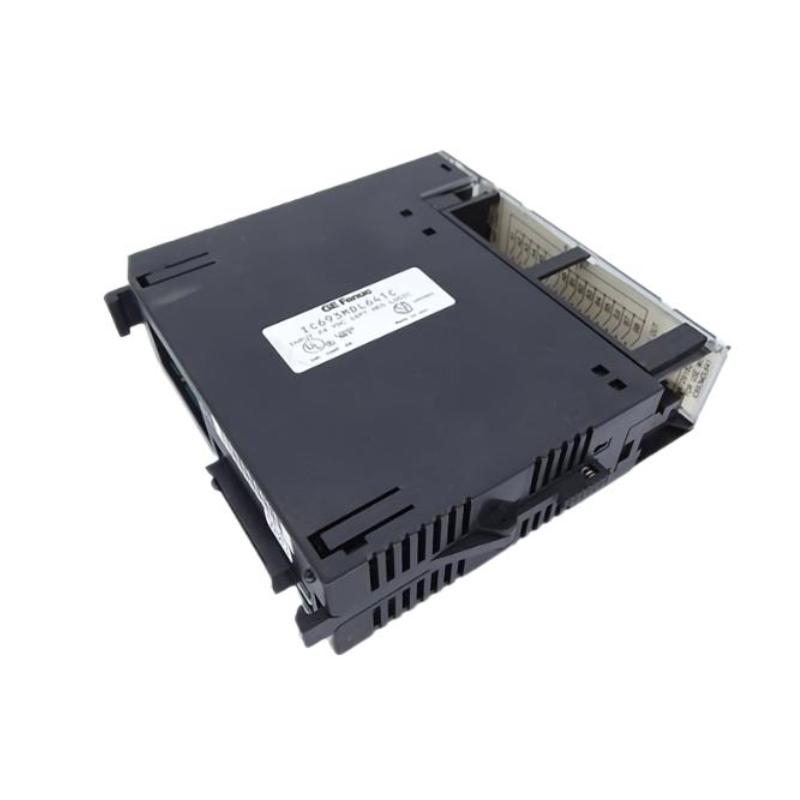

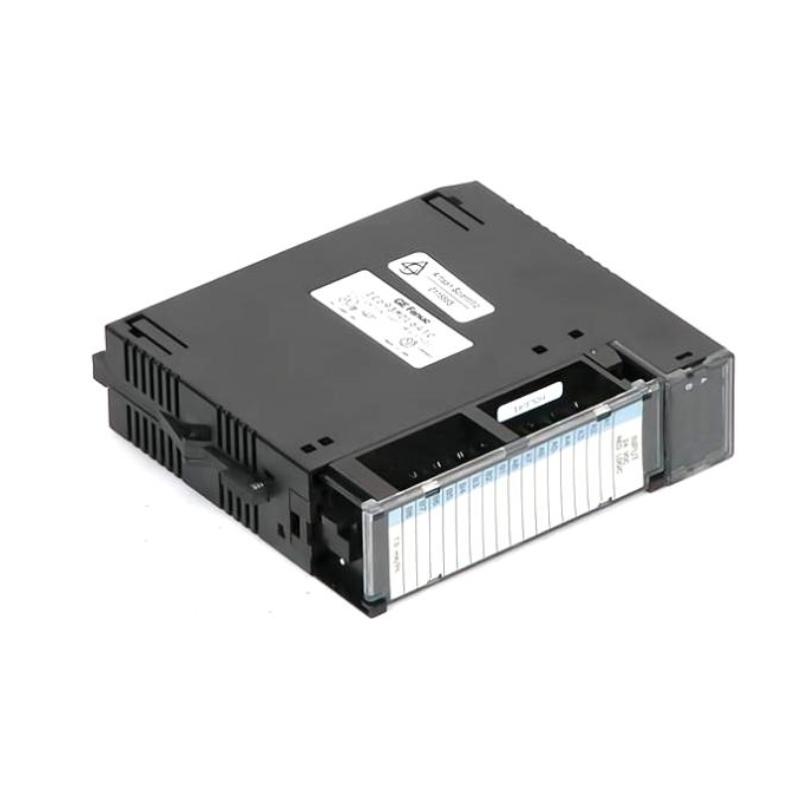

The GE IC693MDL641 Positive/Negative Logic Input Module is a DC digital input module designed for GE Series 90-30 PLC systems. It is used to acquire field signals from industrial devices such as sensors, switches, and contactors, converting them into PLC-readable digital signals.
This module supports both positive (sourcing) and negative (sinking) logic, making it suitable for flexible wiring configurations in industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693MDL641 |
| Product Type | Positive/Negative Logic Input Module |
| System Compatibility | GE Series 90-30 PLC |
| Slot Requirement | 1 slot |
| Input Type | DC digital input |
| Logic Type | Positive / Negative logic support |
| Number of Inputs | 16 channels |
| Input Grouping | 2 groups (8 inputs per group) |
| Rated Voltage | 24 VDC |
| Input Voltage Range | 0–30 VDC |
| On-State Voltage | 15–30 VDC |
| Off-State Voltage | 0–5 VDC |
| Input Current | ~4 mA per channel |
| Isolation | Field-to-backplane isolation |
| Response Time | ~7 ms typical |
| Indicators | LED status per channel |
| Communication | PLC backplane communication |
| Mounting Type | Rack-mounted |
| Material | Industrial-grade electronic module |
| Dimensions | 130 × 35 × 125 mm |
| Weight | 0.322 kg |
| Operating Environment | Industrial automation systems |
| Temperature Range | 0°C to 60°C |
Function and Working Principle
The IC693MDL641 functions as a flexible DC input acquisition module within a PLC system.
Its working principle includes:
- Receiving DC signals from field devices such as switches and sensors
- Supporting both positive and negative logic wiring configurations
- Converting electrical signals into PLC digital input data
- Transmitting real-time status to the PLC CPU via backplane communication
- Providing electrical isolation between field devices and control system
This ensures stable and reliable signal detection even in mixed wiring environments.
Role in Industrial Control Systems
Within GE Series 90-30 PLC architectures, the IC693MDL641 performs key input monitoring functions:
- Collects real-time status signals from field devices
- Supports flexible wiring configurations (sourcing/sinking)
- Improves system compatibility with different industrial devices
- Ensures safe electrical isolation between field and control circuits
- Enhances overall system flexibility and reliability
Industrial Applications
The GE IC693MDL641 is widely used in:
- Industrial automation systems
- Manufacturing production lines
- Machine control systems
- Process monitoring systems
- Material handling systems
- Power and utility control systems
Installation and System Integration
Recommended installation practices include:
- Installing in GE Series 90-30 PLC racks
- Configuring correct logic type before wiring
- Ensuring proper DC voltage matching (typically 24 VDC systems)
- Maintaining correct grounding and shielding
- Verifying input grouping connections during setup
Proper configuration ensures accurate and stable signal acquisition.
Compatible System Components
The IC693MDL641 typically works with:
- GE Series 90-30 CPU modules (IC693CPU series)
- Digital output modules
- Analog I/O modules
- Power supply modules
- Industrial sensors and switches
- Control panels and automation systems
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC693MDL641 | Input Module | 16-point dual logic DC input | Flexible automation systems |
| IC693MDL640 | Input Module | Positive logic input | Standard DC systems |
| IC693MDL632 | Input Module | High-voltage logic input | Industrial monitoring |
| IC693MDL260 | Input Module | 32-channel AC input | High-density applications |
| IC693MDL645 | Input Module | Standard DC input | General automation |
Key Advantages
- Supports both positive and negative logic
- Flexible DC input configuration
- Strong electrical isolation design
- Reliable 16-channel input structure
- LED indicators for easy diagnostics
- Suitable for mixed industrial wiring environments
Technical FAQs
What is the main function of IC693MDL641?
It collects DC input signals and sends them to the PLC system.
What makes this module flexible?
It supports both sourcing and sinking logic configurations.
How many inputs does it have?
It provides 16 input channels.
What voltage does it support?
It operates at 24 VDC nominal input.
Conclusion
The GE IC693MDL641 Positive/Negative Logic Input Module is a flexible and reliable DC input solution for GE Series 90-30 PLC systems. With dual-logic support and stable 16-channel design, it is ideal for industrial environments requiring adaptable wiring and efficient signal acquisition.
For engineers and system integrators, it provides a practical and stable solution for industrial automation applications.
