1. Product Overview

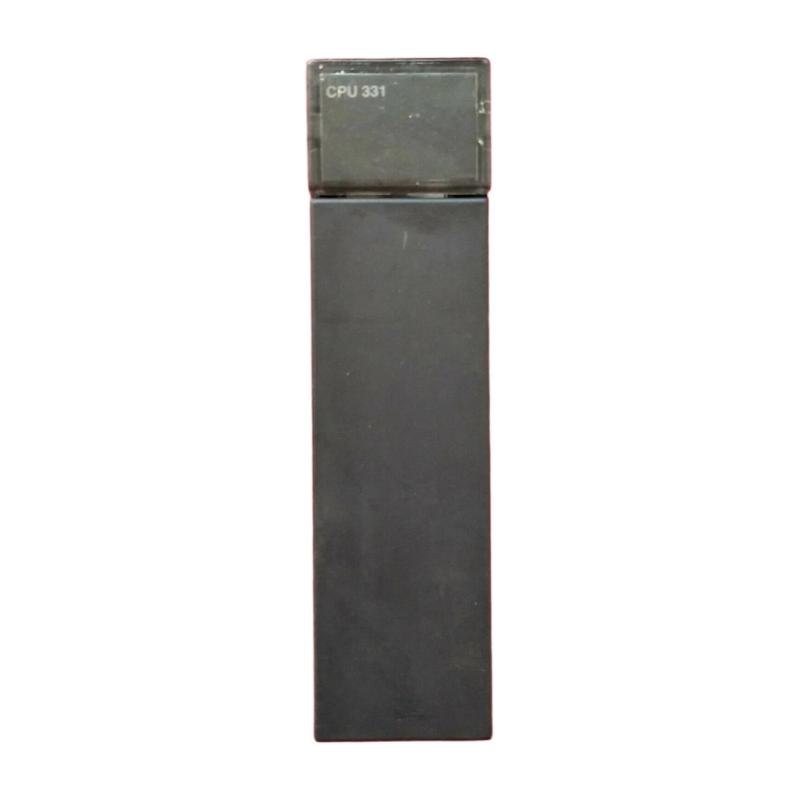

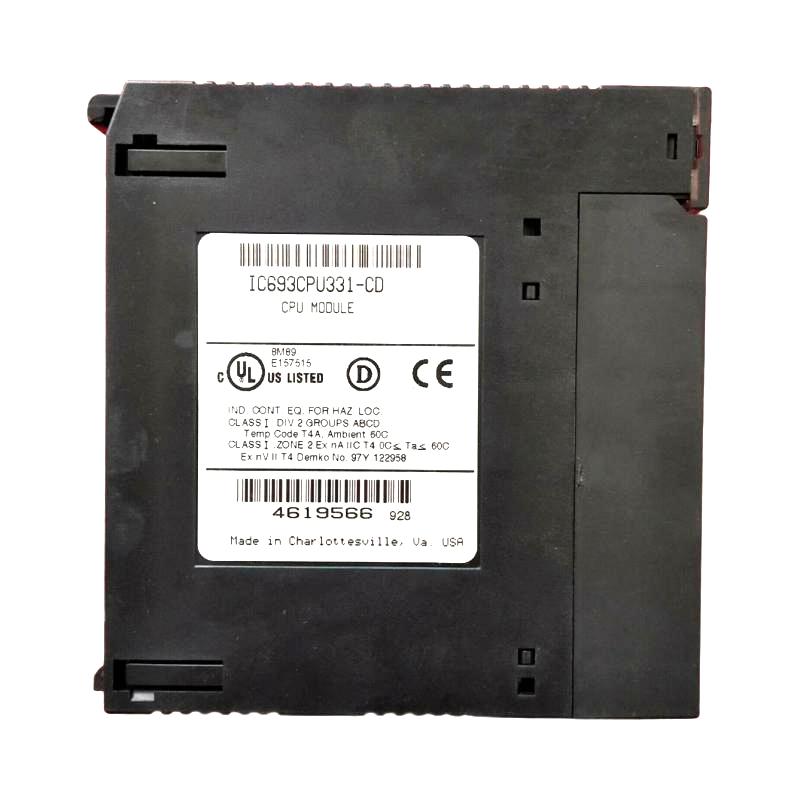

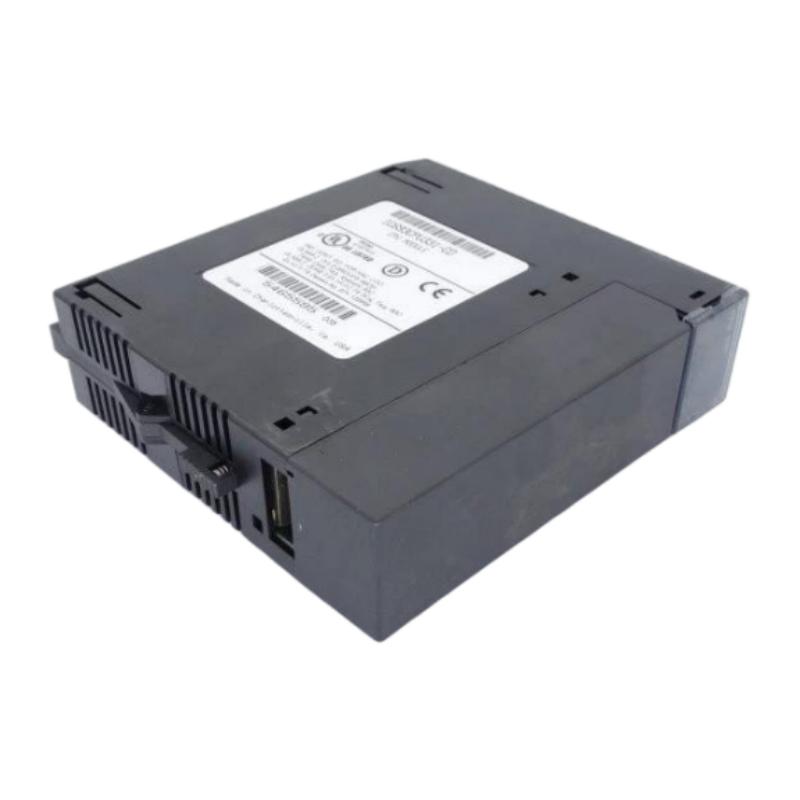

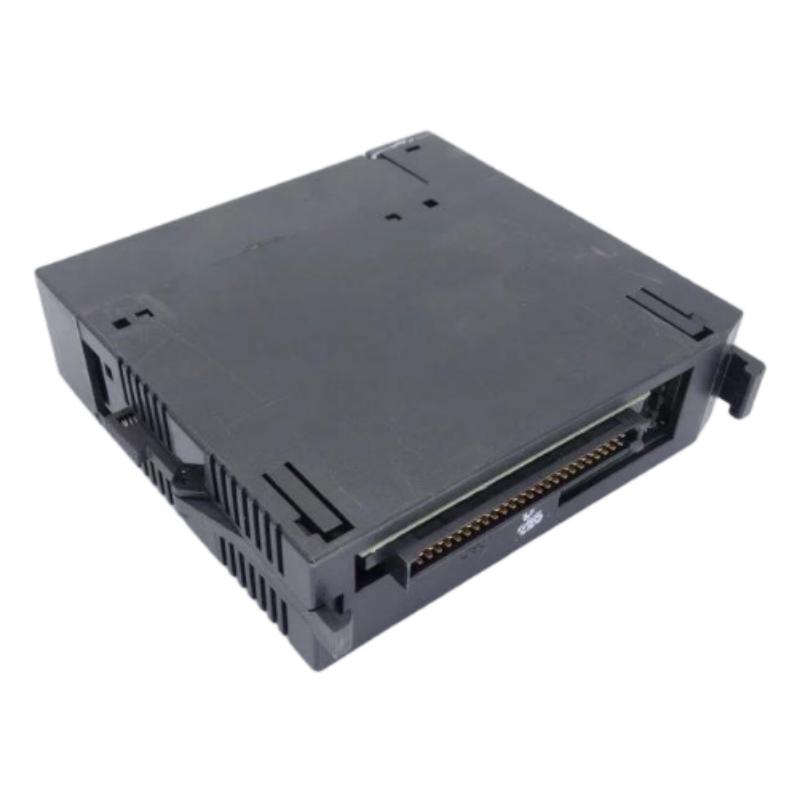

The GE IC693CPU331-CD Single-Slot CPU Module is a programmable logic controller (PLC) central processing unit designed for industrial automation and machine control applications. It belongs to the GE Fanuc Series 90-30 PLC family, a platform widely used in manufacturing, equipment control, process monitoring, and industrial system maintenance.

As the central processing component of a PLC system, the IC693CPU331-CD executes the user program, processes input data, updates output states, and coordinates control activities between connected modules and field devices. Its performance and reliability directly influence the responsiveness and stability of the automation system.

The single-slot design allows the CPU to occupy a designated position within a compatible Series 90-30 rack configuration. This arrangement supports modular system architecture, allowing users to combine the processor with appropriate power supply, digital I/O, analog I/O, and communication modules according to application requirements.

The IC693CPU331-CD is relevant to industrial facilities maintaining existing GE Fanuc control systems. When replacing a failed processor or servicing an established PLC installation, engineers should confirm the complete catalog number, hardware revision, firmware requirements, memory configuration, and compatibility with the existing rack and application program.

Its compact dimensions of 130 × 33 × 119 mm and weight of 0.41 kg make it suitable for installation in industrial control cabinets where available space and reliable system organization are important considerations.

2. Technical Specifications

Note: Electrical ratings, memory capacity, communication functions, and firmware details should be checked against the exact IC693CPU331-CD product documentation before installation or replacement. Specifications for related Series 90-30 CPUs should not automatically be applied to this model.

3. Function and Working Principle

The GE IC693CPU331-CD CPU module acts as the processing center of a PLC-based automation system. It executes programmed control logic and coordinates the exchange of information between input modules, output modules, and other supported system components.

PLC Program Execution

The CPU processes the user-developed control program according to the configured execution cycle. Depending on the application, this program may include logic operations, sequencing, interlocking, timing, counting, and other control functions.

For example, in an automated production machine, the CPU can evaluate sensor signals, determine whether operating conditions are satisfied, and command an output module to activate a motor starter or other control device.

Input Data Processing

Input modules collect electrical signals from connected field devices, such as limit switches, proximity sensors, push buttons, and process instruments. The CPU uses the resulting input data to evaluate program conditions and determine the appropriate control response.

Accurate input processing is essential for maintaining predictable machine behavior and implementing control interlocks.

Output Control

After evaluating the program, the CPU updates the required output states through the corresponding output modules. These outputs may control relays, solenoid valves, indicator lights, contactors, and other devices, depending on the system design.

The CPU does not replace the function of individual I/O modules. Instead, it coordinates their operation as part of the complete PLC system.

Data Handling and System Coordination

The processor manages internal program data and coordinates supported communication and diagnostic activities. Its capabilities depend on the exact hardware revision, installed firmware, and connected modules.

Correct configuration is important for ensuring that the CPU, I/O modules, and engineering tools operate together as intended.

4. Role in Industrial Control Systems

The IC693CPU331-CD plays a central role in coordinating automation equipment and maintaining consistent control logic.

Centralized control processing: It executes the application program that determines how the machine or process responds to input conditions.

Coordination of I/O modules: It processes information from compatible input modules and updates output states to control connected equipment.

Sequence management: It supports programmed operating sequences, including start-up conditions, interlocks, production stages, and shutdown logic.

Process monitoring: When supported by the application and connected modules, the CPU can participate in collecting equipment status and process information for operator monitoring.

System maintenance: For facilities operating established Series 90-30 PLC installations, the CPU is an important component to identify when diagnosing processor faults, maintaining spare-parts inventory, or planning equipment replacement.

A correctly selected CPU helps preserve the intended control architecture. However, processor replacement alone does not guarantee that an existing system will operate correctly. The application program, hardware configuration, I/O addressing, firmware requirements, and peripheral connections must also be considered.

5. Industrial Applications

Manufacturing and Assembly Lines

The IC693CPU331-CD can serve as the control processor in compatible manufacturing equipment. Programmed logic can coordinate workpiece detection, machine sequencing, station interlocks, and production-cycle operations.

Packaging Machinery

In packaging equipment, a PLC CPU may coordinate product detection, conveyor movement, machine timing, and actuator commands. The specific functions available depend on the application program and installed I/O modules.

Material Handling Systems

Conveyors, transfer stations, and automated handling equipment often require coordinated responses to sensors and motor-control circuits. A compatible CPU can execute the logic that determines equipment movement and sequencing.

Industrial Process Equipment

In process-related applications, the processor can evaluate discrete signals and supported analog data to coordinate valves, pumps, alarms, and other control functions. Field instruments and I/O modules must be selected to match the required signal types and electrical characteristics.

Equipment Maintenance and Retrofit Projects

The IC693CPU331-CD may be relevant when servicing an existing Series 90-30 control system. Before replacing an installed CPU, maintenance personnel should document the current configuration and preserve the original application program whenever possible.

Legacy Automation Systems

Industrial plants may continue operating established PLC platforms because the controlled equipment remains productive and a complete modernization would require substantial engineering work. Identifying the exact CPU model helps maintenance teams assess spare-part requirements and plan future upgrades.

6. Installation and System Integration

Correct installation of the GE IC693CPU331-CD requires attention to hardware identification, rack compatibility, application configuration, and commissioning procedures.

Step 1: Verify the Model Number

Check the complete catalog number, including the “-CD” suffix. Similar Series 90-30 CPU models may differ in hardware capabilities, memory, firmware, or supported configuration options.

Confirm the product label and inspect the module for physical damage before installation.

Step 2: Confirm Rack and Power Compatibility

Verify that the existing Series 90-30 rack, backplane, power supply, and installation arrangement support the selected CPU. Do not assume that every module within the same PLC family can be interchanged without restrictions.

Review the rack configuration and applicable hardware requirements before removing the existing processor.

Step 3: Back Up the Existing Program

Before replacing a functioning CPU, preserve the application program, hardware configuration, relevant settings, and available diagnostic information.

Where practical, record I/O assignments, communication parameters, controller status, and any special configuration requirements. Confirm that the backup can be restored using the intended programming tools.

Step 4: Isolate Power and Install the Module

Follow the plant’s lockout/tagout procedures and the equipment manufacturer’s safety instructions. Isolate the relevant power sources before removing or installing the CPU.

Insert the module into the designated compatible rack position and secure it according to the applicable installation instructions. Avoid touching exposed electrical contacts and use appropriate electrostatic-discharge precautions.

Step 5: Restore the Configuration

After installation, restore or verify the required program and system configuration using a compatible engineering environment. Check that the installed CPU revision and firmware can support the intended program and connected hardware.

If the CPU is replacing a different model, confirm that the program, memory requirements, and hardware configuration are compatible before attempting to start the process.

Step 6: Perform Commissioning Checks

After confirming the installation and configuration, restore power according to the approved procedure. Review CPU status indicators, diagnostic messages, and communication status where applicable.

Test the system in a controlled condition before returning equipment to normal production. Verify critical interlocks, input responses, output actions, alarm behavior, and safe shutdown functions.

Step 7: Document the Maintenance Work

Record the installed model, available hardware revision information, configuration changes, test results, and any outstanding issues. Keeping accurate records makes future troubleshooting and spare-parts selection more efficient.

Important: CPU replacement can affect machine operation and process safety. Work should be performed by qualified personnel using approved procedures. Never bypass safety interlocks or force outputs without a documented and controlled test plan.

7. Compatible System Components

The IC693CPU331-CD is intended for use within an appropriate Series 90-30 PLC configuration. Actual compatibility depends on the CPU revision, rack arrangement, firmware, and module-specific requirements.

This table describes general component categories rather than a guaranteed bill of materials. Confirm each module’s compatibility before ordering or integrating it into an operating control system.

8. Recommended Alternative Models

When the IC693CPU331-CD is unavailable, alternative selection should be based on functional requirements rather than physical appearance or family name alone.

Replacement recommendation: The IC693CPU331 and other related CPU models should not be treated as automatic substitutes for the IC693CPU331-CD. Before purchasing an alternative, verify the full catalog number, hardware revision, memory requirements, programming-tool support, system configuration, and application compatibility.

For critical production equipment, conduct a documented compatibility review and functional test before returning the system to service.

9. Key Advantages

Compact Single-Slot Design

The module’s single-slot format supports a modular rack-based control arrangement. Its specified dimensions of 130 × 33 × 119 mm and weight of 0.41 kg are useful for maintenance planning and cabinet-space assessment.

Centralized Program Execution

The CPU coordinates the PLC program and connects input information with programmed output actions, supporting the structured implementation of machine and process logic.

Modular System Integration

Within a compatible Series 90-30 installation, the processor can operate alongside suitable power, I/O, and communication components. This modular approach allows the system to be configured around the requirements of the controlled equipment.

Support for Existing Automation Infrastructure

For plants maintaining established Series 90-30 systems, identifying and sourcing the correct CPU can help reduce unnecessary changes to the existing control architecture.

Practical Maintenance Identification

The complete catalog number provides a key reference for spare-parts management, troubleshooting, replacement assessment, and technical documentation.

Flexible Application Programming

The processor executes the control logic developed for the specific machine or process. Its actual functionality depends on the supported instruction set, hardware configuration, firmware, and application design.

10. Technical FAQs

Q1: What is the GE IC693CPU331-CD?

The GE IC693CPU331-CD is identified as a single-slot CPU module for the GE Fanuc Series 90-30 PLC family. It serves as the central processing component that executes the control program and coordinates supported I/O and system operations.

Q2: What are the dimensions and weight of the IC693CPU331-CD?

The supplied product specifications list dimensions of 130 × 33 × 119 mm and a weight of 0.41 kg. Confirm mounting clearances and handling requirements against the actual unit and installation documentation.

Q3: Can the IC693CPU331-CD replace another Series 90-30 CPU?

Not automatically. Replacement suitability depends on the exact model, hardware revision, firmware, memory requirements, program compatibility, rack configuration, and supported modules. Compare the complete specifications before making a substitution.

Q4: Does the CPU directly connect to sensors and actuators?

Normally, field sensors and actuators connect through the appropriate input and output modules or supported interface hardware. The CPU processes the resulting data and coordinates programmed control actions.

Q5: What should be checked if the CPU does not start normally?

Begin by following the approved diagnostic procedure. Check the installed model, rack and power-supply compatibility, module seating, status indicators, available fault information, and configuration. Isolate power before inspecting or reseating hardware, and avoid changing the application program until the fault has been assessed.

Q6: Is the IC693CPU331-CD suitable for new automation projects?

Its suitability depends on the project’s technical requirements, engineering tools, support expectations, and lifecycle strategy. For an existing Series 90-30 installation, maintaining the correct CPU may be appropriate. For a new system, compare the legacy platform with currently supported alternatives and assess migration costs.

Q7: What information should be collected before ordering a replacement?

Record the full catalog number, suffix, available hardware revision information, installed rack and power-supply models, firmware details where available, application-program requirements, and relevant I/O or communication configuration. Clear label photographs can also help reduce ordering errors.

Q8: Can the CPU be replaced without modifying the PLC program?

A replacement with an equivalent and fully compatible unit may allow the existing program to be retained, but this must be verified. Hardware differences, configuration changes, firmware requirements, or program-storage issues may require additional engineering work.

Q9: How can maintenance teams reduce CPU-related downtime?

Maintain an accurate hardware inventory, preserve verified program backups, document system configurations, review diagnostic information, and establish a tested replacement procedure. Keep only properly identified and technically verified spare parts for critical applications.

11. Conclusion

The GE IC693CPU331-CD Single-Slot CPU Module is a central processing component for compatible GE Fanuc Series 90-30 PLC systems. It executes programmed logic, processes input information, coordinates output operations, and supports the control architecture of industrial machinery and equipment.

With supplied dimensions of 130 × 33 × 119 mm and a weight of 0.41 kg, the module can be identified for spare-parts planning, maintenance, and replacement assessment. Successful integration depends on more than physical fit: engineers must also verify the rack configuration, power requirements, firmware, application program, and compatibility of connected modules.

For industrial maintenance teams and automation spare-parts buyers, confirming the complete IC693CPU331-CD catalog number and relevant system details is an important step toward selecting the correct component and maintaining reliable PLC operation.
